Wilwood Proportioning Valve Assembly Lever Type

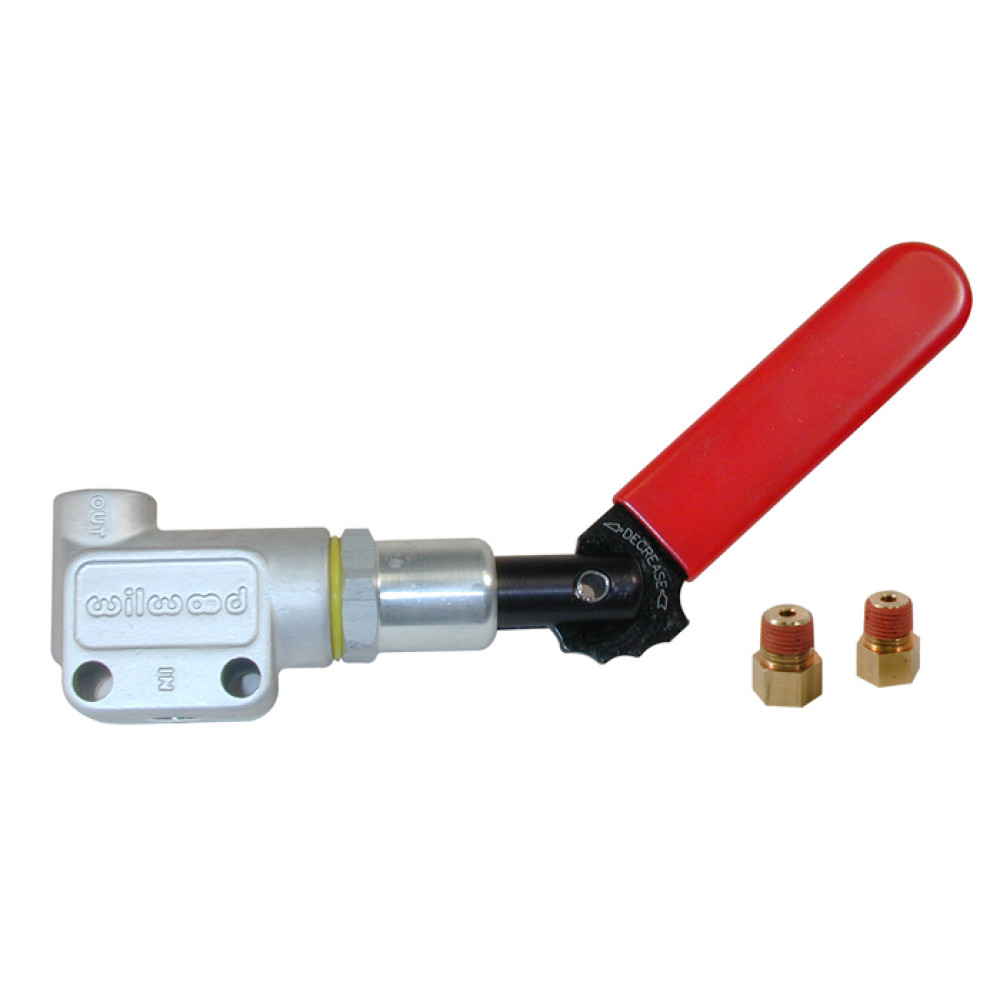

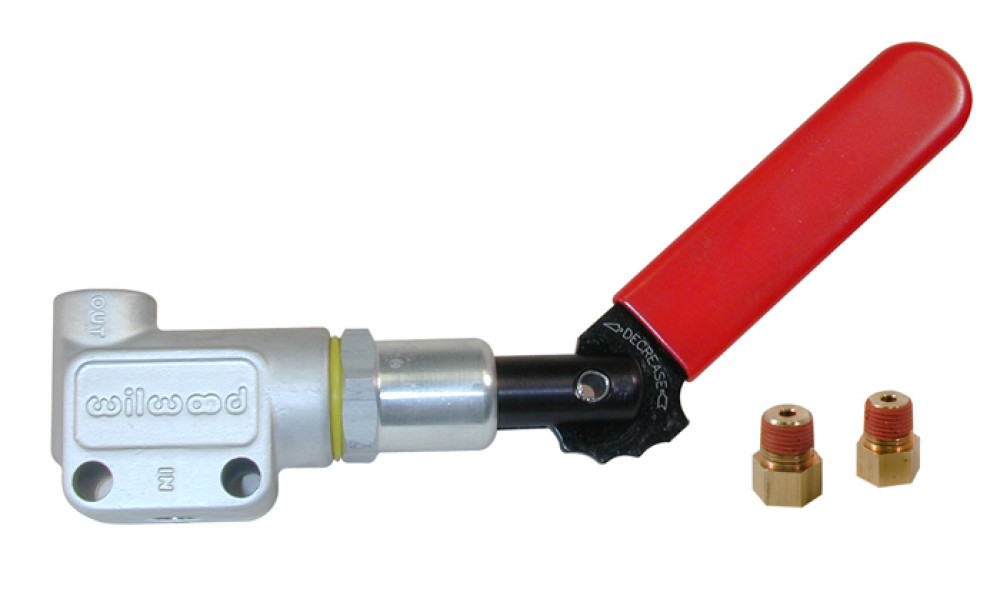

Wilwood Proportioning Valve Assembly Lever Type, Wilwood part no. 260-8420.
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.
Specifications
| Spec | Value |
|---|---|
| Brand | Wilwood |
| Part number | 260-8420 |
| Material | Aluminium / Steel |
| EAN / UPC | 889545067941 |
| Package size (L x W x H) | 19.37 x 13.97 x 2.86 cm |
| Package weight | 0.27 kg |
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
