Wilwood Proportioning Valve Assembly Knob Type

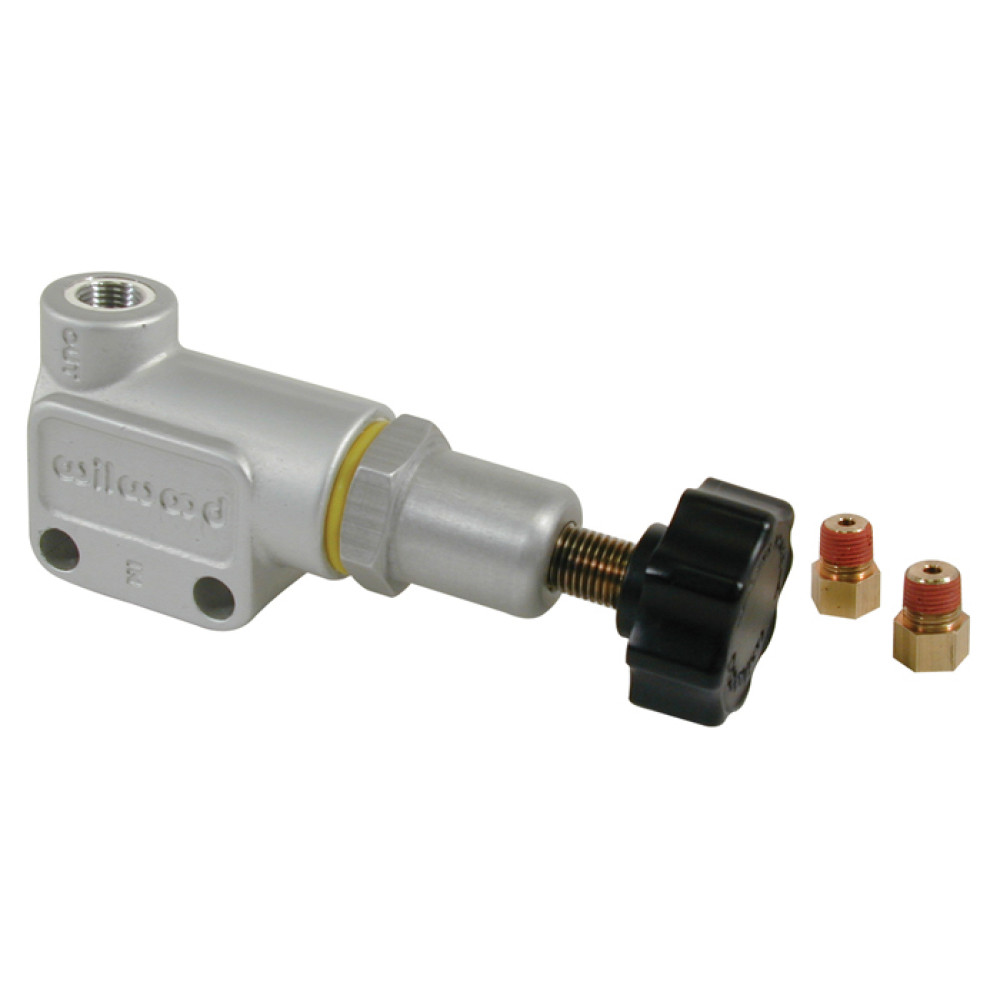

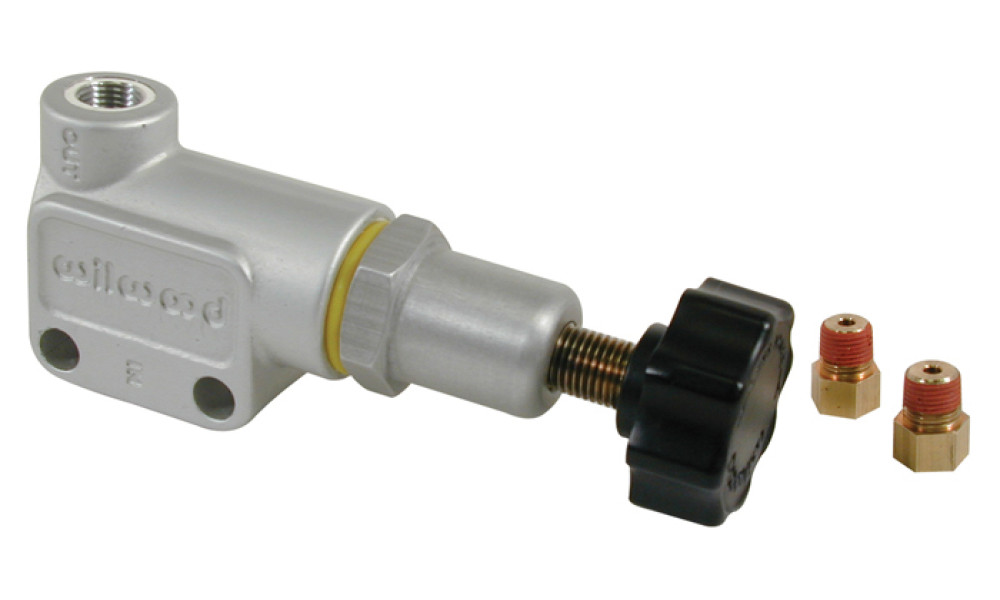

Wilwood Proportioning Valve Assembly Knob Type, Wilwood part no. 260-8419.
The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.
Specifications
| Spec | Value |
|---|---|
| Brand | Wilwood |
| Part number | 260-8419 |
| Material | Aluminium / Steel |
| EAN / UPC | 889545067934 |
| Package size (L x W x H) | 20.32 x 11.43 x 3.81 cm |
| Package weight | 0.23 kg |
Universal Part: This product fits multiple vehicles (universal application).
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
WILWOOD
Founded in 1977 in Camarillo, California, USA, Wilwood Engineering is a leading manufacturer of high-performance disc brake systems and components. Wilwood produces lightweight racing calipers, rotors, brake kits, and master cylinders for road racing, drag racing, off-road, and street performance, trusted by professionals worldwide.
Official page: wilwood.com
Official page: wilwood.com
Wilwood Proportioning Valve Assembly Knob Type
73.94€
Excl. VAT: 61.11€
