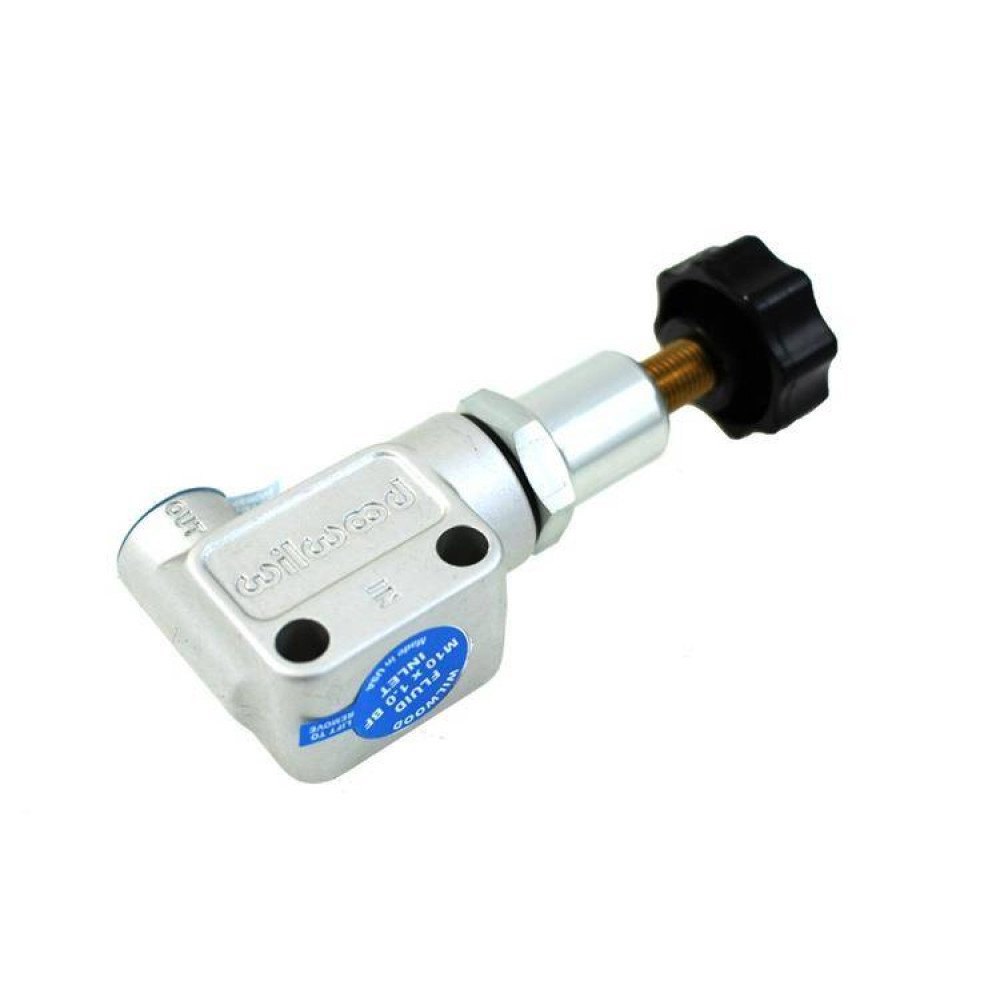

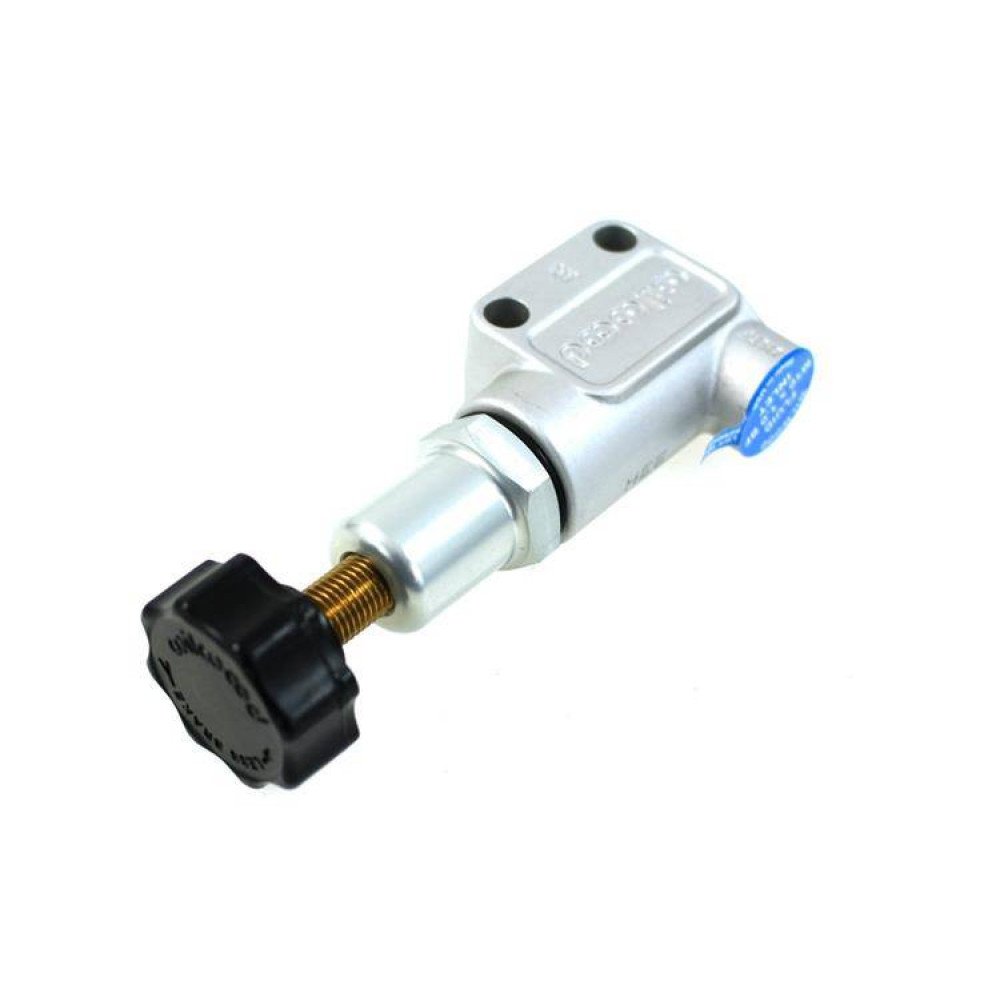

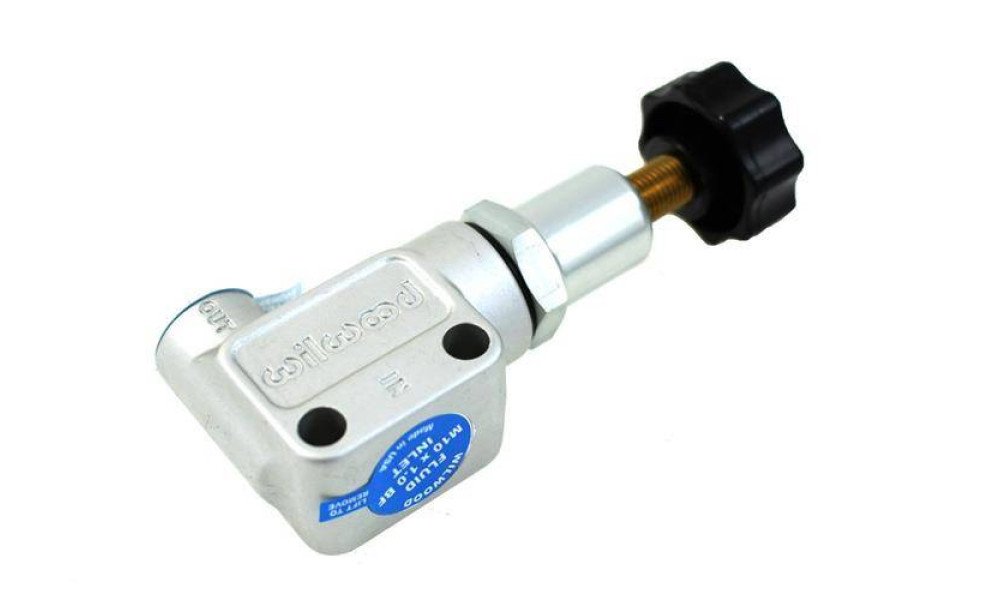

Wilwood 260-12627 – Adjustable Proportioning Valve with Brake-Light Switch
The Wilwood 260-12627 is a compact, knob-type proportioning valve that fine-tunes rear-brake pressure while housing an integrated brake-light pressure switch. The single-in / single-out design makes it perfect for disc-brake conversions, race cars and hot-rod projects where size, weight and quick adjustment matter.
Key Features
-
Stepless pressure adjustment – turn the knob to set the rear pressure cut-off anywhere between 100 psi and 1 000 psi, tailoring brake balance to vehicle weight, tyre grip and track conditions.
-
Single line in / single line out – installs only in the rear circuit; no need to replumb the entire system.
-
Lightweight 6061-T6 aluminium body with black anodising resists corrosion and tips the scales at roughly 170 g.
-
Universal 1/8″-27 NPT female ports accept common AN-3 hose ends or hard-line adapters.
-
Palm-sized footprint (86 × 24 × 38 mm) lets you mount it on the frame, firewall or even inside the cockpit for track-side tweaks.
Technical Specifications
| Parameter | Value |
|---|---|
| Adjustment range | 100 – 1 000 psi |
| Regulation method | Lockable knob |
| Ports | 1 × 1/8″-27 NPT F IN / 1 × 1/8″-27 NPT F OUT |
| Integrated switch | Hydraulic, 1/8″ NPT, 5 A @ 12 V |
| Body material | 6061-T6 aluminium, black anodised |
| Compatible fluids | DOT 3, DOT 4, DOT 5, DOT 5.1 |
| Approx. weight | 170 g |
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
WILWOOD
| Default |
V05 Silver Braking Force Regulator - Precision Control System
-
- Brand: WILWOOD
- Product id: 55190
- MPN: WW-260-12627
- Availability: In Stock
-
63.22€
- Excl. VAT: 52.25€
