Brake / Clutch and Throttle Pedal - Adjustable Ratio

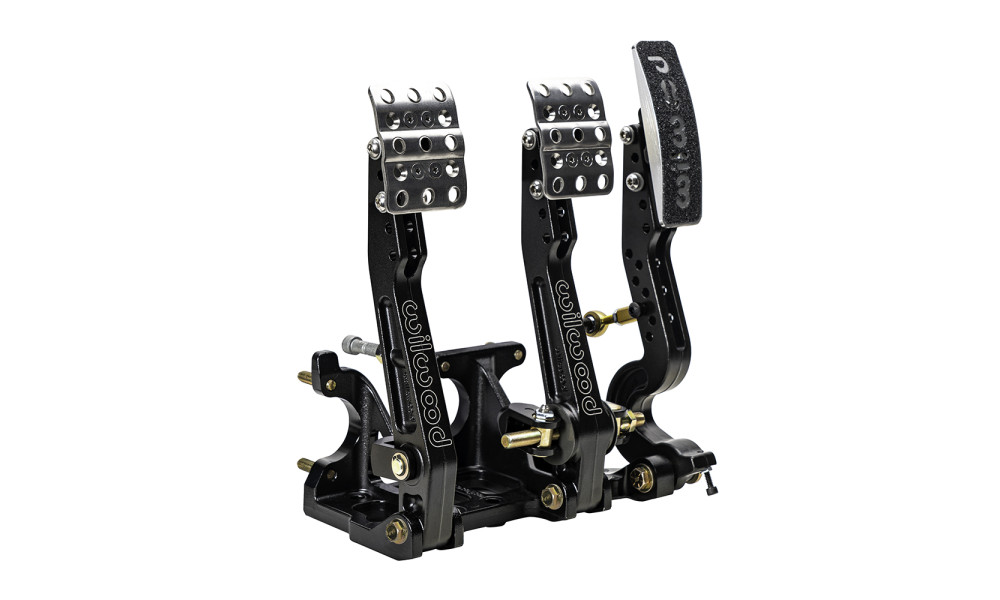

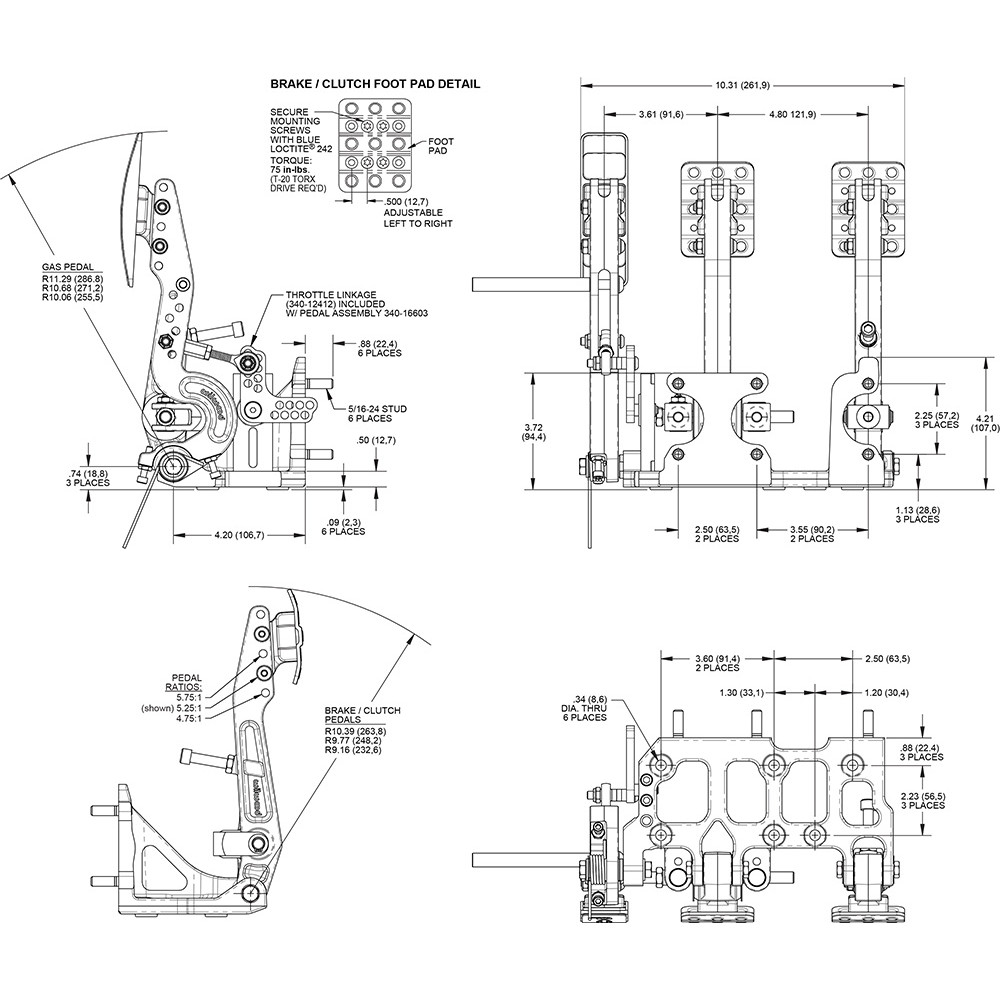

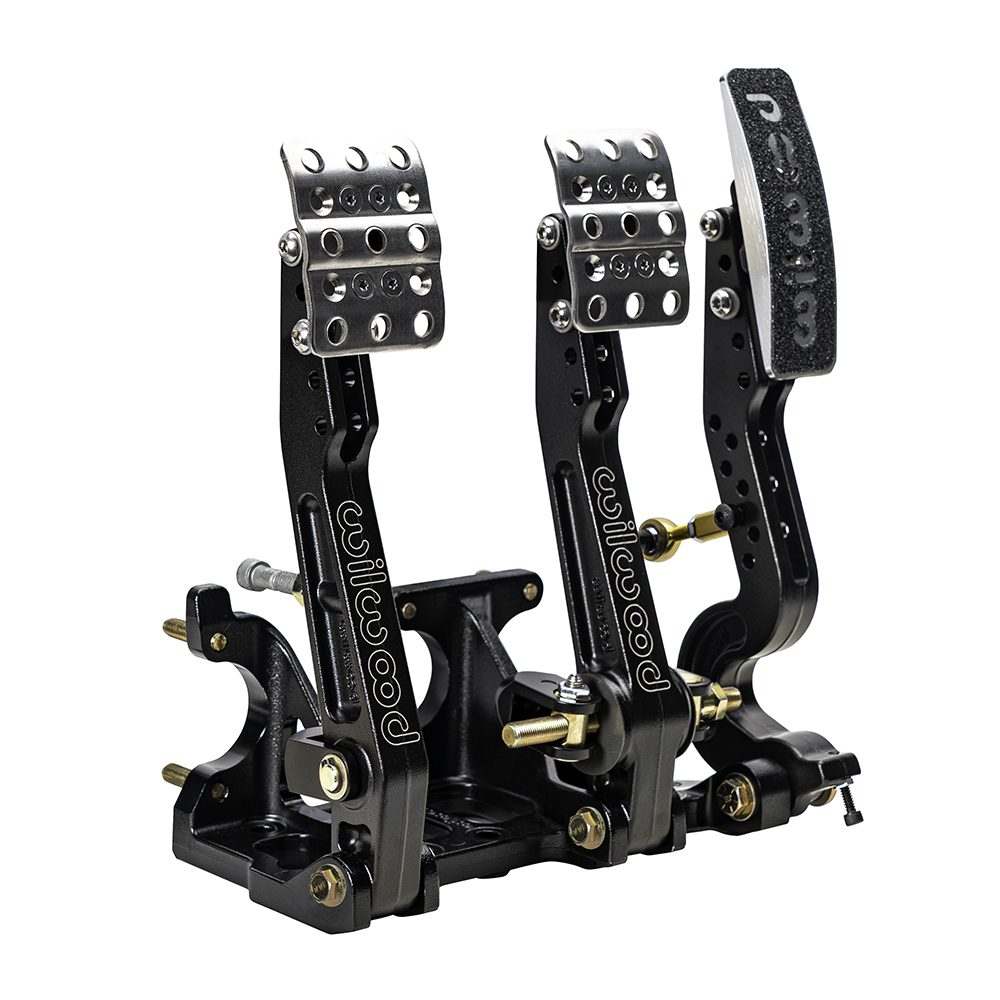

This floor-mount pedal assembly is designed for front engine cars and features an adjustable ratio balance bar brake pedal, clutch pedal, and throttle pedal with linkage. The pedal head can be set for a 4.75:1, 5.25:1, or 5.75:1 ratio, allowing the driver to fine-tune pedal feel and effort. The assembly mounts a clutch and two brake master cylinders (Wilwood 2.25-inch vertical mount flange single outlet, sold separately), with an adjustable balance bar for precise front-to-rear brake bias adjustment. The balance bar includes a positive detent stop every full turn and can be locked in place with the supplied jam nut or used with an optional remote knob for quick on-track changes.

The throttle pedal is equipped with an adjustable ratio bell crank, suitable for front engine applications. Non-skid waffled pedal pads are laterally adjustable, allowing the clutch and brake pedals to be set from 3.75 to 5.75 inches on center for optimal driver comfort. The pedals are constructed from lightweight aluminum with high-strength, reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures minimal misalignment and smooth, bind-free operation throughout the pedal travel.

• Material: Aluminum
• Finish: Black E-coat
• Mount Location: Floor
• Mount Facing: Forward
• Balance Bar: Yes
• Pedal Ratios: 4.75:1 to 5.75:1 (adjustable for both brake and clutch pedals)
• Pedal Lateral Adjustment: 3.75 to 5.75 inches on center
• Master Cylinder Compatibility: Accepts three Wilwood 2.25-inch vertical mount flange single outlet master cylinders (sold separately)
