Simsonn Plus X Racing Simulation Pedal – Black

The Simsonn Plus X Racing Simulation Pedal is engineered for sim racing enthusiasts and professionals seeking maximum realism and durability. Every component is built for precision and long-term reliability, with extensive adjustability to suit a wide range of driving styles and rig setups.

Construction & Materials

• Pedal arms and body: 3.5 mm high-strength stainless steel, laser-cut, rust-resistant, with burr-free surfaces
• Pedal panels: 4 mm thick, black matte sandblasted finish for grip and durability
• All pivot points: High-grade ball bearings for smooth, play-free motion

Braking & Damping System

• Dual-stage brake mechanism:
  • Stage 1: Smooth initial resistance for light braking
  • Stage 2: Progressive, high-resistance compression replicates brake pad engagement and real-world pedal feel
• Non-linear hydraulic dampers:
  • Throttle: One-way hydraulic resistance for smooth acceleration
  • Brake & clutch: Bi-directional hydraulic feedback for authentic pedal travel and pressure
• Three elastomers (red, yellow, blue) of varying hardness and 13 damping spacers for pedal response customization
• Snap-on mechanism for quick elastomer changes

Adjustability

• Pedal angle: Four positions, –10° to +12°, to suit different seat heights and rigs
• Adjustable pedal travel, force, resistance curves, and preload for brake and throttle

Control & Electronics

• 32-bit processor chip for high precision and low latency
• Built-in EMI shielding for throttle and clutch signals
• Onboard pedal calibration memory
• Integrated mounting points for optional rumble modules

Software Integration

• Simsonn Manager Software included
• Adjust output curves, brake response, and dead zones
• Save and switch between multiple driving profiles
• Plug-and-play USB connectivity (no drivers required)

Performance Features

• 80HA soft limiter to reduce pedal impact at full travel
• Ergonomic curved pedal design for comfort and reduced fatigue

Compatibility

• PC (Windows) only
• Not compatible with PlayStation 4/5, Xbox, or macOS

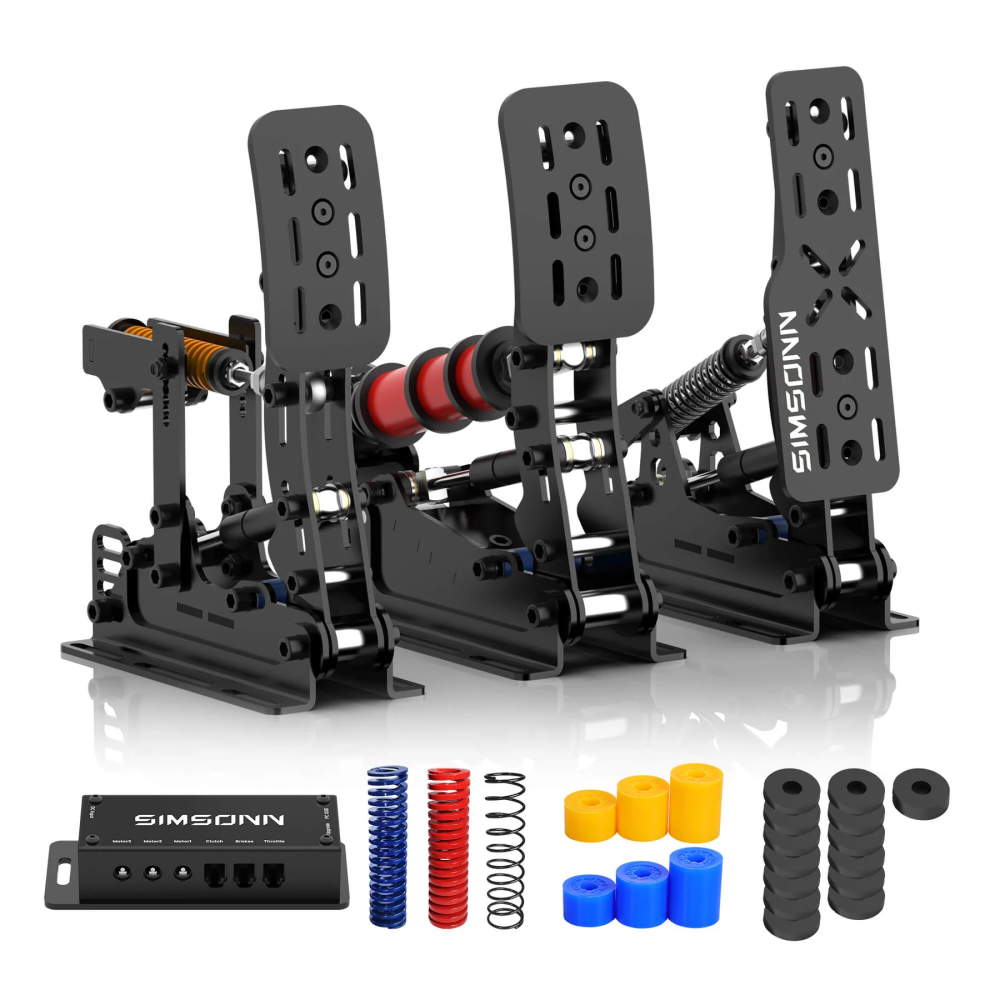

Included in the Set

• Simsonn Plus X 3-pedal set with standard 60HA red damper
• Additional yellow and blue dampers
• 13 damping spacers
• Light red spring (standard), plus extra blue and red springs

Optional/Sold Separately

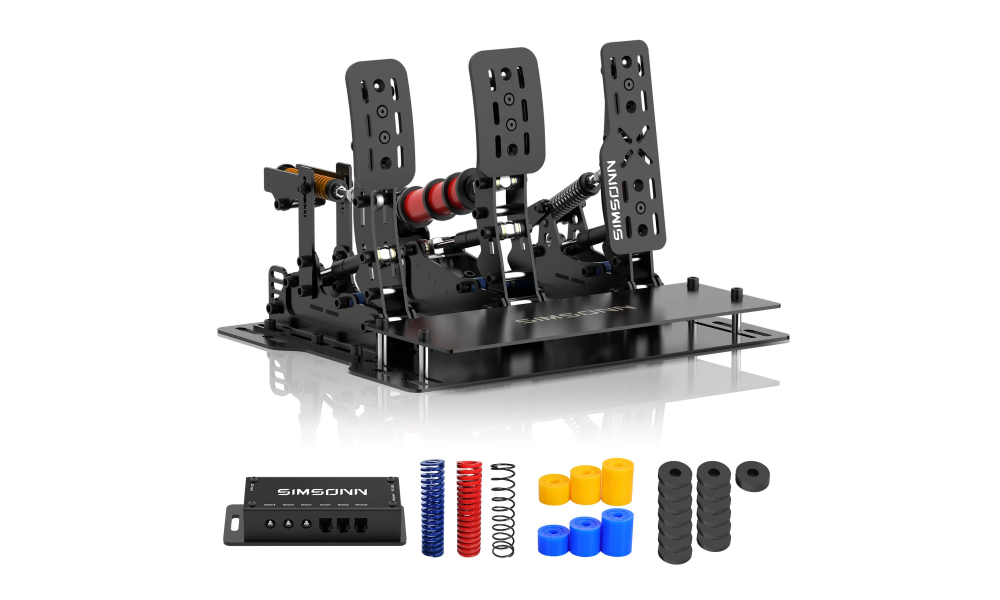

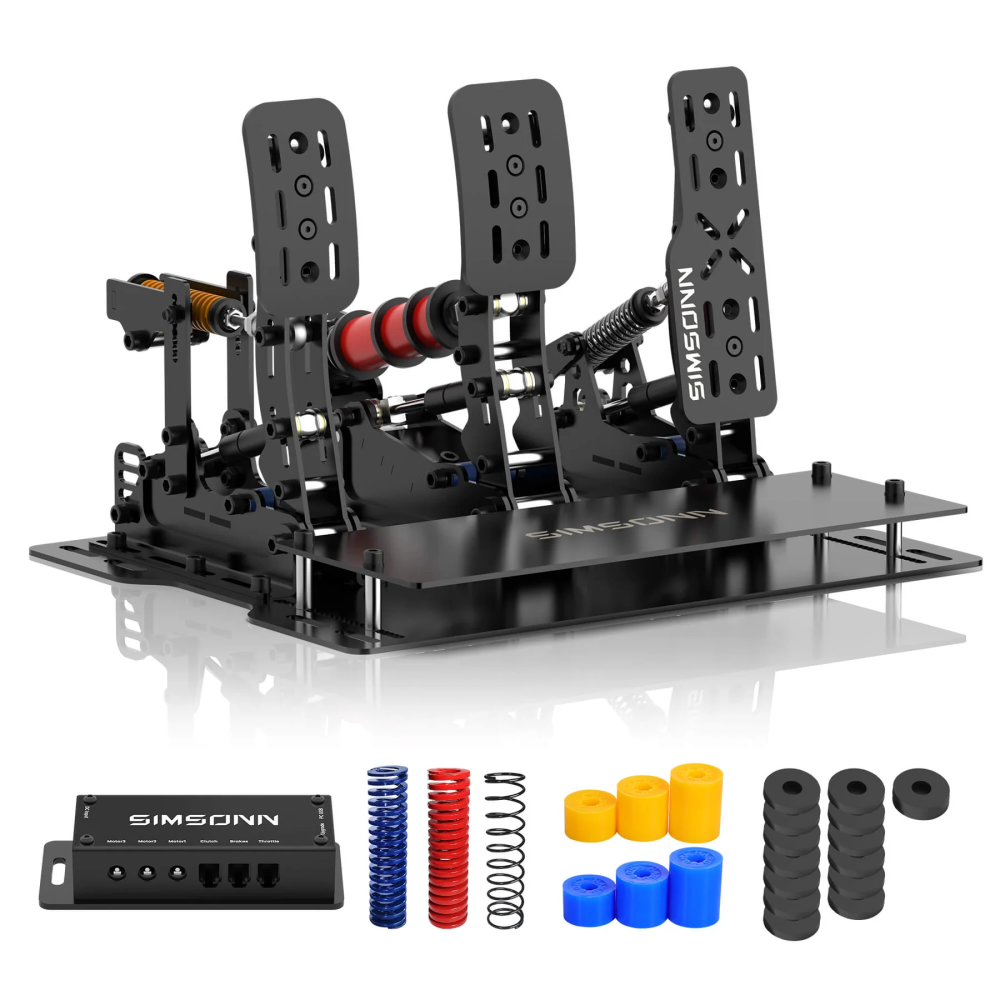

• Baseplate XBP-B, XBP-S
• Rumble modules: Haptric Reactor – VAM Rumble Motor, VAM Pro Linear Motor

Also available in silver (model: PLUS X-P3-H3-S, see separate offer).

The Simsonn Plus X Racing Simulation Pedal delivers precise, customizable pedal feel and robust construction for serious sim racers demanding authentic feedback and long-term reliability.
