Compact Remote Flange Mount Master Cylinder - Banjo Outlet

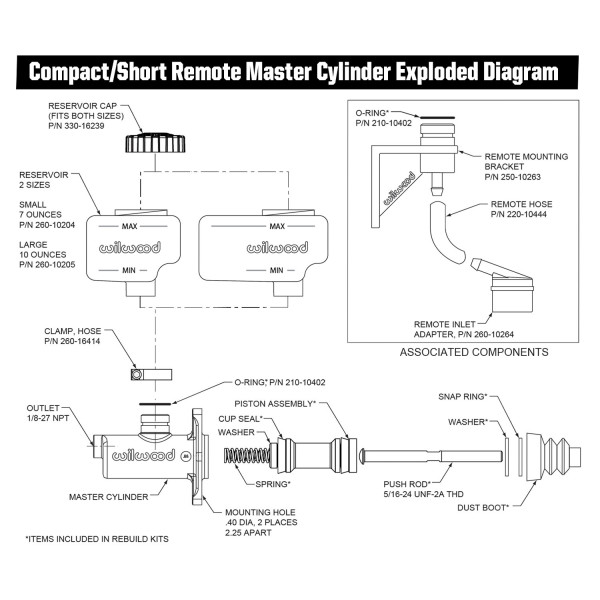

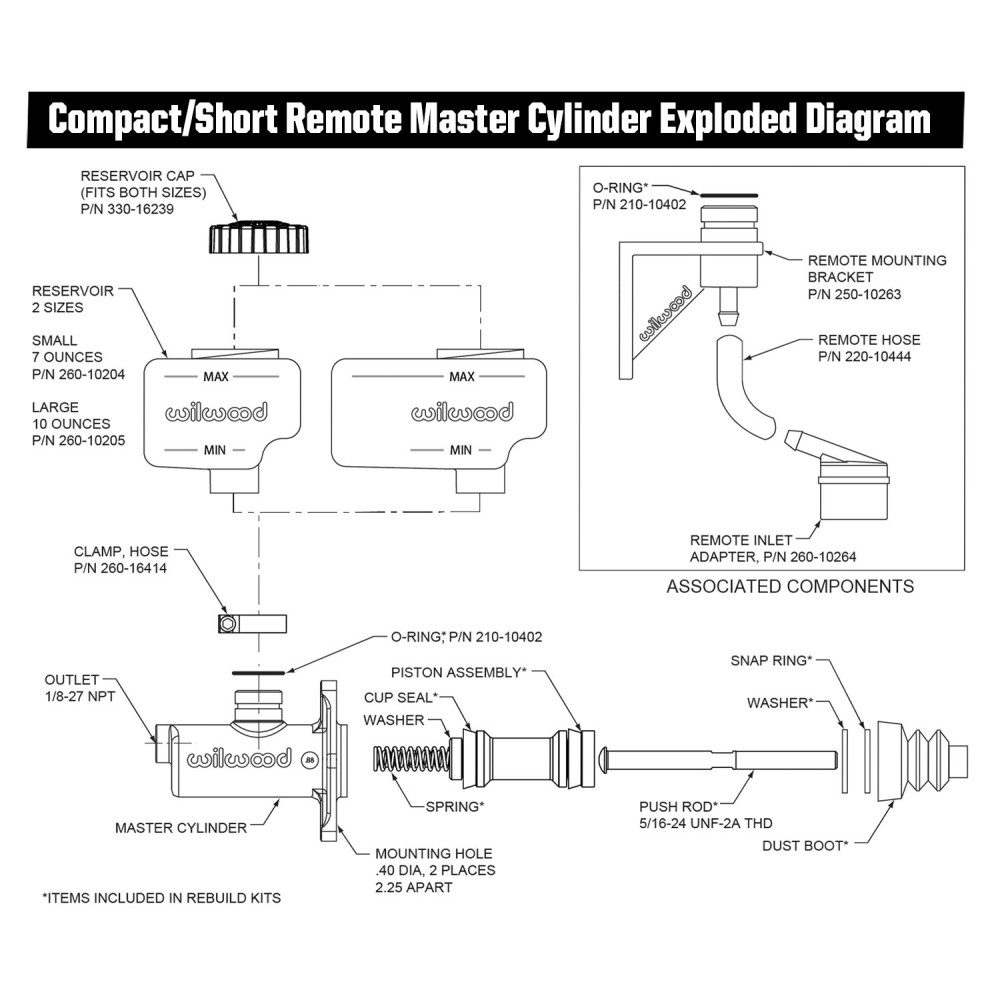

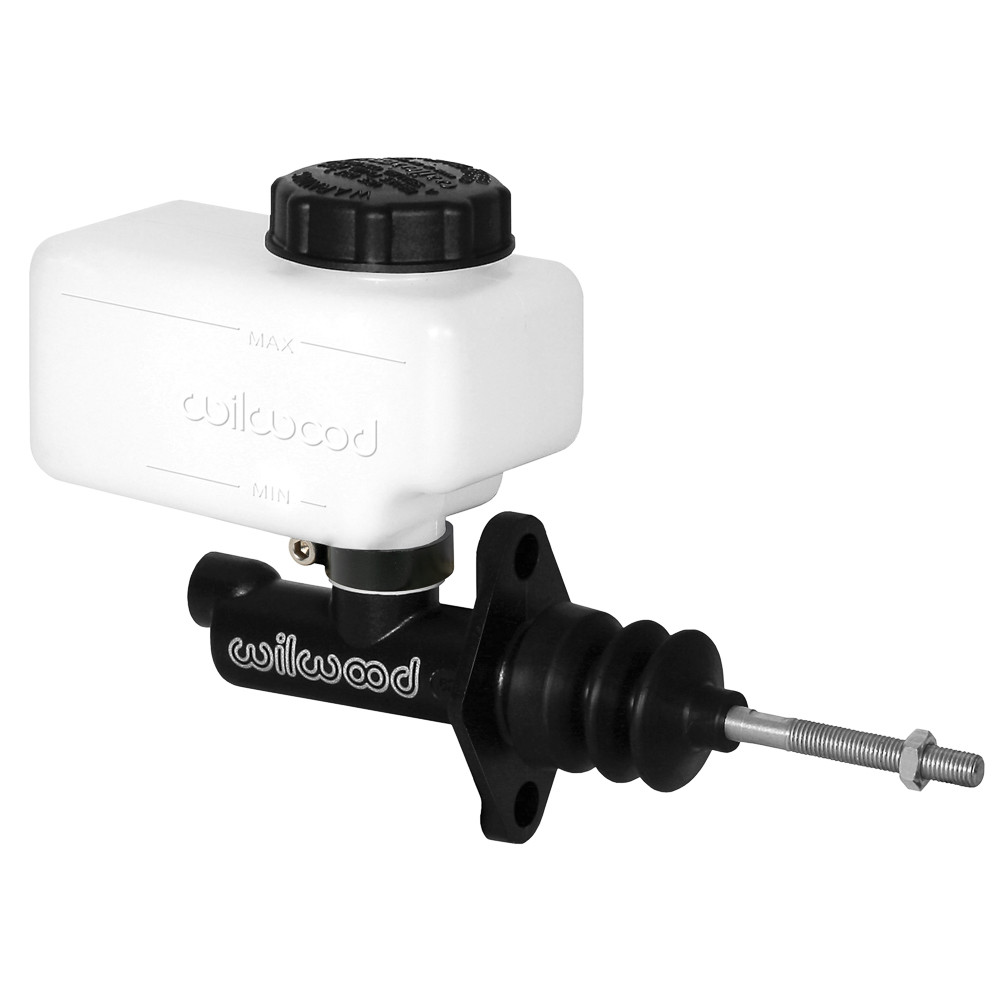

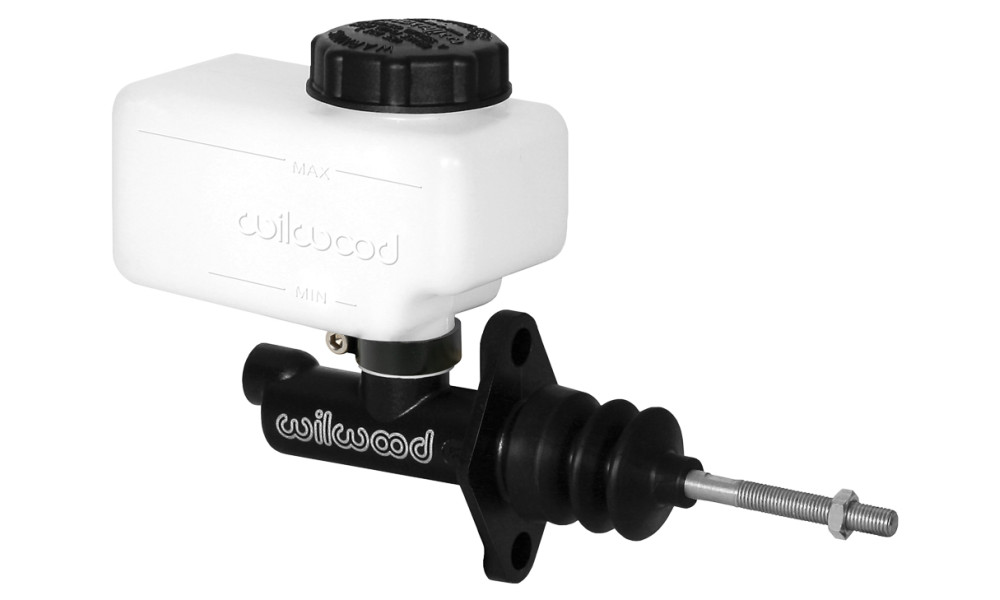

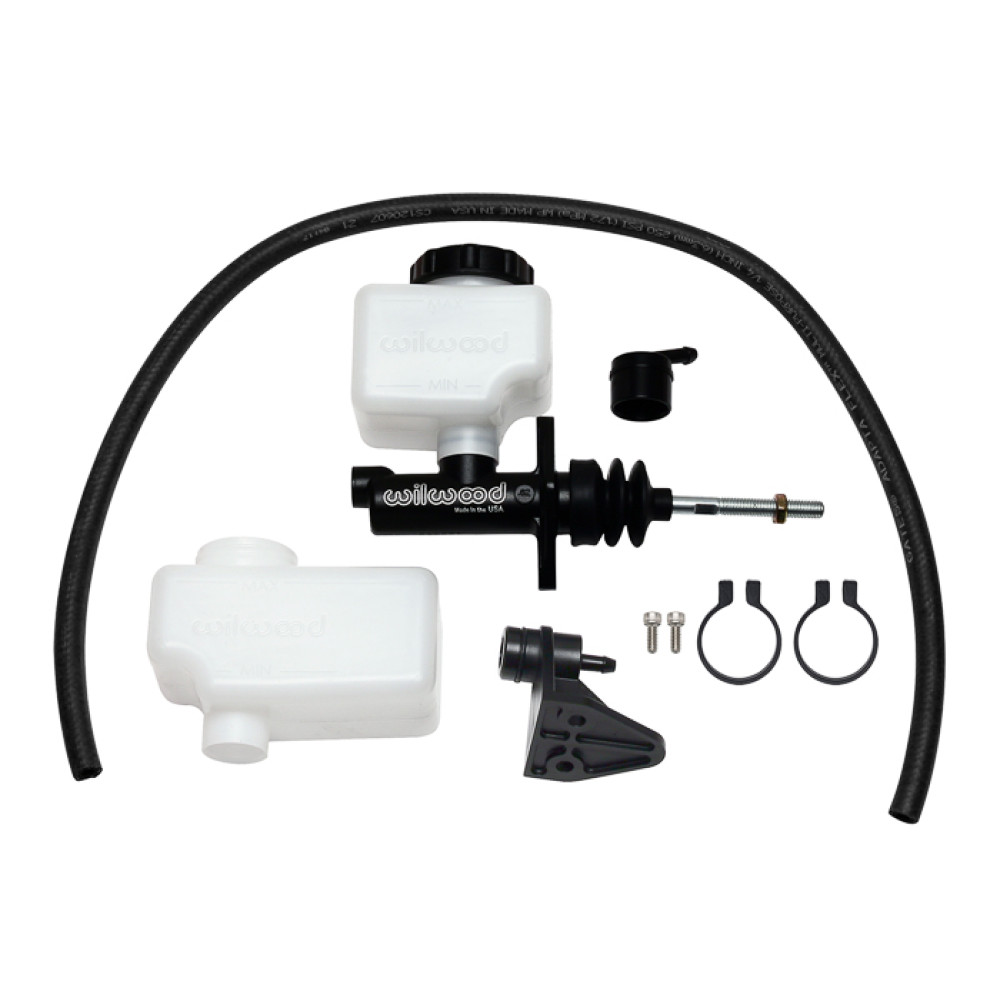

This version of the Compact Combination Master Cylinder features a 3/8-24 banjo outlet, designed for applications with limited space that require the output capacity of a full-size master cylinder. The ultra-short 3.37” compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. With a piston stroke of 1.12”, it meets or exceeds the stroke capacity of most full-size cylinders. The 3/8-24 fluid outlet port located at the top radius of the cylinder bore reduces the chances of trapped air. An enhanced fluid inlet port allows for the mounting of the standard reservoir included in the kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable, long-lasting finish.
Master Cylinder Dimensions
| Bore Size | 7/8" |
| Area (in²) | 0.600 |
| Stroke | 1.12 |
| Volume (cu in) | 0.67 |
Master Cylinder Description
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum / Plastic |
| Finish | Black E-coat |
Reservoir
| Reservoir Type | Remote |
| Reservoir Size (oz) | 10.0 or 7.0 |
| Reservoir Size (cu in) | 18.0 or 12.6 |
Additional Dimensions
| Overall Length (in) | 7.80" |
| Flange to End Length (in) | 3.37" |
| Inlet Size (in) | .87" or 11/16-20 |
| Inlet Fit (in) | 1/4" Hose |
| Outlet Size 1 (in) | 3/8-24 |
