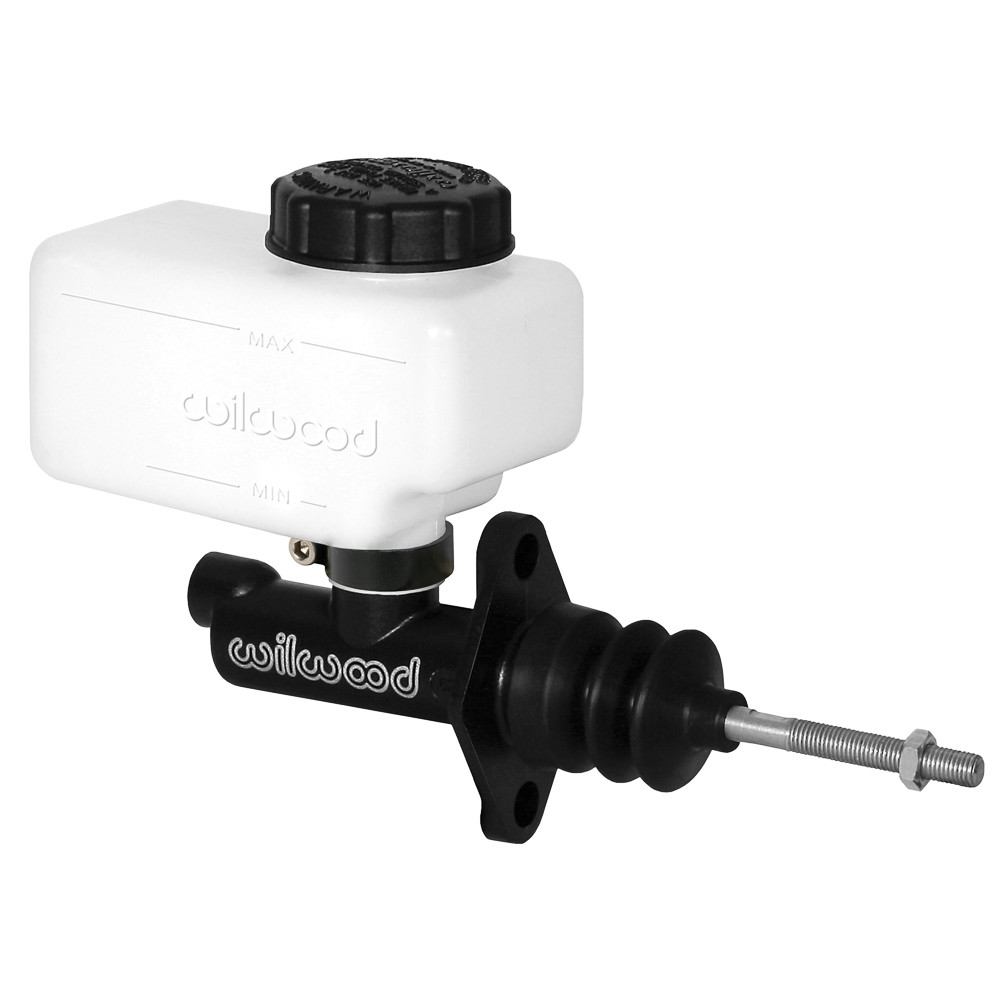

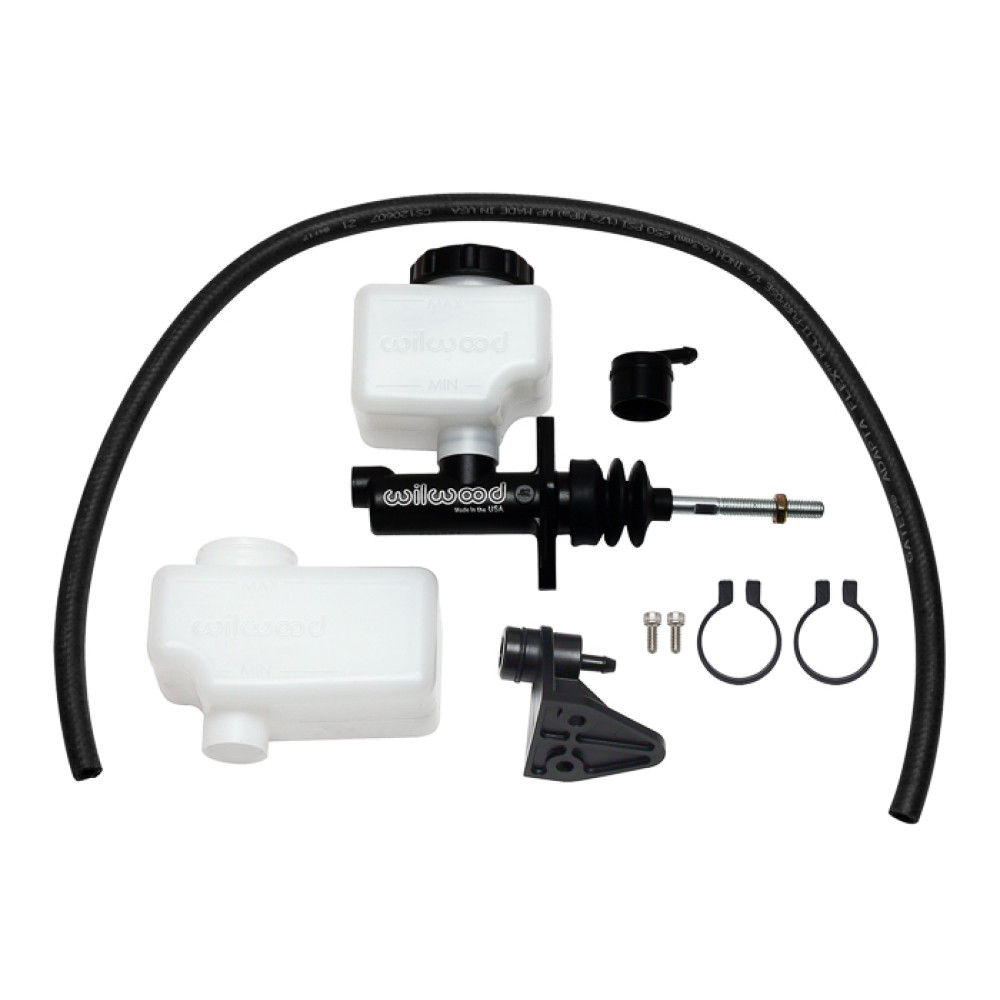

Compact Remote Flange Mount Master Cylinder

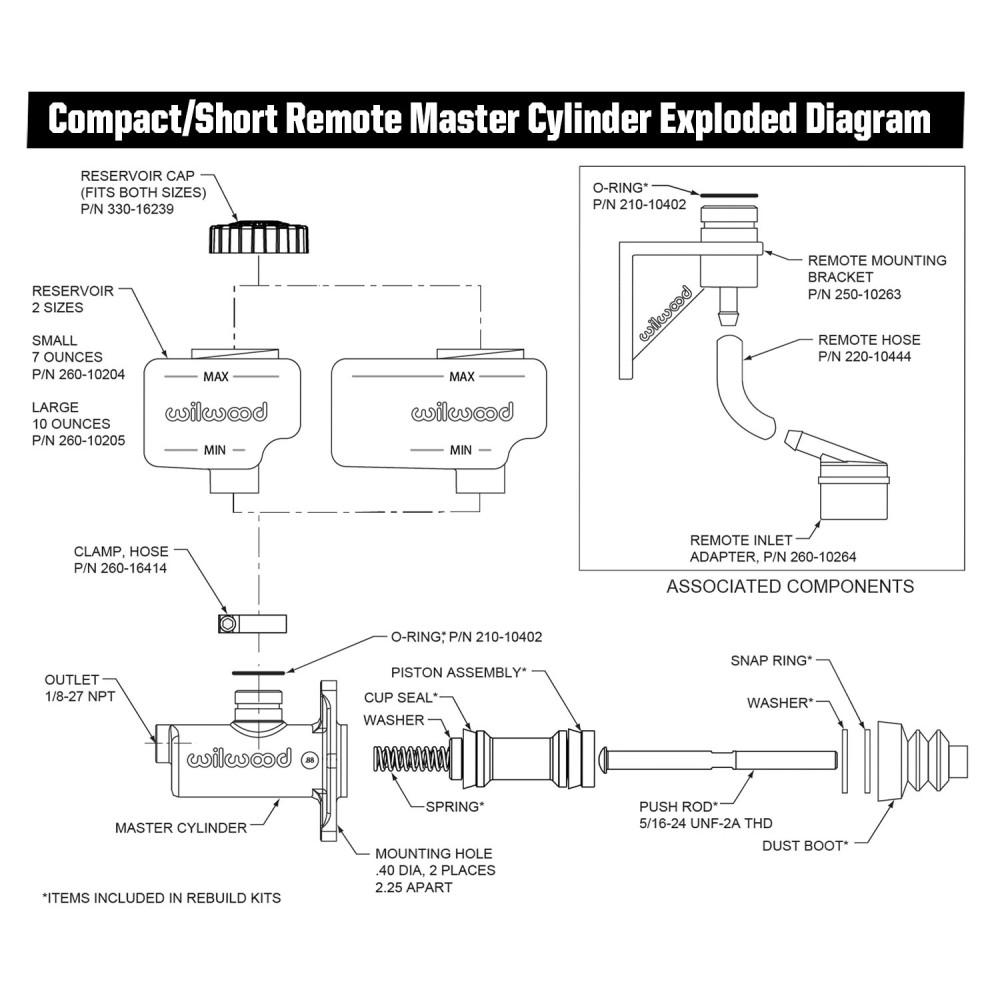

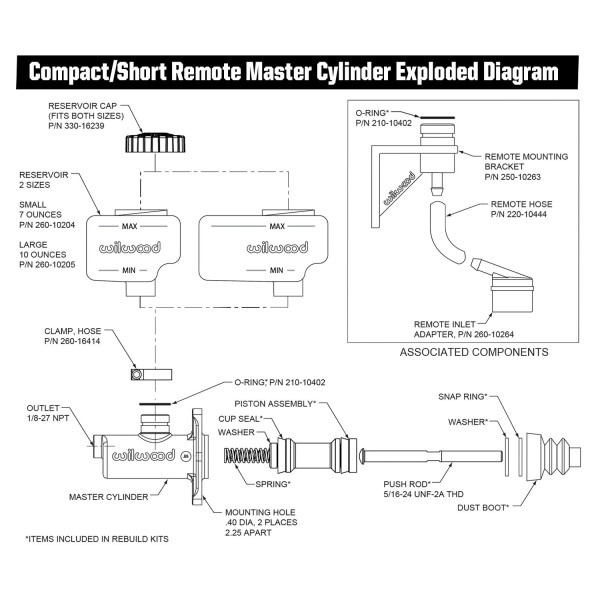

Wilwood’s Compact Combination Master Cylinders are engineered for applications with limited space while delivering the output capacity of a full-size master cylinder. The ultra-short 3.37” body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. With a piston stroke of 1.12”, it meets or exceeds the stroke capacity of most full-size cylinders. The 1/8” NPT fluid outlet port, located at the top radius of the cylinder bore, minimizes the chances of trapped air. The enhanced fluid inlet port allows for the mounting of the standard reservoir included in the kit and features 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body offers corrosion resistance and a durable, long-lasting finish.
Master Cylinder Dimensions
| Bore Size | 3/4" |
| Area (in²) | 0.440 |
| Stroke | 1.12 |
| Volume (cu in) | 0.49 |
Master Cylinder Description
| Type | Single Outlet |
| Outlets | 1 |
| Material | Aluminum / Plastic |
| Finish | Black E-coat |
Reservoir
| Res Type | Remote |
| Res Size (oz) | 10.0 or 7.0 |
| Res Size (cu in) | 18.0 or 12.6 |

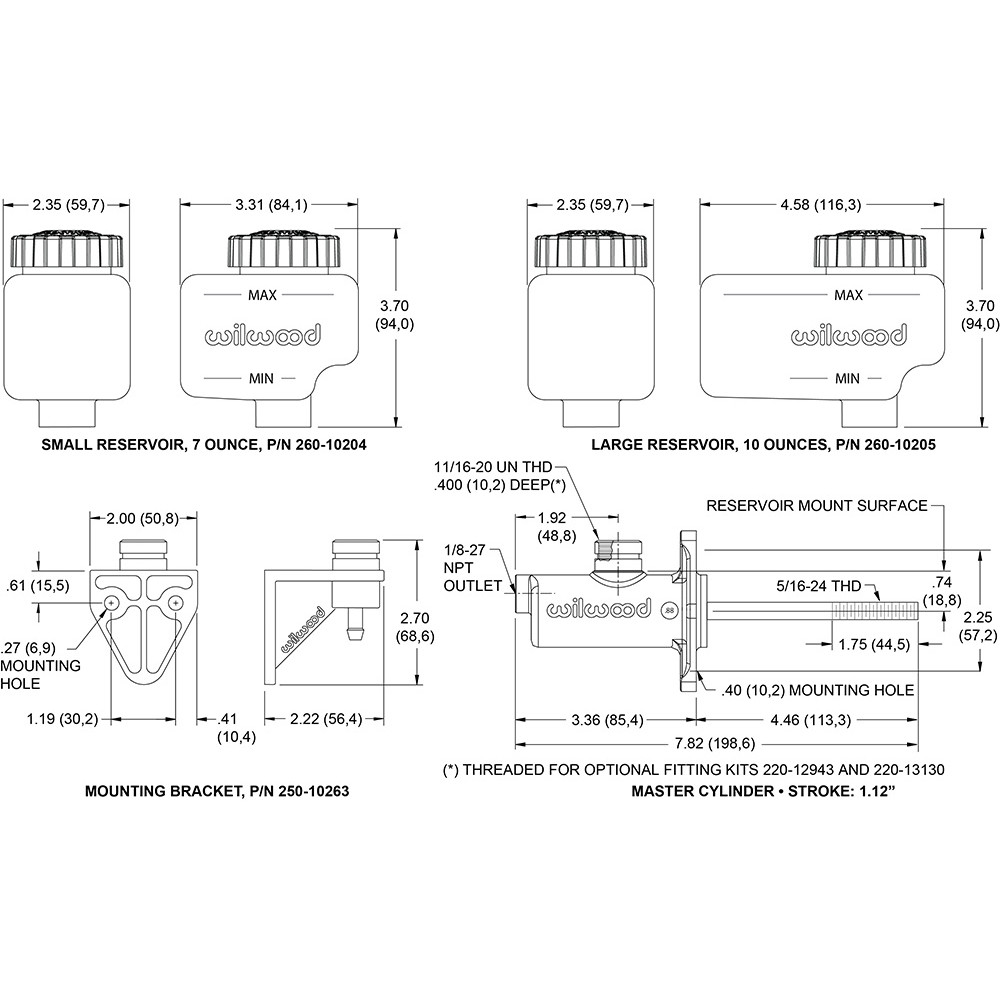

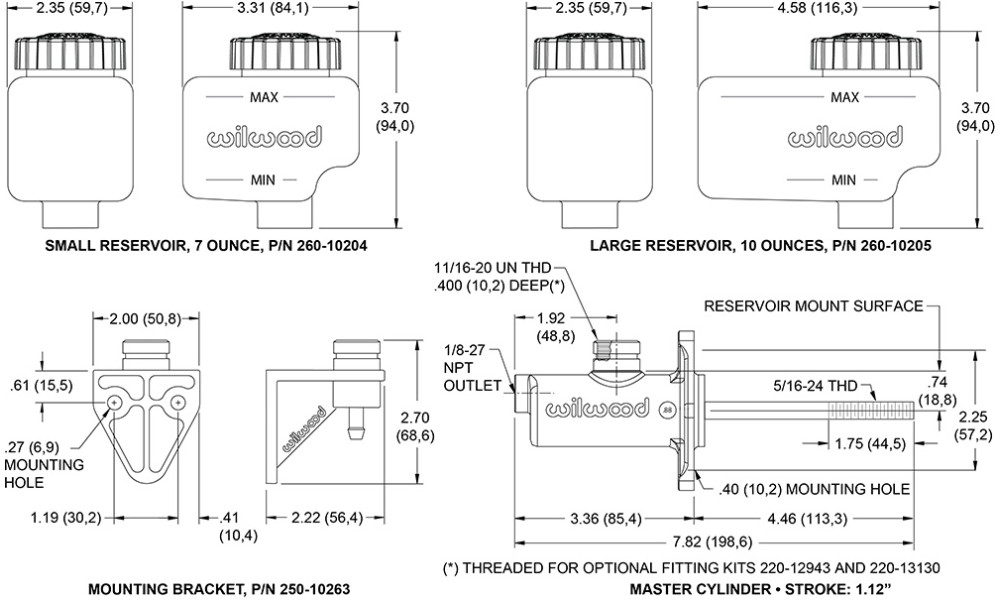

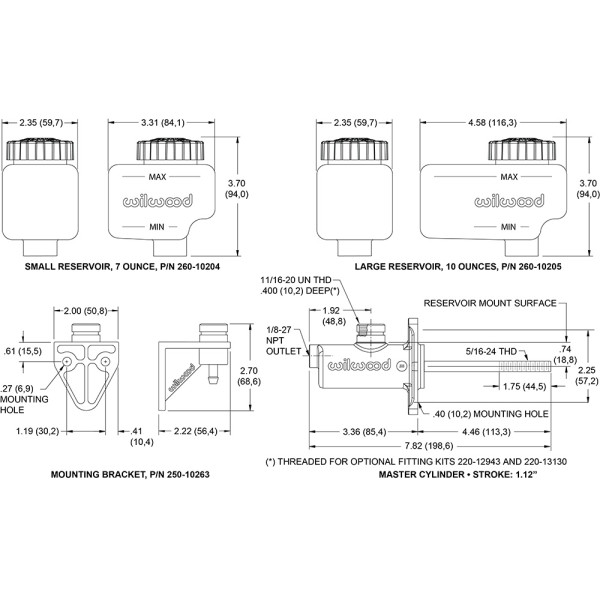

Additional Dimensions
| Overall Length (in) | 7.80" |
| Flange to End Length (in) | 3.37" |
| Inlet Size (in) | .87" or 11/16-20 |
| Inlet Fit (in) | 1/4" Hose |
| Outlet Size 1 (in) | 1/8-27 NPT |
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
