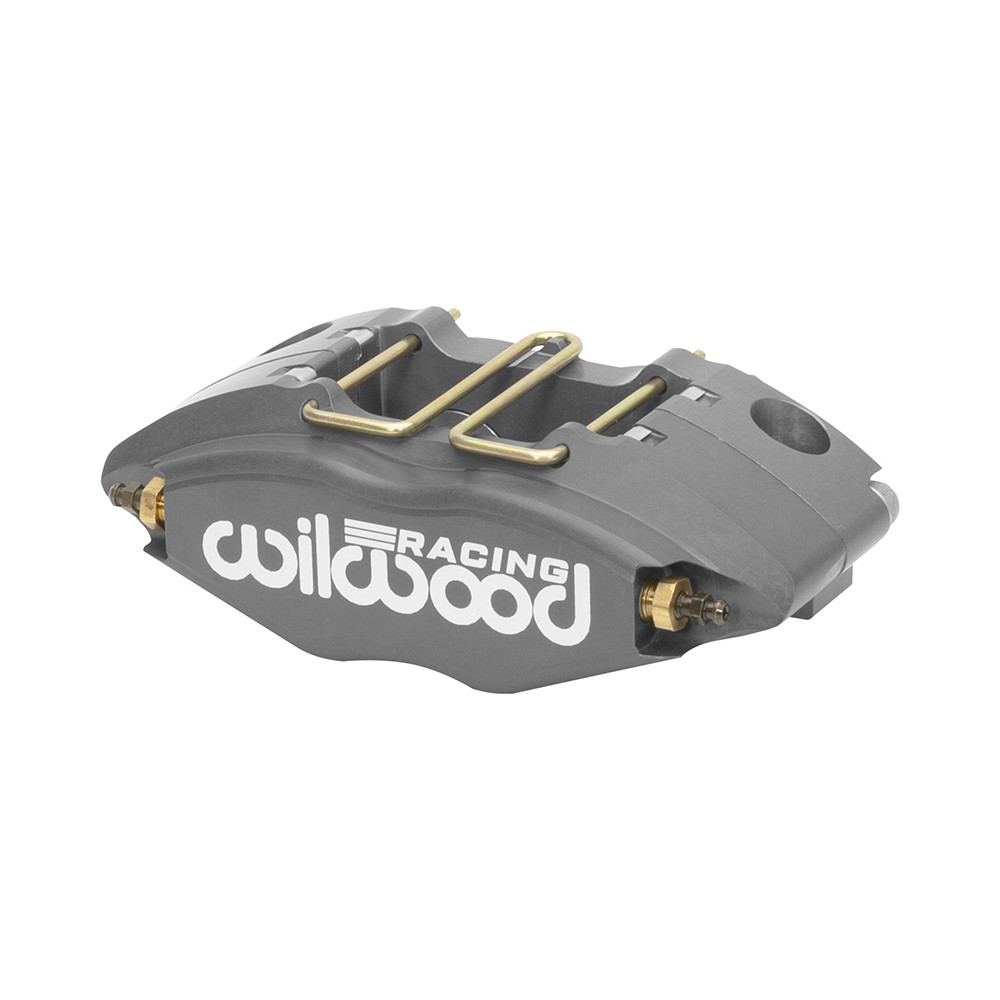

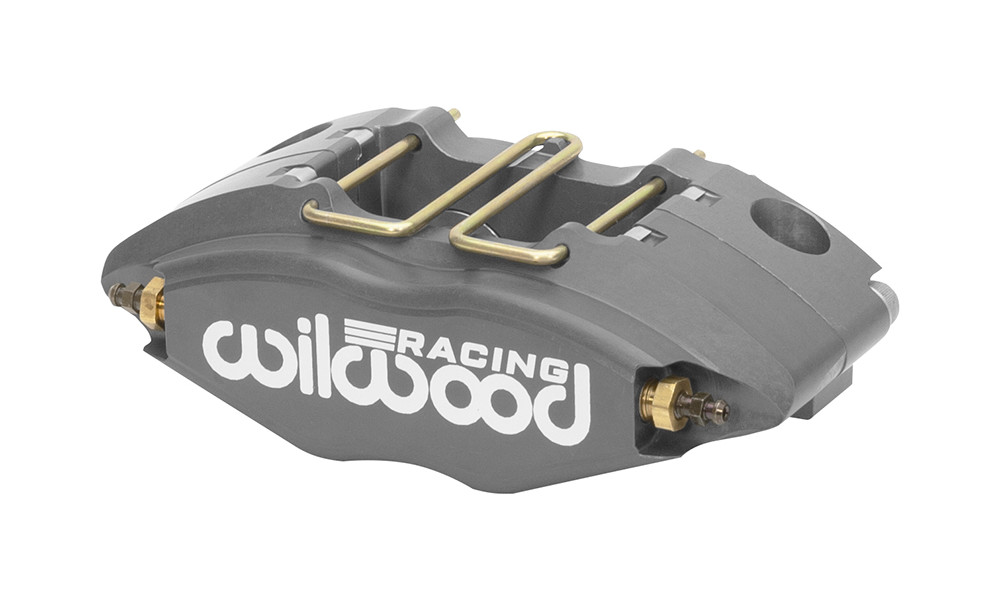

Wilwood Powerlite Brake Caliper Anodized Radial Left & Right 120-15736

Wilwood Powerlite Brake Caliper Anodized Radial Left & Right, Wilwood part no. 120-15736.

The Wilwood Powerlite four piston radial mount caliper starts at 1 kg with a compact design with superior strength is lightweight and is reliable in higher temperature situations. This caliper is easily used in many applications like Rally, and off road driving.

The process of stress-flow forging re-aligns the metal's grain structure within the contour of the caliper body. This eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Optimizing the internal brake fluid canal flow, makes sure that interruptions are reduced to a minimum the results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.

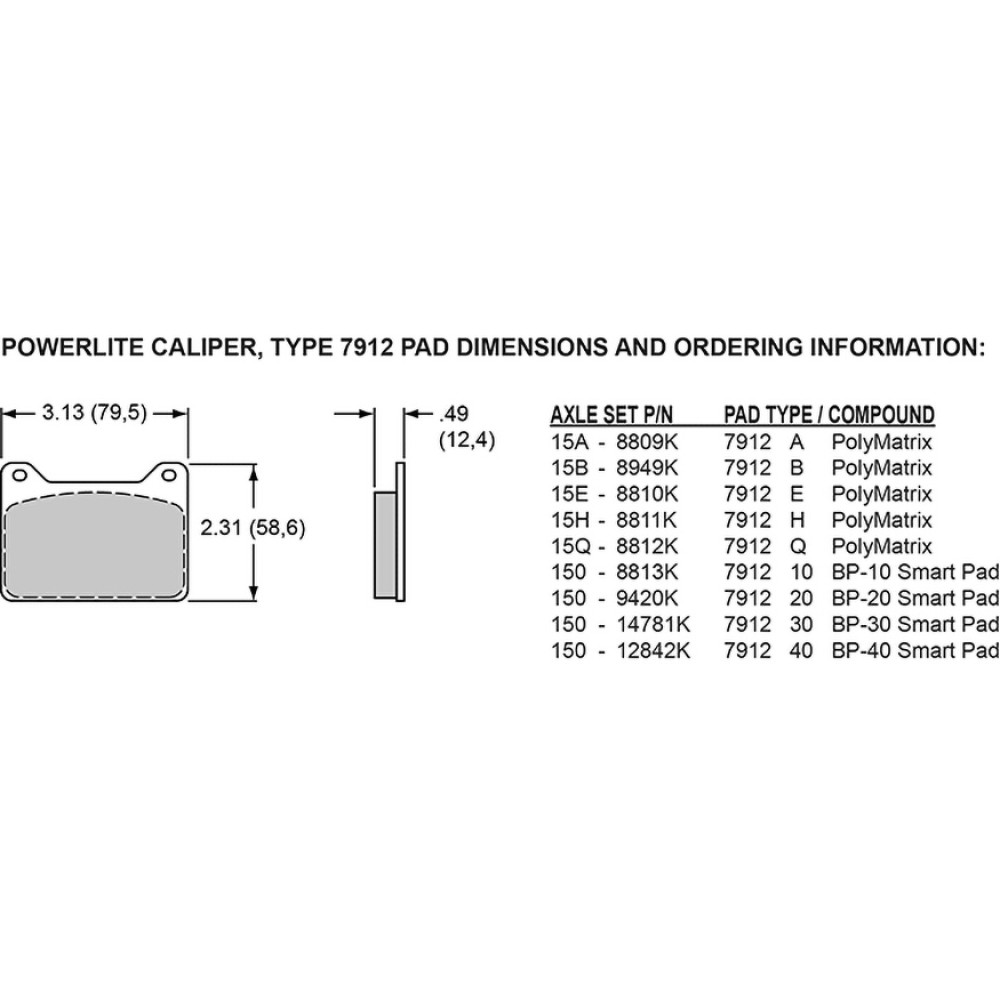

The Wilwood Powerlite has a new 7912 type brake pad that is supported from the top by Quick-clip pad retainers. This eradicates the need for a pad support step in the bottom of the caliper and adds additional clearance for mounting closer to the hub on small wheel and rotor applications. The pad radius matches to rotor diameters between 240,0 mm and 298,5 mm, and the caliper fits even inside many 330,2mm wheel applications. The Quick-Clips also accommodate easy pad access without caliper removal. Brake pad compounds are available for the full range of sport and competition applications.

Specifications
