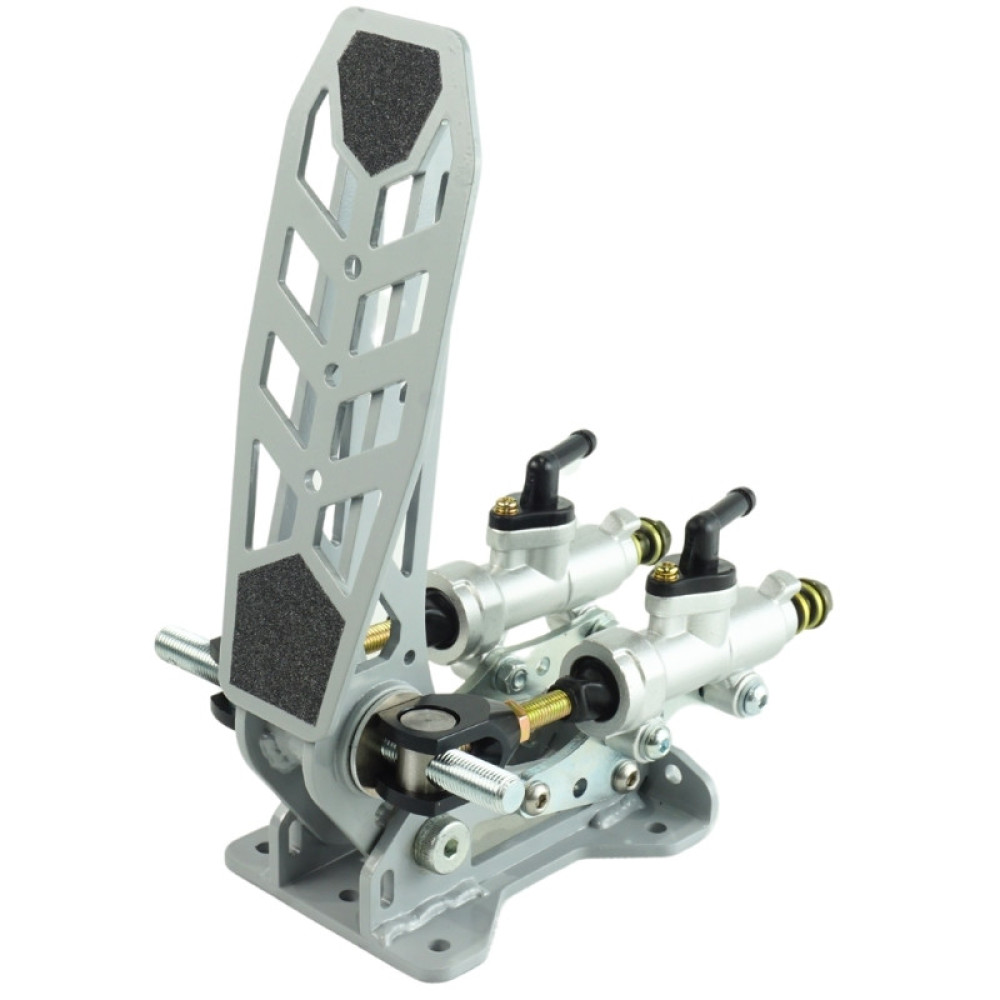

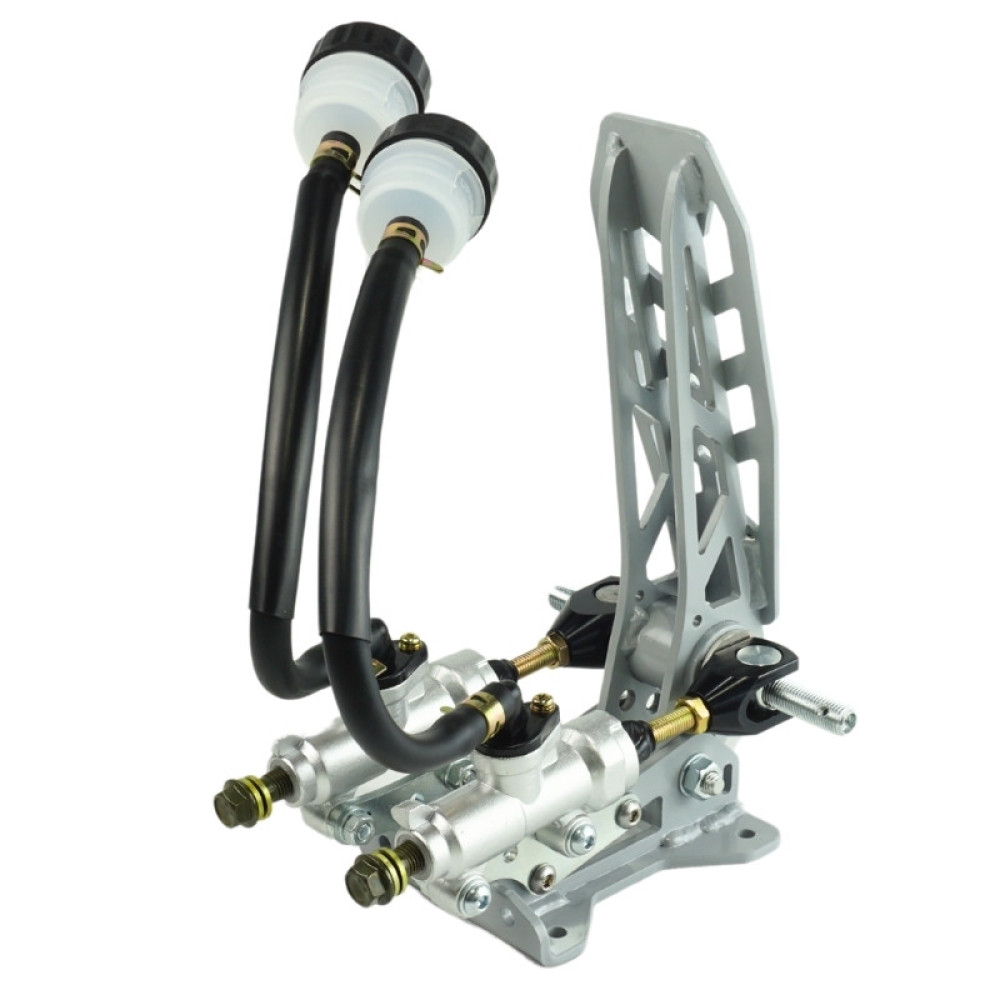

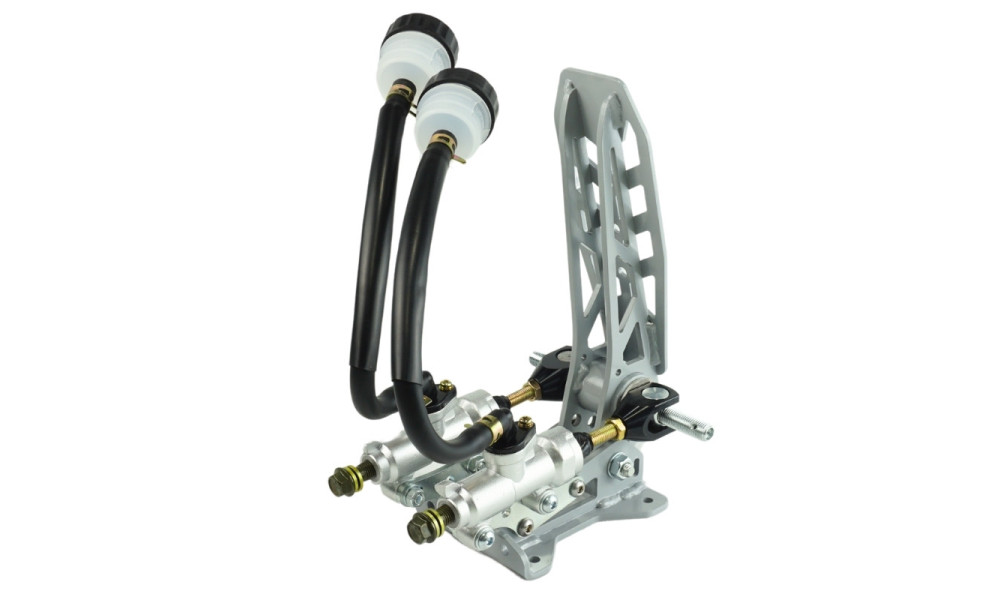

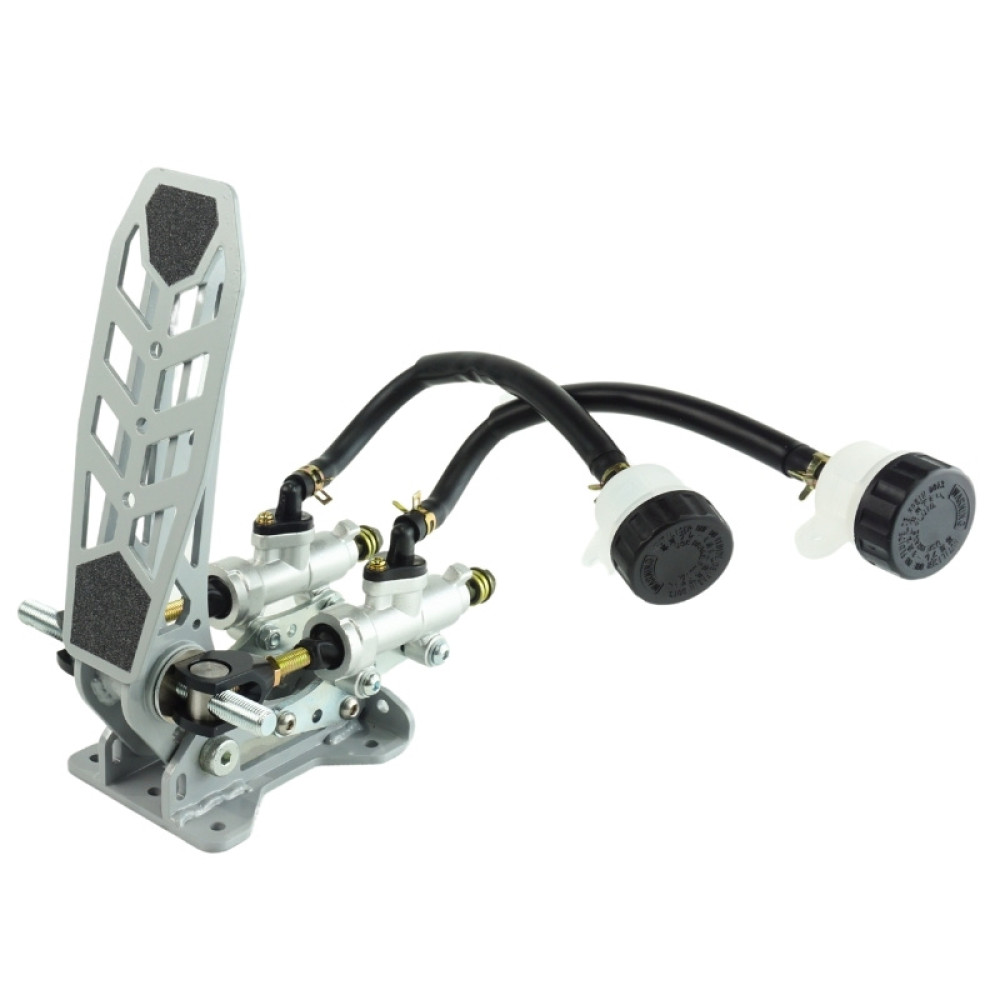

RacingPedalBoxes RPBB003 Brake Pedal

The RacingPedalBoxes RPBB003 Brake Pedal is designed for buggies, car cross, speeddown, and similar vehicles. Built from welded steel with a lightweight construction, it ensures an excellent stiffness-to-weight ratio and reliability in demanding motorsport conditions.

Key features:

• Designed for buggies, car cross, speeddown, and similar applications
• Dual master cylinders with balance bar for front/rear brake regulation
• Wide pedal surface for improved ergonomics and easier pedal combinations
• Balance bar included, 7/16”-20 UNF thread for maximum stiffness
• Master cylinder connections: M8, for motorcycle-type master cylinders
• Motorcycle master cylinder mounting points: 40–45 mm
• Pedal ratio: 5:1

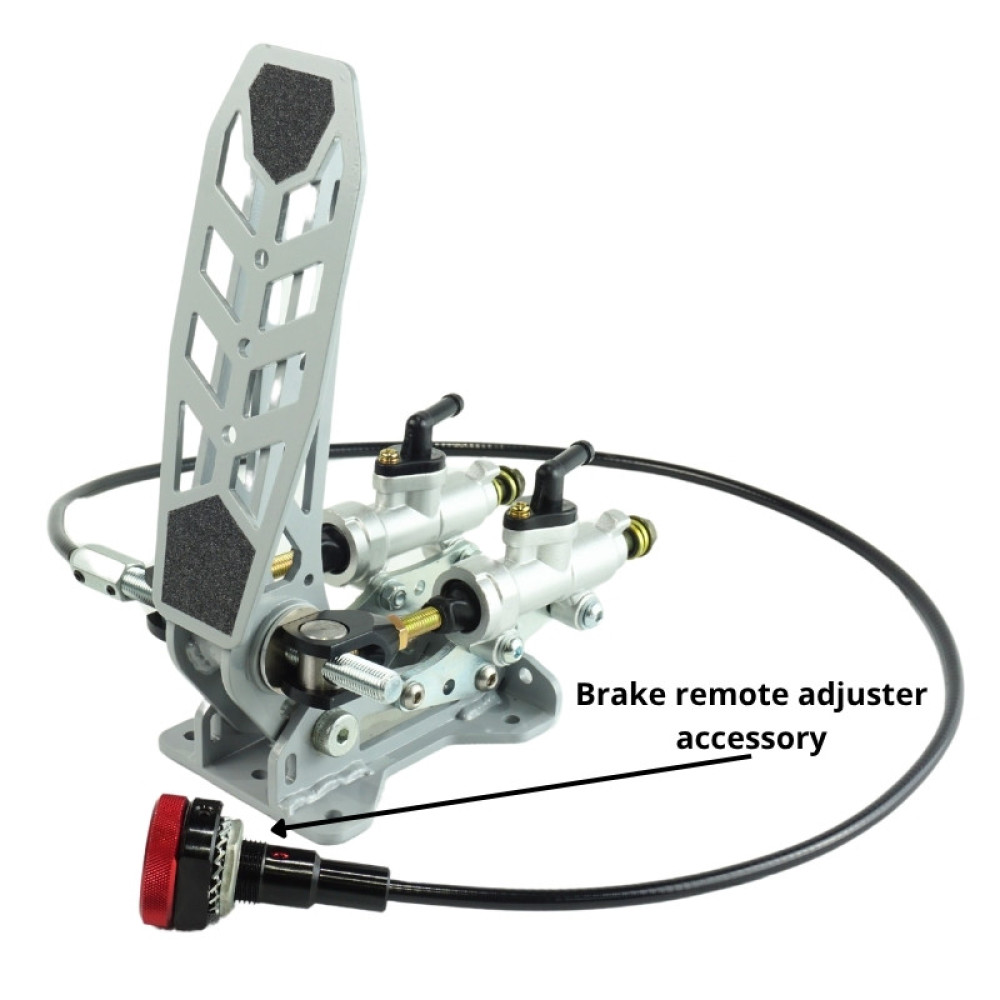

• Optional brake remote adjuster (7/16 UNF, ref. RPBAB03) for cockpit brake bias control
• Weight: 1.3 kg (without master cylinders) / 1.8 kg (with master cylinders)
• Floor-mounted installation with four M6 screws
• Anti-slip pedal surface
• Anticorrosion coating for maximum durability
• Master cylinders sold separately
