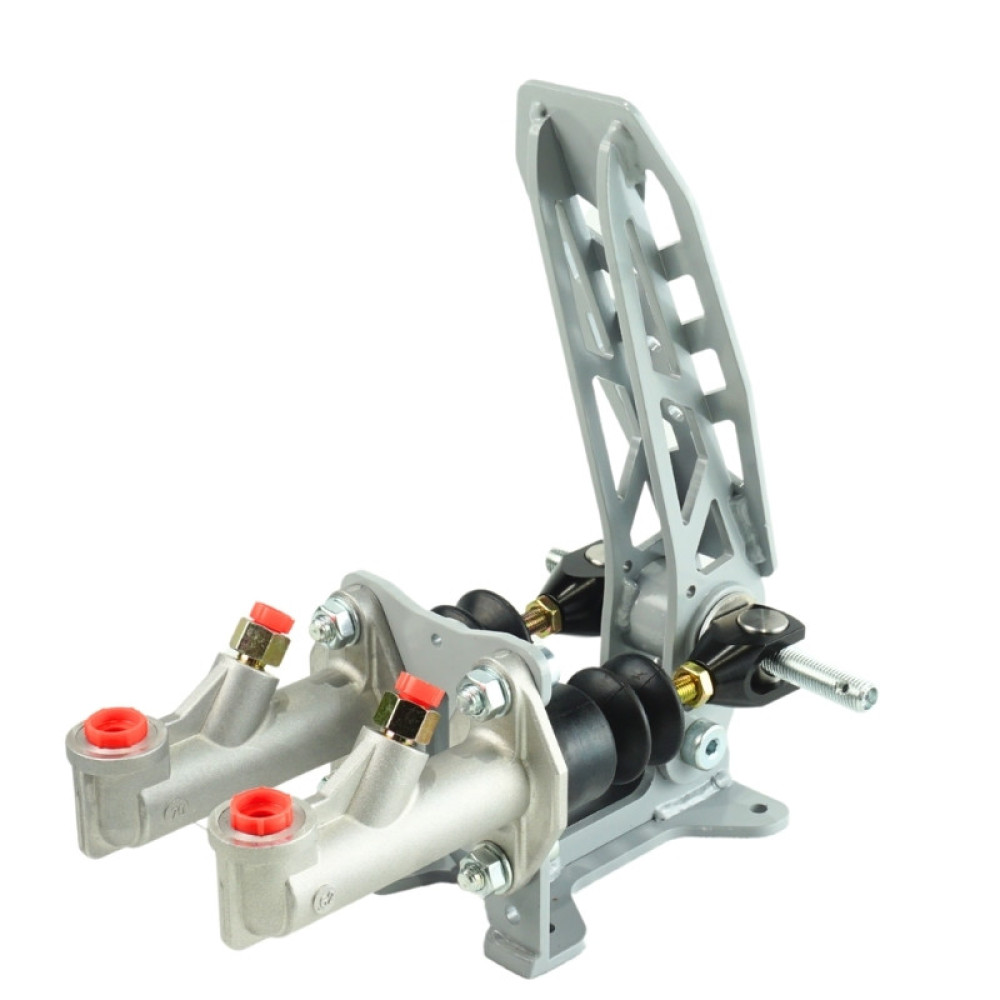

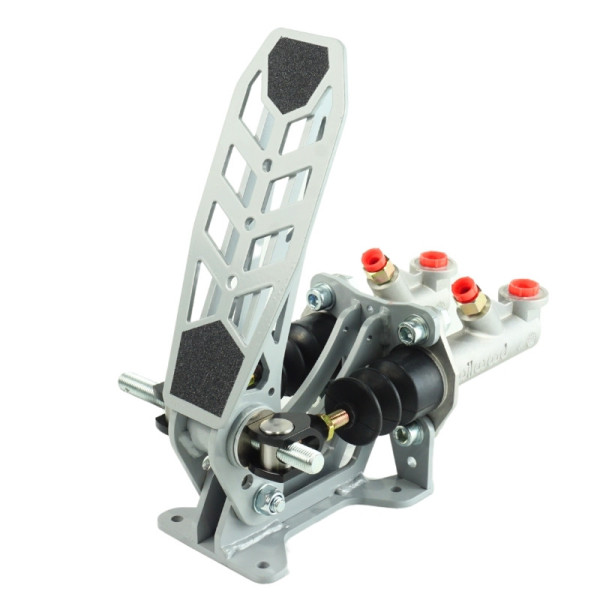

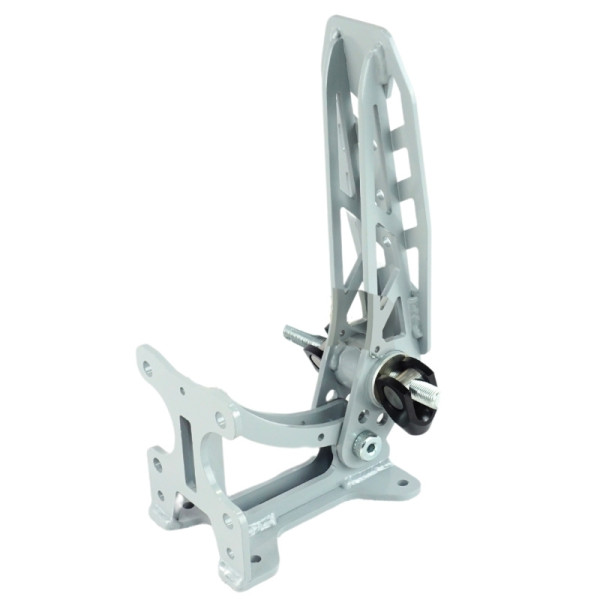

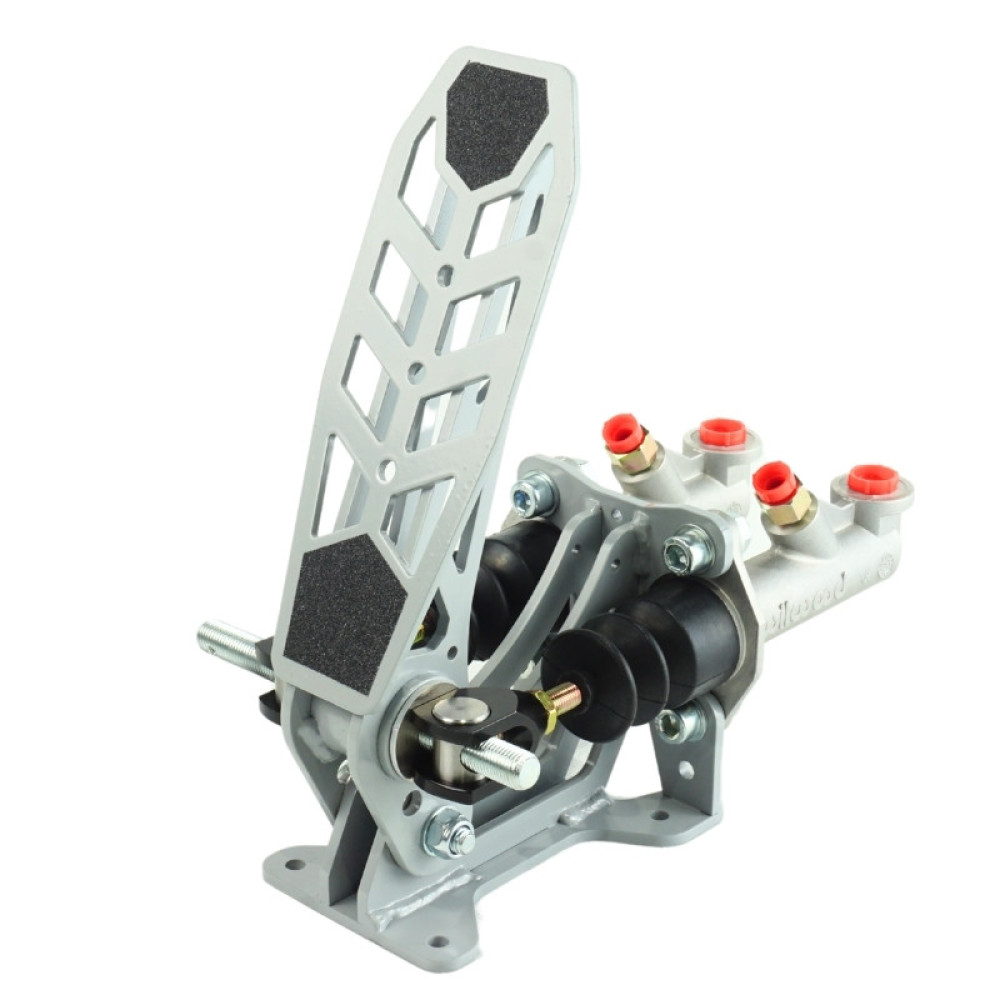

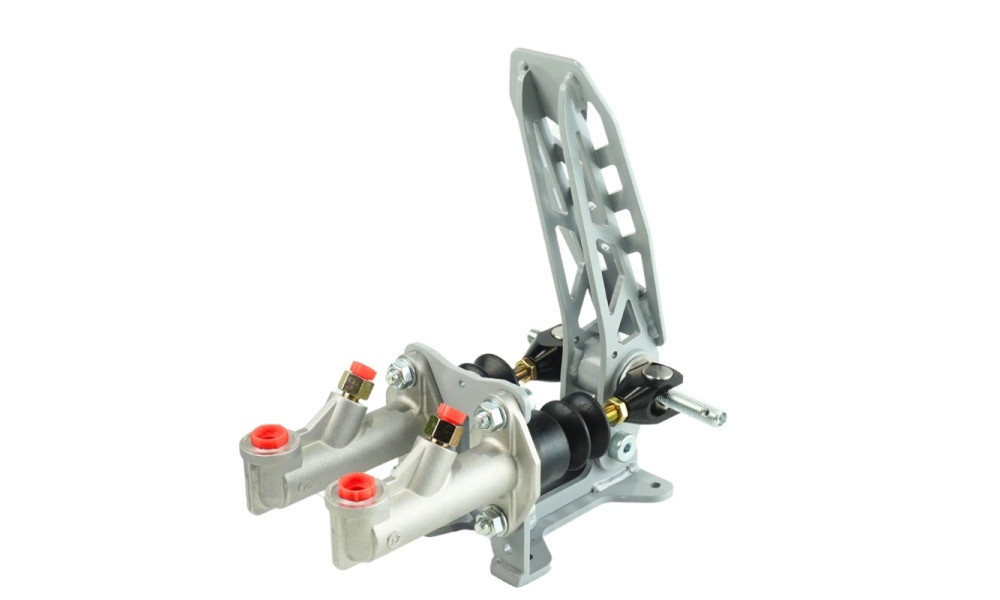

RacingPedalBoxes RPBB001 Brake Pedal

The RacingPedalBoxes RPBB001 Brake Pedal is engineered for rally cars, buggies, car cross, and similar vehicles. Constructed from welded steel with a lightweight design, it offers an optimal stiffness-to-weight ratio and durability in challenging motorsport environments.

Key Features:

• Designed for rally cars, buggies, car cross, and more
• Equipped with dual master cylinders and a balance bar for front/rear brake regulation
• Wide anti-slip pedal surface for improved control and pedal combinations
• Balance bar included, 7/16”-20 UNF thread for maximum stiffness
• Master cylinder connections: 5/16”-24 UNF (Wilwood/Girling compatible)
• Pedal ratio: 5:1

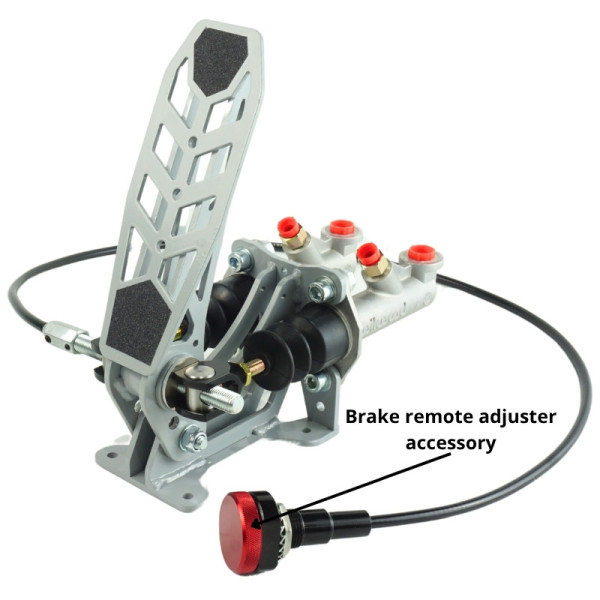

• Optional brake remote adjuster (7/16 UNF, ref. RPBAB03) for cockpit bias control
• Compatible with brake light switch banjo 3/8 UNF (ref. RPBAB12)
• Compatible with fluid reservoirs (ref. RPBAD02), mountable directly on or separately from master cylinders
• Weight: 1.4 kg (without master cylinders) / 2.2 kg (with master cylinders)
• Floor-mounted installation with four M6 screws
• Anti-slip pedal surface
• Anticorrosion coating for maximum durability
• Master cylinders sold separately
