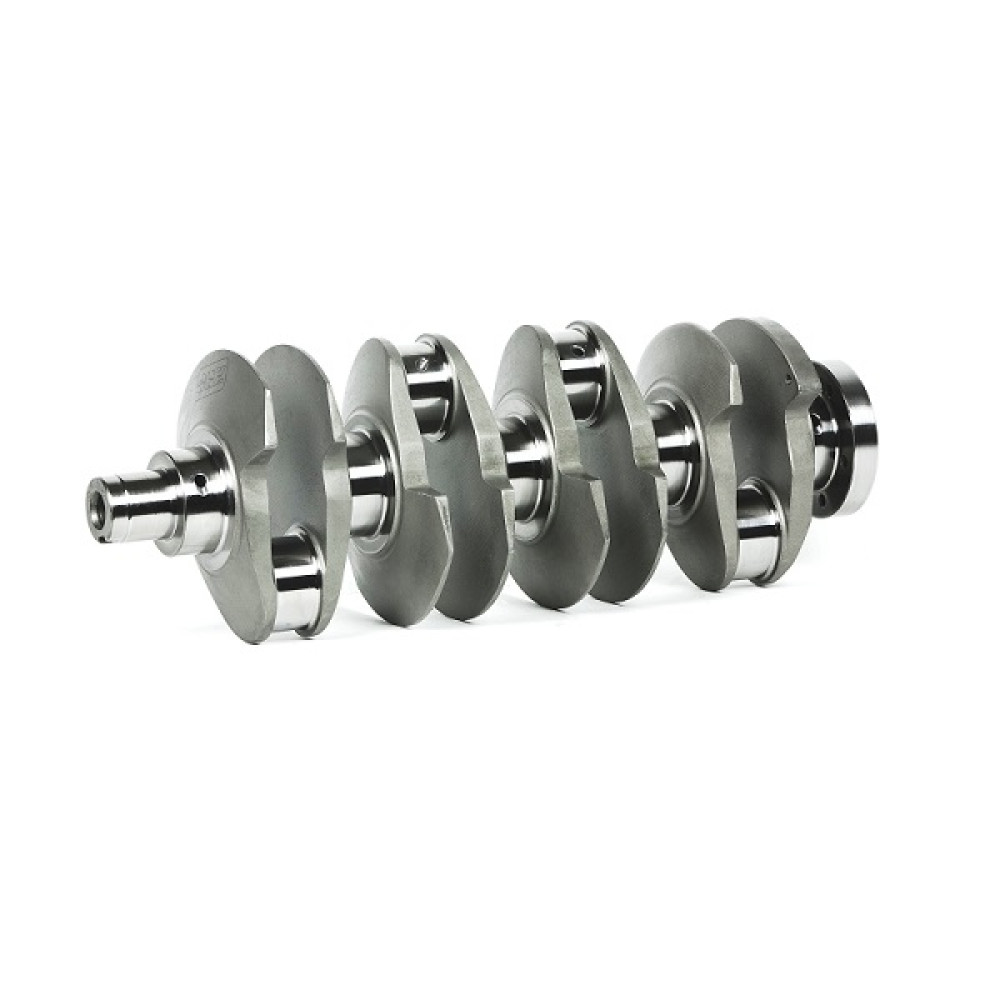

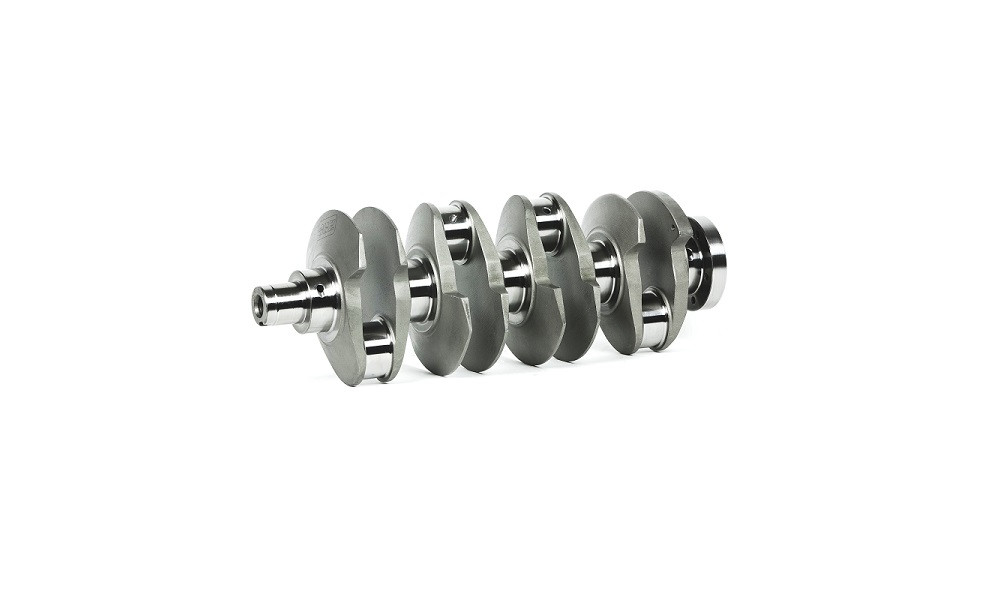

ZRP Stroker Crankshaft for Audi/VW 2.0L TFSI (Belt Driven)

The ZRP stroker crankshaft increases the engine capacity to 2036cc (82.5mm x 95.2mm). Crafted from aerospace-grade 4340 solid billet steel, this crankshaft is designed to deliver optimal engine performance. It undergoes strict inspections to ensure superior quality and tight tolerances for perfect fitment. Fully balanced to 1gr.cm /- 0.1 using state-of-the-art Sunnen machines, a balance results report is included.

Product Features and Design

• Knife-edged profiled counterweights for reduced weight and enhanced aerodynamics.
• Straight oil holes for improved rod journal lubrication.
• "High-Speed" oiling system for superior lubrication.
• Chamfered oil holes.
• Journal radius to disperse load stress.
• Tapered rod journals for weight reduction.

Technical Features

• Full CNC machining.
• ION (Plasma) Nitride process for hardening.
• Multi-stage heat treatment.
• Shot peening for stress release.
• 100% Magna-fluxing for a flawless surface finish.
• Heat treatment for superior wear resistance.
• Micro-polishing for extended bearing life.
• Sonic tested and X-rayed for reliability.
