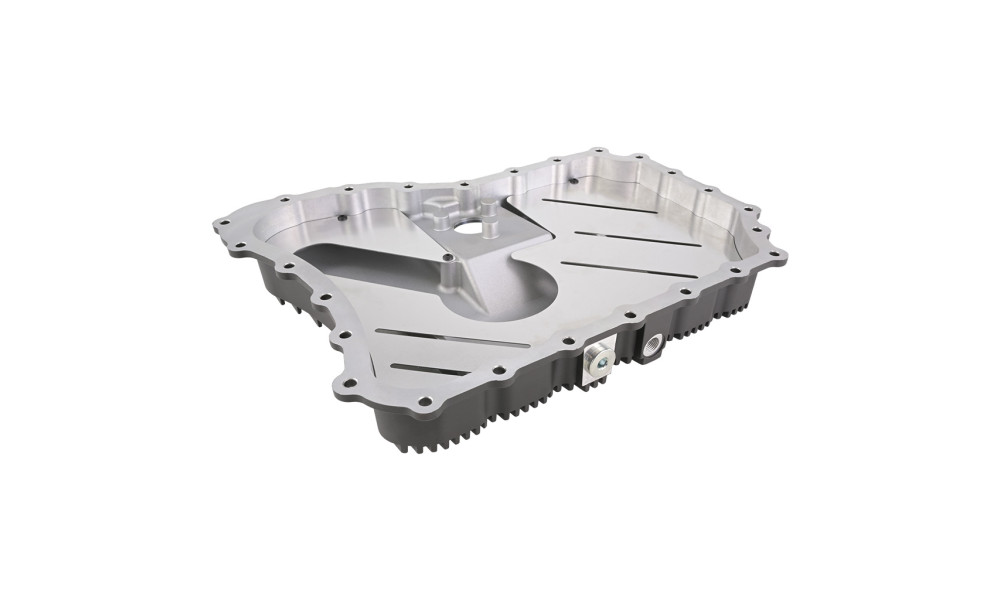

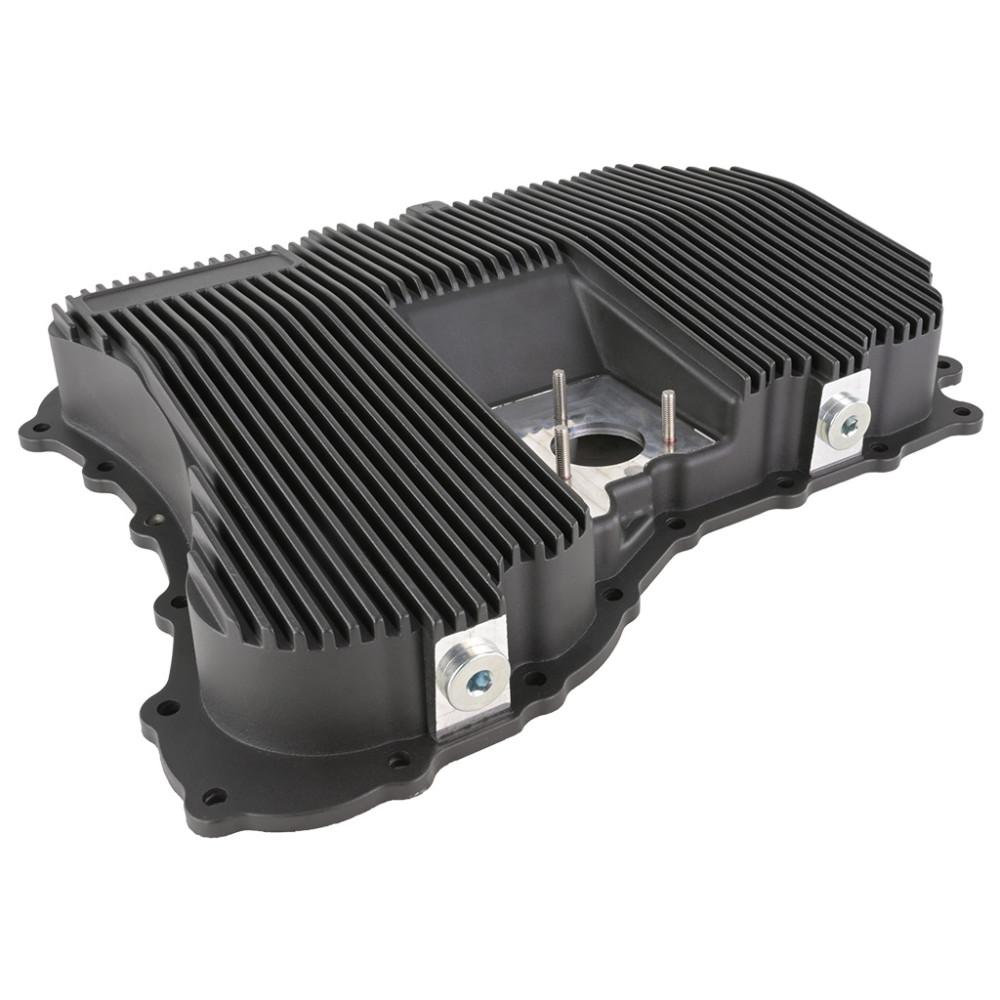

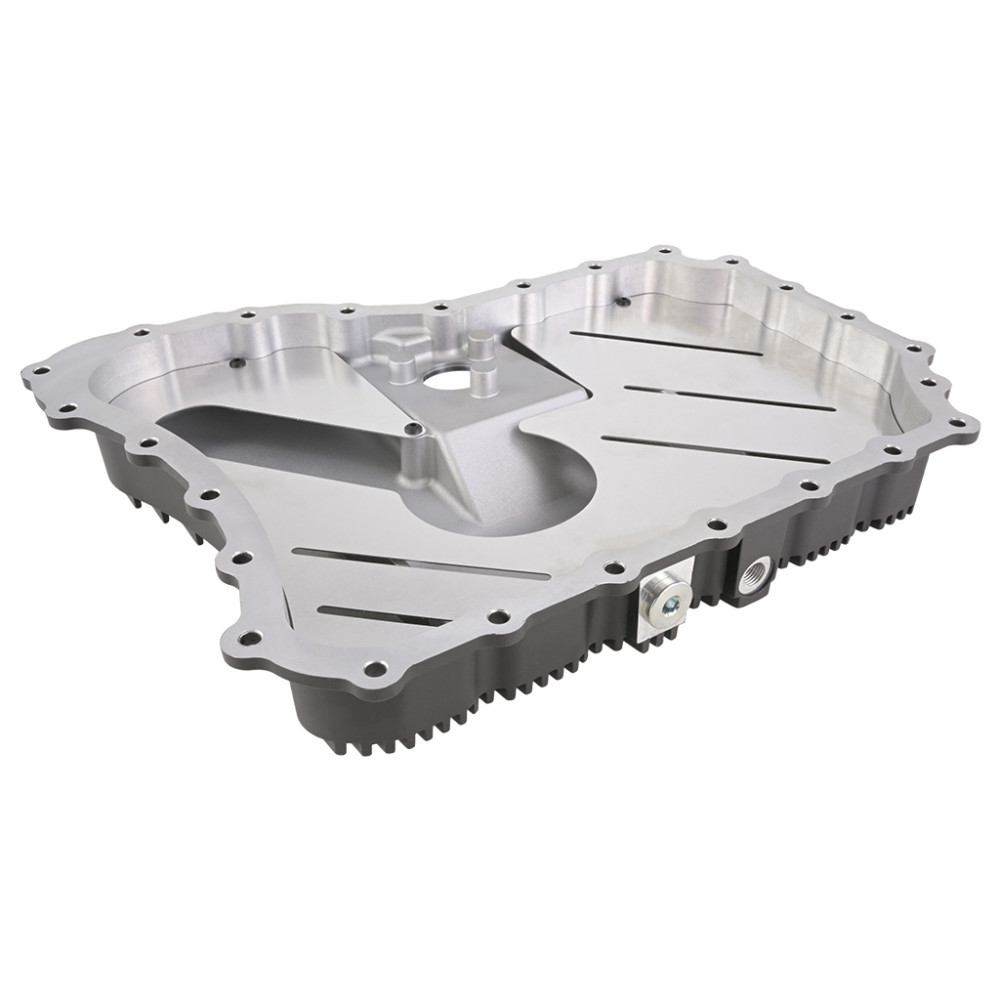

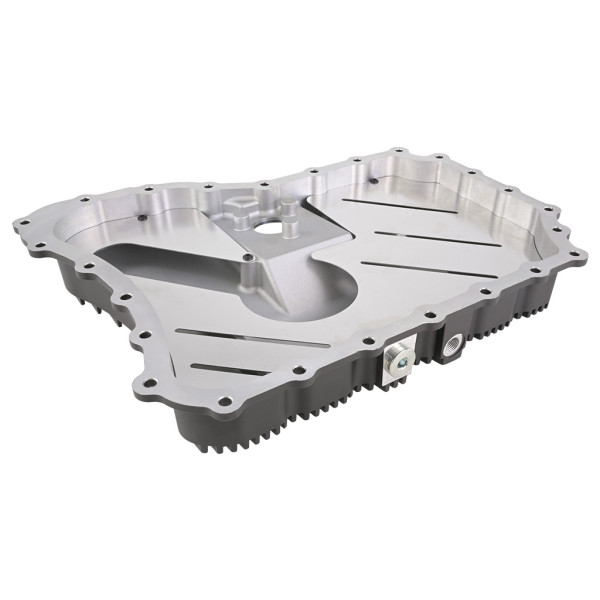

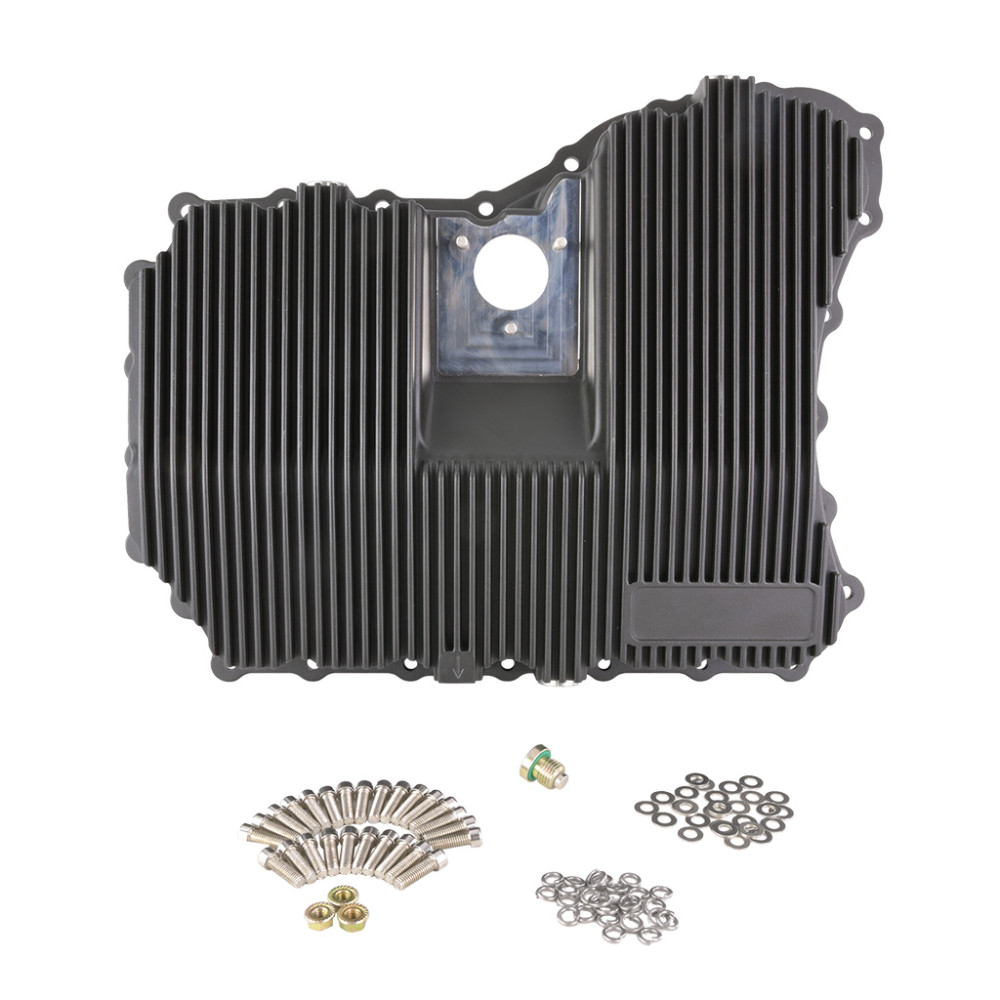

Billet Aluminum Oil Pan for Audi RS3 RSQ3 TTRS 2.5 TFSI EA855

This oil pan is an advanced lubrication system component designed for Audi 2.5 TFSI DAZA and DNWA engines used in high-performance Audi models. Machined from a solid block of aluminum using CNC technology, it serves as a direct replacement for the factory oil pan, providing significantly higher strength, improved oil cooling, and increased overall engine block rigidity.

High-grade aluminum combined with full-surface cooling fins ensures efficient heat dissipation, maintaining optimal oil temperature and viscosity even during aggressive driving, high RPM operation, and prolonged load. The increased oil capacity (approximately +1 liter compared to OEM) enhances lubrication safety in motorsport and tuned applications.

Integrated oil baffles minimize oil movement under lateral and longitudinal G-forces, preventing oil aeration.

Product features:
- Machined from solid aluminum billet, precision CNC manufacturing
- One of the lightest oil pans in its class
- Full surface cooling fins for efficient heat dissipation
- Increased oil capacity by approximately 1 liter vs. OEM
- Integrated anti-slosh oil baffles
- Magnetic drain plug to capture metal particles
- Black anodized finish for corrosion resistance and premium appearance

Engine compatibility:
- Audi 2.5 TFSI DAZA
- Audi 2.5 TFSI DNWA

Fits models:
- RS3 8V 2.5 TFSI DAZA (2017–2021)
- RS3 8Y 2.5 TFSI DNWA (2021+)
- TT RS 8S 2.5 TFSI DAZA (2016–2020)
- RS Q3 F3 2.5 TFSI DNWA (2019+)
