AST Multipoint Weld-In Roll Cage V4 – Volvo 945 5-door Wagon

AST multipoint weld-in roll cage V4 for the Volvo 945 5-door Wagon – 10-point, motorsport use.

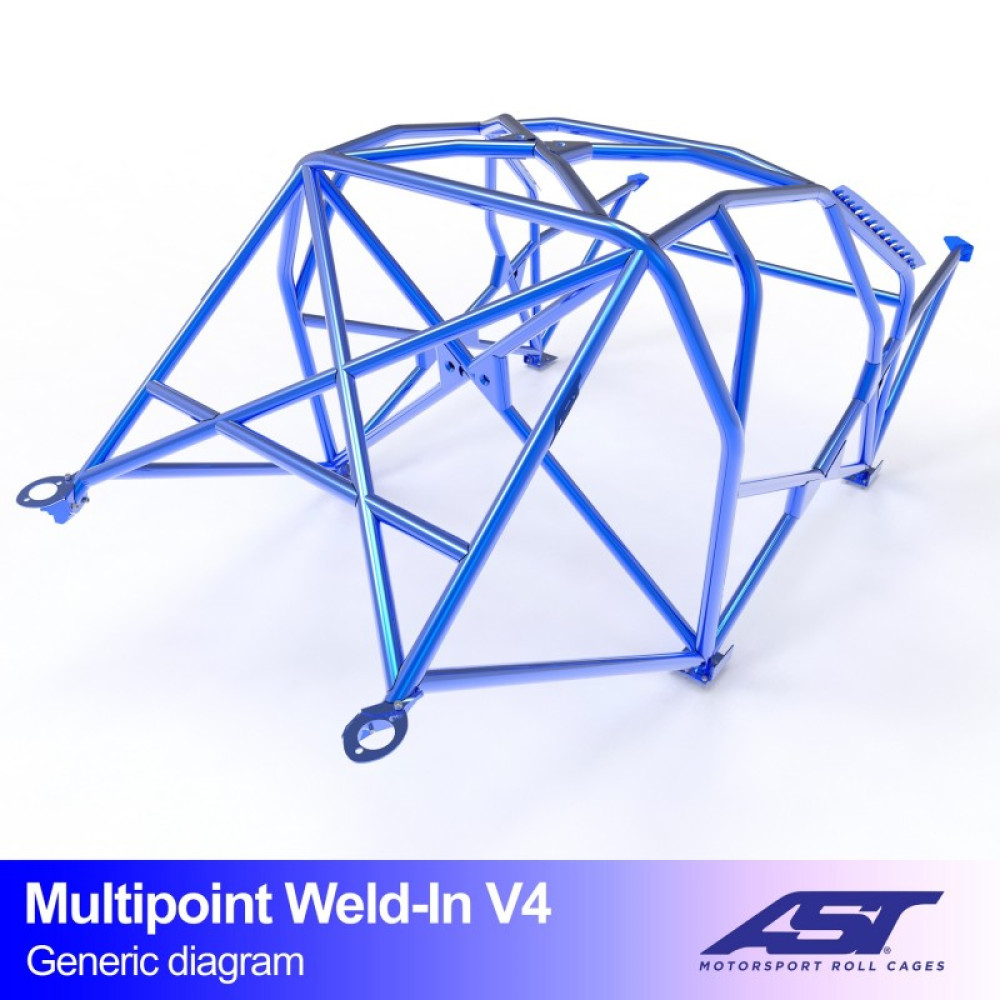

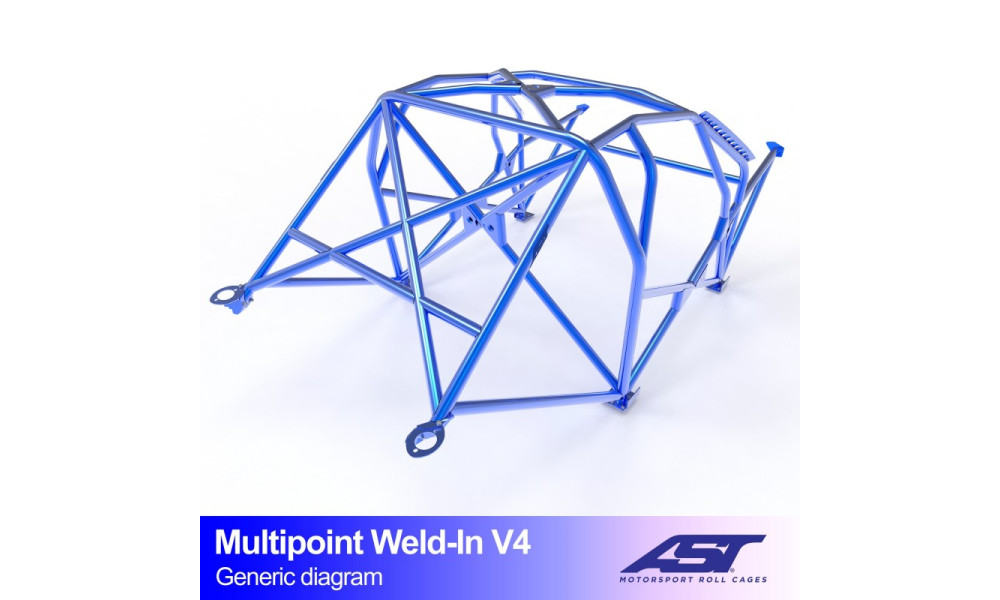

AST Multipoint Weld In V4 roll cage with 10 points to the bodyshell. The reinforcement plates are 3mm thick steel and are designed and manufactured specifically for each car, achieving maximum safety and fitting on the chassis. The roll cage is delivered in welding kit, and unpainted, and is composed of a main hoop of 45mm diameter in E355 steel, the rest of the structure is made of 40mm diameter in E355 steel. Thanks to our laser scanner technology we guarantee an accurate 3D design that suits in your vehicle.

Key Features

• 10 mounting points to the bodyshell
• Ø45 mm main hoop, Ø40 mm structure in E355 steel
• 3D design from laser-scanned bodyshell

Specifications

Lead time: made to order – approx. 35 working days manufacturing time from order confirmation, plus shipping.

Included

• Welding kit
• Gussets
• Reinforcement plates
• Screws, washers and nuts
• Individual documentation
• Installation manual
• Sticker set
• Welding T sample

Important

• Consult with your Federation / Sports Organization the minimum safety requirements specific to your vehicle, version, engine and type of test and / or championship to be played, even if this roll cage fits in all model engines.
• These structures require adaptations and / or cancellations of interior elements of the vehicle (dashboard, door panels, upholstery, rear seats ..).
