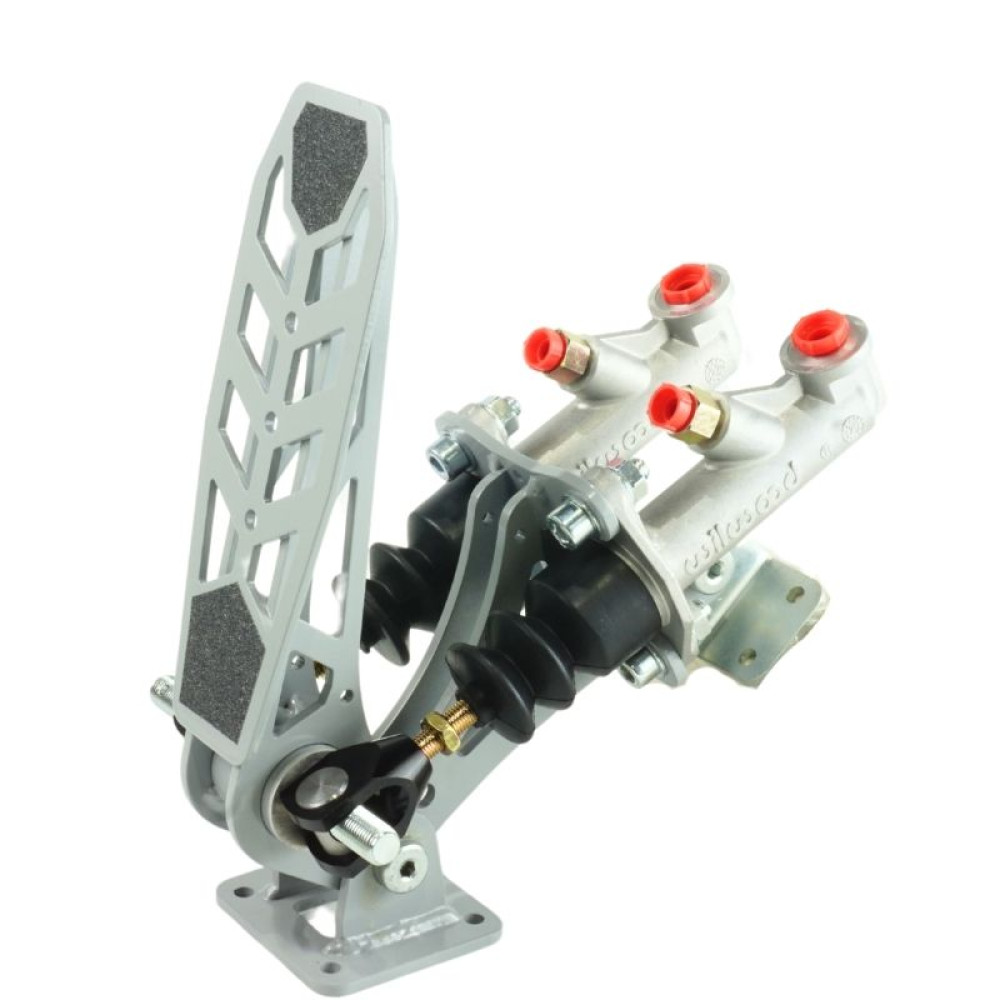

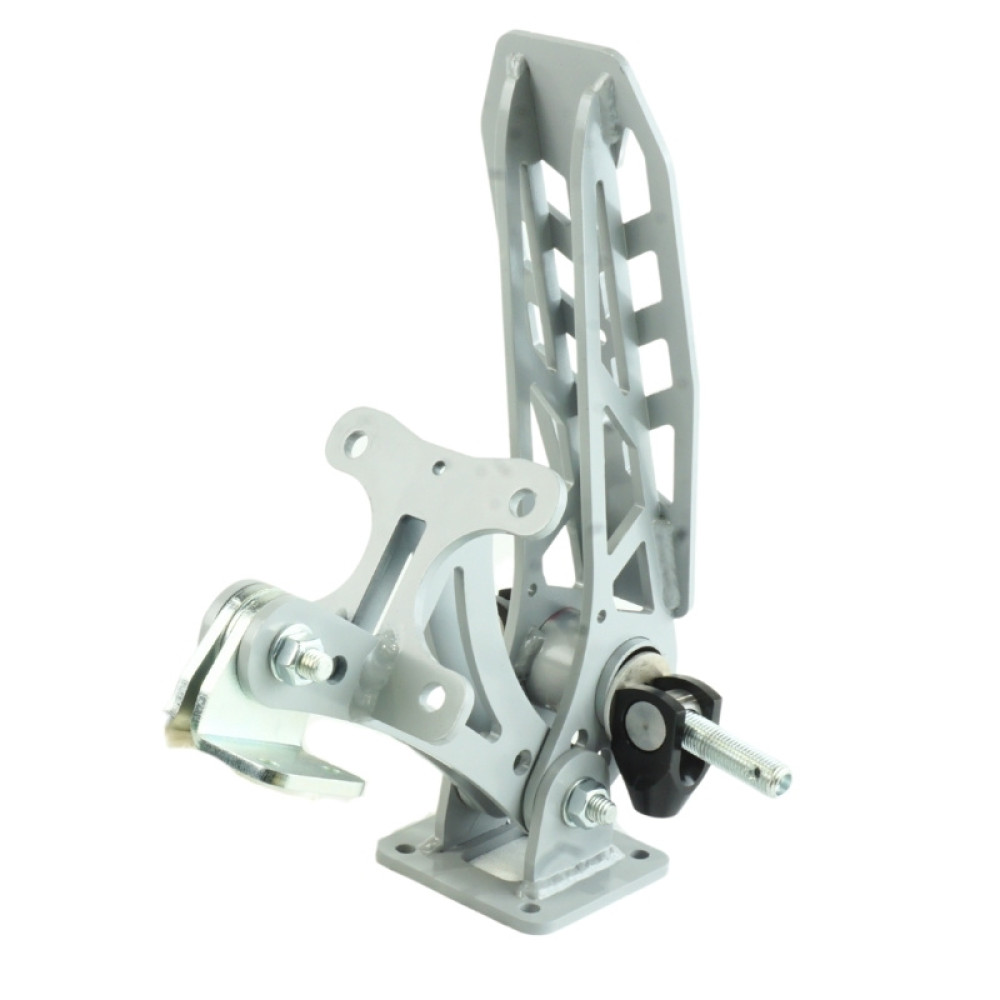

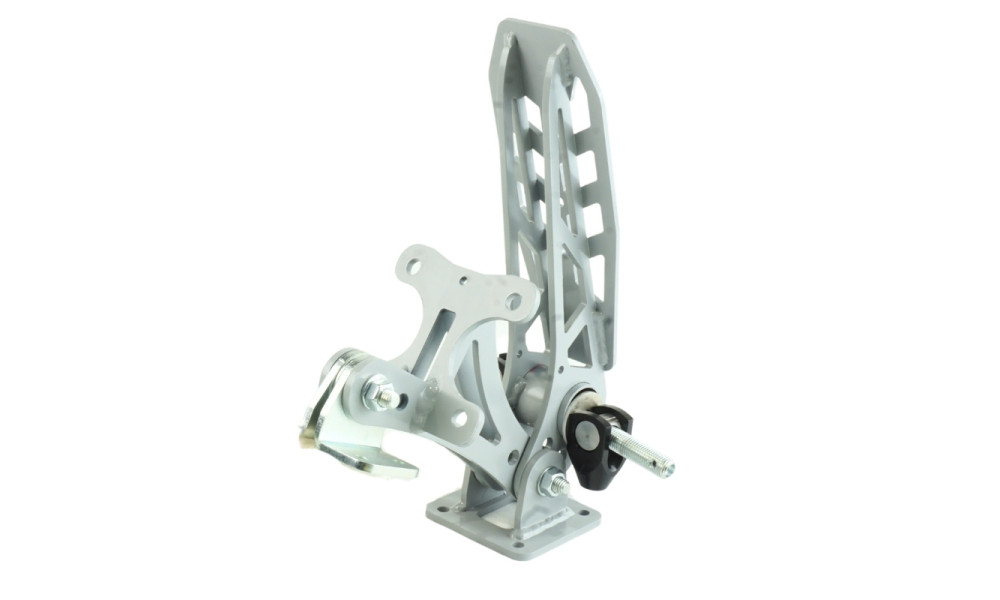

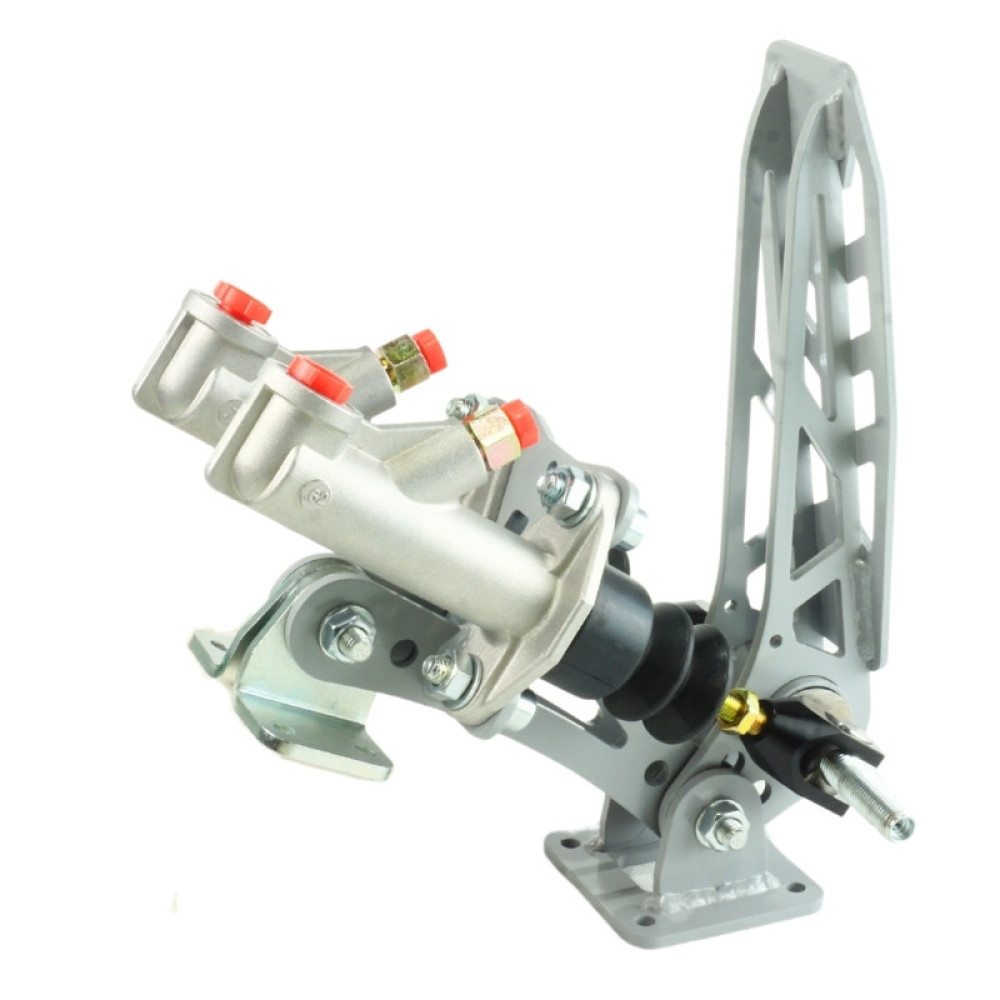

RacingPedalBoxes RPBB002 Brake Pedal

The RacingPedalBoxes RPBB002 Brake Pedal is engineered for rally cars, replacing the original brake pedal while retaining the stock throttle and clutch pedals. Constructed from welded steel with a lightweight design, it offers an optimal stiffness-to-weight ratio and reliability under motorsport conditions.

Key Features:

• Designed for rally cars, replaces the OEM brake pedal while keeping original throttle and clutch pedals
• Adjustable master cylinder body angle for easier integration into the cockpit
• Equipped with dual master cylinders and a balance bar for front/rear brake regulation
• Wide anti-slip pedal surface for improved driving and pedal combinations
• Balance bar included, 7/16”-20 UNF thread for maximum stiffness
• Master cylinder connections: 5/16”-24 UNF (Wilwood/Girling compatible)
• Pedal ratio: 5:1

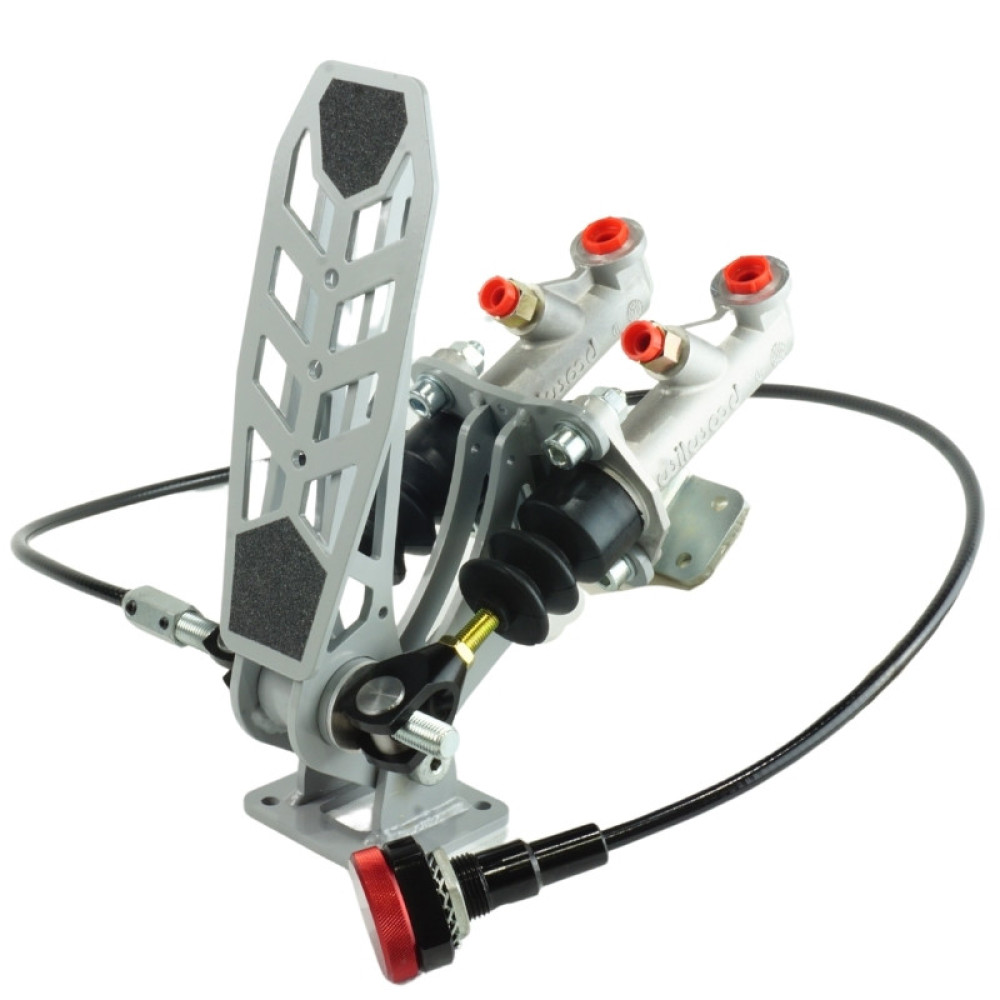

• Optional brake remote adjuster (7/16 UNF, ref. RPBAB03) for cockpit bias control
• Compatible with brake light switch banjo 3/8 UNF (ref. RPBAB12)
• Compatible with fluid reservoirs (ref. RPBAD02)
• Weight: 1.65 kg (without master cylinders) / 2.45 kg (with master cylinders)
• Floor-mounted installation with eight M6 screws
• Anticorrosion coating for maximum durability
• Master cylinders sold separately
