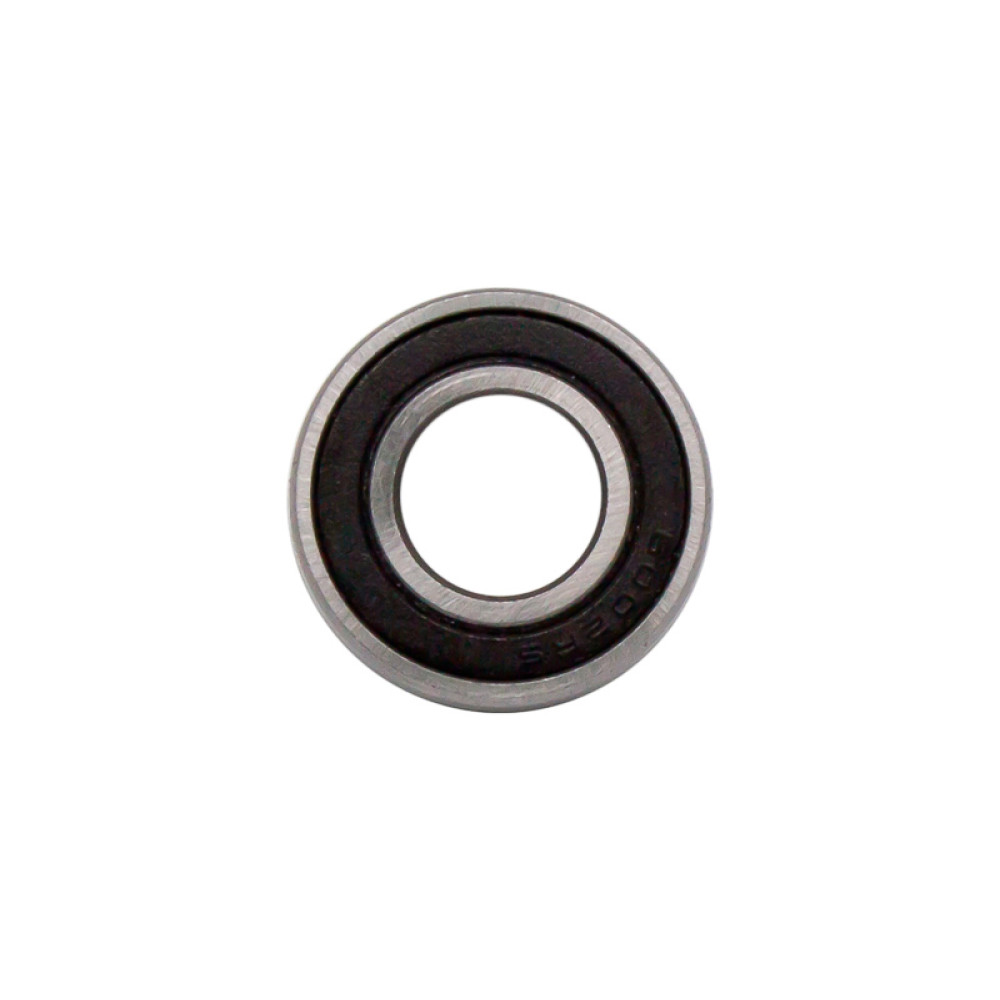

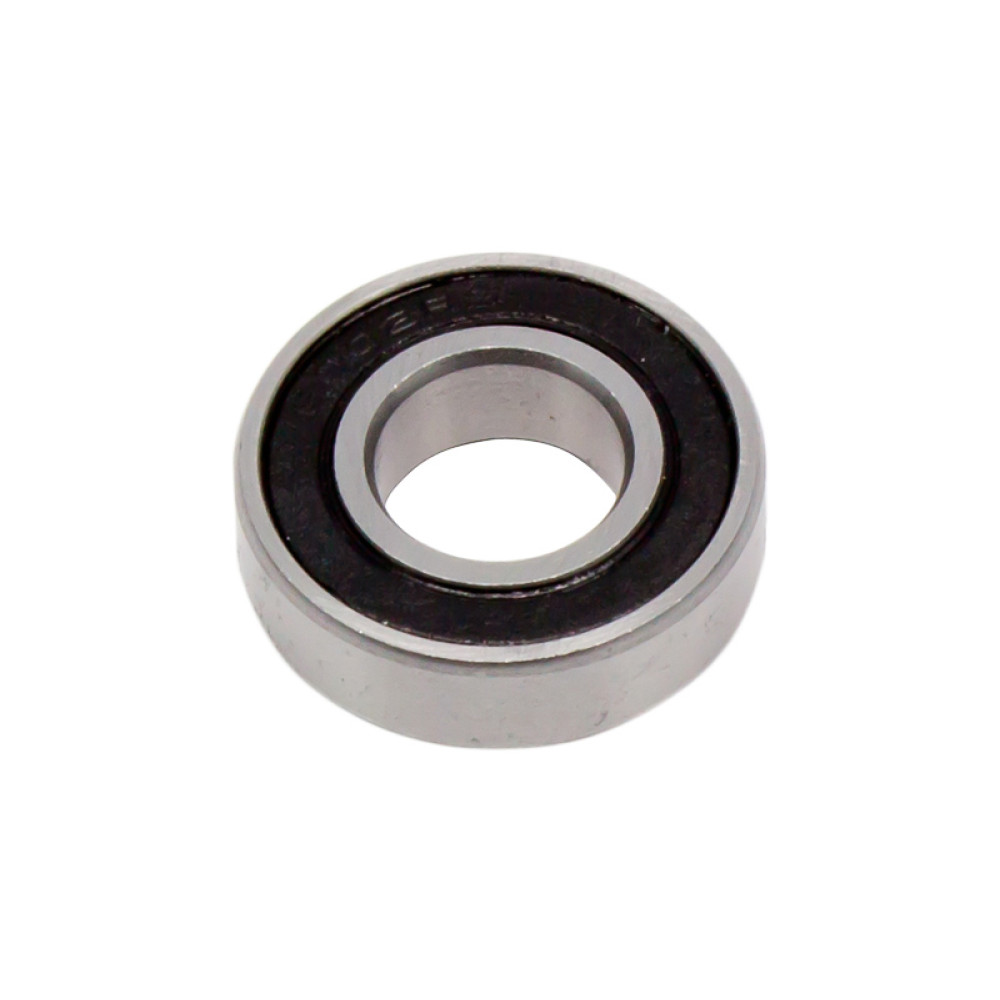

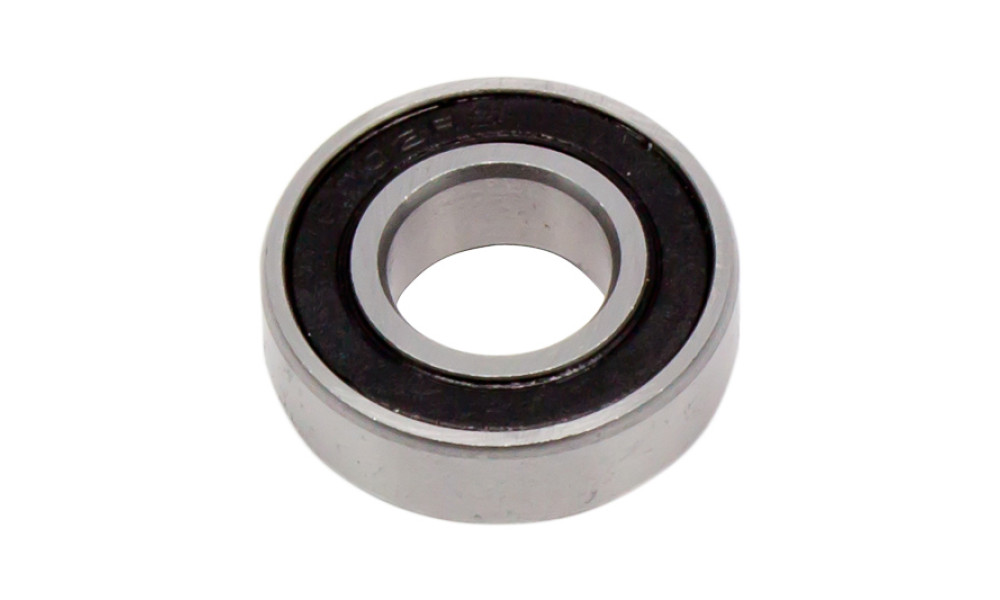

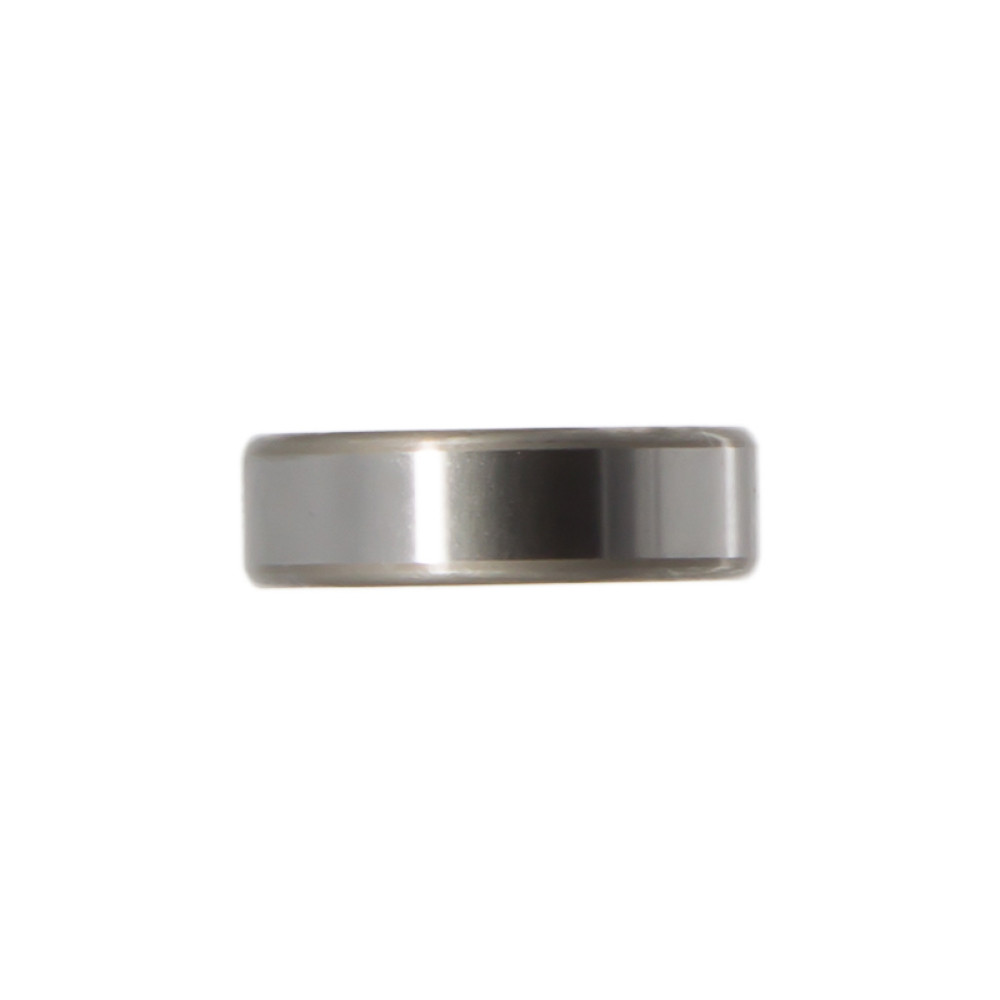

ACT PB1002 Pilot Bearing – Honda Civic, CRX, CRX Del Sol & more
The ACT PB1002 is a high quality replacement bushing or bearing that is placed in the end of the crankshaft or in the center of the flywheel, depending on the vehicle. It is used to support the end of the transmission input shaft.
Key Features
- Quality: Precision OE style or better
Specifications
| Spec | Value |
|---|---|
| Brand | ACT (Advanced Clutch Technology) |
| Part number | PB1002 |
| Product type | Pilot Bearing |
| Package weight | 0.32 kg |
Fitment
| Make | Model | Years | Engine |
|---|---|---|---|
| Honda | Civic | 1987–2005 | 1.5L L4 1493cc D15B; 1.4L L4 1396cc GL/GLX D14A1; 1.6L L4 1590cc VTi B16A2; 1.6L L4 1590cc VTi/Type-R B16A2/B16B; 1.6L L4 1590cc iLS/iSR D16Y7/D16Y8; 1.5L L4 1493cc VTEC-E D15Z6; 1.8L L4 1.797cc VTi B18C4; 1.6L L4 1590cc D16V1; 1.7L L4 1668cc i ES/i LS D17A8/D17A9; 1.4L L4 1396cc D14A3/D14A4/D14Z2; 1.6L L4 1590cc i-VT B16A1; 1.3L L4 1343cc D13B2; 1.5L L4 1493cc DXi/LSi/VEi D15B2/D15B7/D15Z1; 1.6L L4 1590cc ESi D16Z6/D16Z9; 1.4L L4 1.396cc D14Z6; 1.6L L4 1590cc D16A8/D16A9/D16ZC |
| Honda | CRX | 1987–1992 | 1.5L L4 1493cc D15B; 1.4L L4 1396cc GL/GLX D14A; 1.6L L4 1590cc 97 CID; 1.6L L4 1590cc D16A8/D16A9/D16ZC; 1.6L L4 1590cc i-VT B16A1 |
| Honda | CRX Del Sol | 1992–1998 | 1.6L L4 1590cc VTi B16A2; 1.5L L4 1493cc; 1.6L L4 1590cc ESi D16Z6/D16Y8 |
| Honda | Integra | 1994–2006 | 1.8L L4 1834cc Type-R B18; 2.0L L4 1998cc Type-R K20A |
| Honda | CR-V | 1996–2002 | 2.0L L4 1972cc B20B |
| Chrysler | Conquest (Base, TSi) | 1987–1989 | 2.6L L4 2555cc 156 CID |
| Mitsubishi | Starion (ESi-R, ESi) | 1987–1989 | 2.6L L4 2555cc 156 CID |
| BMW | M3 E46 | 2000–2006 | 3.2L L6 3246cc |
| BMW | Z3 (Roadster, M Coupe / Roadster) | 1998–2002 | 1.9L L4 1895cc; 3.2L L6 3152cc; 2.5L L6 2494cc 152 CID |
| BMW | 325i ((E36)) | 1992–2000 | 2.5L L6 2494cc 152 CID M50 |
| BMW | 525i ((E34)) | 1992–1995 | 2.5L L6 2494cc 152 CID |
| BMW | M3 E36 | 1994–1999 | 3.2L L6 3152cc |
| Honda | Accord | 1998–2003 | 1.6L L4 1590cc D16B6 |
Notes:
- Several clutches available check your original clutch spec before ordering
- 212mm upgrade, Must be used with 90-01 SOHC flywheel
- 5 Speed applications only
ACT PB1002 Pilot Bearing – Honda Civic, CRX, CRX Del Sol & more
11.00€
10.89€
Excl. VAT: 9.00€
Tags: ACT-PB1002,
