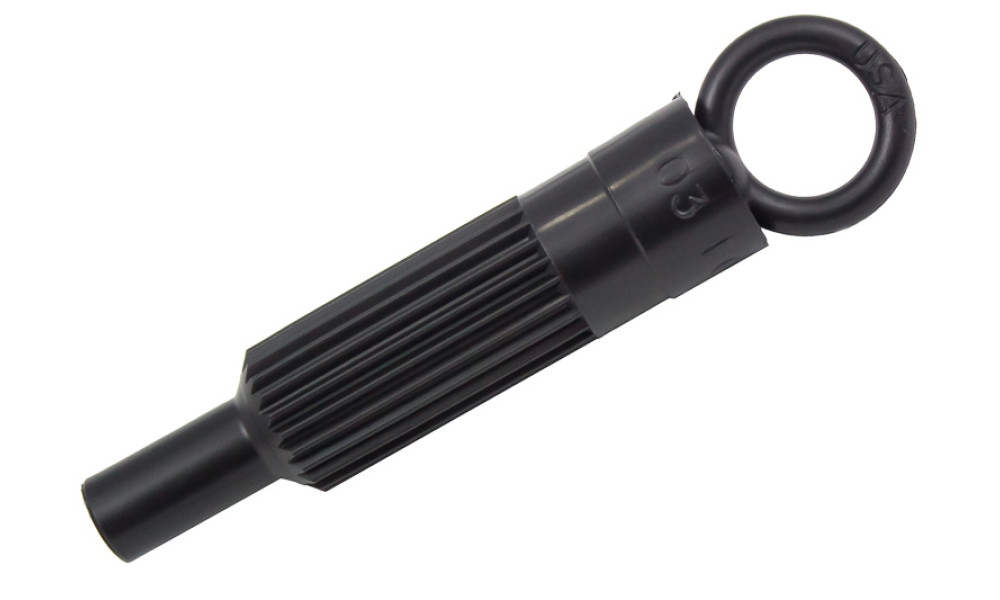

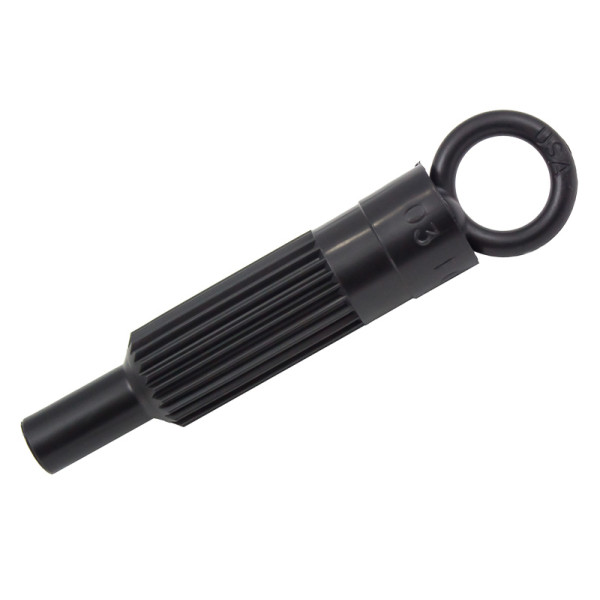

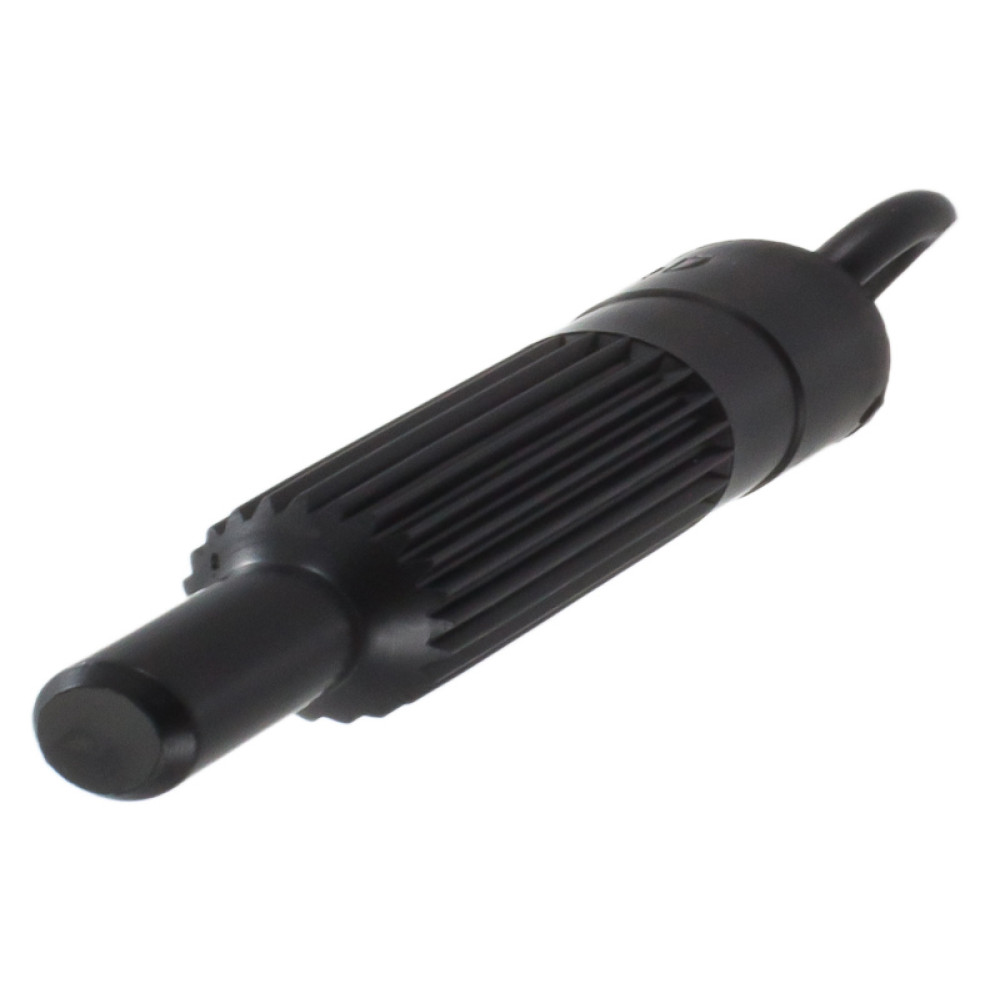

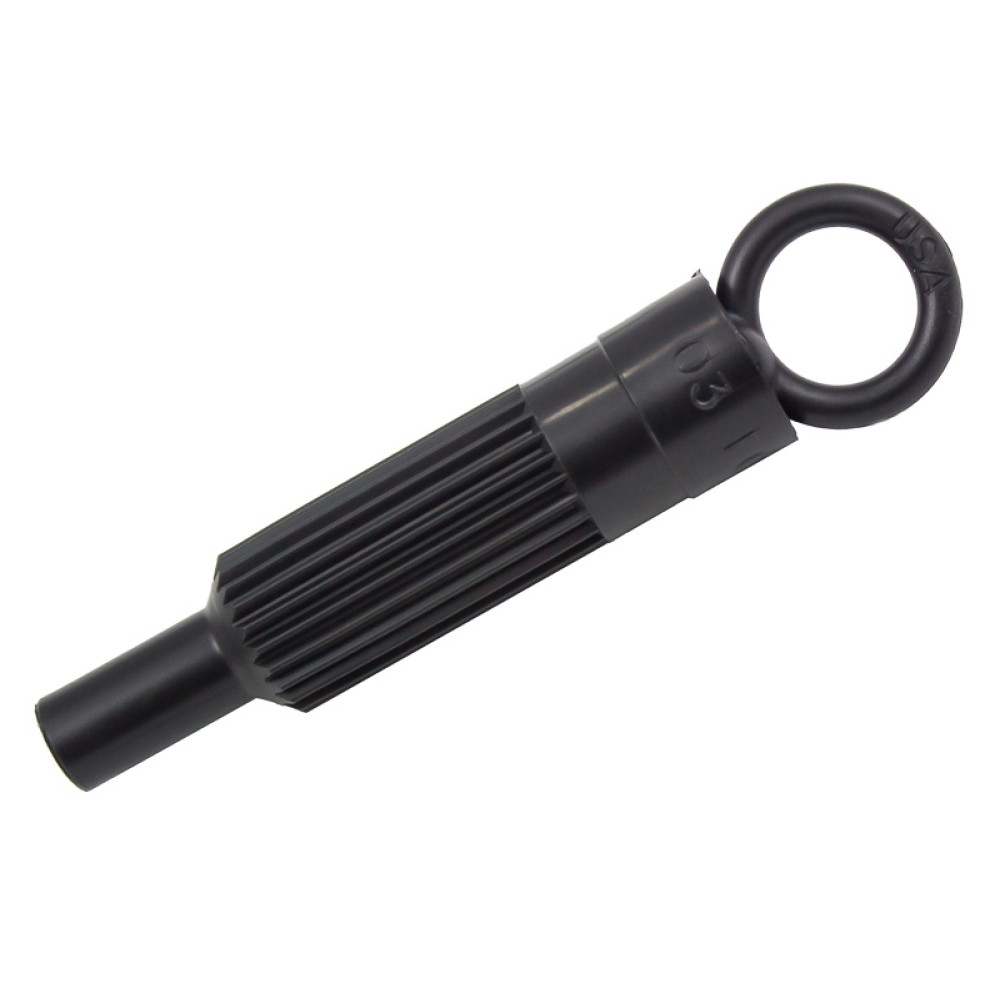

ACT AT03 Alignment Tool – Mazda MX-5, MX-6, RX-7 & more
The ACT AT03 is an alignment tool that facilitates the installation of an ACT pressure plate by correctly aligning the clutch disc with the pilot bearing. This results in easy alignment with the transmission input shaft.
Specifications
| Spec | Value |
|---|---|
| Brand | ACT (Advanced Clutch Technology) |
| Part number | AT03 |
| Product type | Alignment Tool |

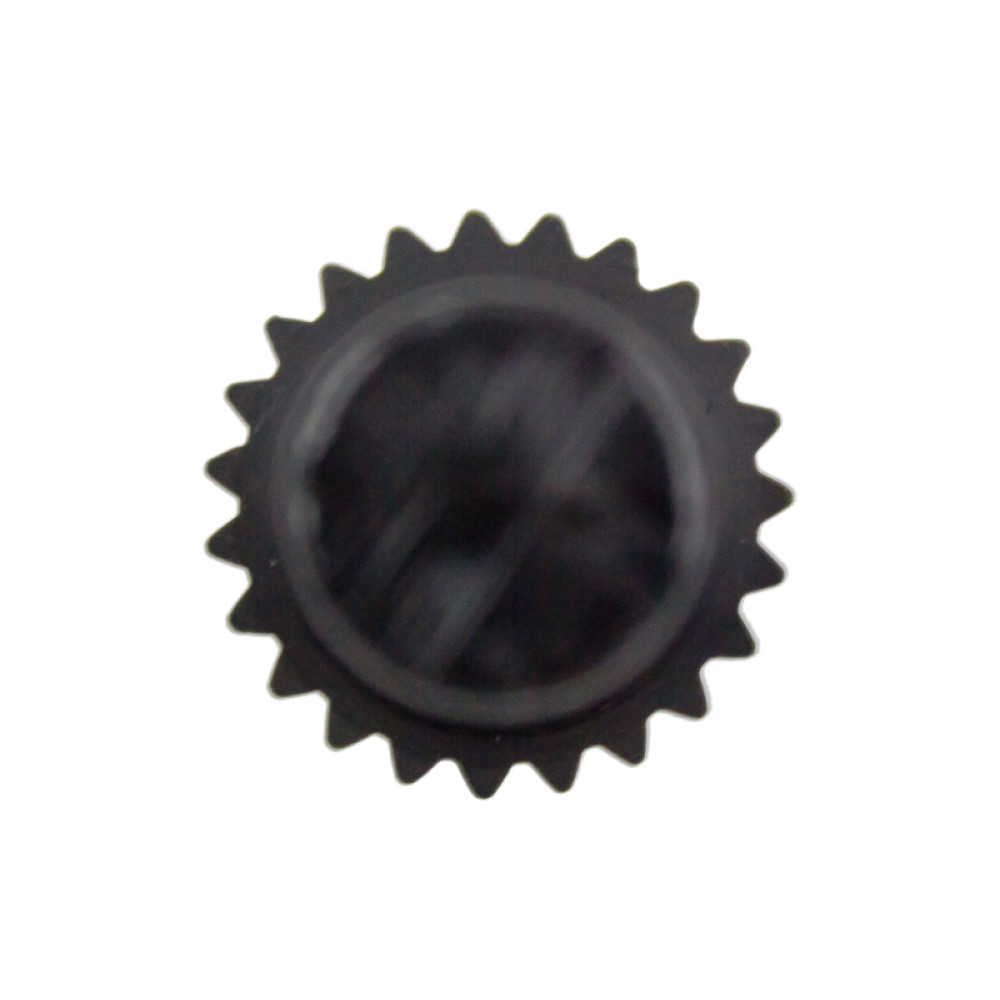

| Spline count | 23 |
| Spline size | 1" |
| Package weight | 0.23 kg |
Fitment
| Make | Model | Years | Engine |
|---|---|---|---|
| Mazda | MX-5 (NC) | 2005–2015 | 1.8L & 2.0L 6 SPEED |
| Mazda | MX-6 (GD) | 1988–1992 | 2.2L L4 2184cc TURBO |
| Mazda | RX-7 (FC, FD) | 1986–2002 | 1.3L R2 1308cc TURBO; 1.3L R2 1308cc |
| Chrysler | Conquest (Base, TSi) | 1987–1989 | 2.6L L4 2555cc 156 CID |
| Mitsubishi | Starion (ESi-R, ESi) | 1987–1989 | 2.6L L4 2555cc 156 CID |
| Mazda | 929 (HC) | 1988–1991 | 3.0L V6 2954cc 180 CID |
| Mazda | RX-8 | 2004–2011 | 1.3L R2 1308cc |
| Mazda | 6 (GG) | 2005–2007 | 2.3L L4 2260cc |
| Mazda | 3 (BL) | 2008–2013 | 2.3L L4 2260cc |
| Mitsubishi | Lancer Evolution IV | 1997 | 2.0L L4 1997cc |
| Mitsubishi | Lancer Evolution IX | 2005–2009 | 2.0L L4 2000cc |
| Mitsubishi | Lancer Evolution V | 1998 | 2.0L L4 1997cc 122 CID |
| Mitsubishi | Lancer Evolution VI | 1999–2001 | 2.0L L4 1997cc 122 CID |
| Mitsubishi | Lancer Evolution VII | 2001–2003 | 2.0L L4 1997cc 122 CID |
| Mitsubishi | Lancer Evolution VIII | 2003–2005 | 2.0L L4 1997cc 122 CID |
| Mitsubishi | Lancer Evolution X | 2008–2015 | 2.0L L4 1998cc 122 CID |
| Mitsubishi | Eclipse (GT, GTS) | 2001–2004 | 3.0L V6 2972cc 181 CID |
| Mitsubishi | Eclipse Spyder (GT, GTS) | 2001–2004 | 3.0L V6 2972cc 181 CID |
| Dodge | Stealth (R/T Turbo) | 1991–1996 | 3.0L V6 2972cc 181 CID |
| Mitsubishi | 3000GT | 1990–1999 | 4WD Turbo 3.0L V6 2972cc 181 CID |
Notes:
- Must be used with ACT flywheel and pressure plate
ACT AT03 Alignment Tool – Mazda MX-5, MX-6, RX-7 & more
5.90€
5.85€
Excl. VAT: 4.83€
Tags: ACT-AT03,
