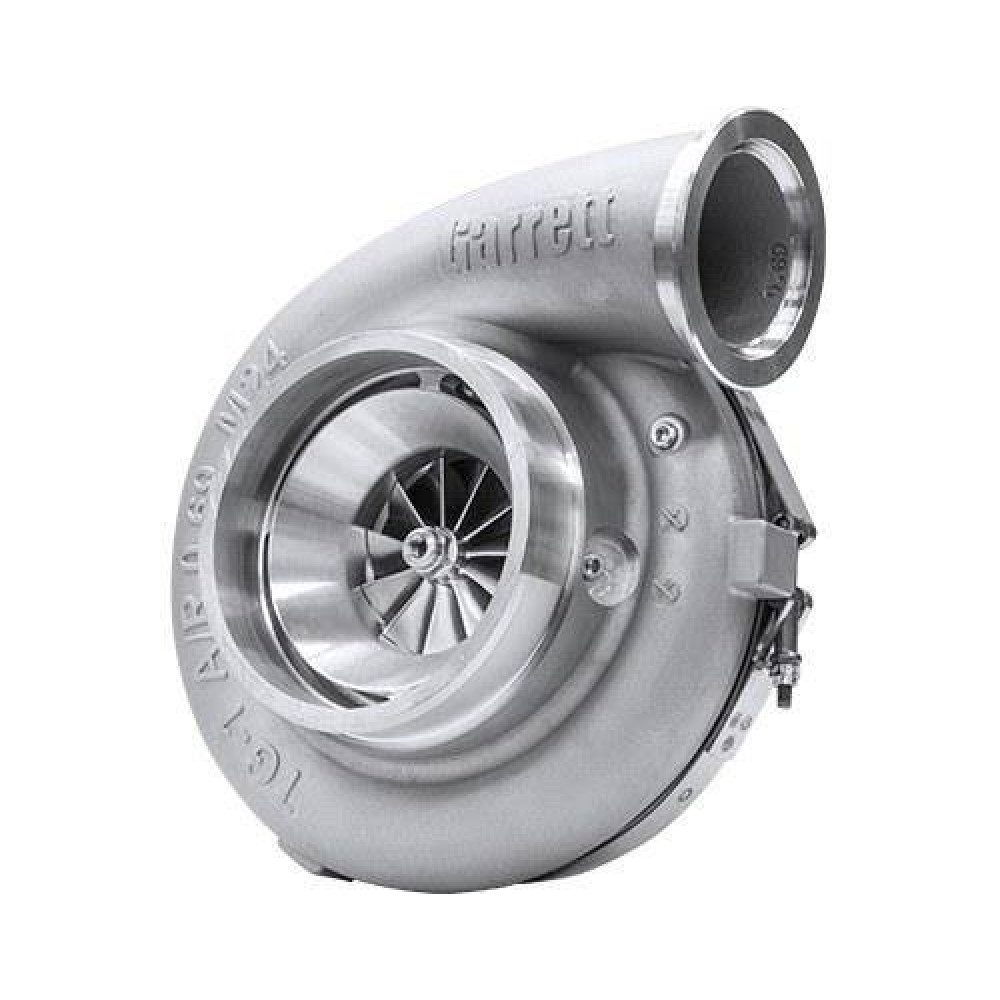

Sport dedicated turbocharger, Garrett GTX4708R.
About Garrett® GTX Series Turbochargers
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today's top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
Application :
- Power: 720 - 1270HP
- Displacement: 2.0L - 10.0L
Features:
FEATURES ORIGINAL GTX COMP WHEEL AERODYNAMICS
NEW FULLY-MACHINED SPEED SENSOR PORT.
SUPER CORE AND TURBINE KIT SOLD SEPARATELY
V-BAND COMPRESSOR OUTLET CONFIGURATION
LIGHTWEIGHT BILLET BACKPLATE
Table:
| Super Core Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Super Core PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim |
| 804878-5002S | 769210-0018 | 80mm | 108mm | 55 | 0.69 | 93mm | 84mm | 82 |
| Notes: | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | Trim | |
| Super Core and Turbine Kit Sold Separately | 761208-0009 | 0.96 | T6 | V-Band | Free Float | N | 82 | |
| 761208-0010 | 1.08 | T6 | V-Band | Free Float | N | 82 | ||
| 761208-0011 | 1.23 | T6 | V-Band | Free Float | N | 82 | ||
| 761208-0012 | 1.39 | T6 | V-Band | Free Float | N | 82 | ||
Dimension:
Graph:
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
