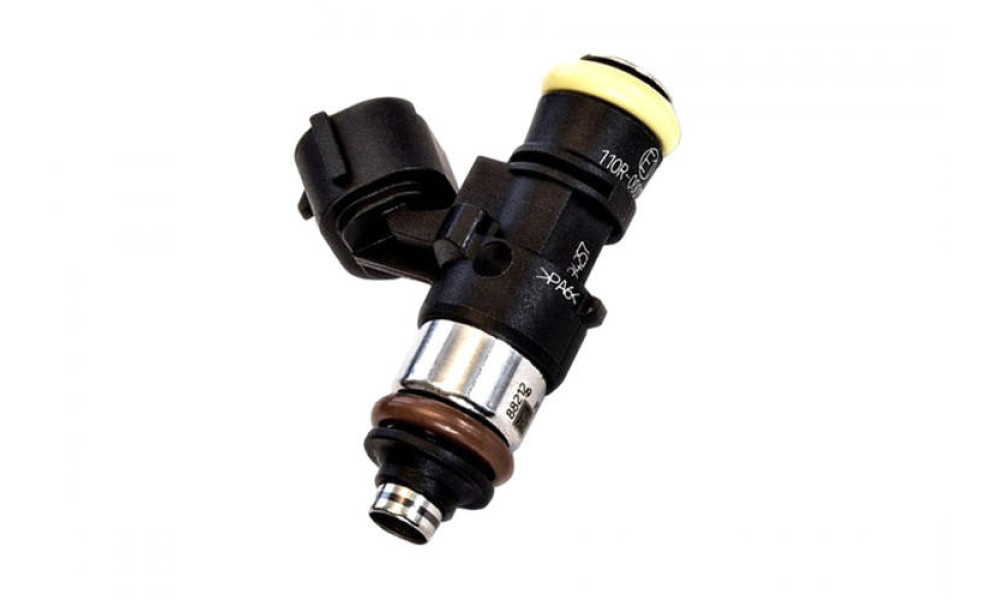

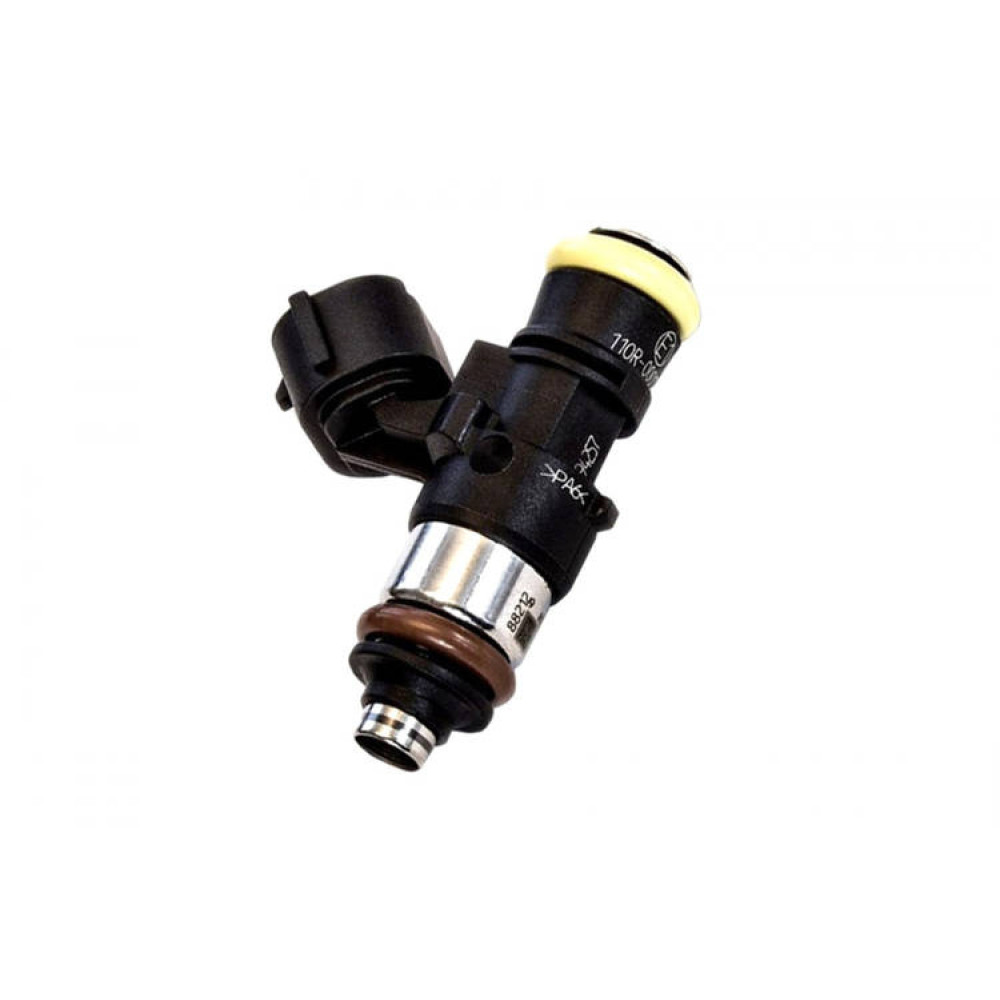

BOSCH 2200cc

Specifications:

Coil Resistance: 9.1 Ohms / Low Impedance

Dead Time: 0.45ms at 14 volts

Static Flow Rate @ 43.5 PSI ( 300kPa ) w/Gas: 2200 cc/min = 210 lb/hr

Static Flow Rate @ 58 PSI ( 400kPa ) w/Gas: 2550 cc/min = 240 lb/hr

Static Flow Rate @ 78.5 PSI ( 500kPa ) w/Gas: 2865 cc/min = 273 lb/hr

Static Flow Rate @ 88 PSI ( 600kPa ) w/Gas: 3155 cc/min = 300 lb/hr

Static Flow Rate @ 101.5PSI ( 700kPa ) w/Gas: 3350 cc/min = 320 lb/hr

Connector: Denso / Sumitomo

Injector Length: O-Ring to O-Ring: 1.5. / 37.5 mm

Injector Body Diameter: 16mm

O-Ring: 14.5mm Viton

Acceptable Fuels: Gas/Petrol, alcohol/methanol, E85, CNG
