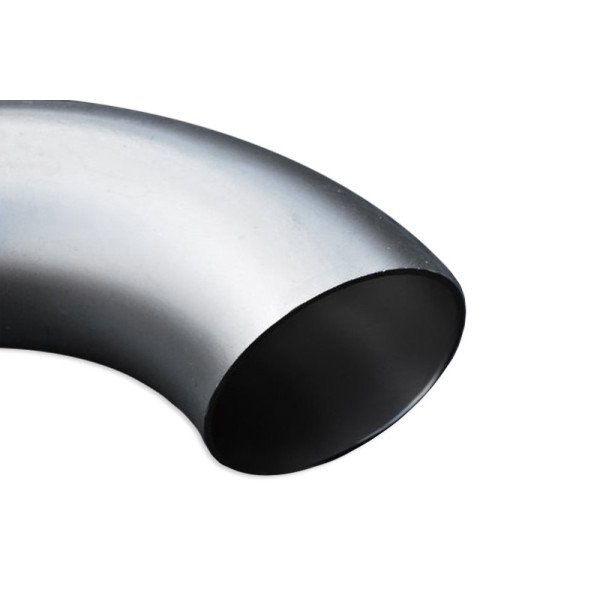

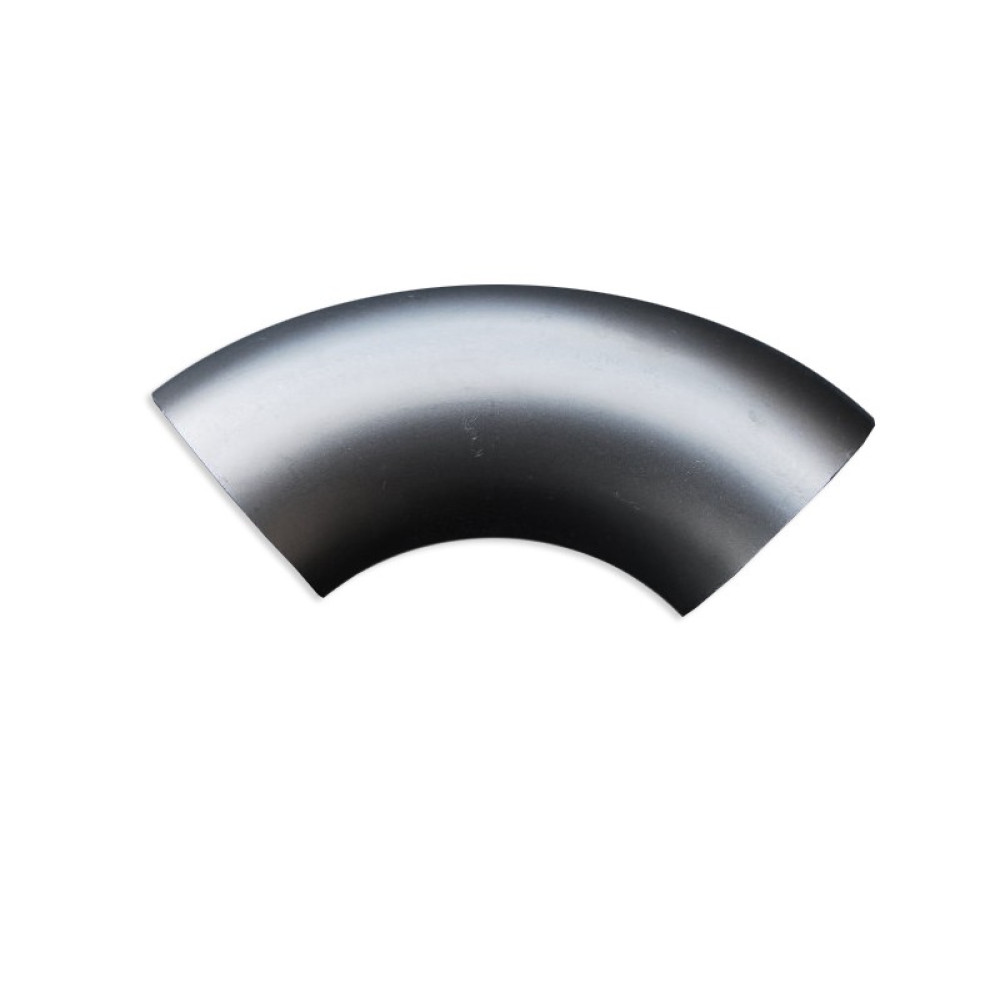

Stainless Steel Elbow 34 mm Diameter – 1.5 mm Wall Thickness

This high-quality stainless steel elbow is designed for performance applications, ideal for building custom intake and exhaust systems in tuning and motorsport projects. Manufactured from premium austenitic stainless steel grades 1.4307 / 1.4301 (AISI 304), it offers excellent corrosion resistance, durability, and superb weldability. The material’s low carbon content and chromium-nickel composition make it highly resistant to oxidation and perfectly suited for both high-temperature and high-humidity environments.

Thanks to its precise dimensions and robust construction, the elbow ensures reliable performance, long service life, and easy fabrication during assembly.

Technical Specifications

Dimensions:

• Outer diameter: 34 mm
• Wall thickness: 1.5 mm

Material:

• EN: 1.4301 / 1.4307
• AISI: 304
• Austenitic chromium-nickel stainless steel, low carbon content

Chemical Composition:

• C [%] < 0.07
• Si [%] < 1.0
• Mn [%] < 2.0
• P [%] < 0.045
• N [%] < 0.11
• Cr [%] 17.50 – 19.50
• Ni [%] 8.00 – 10.50

Mechanical Properties:

• Yield strength Re (Rp0.2) min.: 230 MPa
• Tensile strength Rm: 540–750 MPa
• Elongation at break A5 min.: 45%
• Hardness HB max.: 215

Physical Properties (at 20°C):

• Density: 7.9 kg/dm³
• Modulus of elasticity: 200 GPa
• Thermal conductivity: 15 W/(m·K)
• Specific heat capacity: 500 J/(kg·K)
• Electrical resistivity: 0.73 Ω·mm²/m
