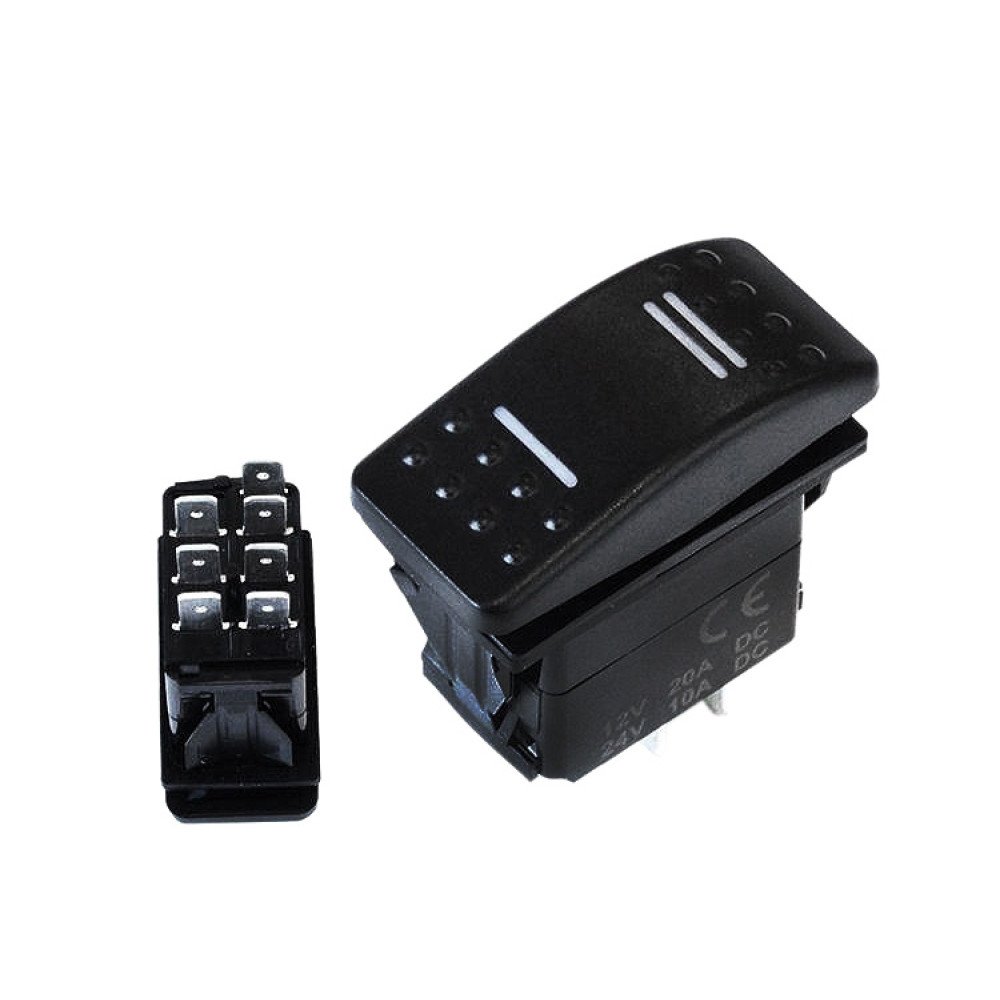

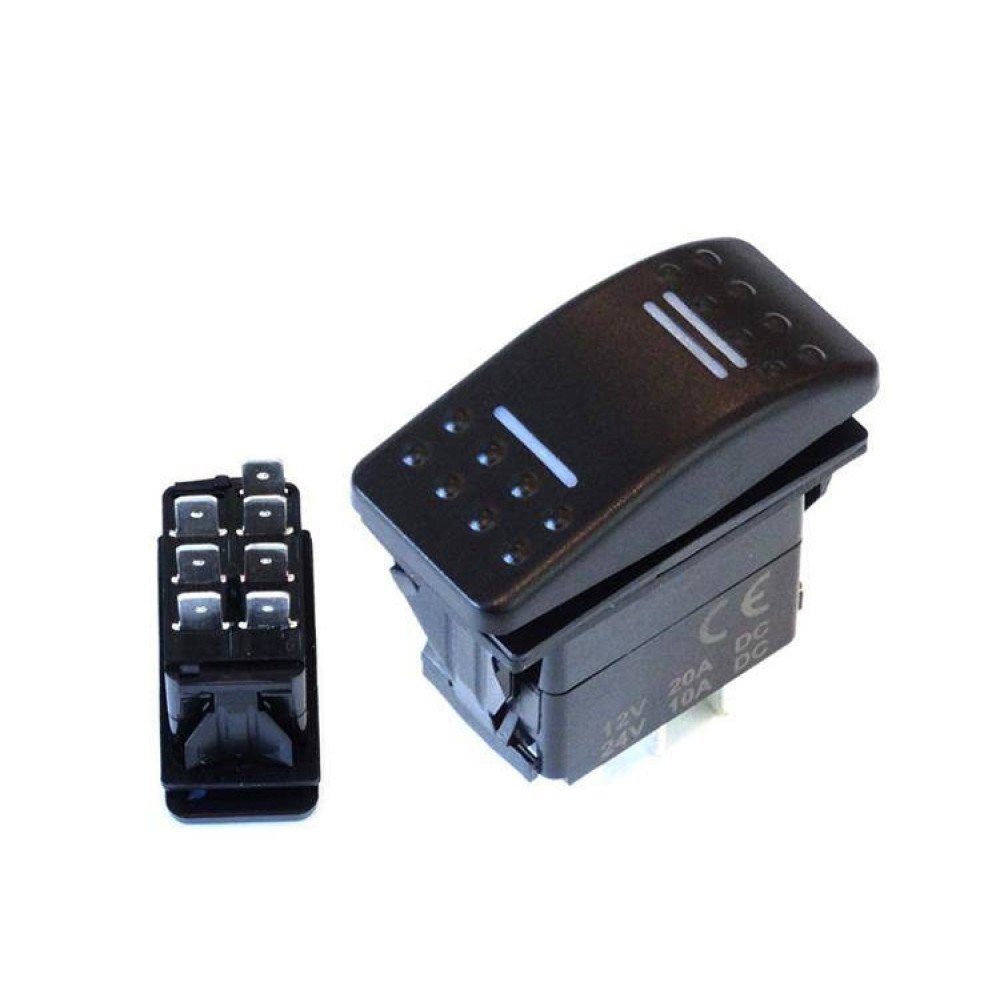

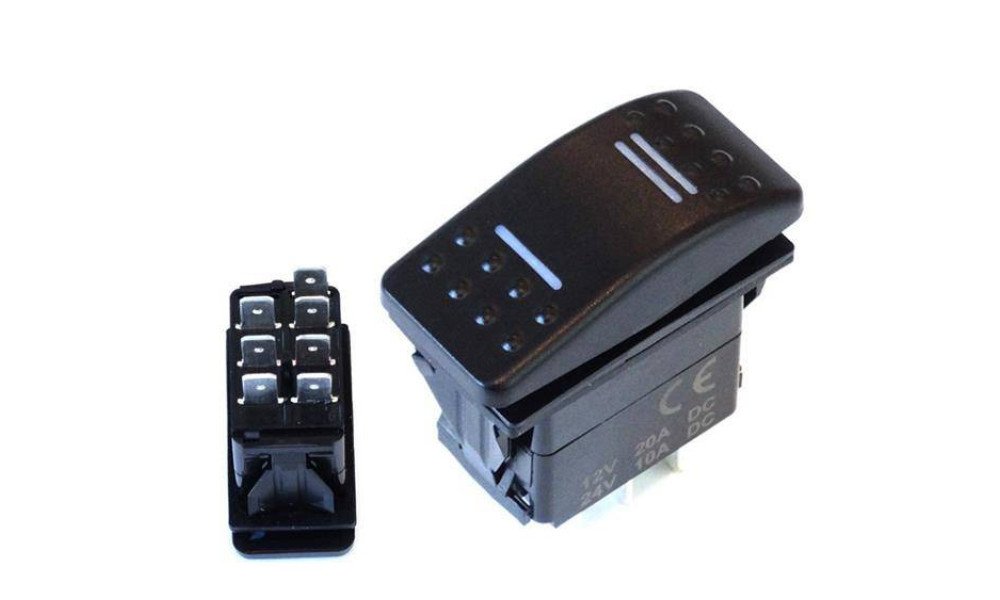

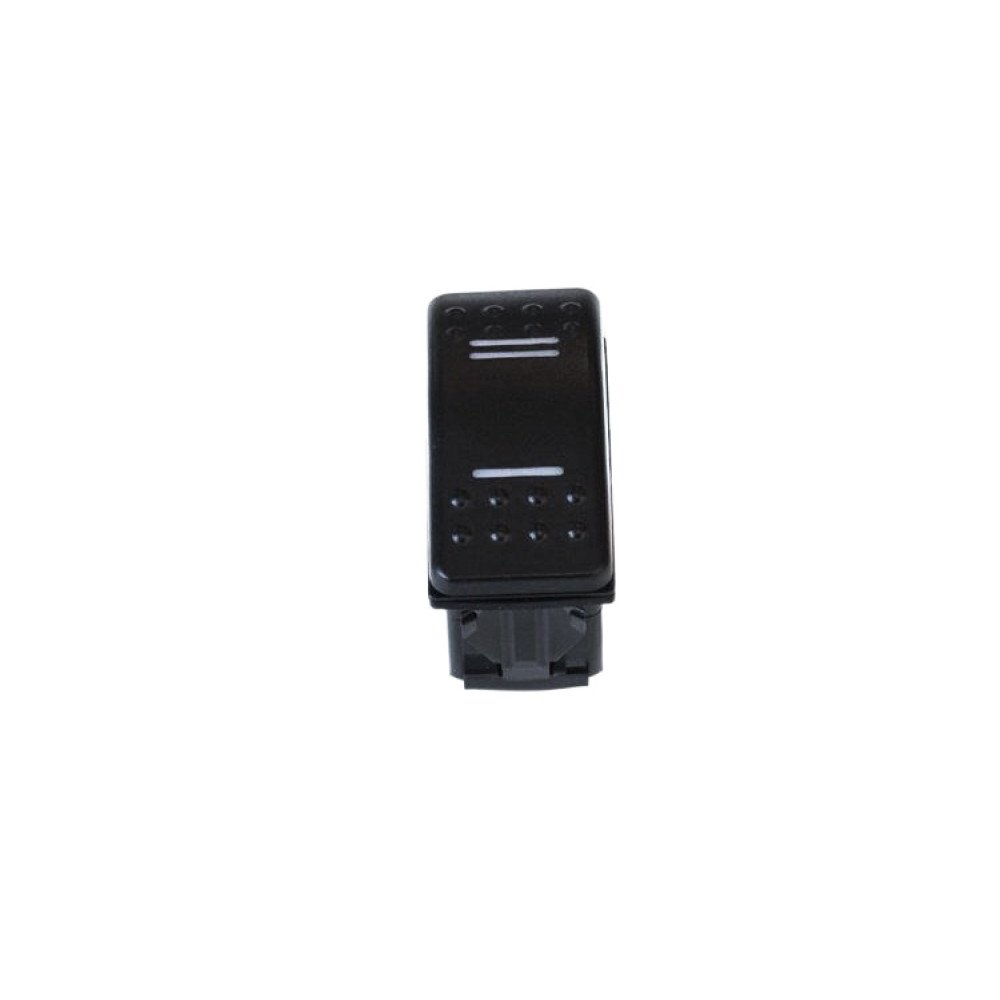

Switch ON-OFF-ON 7PIN White Backlight

This 7-pin ON-OFF-ON switch with white backlight is designed for enthusiasts who demand reliable, multi-position control for 12V or 24V DC, and 125V or 250V AC systems. Ideal for custom automotive, off-road, or electrical projects where clear switching and robust current handling are a must.

Fitment

• Compatible with systems operating at DC 12V (20A), DC 24V (10A), AC 125V (16A), or AC 250V (10A).

Material & Construction

• Material and manufacturing details not specified.

Technical Specifications

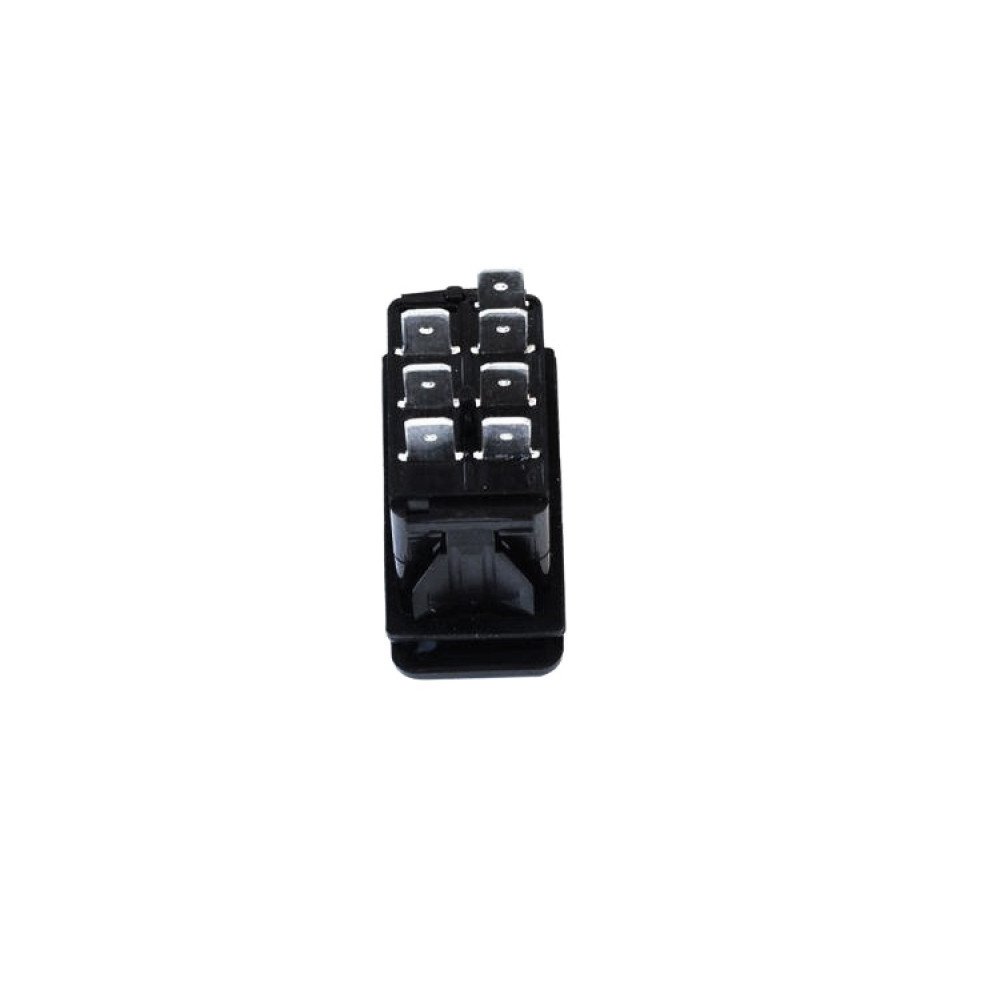

• ON-OFF-ON switch, 7-pin configuration
• White backlight
• DC 12V 20A
• DC 24V 10A
• AC 125V 16A
• AC 250V 10A

What’s Included

• One ON-OFF-ON 7-pin switch with white backlight

Installation Notes

• Ensure all wiring matches the voltage and current requirements of your system before installation. Professional installation is recommended for safety and reliability.

FAQ

• Can I use this switch for both DC and AC applications?
  Yes, it supports DC 12V/24V and AC 125V/250V systems within the specified current ratings.
• Is the white backlight always on?
  The white backlight is typically powered with the switch circuit, but wiring can be adjusted based on your setup.
• Do I need relays for high-current applications?
  If your circuit approaches the switch’s maximum current rating, using a relay is recommended for safety and longevity.
