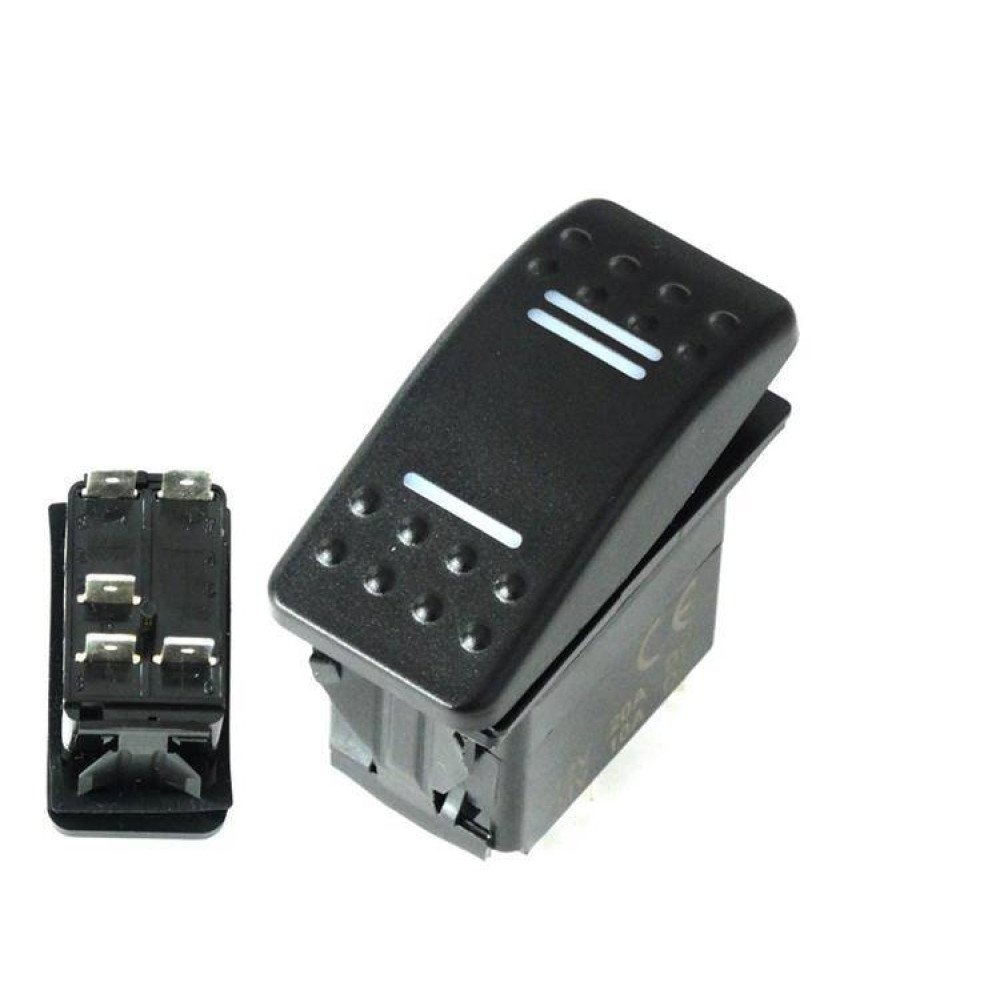

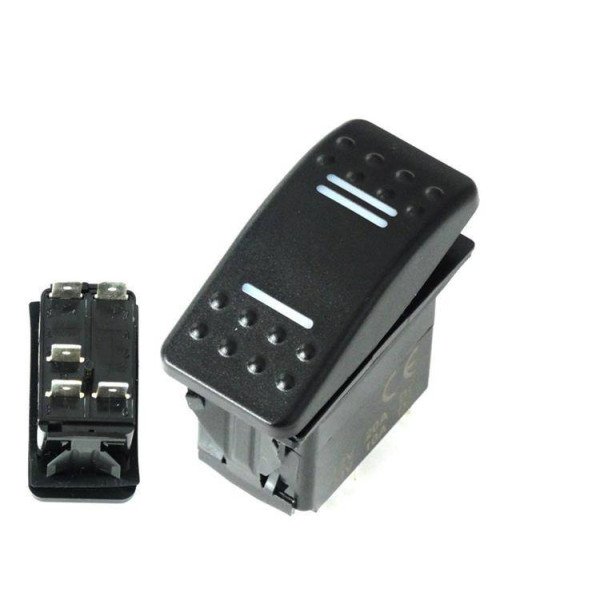

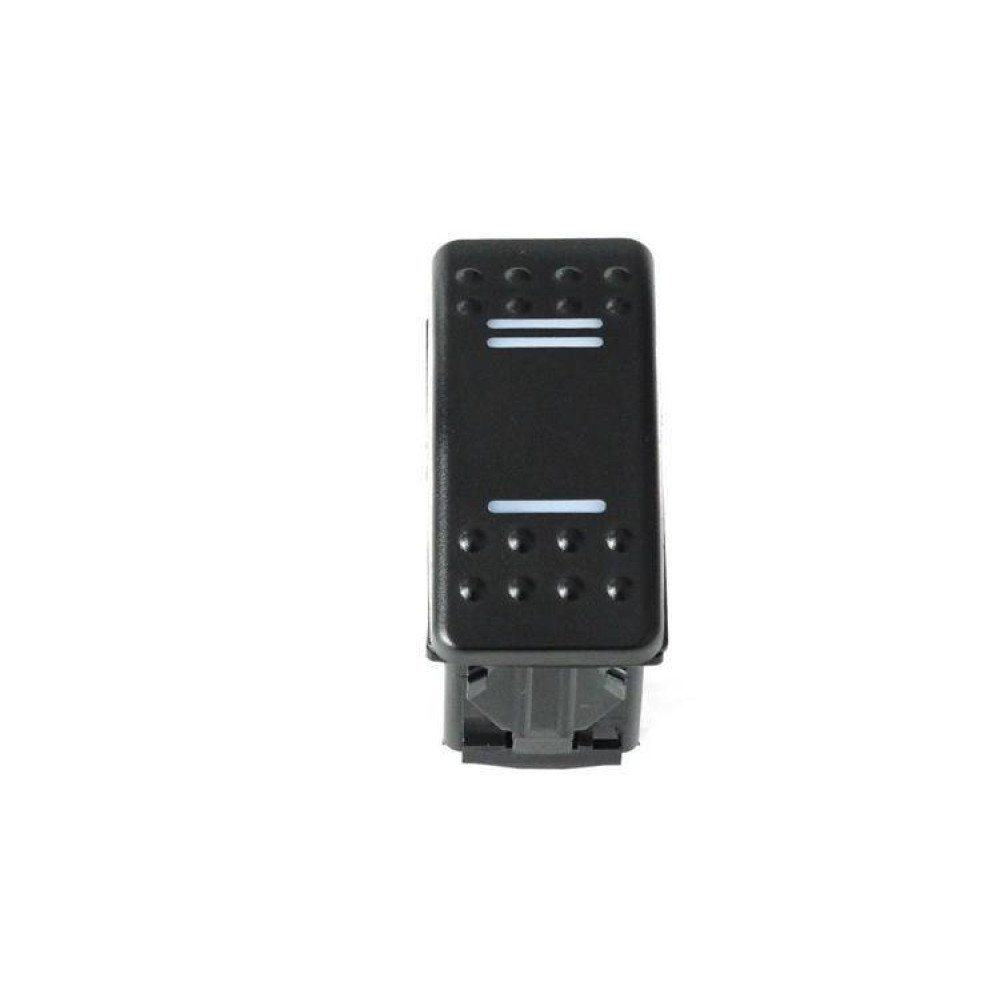

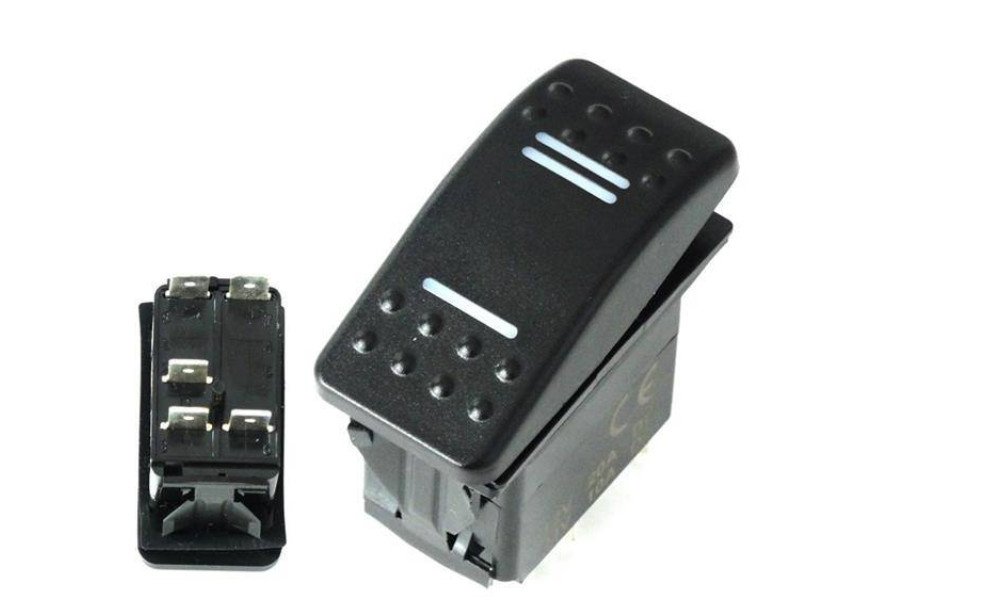

ON-OFF 5PIN Switch with Blue Backlight

This 5-pin ON-OFF switch with blue backlight is designed for enthusiasts who want reliable control over their 12V, 24V DC, or AC 125V/250V accessories. Ideal for custom wiring projects, lighting upgrades, or accessory management in vehicles or garage setups.

Fitment

• Compatible with circuits rated at DC 12V 20A, DC 24V 10A, AC 125V 16A, or AC 250V 10A

Material & Construction

• Material and manufacturing details not specified

Technical Specifications

• DC 12V 20A
• DC 24V 10A
• AC 125V 16A
• AC 250V 10A

What’s Included

• ON-OFF 5PIN switch with blue backlight

Installation Notes

• Disconnect power before installation. Ensure wiring matches voltage and current requirements. Secure switch in a suitable panel location.

FAQ

• Can I use this switch for both DC and AC applications?
  Yes, it supports both DC and AC circuits within the listed ratings.
• Is the blue backlight always on or only when the switch is activated?
  The blue backlight function depends on your wiring setup; consult your wiring diagram for preferred operation.

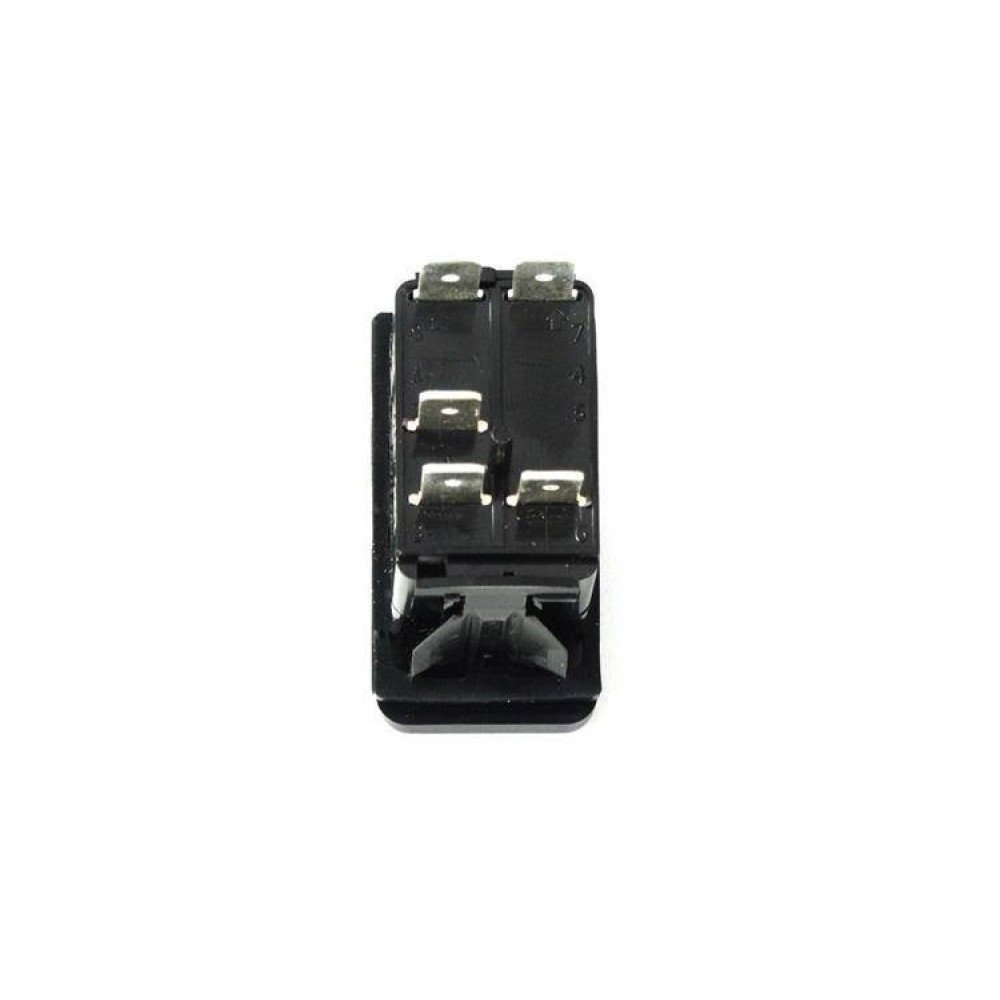

• Do I need any special connectors for the 5-pin terminals?
  Standard 5-pin connectors or spade terminals are recommended for secure installation.
