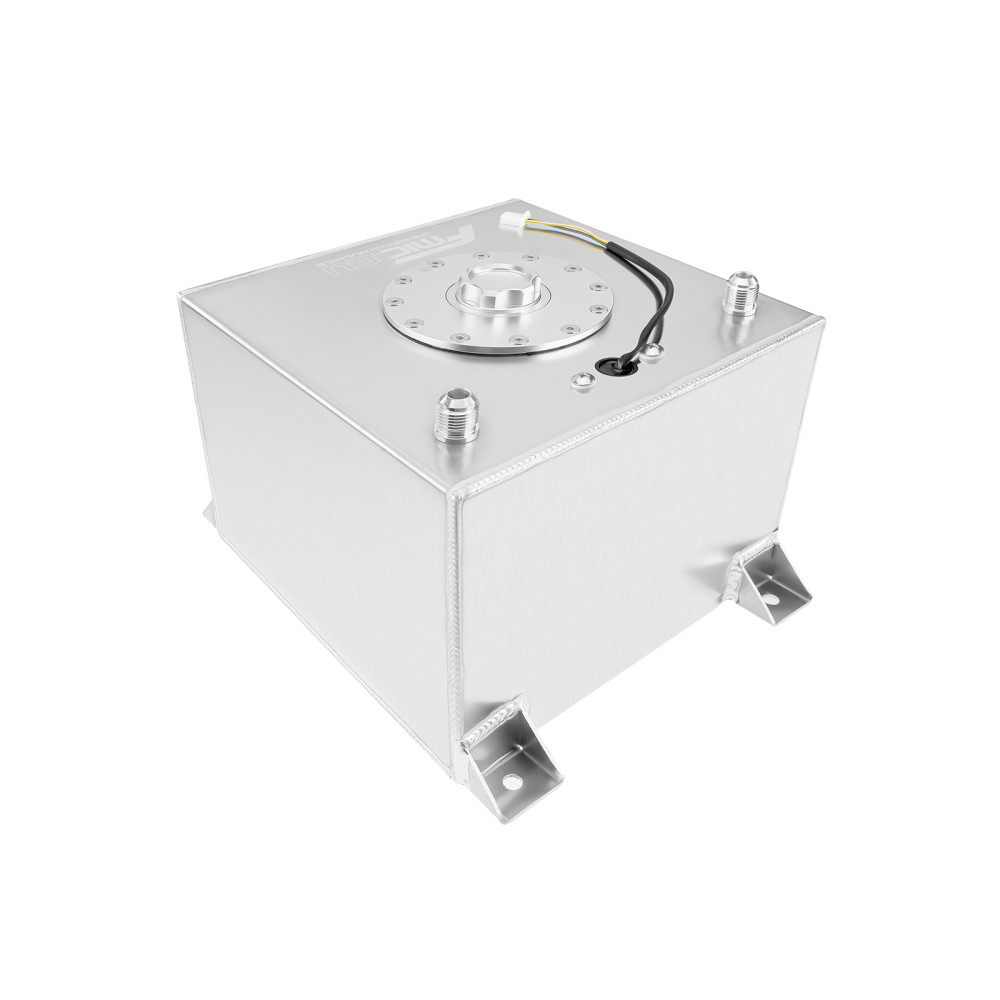

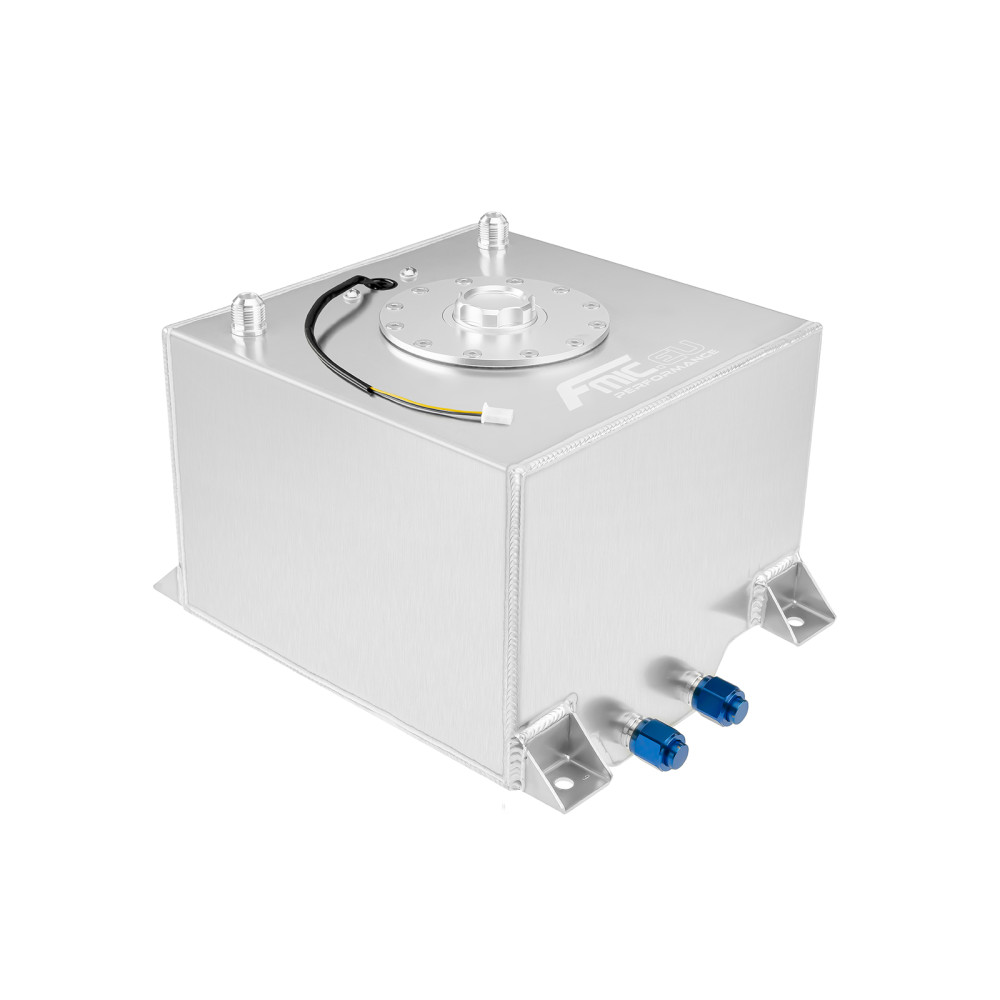

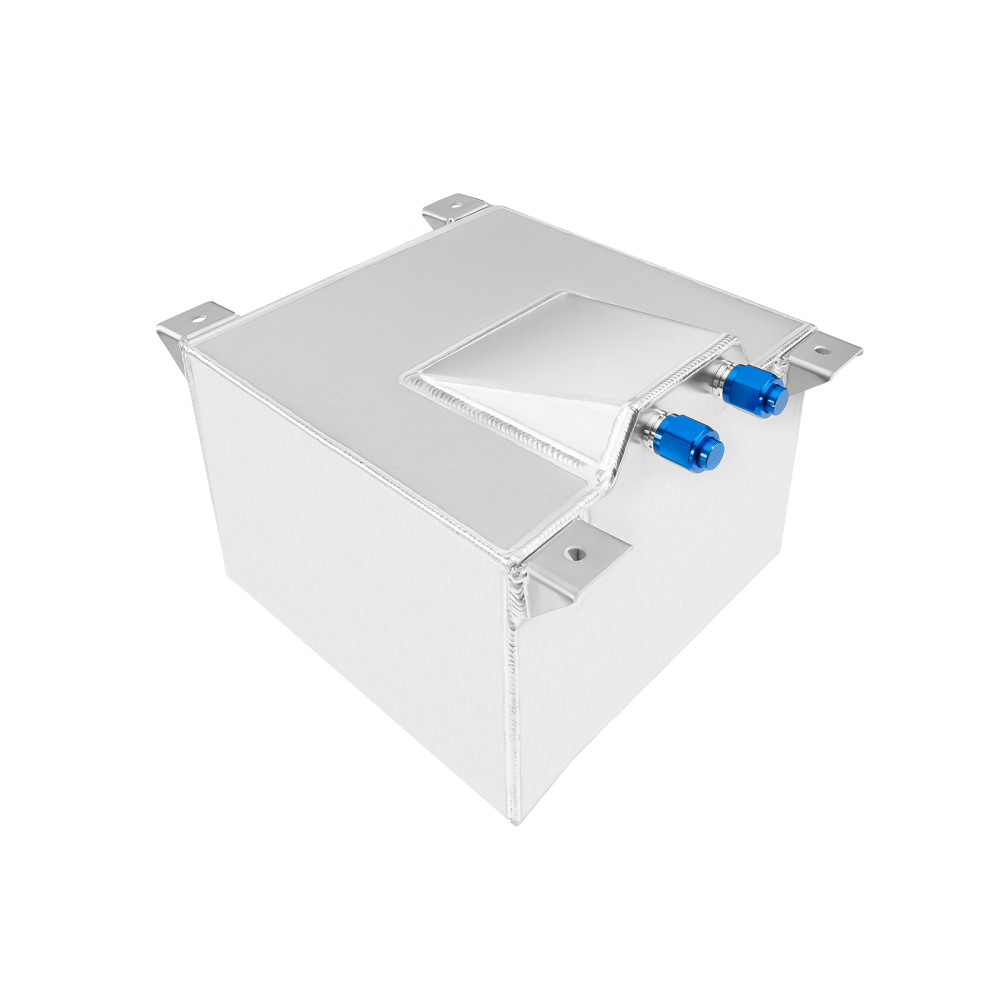

20L Fuel Tank with Fuel Level Sensor

The 20-liter fuel tank is a high-quality, lightweight, and durable construction designed for motorsport, track use, and tuning applications. Made entirely of aluminum, it weighs only 3.5 kg. The tank body is engineered for racing with fully TIG-welded seams, ensuring excellent tightness, durability, and resistance to vibrations and pressure.

Equipped with four AN10 ports, this tank allows flexible fuel system configuration, pump installation, return lines, and ventilation. A high-quality aluminum filler cap guarantees precise and leak-free sealing even under heavy use.

Thanks to its low weight and solid construction, the tank is especially recommended for drift, autoslalom, 1/4-mile racing, as well as performance and street cars. For track use with high lateral G-forces, it is recommended to use the tank together with a swirl pot to ensure consistent fuel delivery.

• Lightweight construction – only 3.5 kg

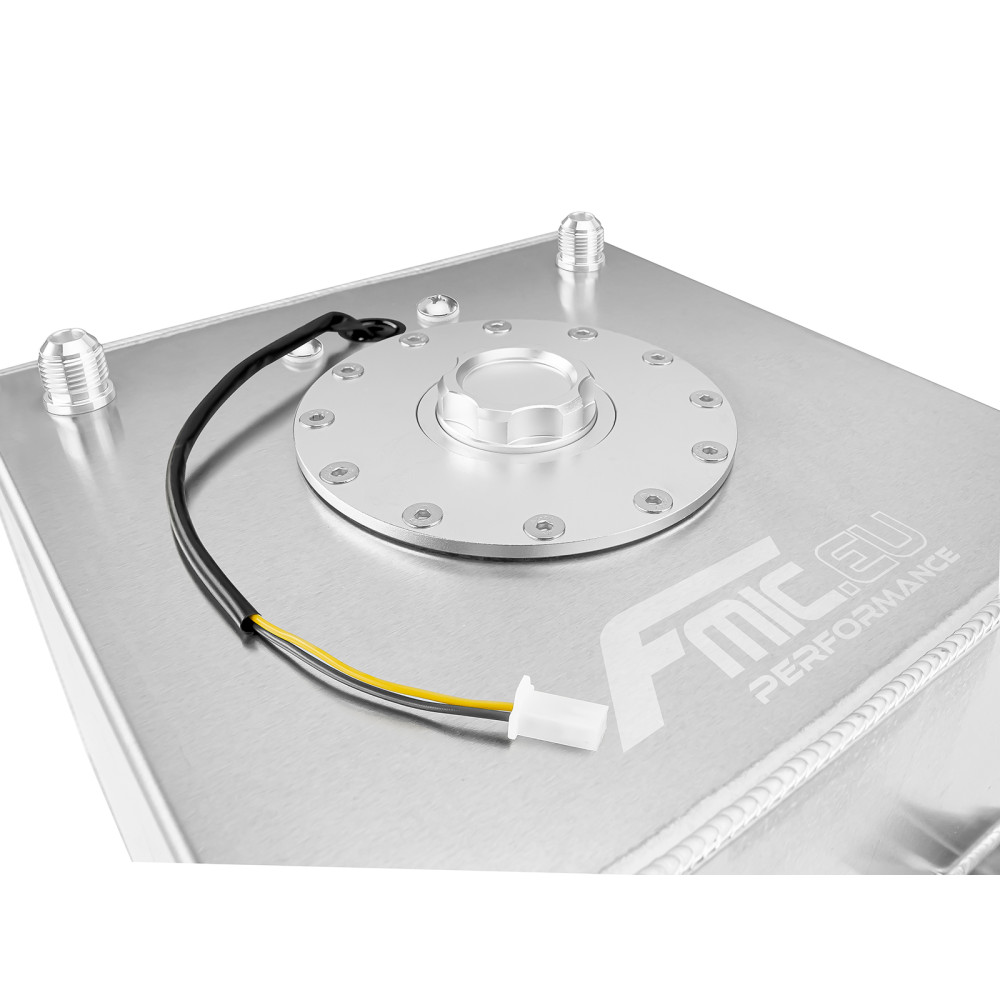

• Built-in fuel level sensor
• Fully TIG-welded aluminum body
• Four AN10 ports
• Aluminum filler cap – durable and precise
• High resistance to heat, pressure, and racing conditions
• Ideal for drift, autoslalom, drag racing, and street cars
• Compatible with swirl pots

Technical Specifications:

• Dimensions: 31x31x22 cm
• Capacity: 20 liters
• Material: aluminum
• Weight: 3.5 kg
• Number of ports: 4
• Port thread: AN10
• Aluminum filler cap
• TIG precision welds
• Motorsport-ready construction
