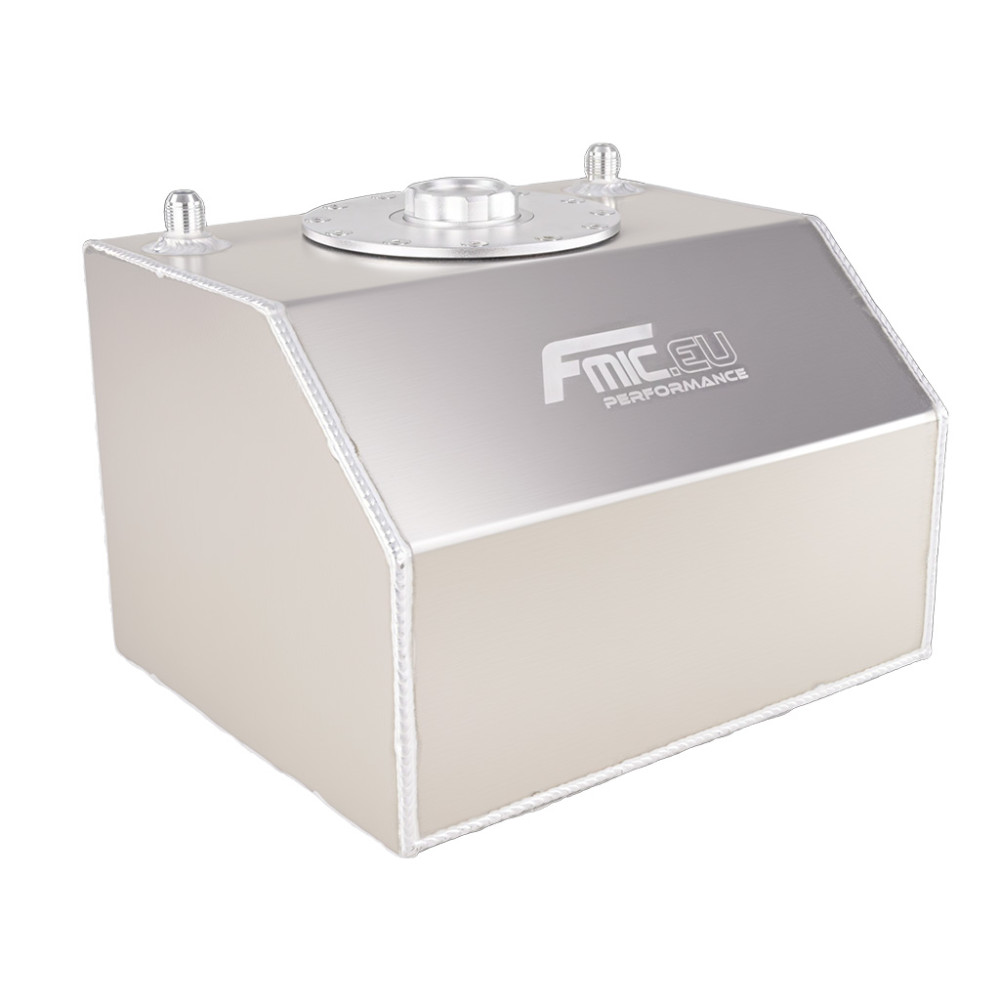

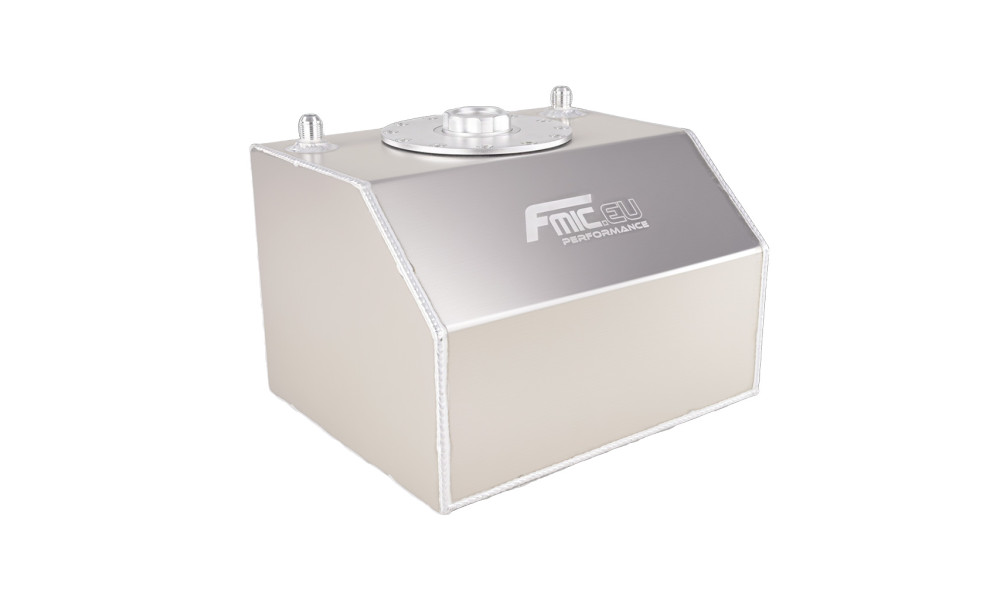

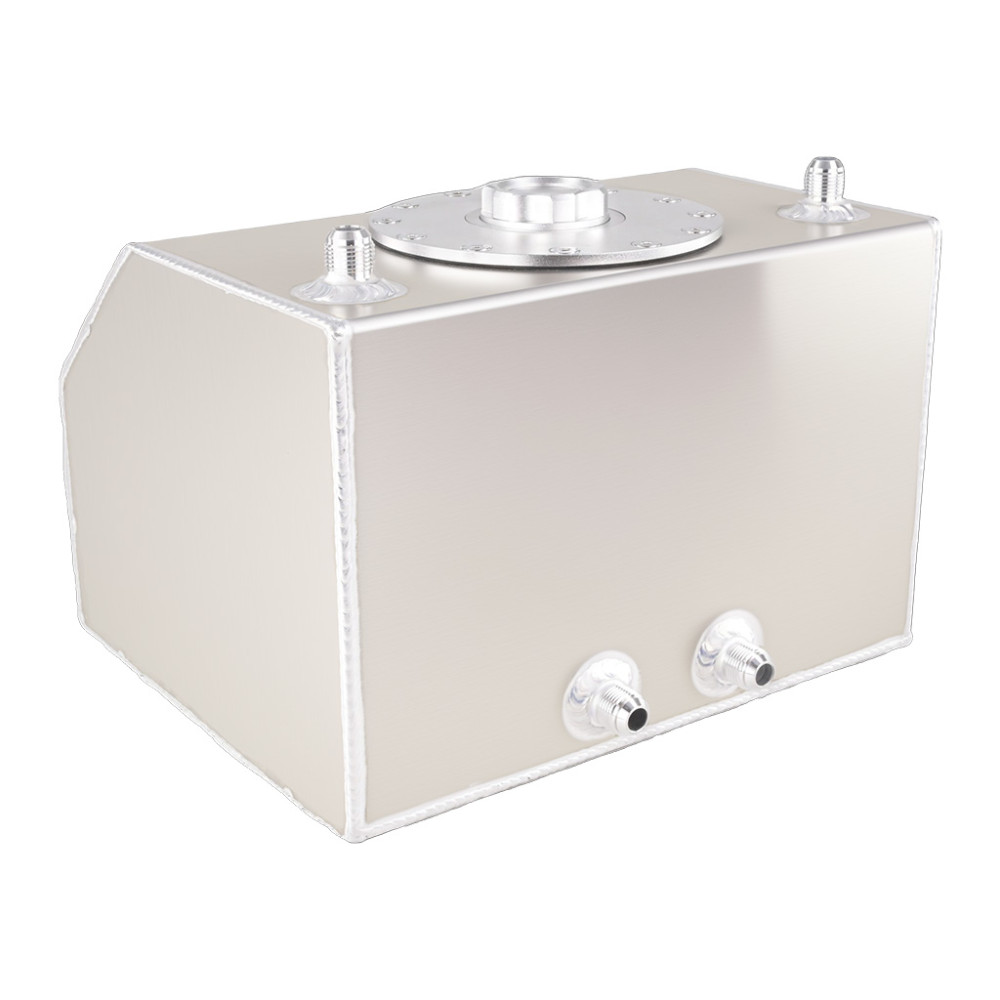

20L Fuel Tank

The 20-liter fuel tank is a high-quality, lightweight, and durable construction designed for motorsport, track use, and tuning applications. Made entirely of aluminum, it weighs only 2.9 kg. The tank body is engineered for racing, fully TIG-welded for excellent tightness, durability, and resistance to vibrations and pressure.

Equipped with four AN8 ports, it allows flexible fuel system configuration, pump installation, return lines, and venting. A high-quality aluminum filler cap ensures precise and leak-free sealing, even under heavy use.

Thanks to its low weight and strong construction, the tank is especially recommended for drift, autoslalom, 1/4-mile racing, and high-performance street cars. For track racing with high lateral G-forces, it is recommended to use it together with a swirl pot to ensure consistent fuel supply.

• Lightweight design – only 2.9 kg
• Fully TIG-welded aluminum body
• Four AN8 ports
• Aluminum filler cap – durable and precise
• High resistance to heat, pressure, and track conditions
• Ideal for drift, autoslalom, drag racing, and street cars
• Compatible with swirl pots

Technical specifications:

• Dimensions: Lower base 31×26 cm, Upper base 31×17 cm, Height 20.5 cm
• Capacity: 20 liters
• Material: Aluminum
• Weight: 2.9 kg
• Number of ports: 4
• Port thread: AN8
• Aluminum filler cap
• TIG precision welds
• Motorsport-ready construction
