Reference: 216228B

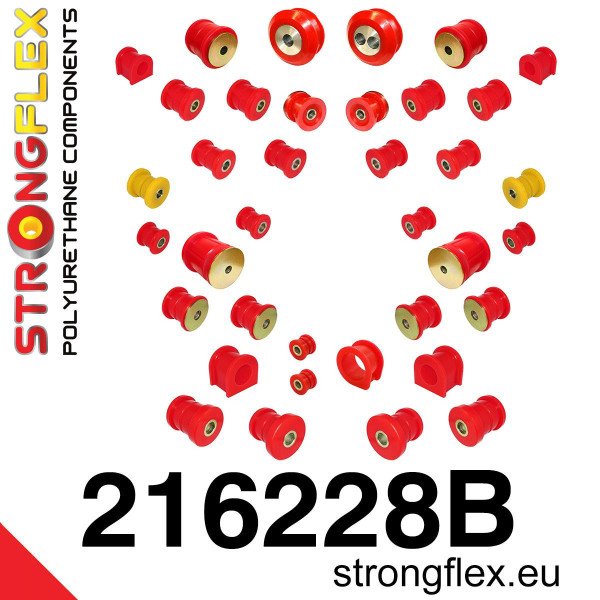

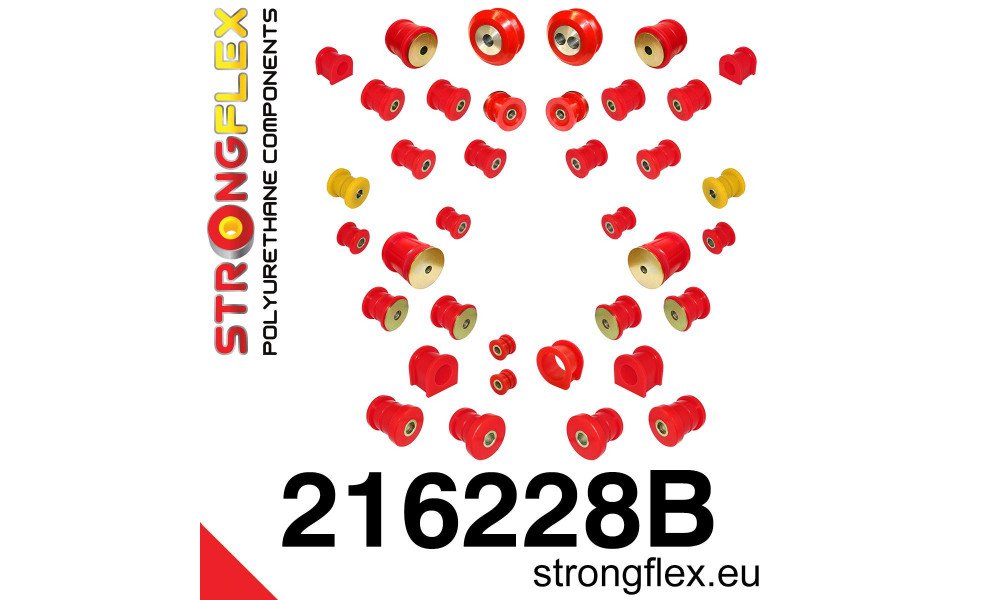

Product Name: Complete Suspension Bushing Kit

Compatibility:

• Lexus SC I (1991-2000) Z30
• Toyota Soarer III (1991-2000) Z30
• Toyota Supra IV (1993-2002) A80

Included Components:

• 2x 211623B: Front Anti-Roll Bar Bush
• 2x 211624B: Front Lower Wishbone Front Bush
• 2x 211625B: Front Lower Wishbone Rear Bush
• 4x 211626B: Front Upper Wishbone Bush
• 2x 211627B: Rear Trailing Arm Front Bush 34mm or
• 2x 211694B: Rear Trailing Arm Front Bush 46mm
• 2x 211628B: Rear Link Arm Inner Bush 40mm
• 2x 211629B: Rear Trailing Arm Rear Bush
• 2x 211630B: Rear Track Control Arm Inner Bush
• 2x 211631A: Rear Track Control Arm Outer Bush 39mm SPORT or
• 2x 211632A: Rear Track Control Arm Outer Bush 40.5mm SPORT
• 4x 211633B: Rear Upper Wishbone Bush
• 2x 211634B: Rear Anti-Roll Bar Bush or
• 2x 211848B: Rear Anti-Roll Bar Bush
• 1x 211635B: Steering Clamp Bush
• 2x 211636B: Steering Rack Mount Bush
• 2x 211792B: Rear Beam - Front Bush
• 2x 211793B: Rear Subframe - Rear Bush
• 2x 211794B: Rear Diff Mount - Front Bush
• 1x 211795B: Rear Diff Mount - Rear Bush
• 1x 211796B: Rear Diff Mount - Rear Bush

Diagrams:

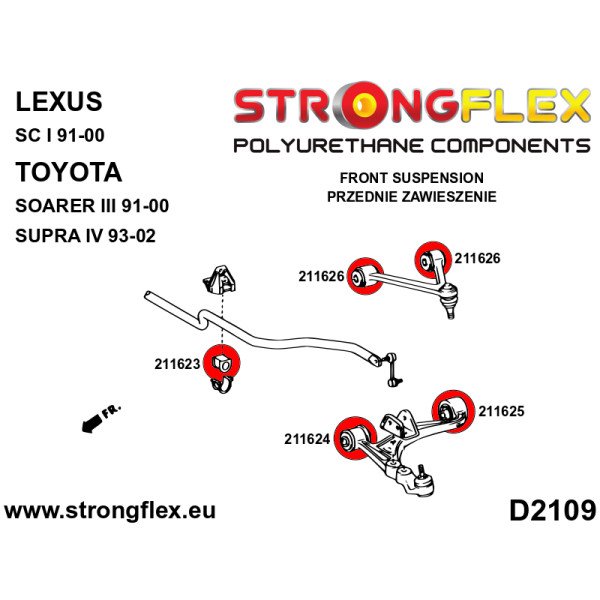

• D2109

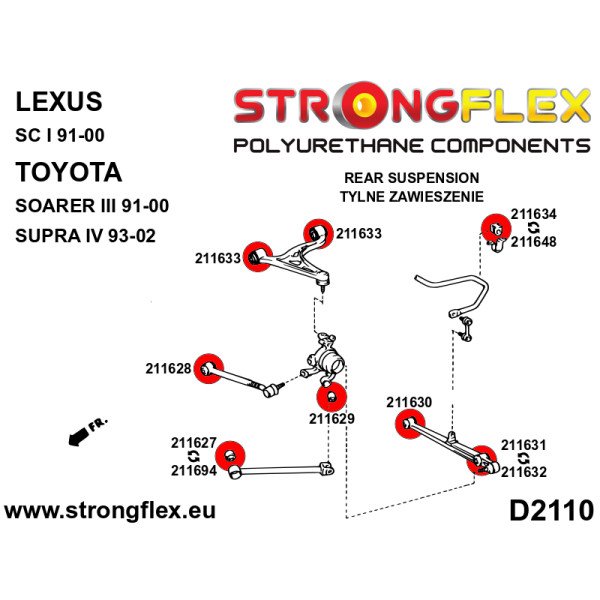

• D2110
• D2111

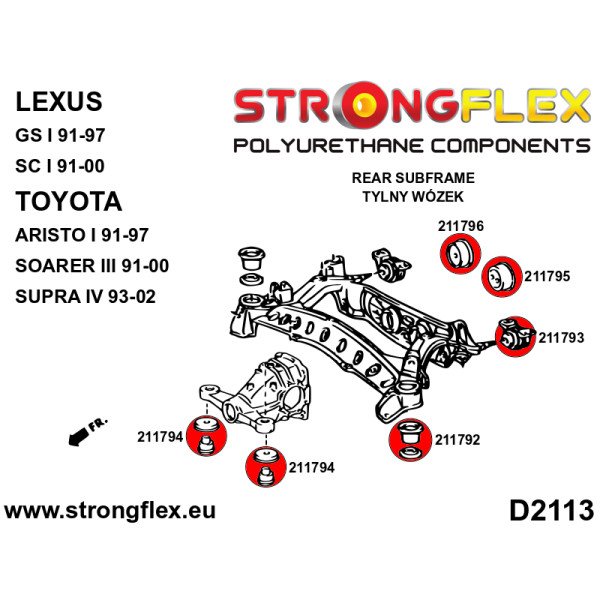

• D2113

Important Notes

• Rear Trailing Arm Bush - Front:
  211627 - Diameter 34mm
  211694 - Diameter 46mm
• Rear Lower Wishbone Bush - Outer:
  211631 - Diameter 39mm
  211632 - Diameter 40.5mm
• Rear Stabilizer Bush:
  211634 - Fits Toyota Supra
  211848 - Fits Lexus SC, Toyota Soarer
• For Bush 211635:
  Available in different diameters: 47mm / 50mm. Verify the diameter of your steering gear prior to purchase.

Quantity Required per Vehicle: 1

Pieces per Product: 1

Hardness Rating: 80 Shore A

Material Composition: Polyurethane (PUR/PU)

Each kit comes with complimentary grease for optimal performance!
