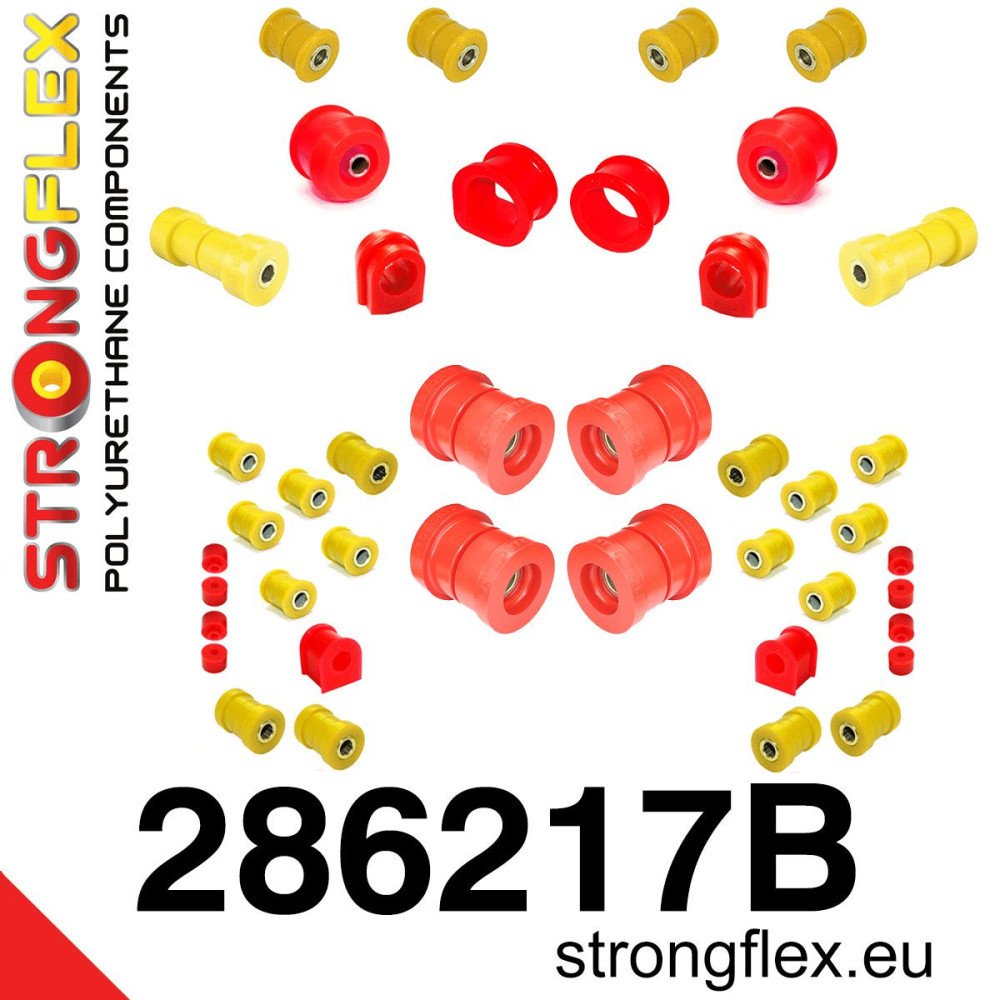

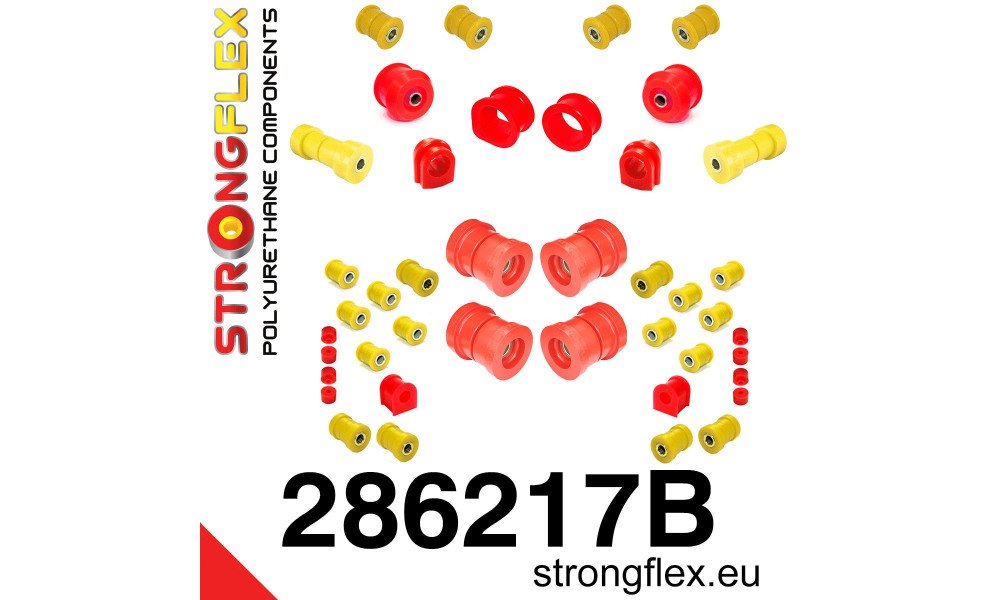

Reference: 286217B

Product Name: Full Suspension Bush Kit for R33 R34 RWD

Compatibility:

• Nissan Skyline IX (93-98) R33 RWD
• Nissan Skyline X (97-02) R34 RWD

Included Components:

• 2x 281400B: Front Anti-Roll Bar Bush
  or
• 2x 281401B: Front Anti-Roll Bar Bush GTR
• 4x 281622A: Front Upper Wishbone Bush SPORT
• 2x 281913A: Front Hub Bush SPORT

• 1x 281261B: Steering Rack Mount Bush
  45mm/48mm/50mm

• 2x 281262B: Front Lower Radius Arm to Chassis Bush
  or
• 2x 281788B: Front Lower Radius Arm to Chassis Bush

• 2x 281263A: Front Inner Track Control Arm Bush 34mm SPORT
  or
• 2x 281397A: Front Inner Track Control Arm Bush 38mm SPORT

• 2x 281399A: Rear Roe Link Inner Bush SPORT
• 10x 281218A: Rear Arm Bush SPORT
• 4x 281398A: Rear Trailing Arm Bushes SPORT
• 2x 281268B: Rear Anti-Roll Bar Bush
• 4x 281269B: Rear Anti-Roll Bar Link Bush
• 4x 281270B: Rear Beam Mounting Bush RWD
• 2x 281849B: Rear Diff Mount - Front Bush
• 2x 281850B: Rear Diff Mount - Rear Bush

Diagrams:

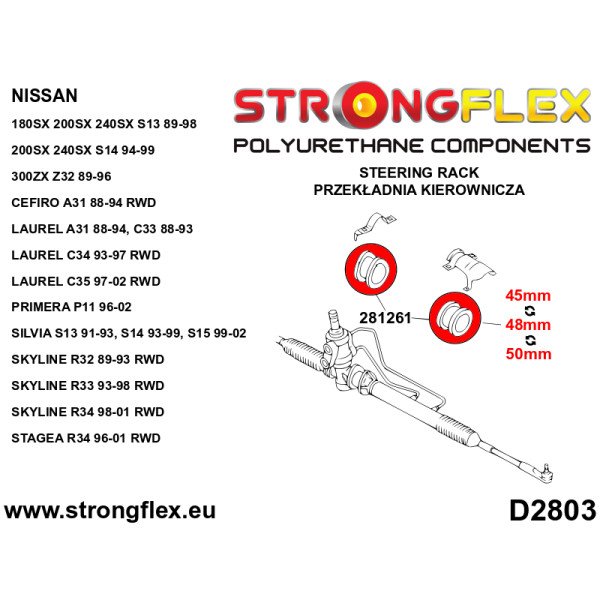

• D2803

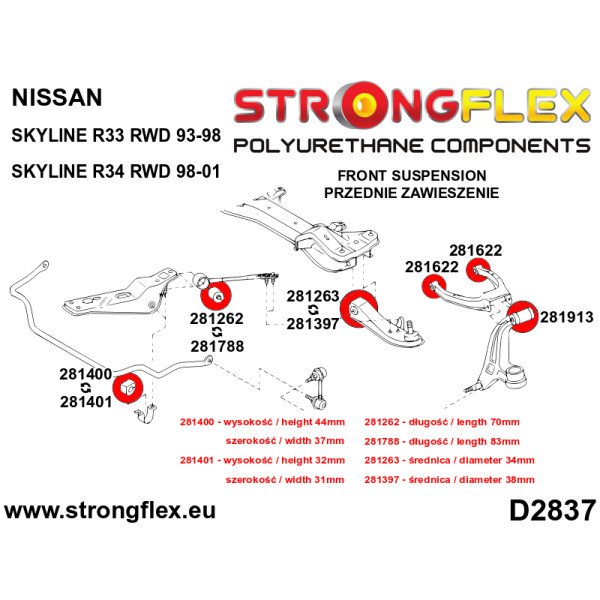

• D2837

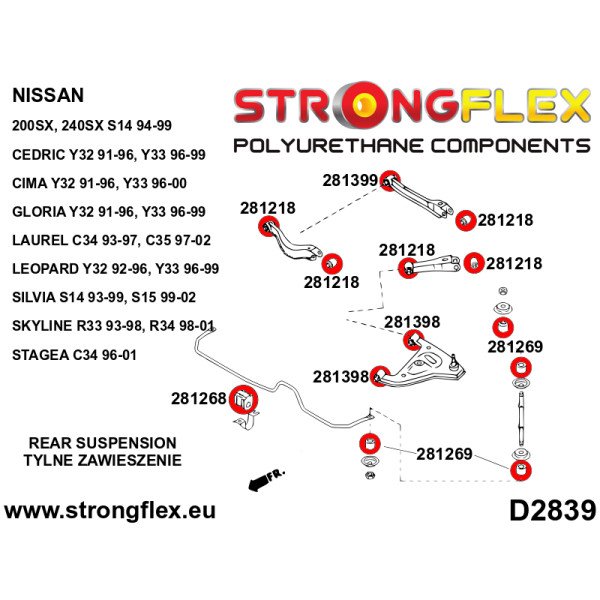

• D2839

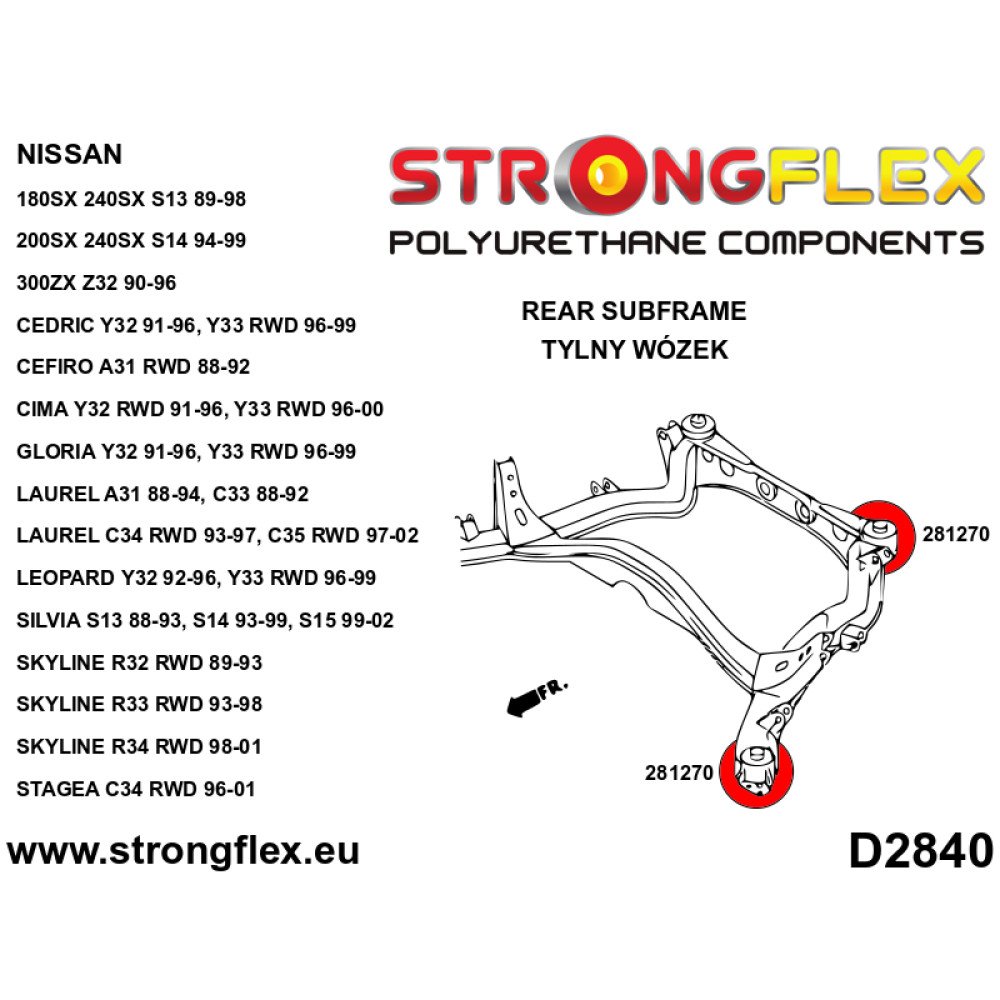

• D2840

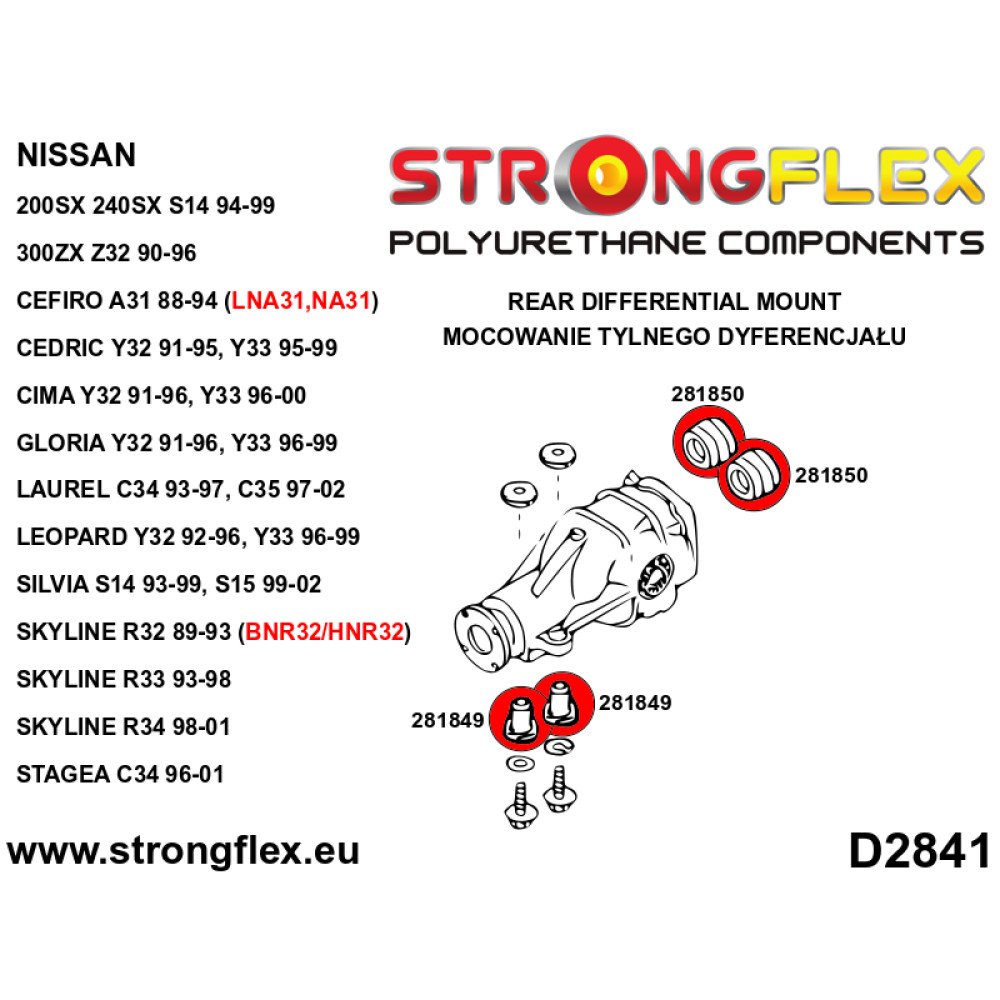

• D2841
• S2804
• S2805

Important Notes

• Choose the correct diameter for the steering gear bushing: 45mm, 48mm, or 50mm.

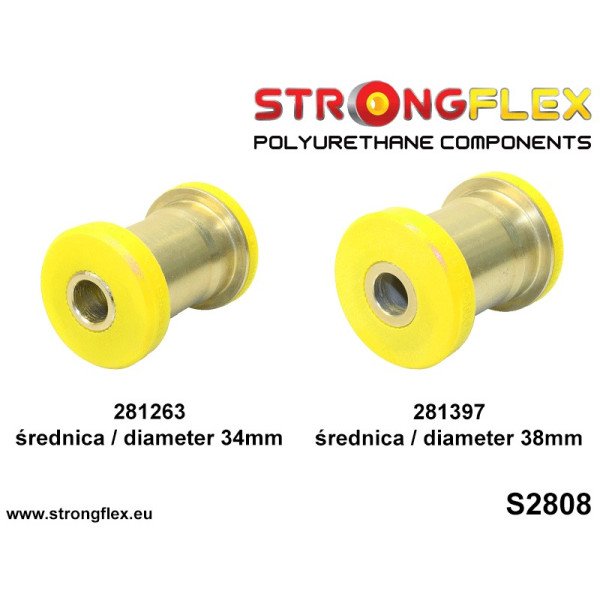

• Select the appropriate front lower wishbone bushings:
  281263 - outer diameter 34mm
  281397 - outer diameter 38mm
  Refer to photo S2808.
• Different stabilizer bushes are available based on the version: 281400 / 281401, see photo S2806.

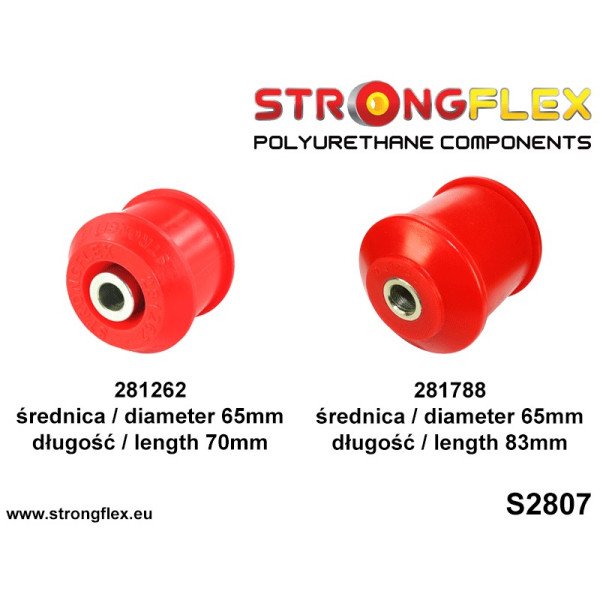

• For front reaction rod bushes, choose between:
  281262 - bush length 70mm
  281788 - bush length 83mm
  See photo S2807.

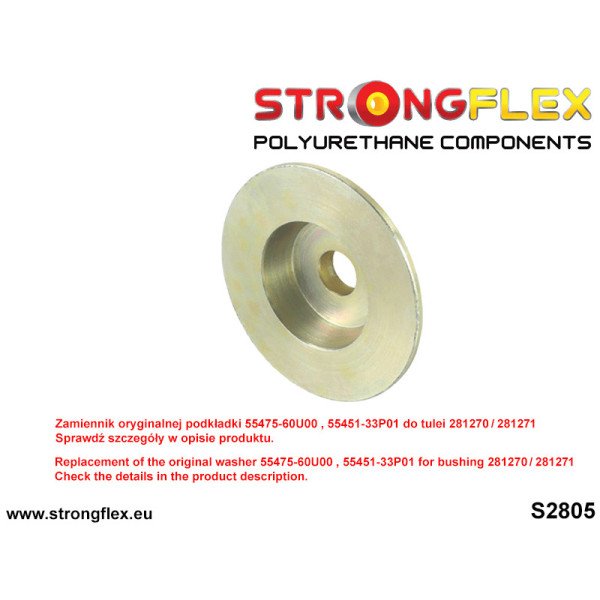

• Due to frequent modifications for motorsport and drifting, original rear bogie pads (OEM 55475-60U00, 55451-33P01) may be absent. Replacement washers compatible with our bushings can be purchased. Specify the quantity needed (0pcs/2pcs/4pcs) in the "Subframe bush washers" section.

Required/Car: 1

Pcs / Prod: 1

Pcs / KIT: 43

Hardness: 80Sha

Material: POLYURETHANE (PUR/PU)

Each product comes with complimentary grease!
