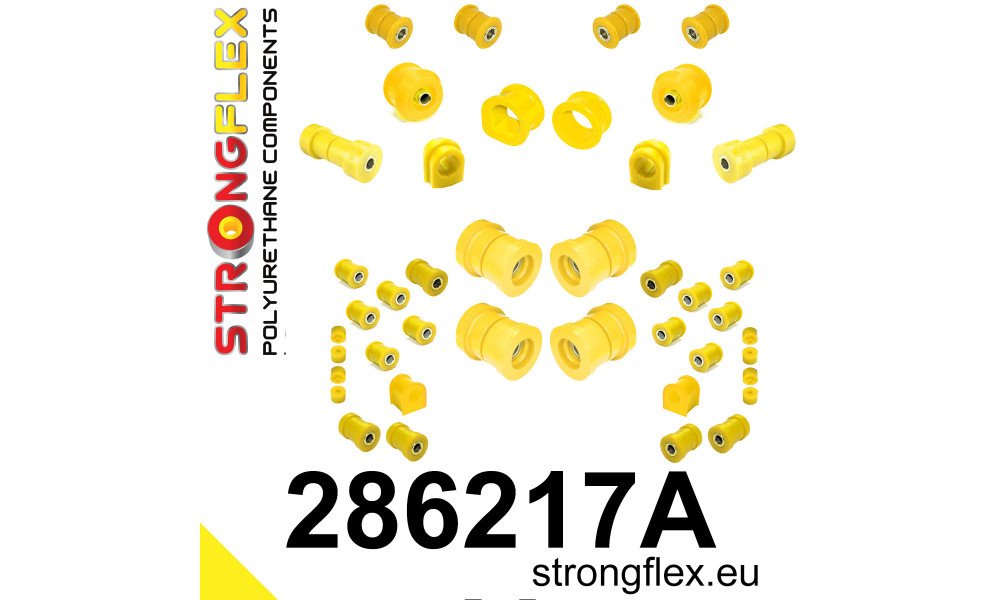

Reference: 286217A

Product Name: Full Suspension Bush Kit for R33 R34 RWD SPORT

Compatibility:

• Nissan Skyline IX (1993-1998) R33 RWD
• Nissan Skyline X (1997-2002) R34 RWD

Included Components:

• 2x 281400A: Front Anti-Roll Bar Bush SPORT
  or
• 2x 281401A: Front Anti-Roll Bar Bush GTR SPORT


• 4x 281622A: Front Upper Wishbone Bush SPORT
• 2x 281913A: Front Hub Bush SPORT


• 1x 281261A: Steering Rack Mount Bush SPORT
  Available in 45mm/48mm/50mm


• 2x 281262A: Front Lower Radius Arm to Chassis Bush SPORT
  or
• 2x 281788A: Front Lower Radius Arm to Chassis Bush SPORT


• 2x 281263A: Front Inner Track Control Arm Bush 34mm SPORT
  or
• 2x 281397A: Front Inner Track Control Arm Bush 38mm SPORT


• 2x 281399A: Rear Roe Link Inner Bush SPORT
• 10x 281218A: Rear Arm Bush SPORT
• 4x 281398A: Rear Trailing Arm Bushes SPORT
• 2x 281268A: Rear Anti-Roll Bar Bush SPORT
• 4x 281269A: Rear Anti-Roll Bar Link Bush SPORT
• 4x 281270A: Rear Beam Mounting Bush RWD SPORT
• 2x 281849A: Rear Diff Mount - Front Bush SPORT
• 2x 281850A: Rear Diff Mount - Rear Bush SPORT

Diagrams:

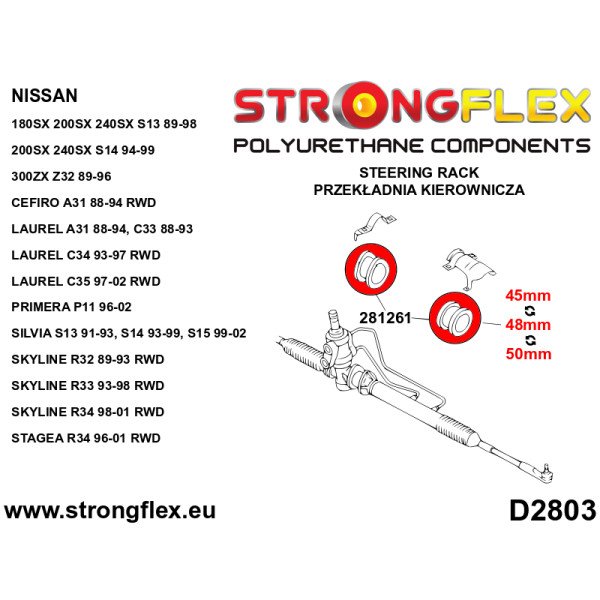

• D2803

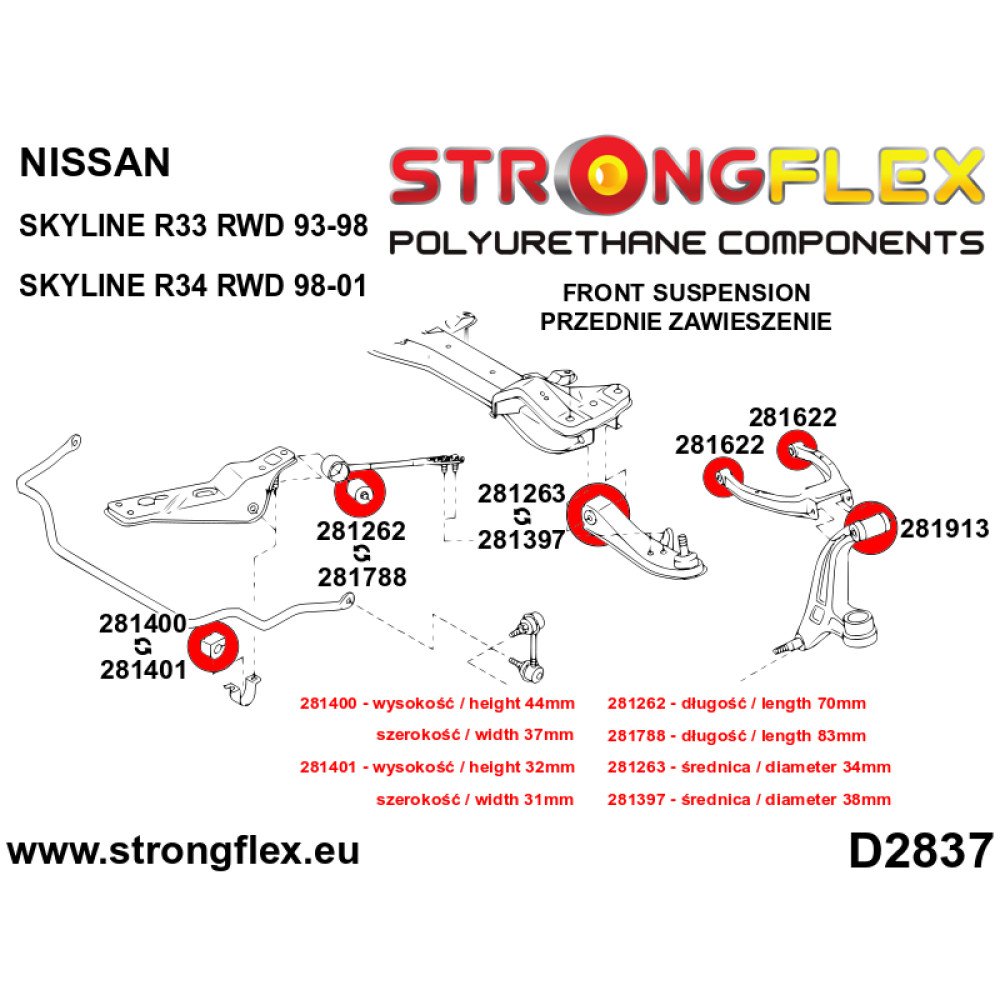

• D2837

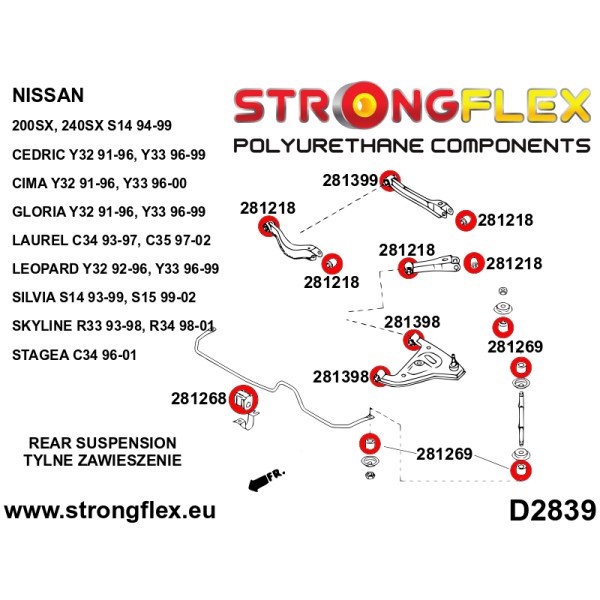

• D2839

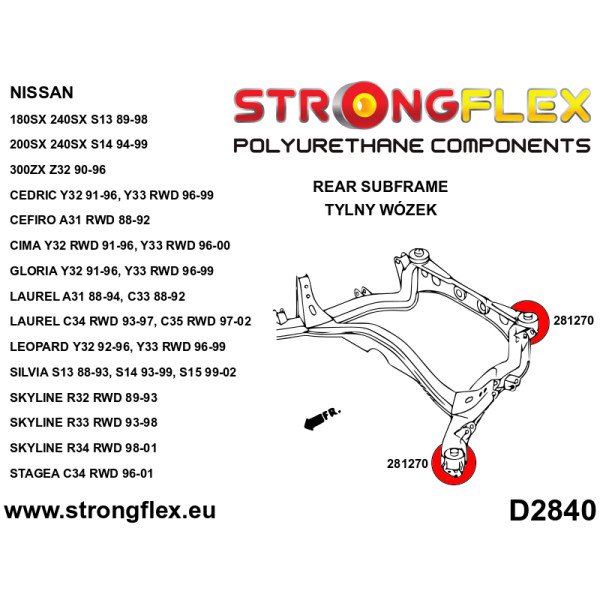

• D2840

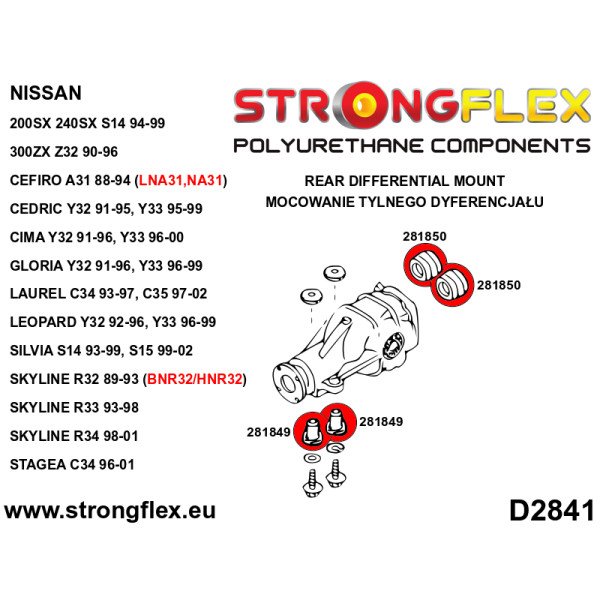

• D2841

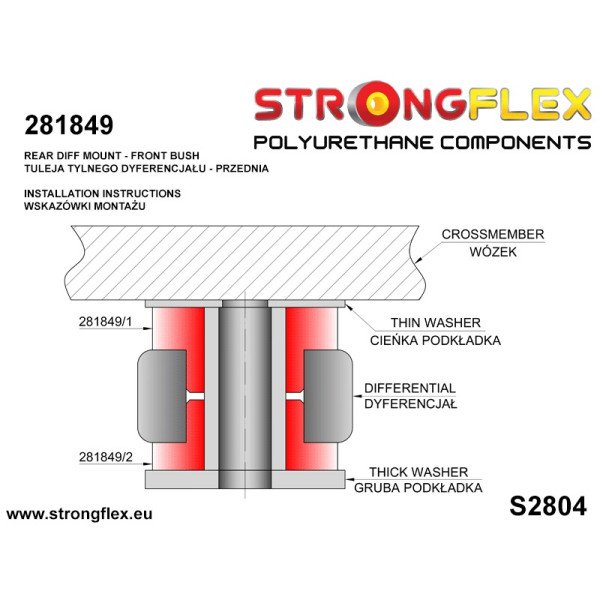

• S2804

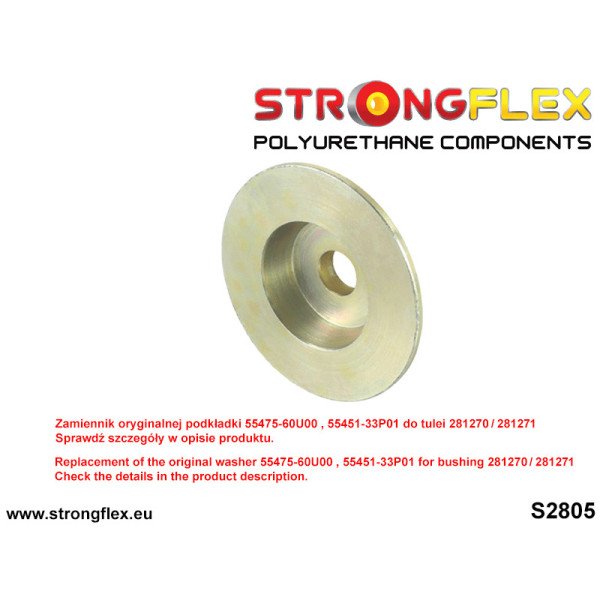

• S2805

Important Notes

• Choose the correct diameter for the steering gear bushing: 45mm/48mm/50mm.
• Select the appropriate front lower wishbone bushings:
  281263 - outer diameter 34mm
  281397 - outer diameter 38mm

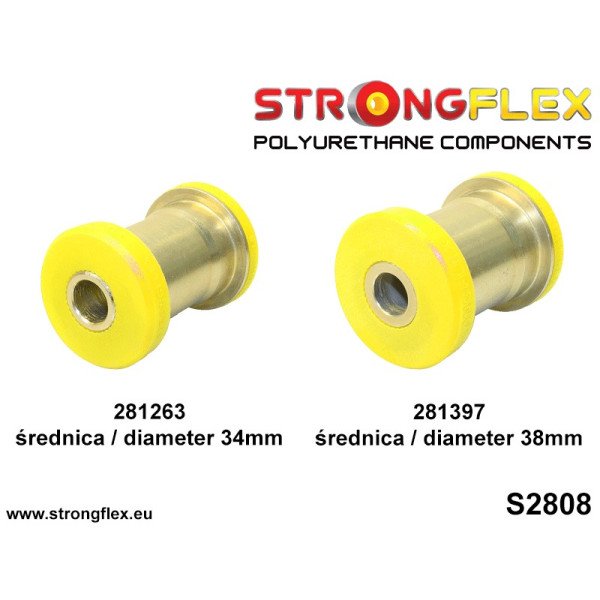

  Refer to photo S2808.

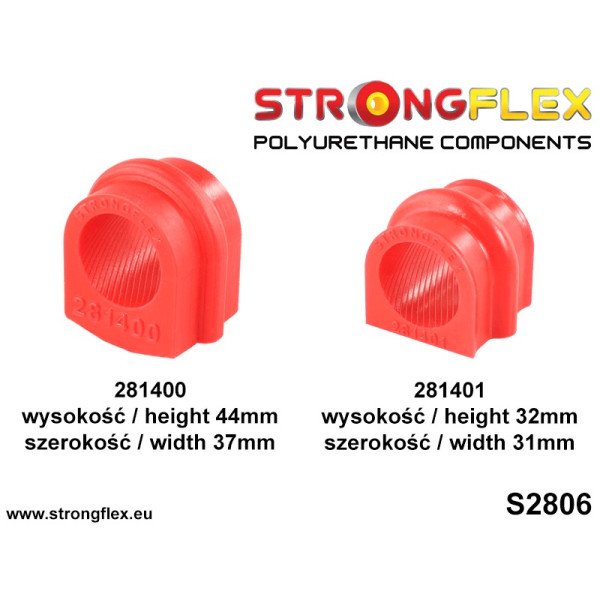

• Different stabilizer bushes are available based on the version: 281400 / 281401, see photo S2806.


• For front reaction rod bushes, options vary by version:
  281262 - bush length 70mm
  281788 - bush length 83mm
  Refer to photo S2807.

• Due to frequent modifications for motorsport and drifting, original rear bogie pads (OEM 55475-60U00, 55451-33P01) may be absent. Replacement washers compatible with our bushings can be purchased. In the "Subframe bush washers" section, select the quantity needed (0pcs/2pcs/4pcs).

Required/Car: 1

Pcs / Prod: 1

Pcs / KIT: 43

Hardness: 90Sha

Material: POLYURETHANE (PUR/PU)

Each product comes with complimentary grease!
