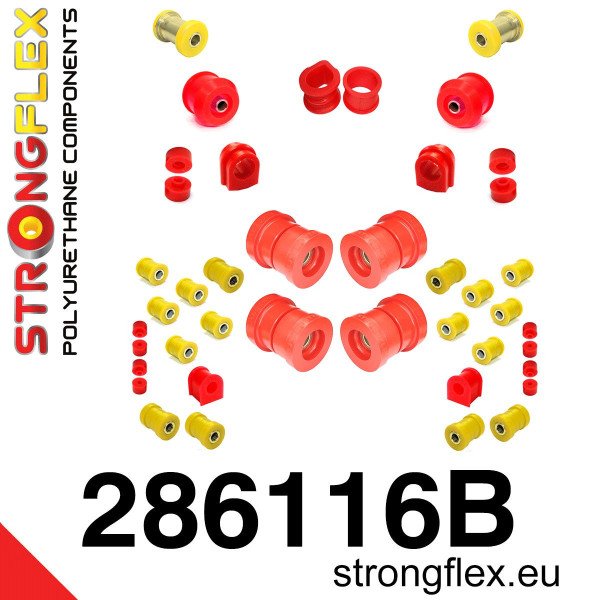

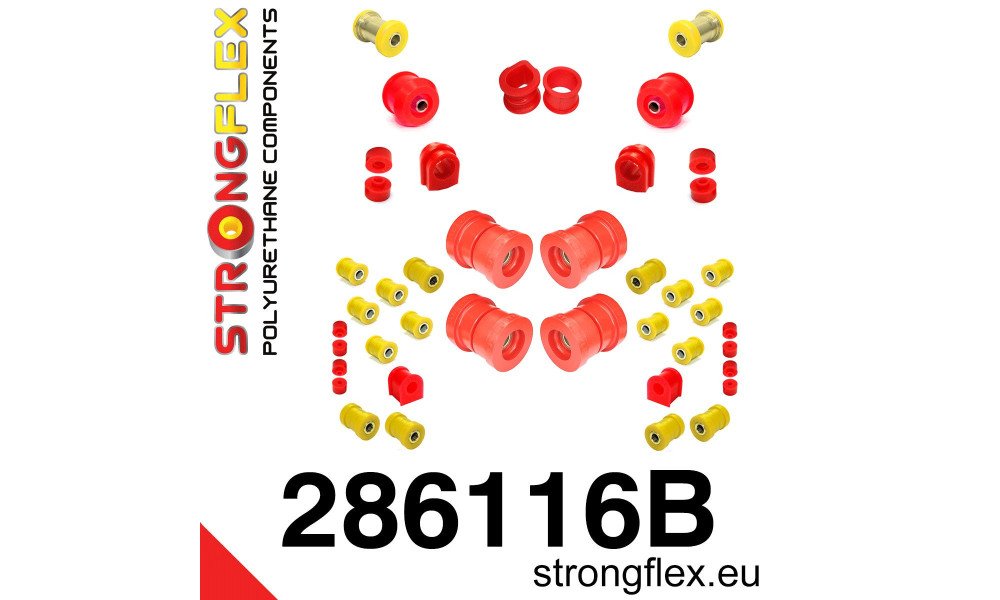

Reference: 286116B

Product Name: Full Suspension Bush Kit

Compatibility:

• Nissan Laurel VII (93-97) C34 RWD
• Nissan Laurel VIII (97-02) C35 RWD
• Nissan S-chassis (180SX / 200SX / 240SX / Silvia) VI (94-99) S14
• Nissan S-chassis (180SX / 200SX / 240SX / Silvia) VII (99-02) S15
• Nissan Stagea I (96-01) C34 RWD

Included Components:

• 2x 281400B: Front Anti-Roll Bar Bush
• 2x 281265B: Front Anti-Roll Bar Link Bush

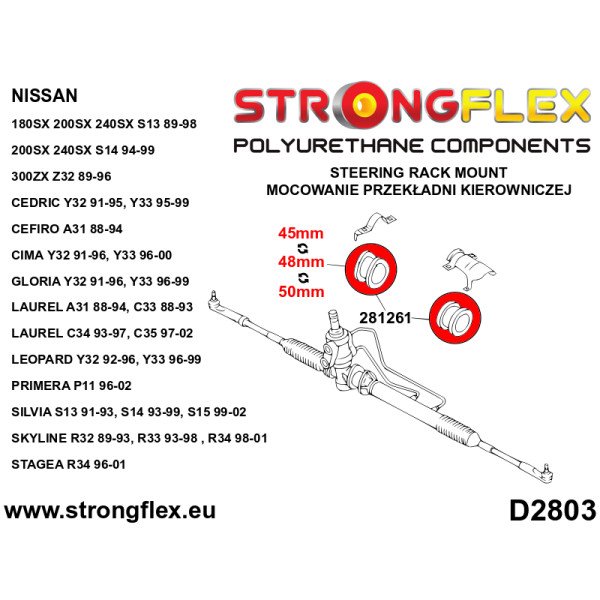

• 1x 281261B: Steering Rack Mount Bush 45mm/48mm/50mm
• 2x 281262B: Front Lower Radius Arm to Chassis Bush
• 2x 281263A: Front Inner Track Control Arm Bush 34mm SPORT or
• 2x 281397A: Front Inner Track Control Arm Bush 38mm SPORT

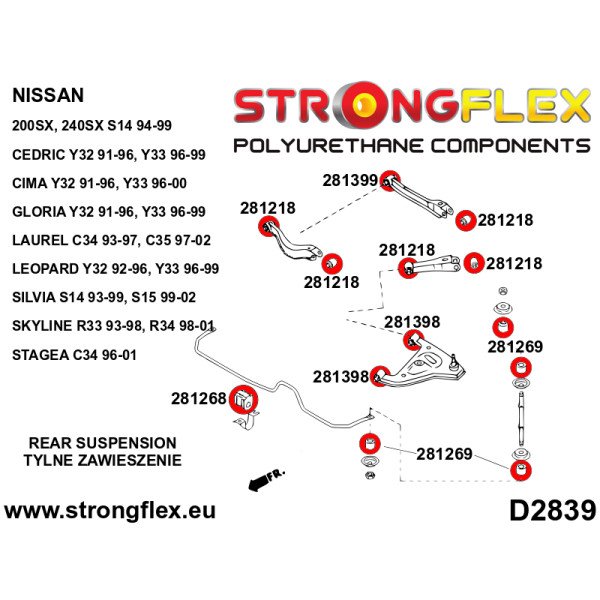

• 10x 281218A: Rear Arm Bush SPORT
• 4x 281398A: Rear Trailing Arm Bushes SPORT
• 2x 281399A: Rear Roe Link Inner Bush SPORT
• 2x 281268B: Rear Anti-Roll Bar Bush
• 4x 281269B: Rear Anti-Roll Bar Link Bush

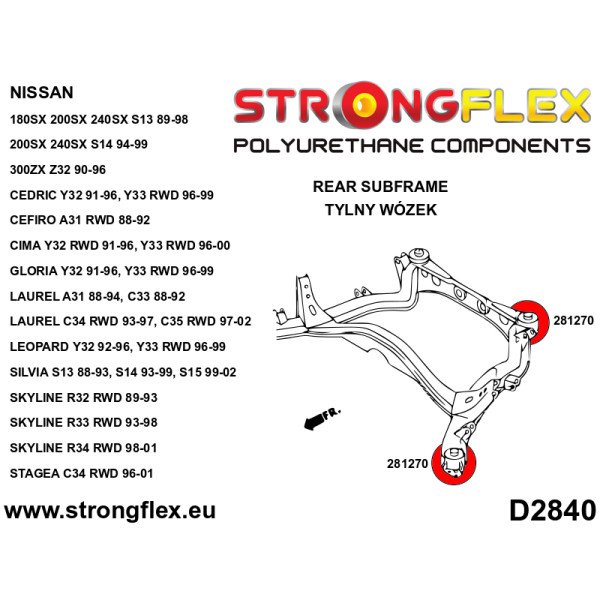

• 4x 281270B: Rear Beam Mounting Bush RWD

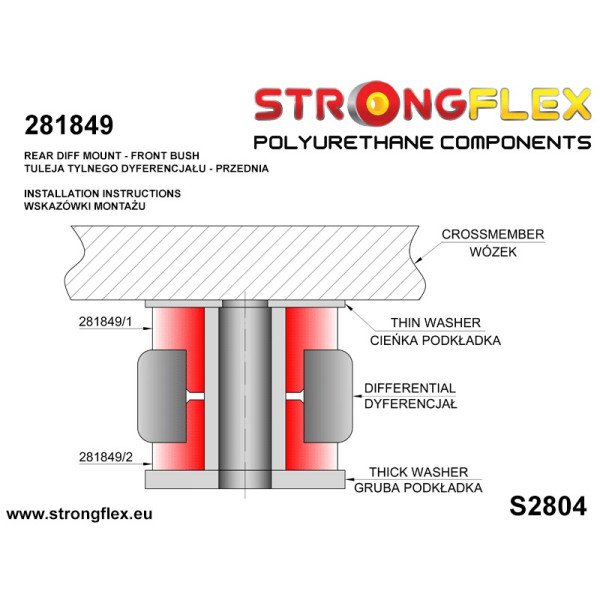

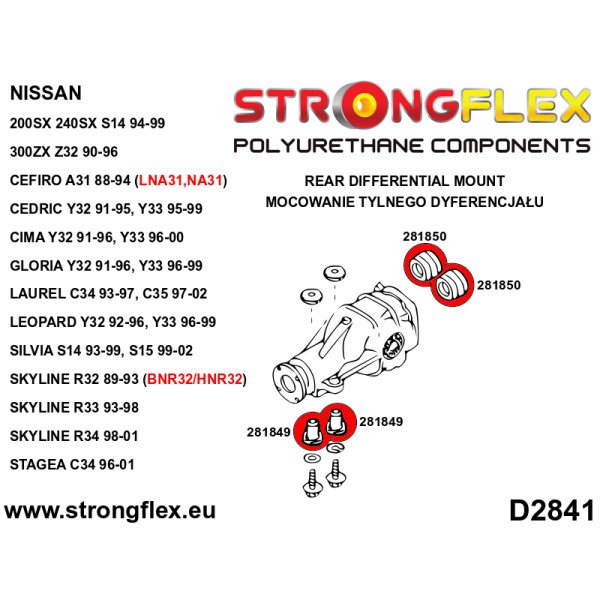

• 2x 281849B: Rear Diff Mount - Front Bush
• 2x 281850B: Rear Diff Mount - Rear Bush

Diagrams:

• S2803

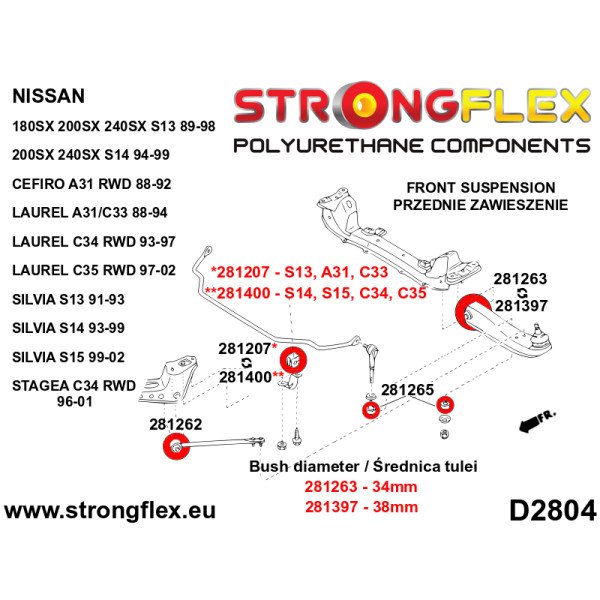

• D2804
• D2839
• D2840
• D2841
• S2805

Important Notes

• Ensure to verify the diameter of the front wishbone bushes: Ø34mm (281263) or Ø38mm (281397) before ordering.
• Select the correct diameter for the steering gear bushing: Ø45mm/Ø48mm/Ø50mm.

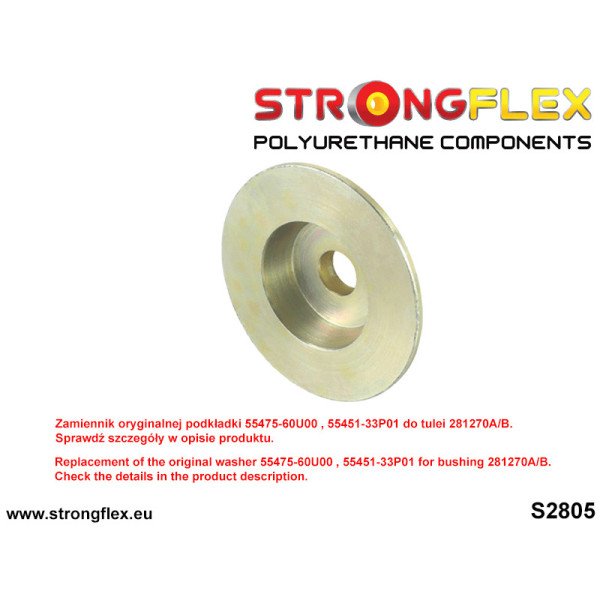

• Due to modifications for motorsport and drifting, original rear bogie pads (OEM 55475-60U00, 55451-33P01) may be absent. Replacement washers compatible with our bushings can be purchased. Specify the quantity needed in the "Subframe Bush Washers" section (0pcs/2pcs/4pcs).

Required per Vehicle: 1

Pieces per Product: 1

Total Pieces per Kit: 39

Hardness: 80Sha

Material: POLYURETHANE (PUR/PU)

Each kit includes a complimentary grease pack for optimal performance!
