Technical Specifications

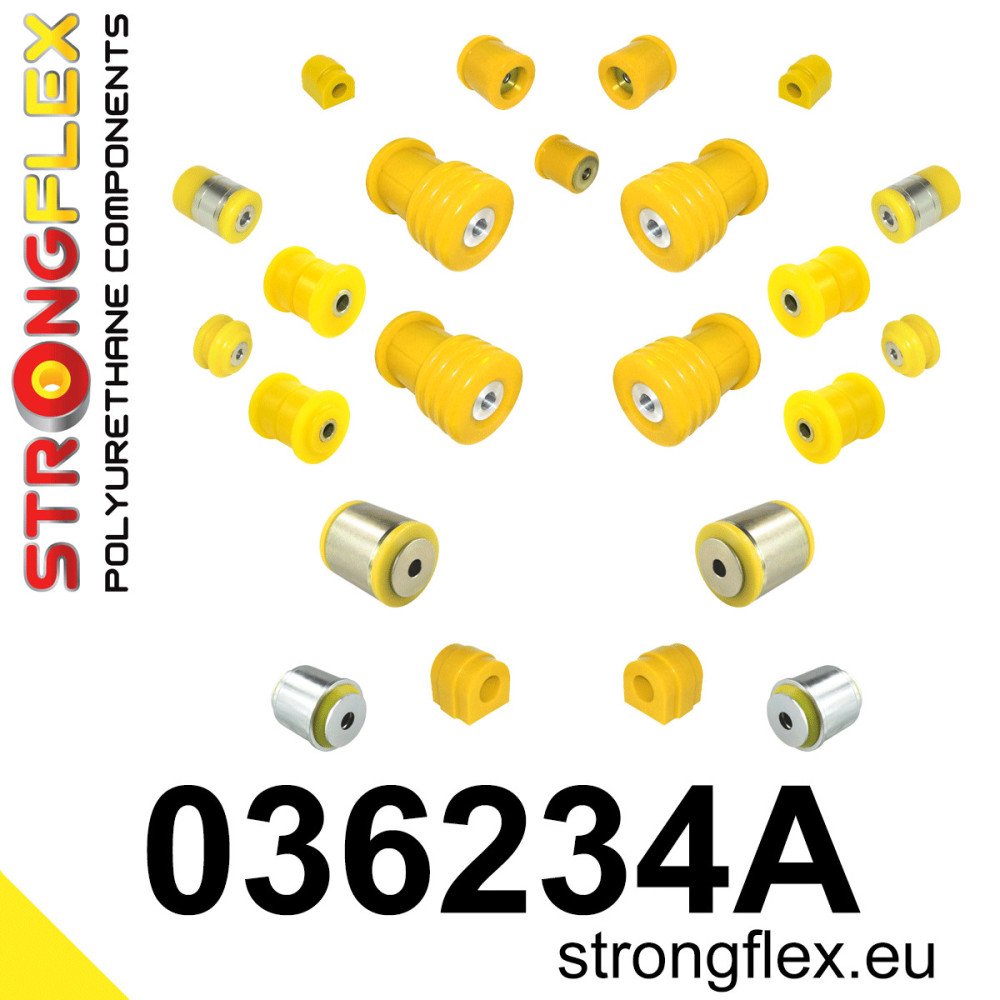

• Kit ID: 036234A
• Product Name: Full Suspension Bush Kit for BMW E39 Touring SPORT
• Compatibility: BMW E39 Touring (1995-2003)
• Components Included: 23 pieces
• Material: Polyurethane (PUR/PU)
• Hardness: 90ShA
• Grease Included: Yes

Included Components

Front Anti-Roll Bar Bush:

2 x 031238A or 2 x 031248A

Front Lower Tie Bar to Chassis Bush:

2 x 031420A (58mm) or 2 x 031638A (66mm)

Front Inner Track Control Arm Bush:

2 x 031421A

Rear Lower Trailing Arm Bush:

2 x 031197A (front, 10mm) and 2 x 031198A (rear, 14mm)

Rear Toe Adjust Inner Bush:

2 x 031744A (10mm)

Rear Upper Arm Inner Bush:

2 x 031745A

Rear Beam Mount Bush:

4 x 031716A

Rear Differential Mount:

1 x 031717A (front bush) and 2 x 031718A (rear bush)

Rear Anti-Roll Bar Bush:

2 x 031167A

Installation Notes

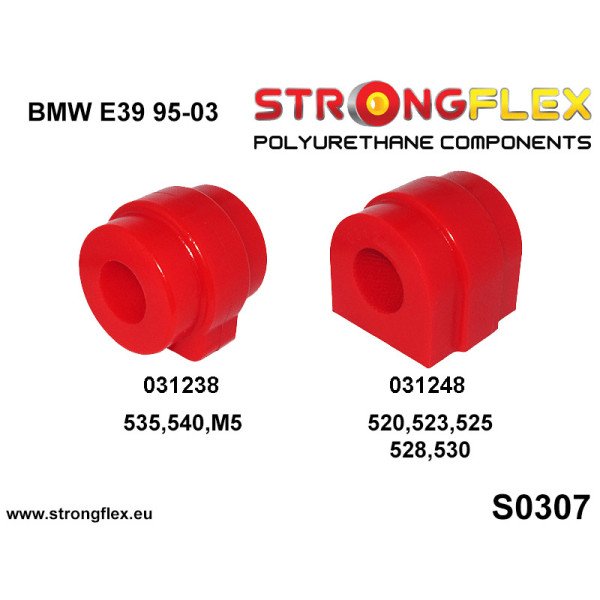

Important: This kit features two distinct types of front stabilizer bushings: 031238 and 031248. Verify the type of bush required for your vehicle before purchase. Refer to diagram S0307 for clarity.

Attention: There are also two variations of the front control arm bush: 031420 (58mm for models 520-530) and 031638 (66mm for models 535, 540 & M5). Ensure you check the specifications before ordering.

Diagrams

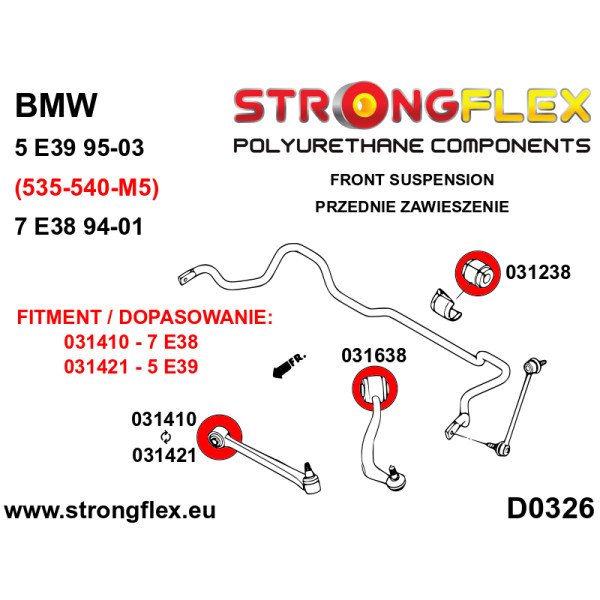

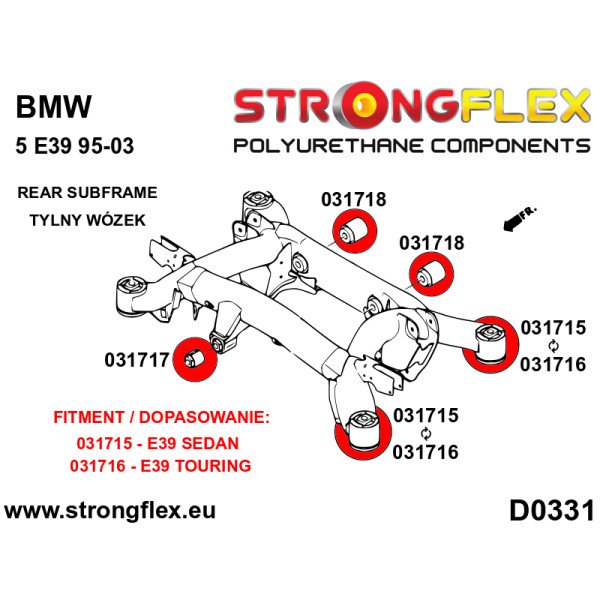

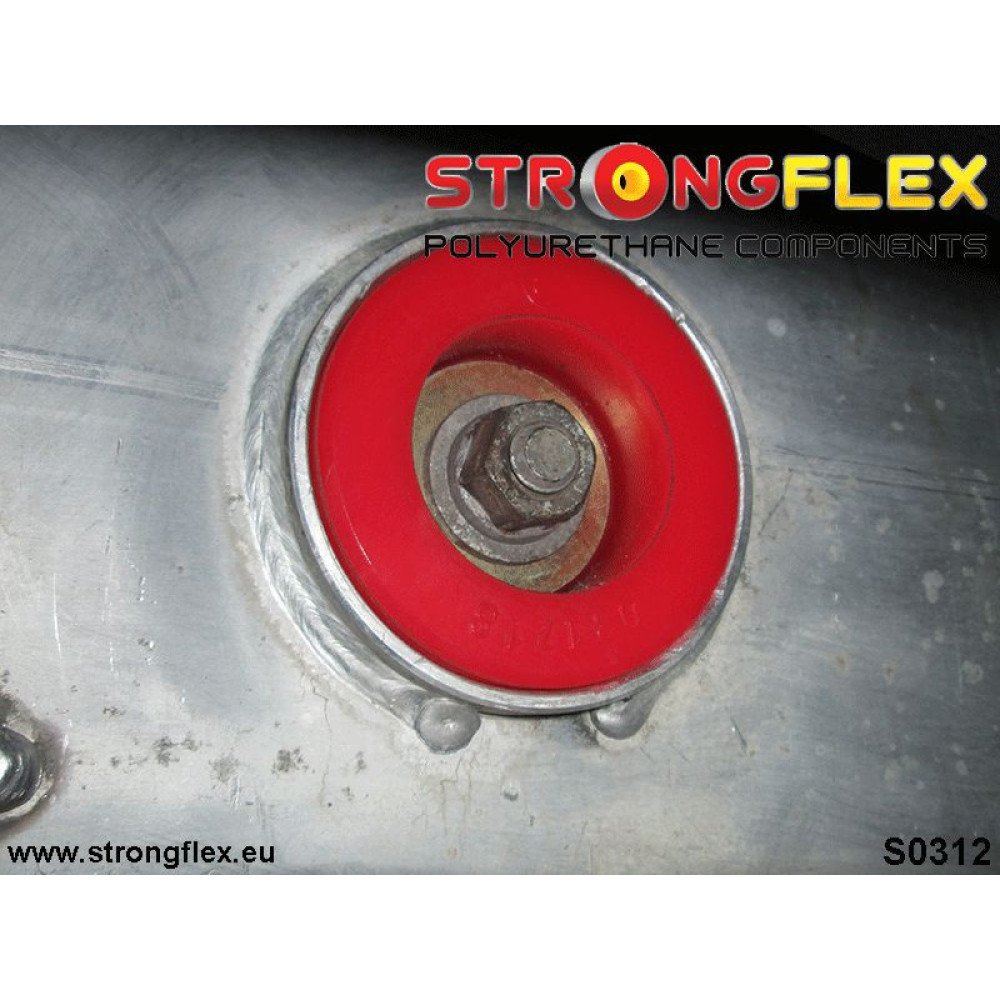

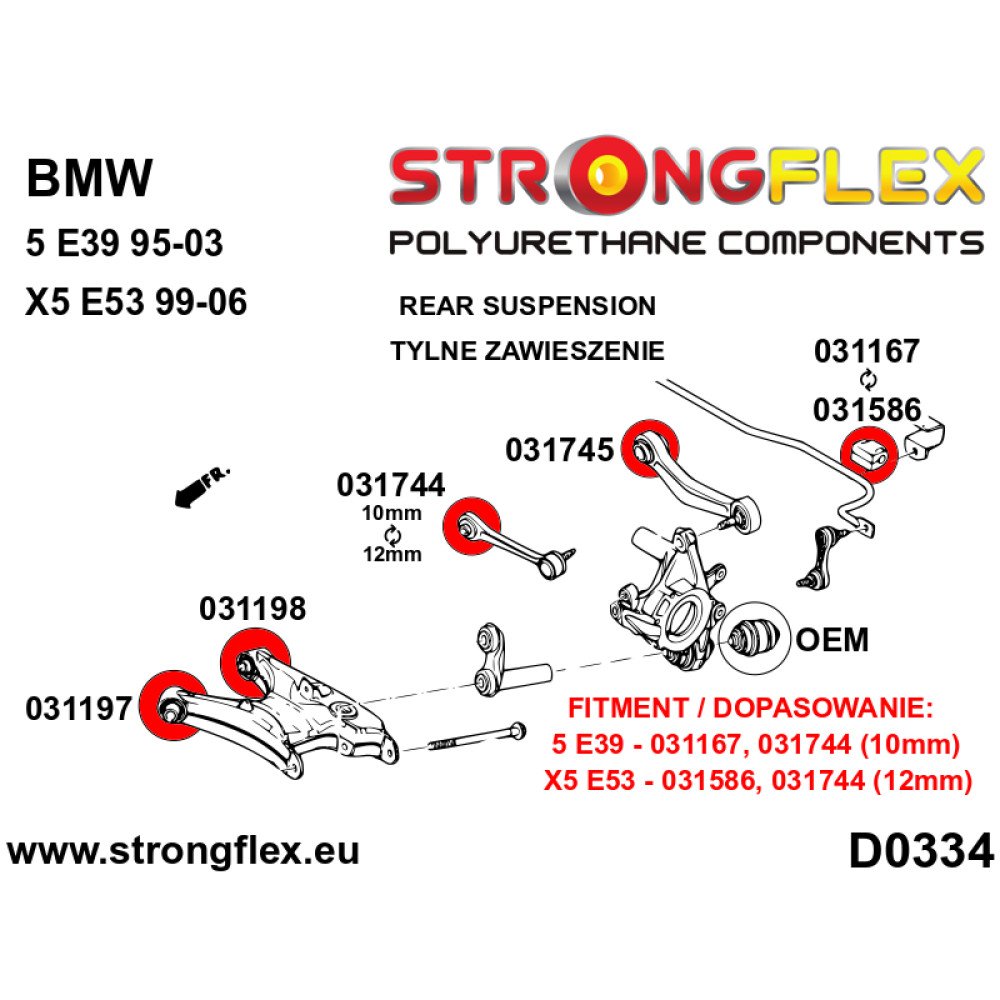

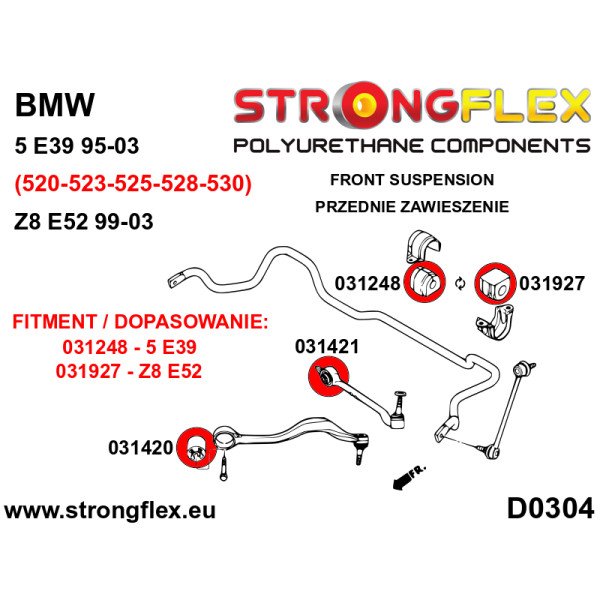

Refer to the following diagrams for installation guidance: D0304, D0326, D0331, D0334, S0307, S0308, S0309, S0310, S0311, S0312, S0313, S0317.

Performance Benefits

Upgrade your BMW E39 Touring with our Full Suspension Bush Kit, designed for enhanced handling, improved stability, and superior road feedback. Crafted from high-quality polyurethane, these bushings provide a perfect balance of durability and performance, ensuring your vehicle responds precisely to your driving inputs. Experience the difference in your ride quality and cornering capabilities with RaceStage.eu's engineered precision.
