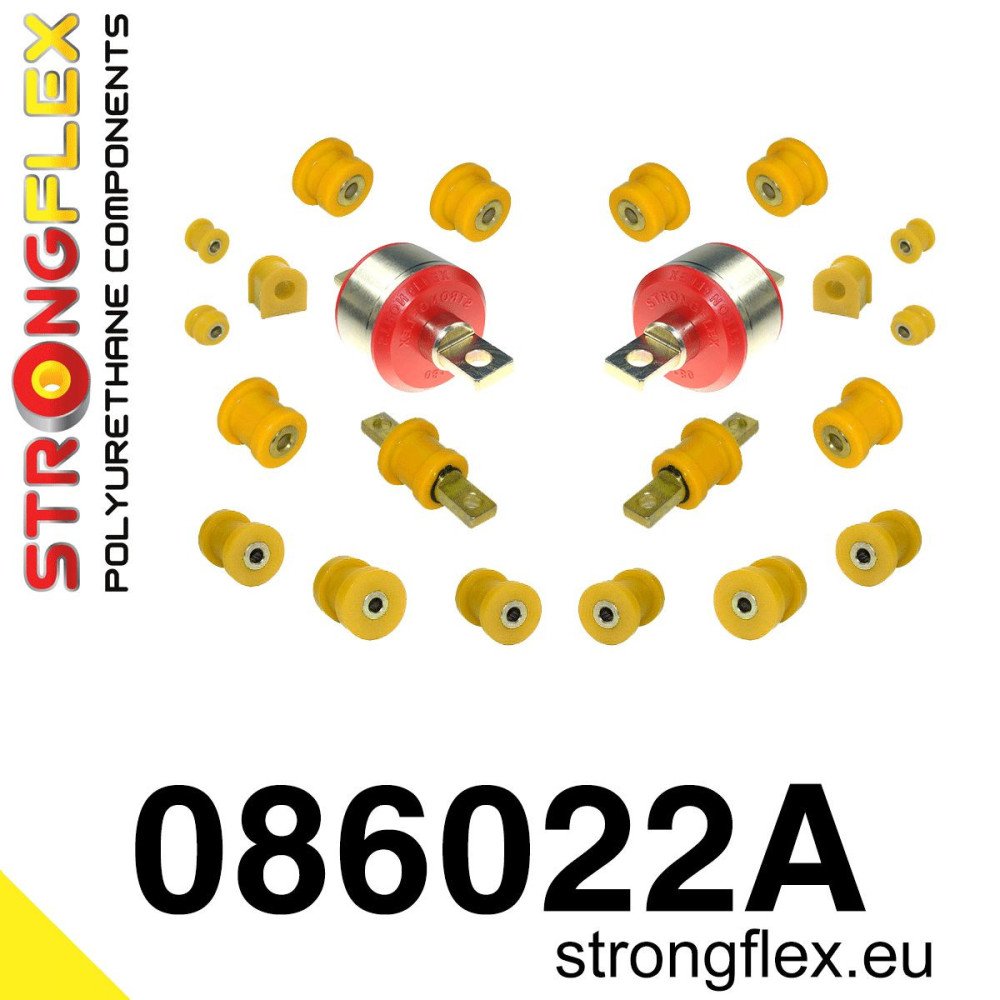

Reference: 086022A

Product Name: SPORT Rear Suspension Bush Kit

Compatibility:

• Honda CRX II (1988-1991)
• Honda CRX del Sol (1992-1997)
• Honda Civic IV (1988-1991) EC / ED / EE / EF / EX
• Honda Civic V (1991-1995) EG / EH / EJ
• Honda Concerto (1988-1995)

Included Components:

• 4x 081101A: 31mm Outer Arm to Hub Bush and Inner Track Arm Bush (SPORT)
  or
• 4x 081107A: 35mm Outer Arm to Hub Bush and Inner Track Arm Bush (SPORT)


• 2x 081102A: Rear Lower Shock Mounting Bush (SPORT)
• 2x 081103A: Rear Upper Outer Link/Hub Bush (SPORT)
• 2x 081104A: Rear Trailing Arm Mount Bush (SPORT)
• 2x 081105B: Rear Trailing Arm Mount Bush*
• 4x 081108A: Rear Toe Link Arm Bush (SPORT)
• 2x 081171A: Rear Anti-Roll Bar Bush (SPORT)
• 2x 081196A: Rear Anti-Roll Bar Link Bush (SPORT)
• 2x 081521A: Rear Anti-Roll Bar Link Bush (SPORT)

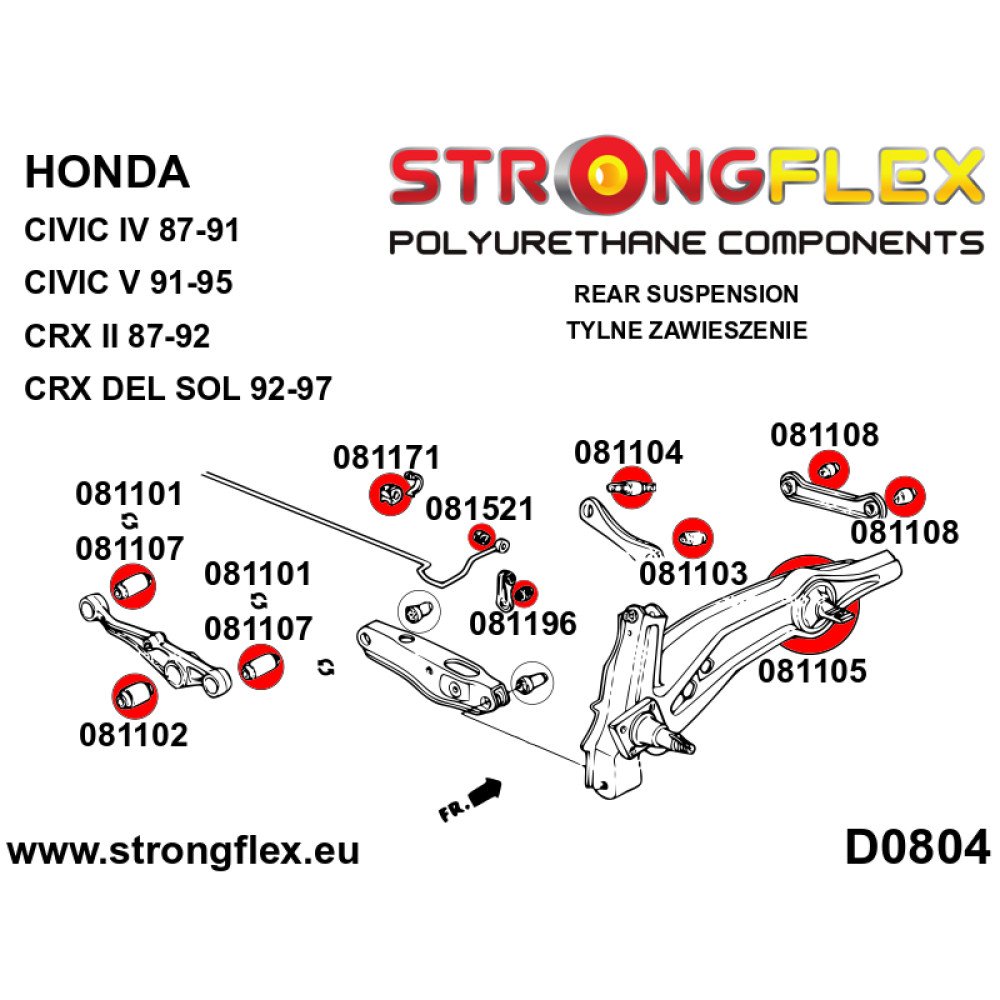

Diagrams:

• D0804

Important Notes

• The 081105B bushings are available as polyurethane "inserts" without the accompanying metal components (inner and outer sleeves).
  To install the "insert," you will need the external metal ring and inner sleeve from the original rubber bush. The original metal parts must be removed by burning or cutting. Ensure the recovered internal metal bushing has a diameter of 30mm before opting for the "insert" option.
• The old bush must be removed. Note that the 081105B is not a direct replacement for the original bushing, and using it will stiffen the suspension.

• Before purchasing, verify the diameter of the rear lower arm bushing (choose between 31mm for 081101 or 35mm for 081107).

Required per Vehicle: 1

Pieces per Product: 1

Total Pieces per Kit: 22

Hardness Rating: 90 Shore A

Material Composition: Polyurethane (PUR/PU)

Each kit comes with complimentary grease for optimal performance!
