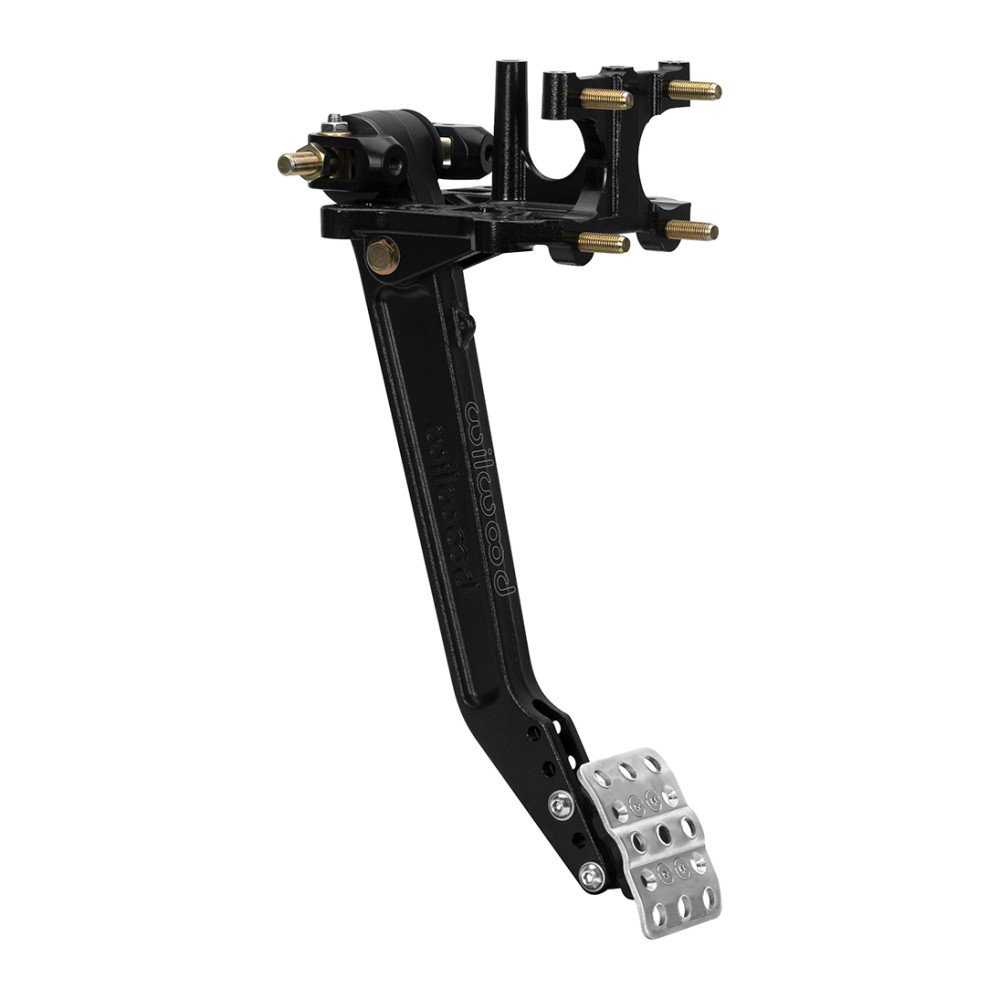

Reverse Swing Mount Adjustable Ratio Brake Pedal Assembly

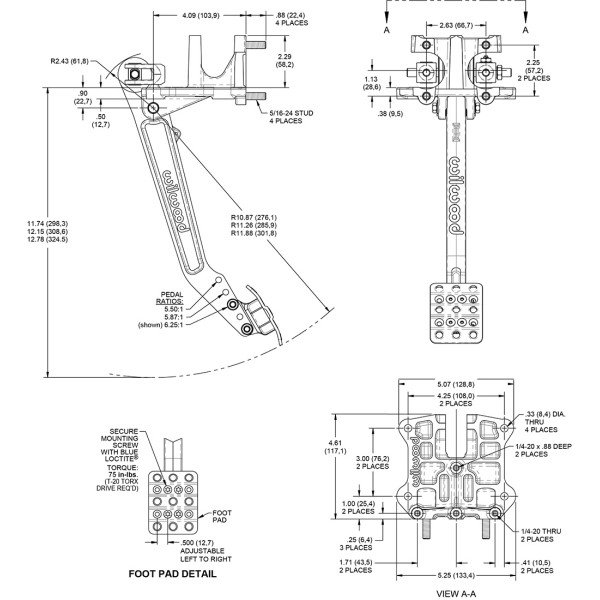

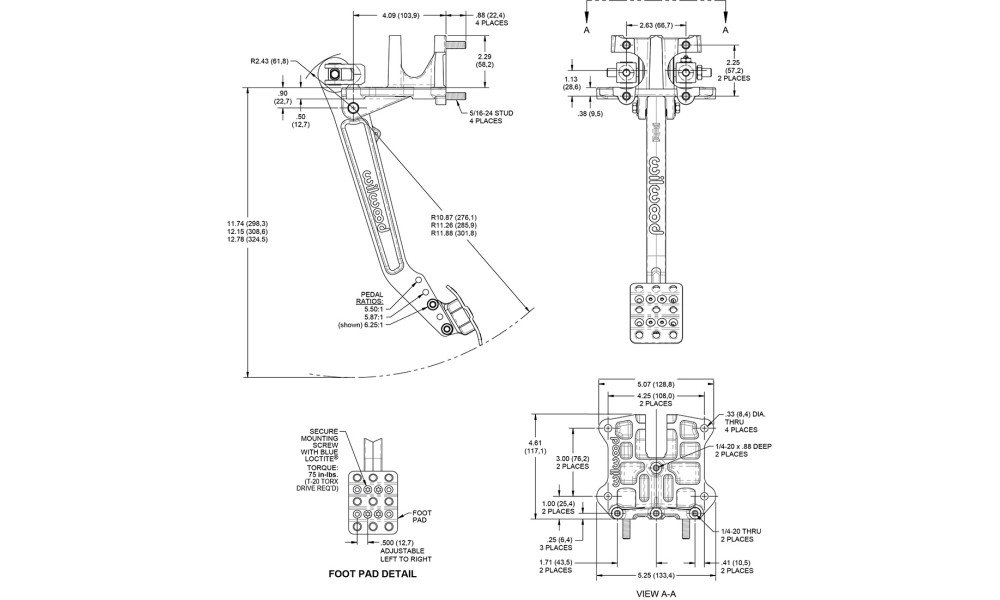

This reverse swing mount brake pedal assembly is designed for serious enthusiasts and racers seeking precise brake control and customization. Featuring an adjustable ratio balance bar, the pedal head can be set to 5.50:1, 5.88:1, or 6.25:1 ratios, allowing you to fine-tune pedal feel and effort to your driving style and track conditions. The assembly accepts two Wilwood 2.25-inch vertical mount flange single outlet master cylinders (sold separately), enabling independent front and rear brake circuits with adjustable front-to-rear brake bias via the integrated balance bar.

• Material: Lightweight aluminum frame with high-strength, reinforced I-beam style forged pedal arms
• Finish: Black E-coat for durability and corrosion resistance
• Mount Location: Swing mount, reverse facing
• Pedal Ratio: Adjustable between 5.25:1 and 6:1
• Pedal Pad: Non-skid waffled design, laterally adjustable by 0.5 inch for driver preference
• Balance Bar: Included, with positive detent stop every full turn and jam nut for secure adjustment; compatible with optional remote adjuster (not included)
• Pushrod Attachment: Pin and clevis system for minimal misalignment and bind-free operation
• Master Cylinder Compatibility: Accepts any two Wilwood 2.25-inch vertical mount flange single outlet master cylinders (available separately)

Ideal for custom builds, race cars, and high-performance applications requiring precise brake bias adjustment and pedal feel. Master cylinders not included.
