Reverse Swing Mount Brake and Clutch Pedal - Adjustable Ratio, Right

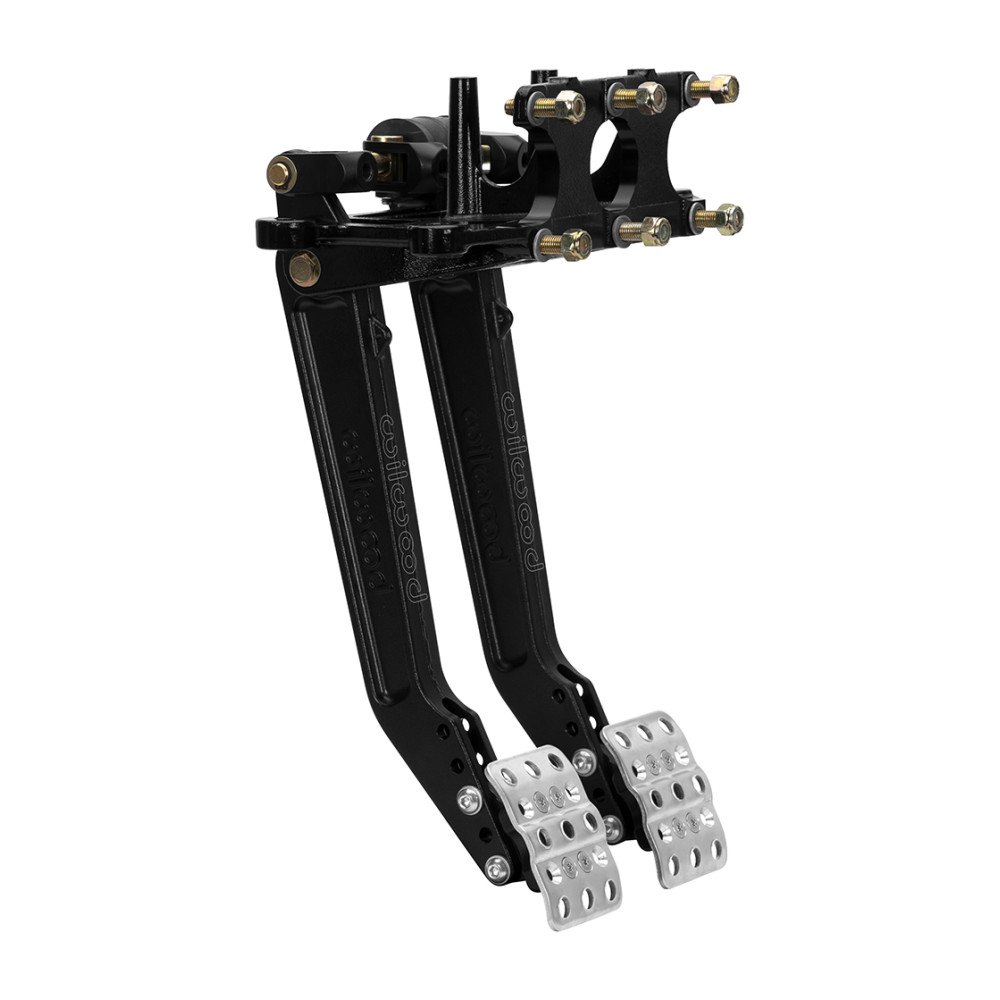

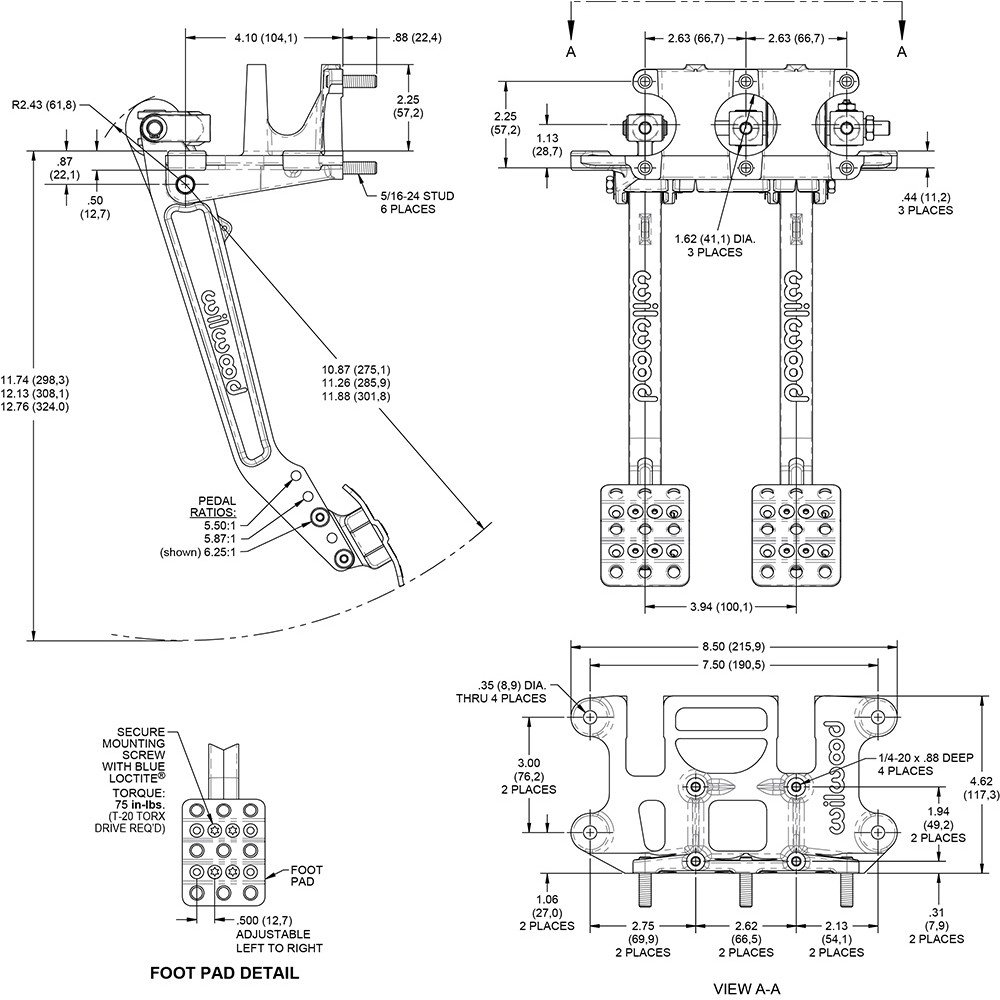

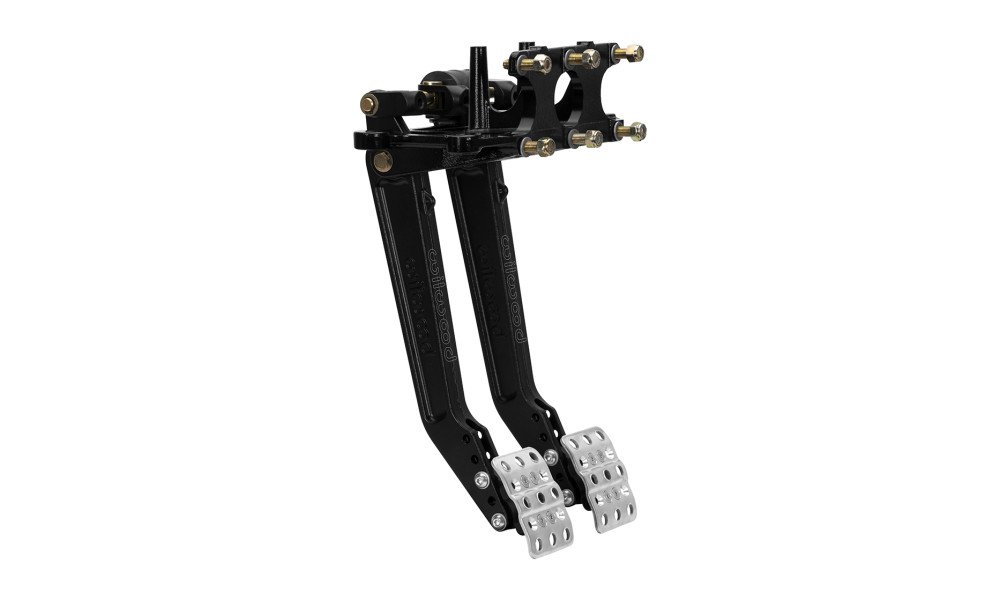

This assembly features an adjustable ratio balance bar brake pedal and clutch pedal combo, designed in a reverse swing hanging configuration. The pedal head offers vertical adjustment to set the pedal ratio at 5.50:1, 5.88:1, or 6.25:1, allowing for tailored pedal feel and effort. The system accommodates a clutch master cylinder and two brake master cylinders (not included), with an integrated adjustable balance bar for precise front-to-rear brake bias tuning.

The non-skid waffled pedal pads are laterally adjustable, allowing spacing from 3 to 5 inches on center for optimal driver comfort. Constructed with a lightweight aluminum frame and high-strength, reinforced I-beam style forged pedal arms, this assembly is built for durability and performance. The balance bar includes a positive detent stop at each full turn to secure adjustments, and can be locked with the included jam nut or used with an optional remote knob for on-the-fly changes.

A pin and clevis pushrod attachment system ensures minimal misalignment and smooth, bind-free operation throughout the pedal travel. This pedal assembly is compatible with any three Wilwood 2.25-inch vertical mount flange single outlet master cylinders (available separately in various styles and bore sizes).

• Material: Aluminum
• Finish: Black E-coat
• Mount Location: Swing
• Mount Facing: Reverse
• Balance Bar: Yes
• Pedal Ratios: 5.5–6.25:1 (adjustable for both pedals)
• Pedal Pad Spacing: 3–5 inches on center (adjustable)
• Master Cylinders: Accepts three Wilwood 2.25-inch vertical mount flange single outlet master cylinders (not included)
