Swing Mount Brake and Clutch Pedal – Adjustable Ratio

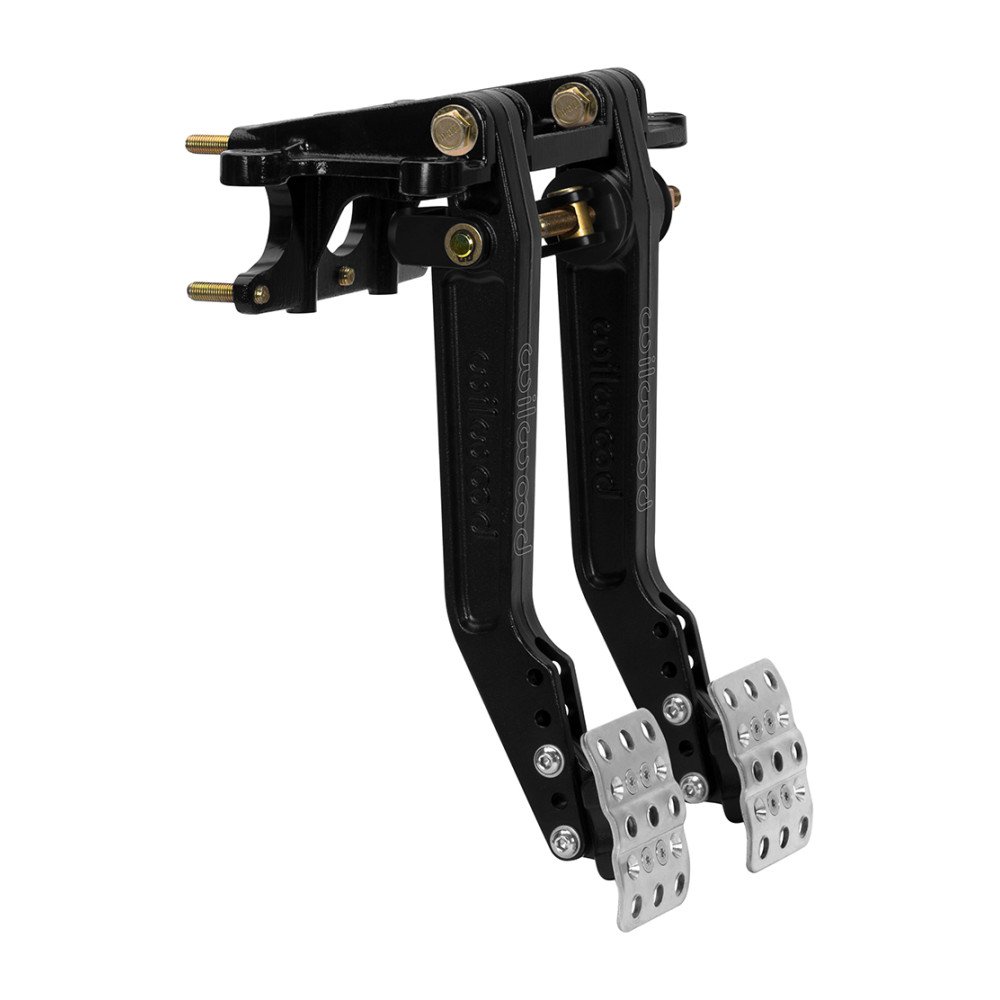

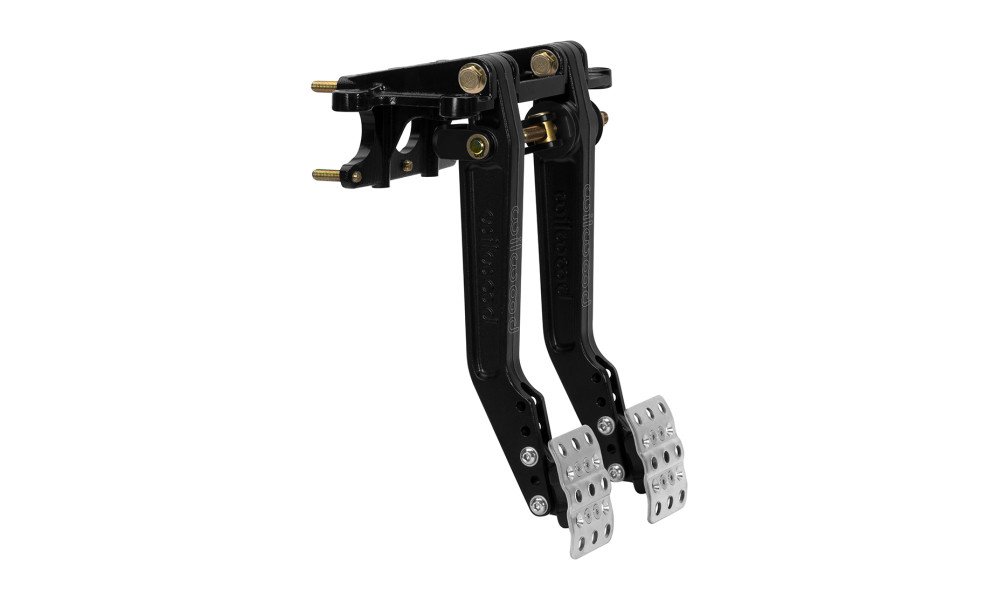

This forward swing, hanging pedal assembly combines an adjustable ratio balance bar brake pedal with a clutch pedal for precise control in your performance build. The pedal head offers three selectable ratios—5.50:1, 5.88:1, and 6.25:1—allowing you to fine-tune pedal feel and effort to match your driving style. The assembly is designed to accept a clutch master cylinder and two brake master cylinders (Wilwood 2.25-inch vertical mount flange, single outlet, sold separately), all firewall-mounted for direct response.

The integrated balance bar provides front-to-rear brake bias adjustment, featuring a positive detent stop at every full turn for secure positioning. You can lock the setting with the included jam nut or upgrade to an optional remote knob for quick, on-track adjustments.

The lightweight aluminum frame and I-beam style forged pedal arms deliver strength without excess weight. Non-skid, waffled pedal pads can be laterally adjusted from 3 to 5 inches on center to suit driver preference. A pin and clevis pushrod attachment system ensures minimal misalignment and bind-free operation throughout the pedal travel.

• Material: Aluminum
• Finish: Black E-coat
• Mount Location: Swing (hanging)
• Mount Facing: Forward
• Balance Bar: Yes, adjustable

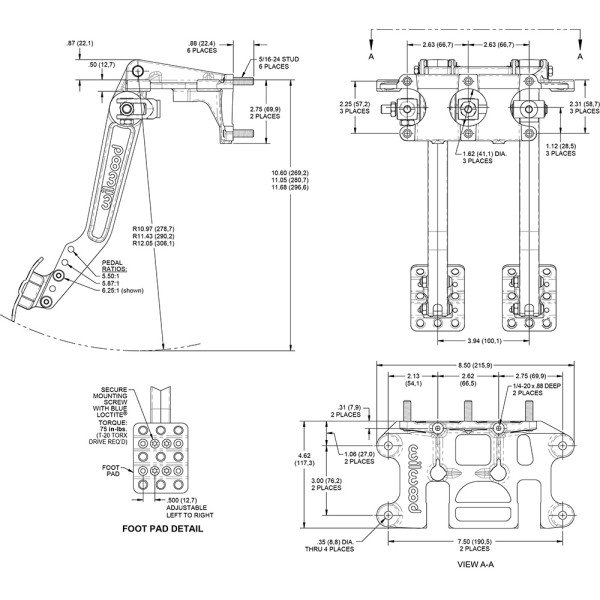

• Pedal Ratios: 5.5:1, 5.88:1, 6.25:1 (both pedals)
• Pedal Pad Adjustment: 3-5 inches on center
• Compatible Master Cylinders: Wilwood 2.25-inch vertical mount flange, single outlet (sold separately)
