Swing Mount Brake Pedal – Adjustable Ratio

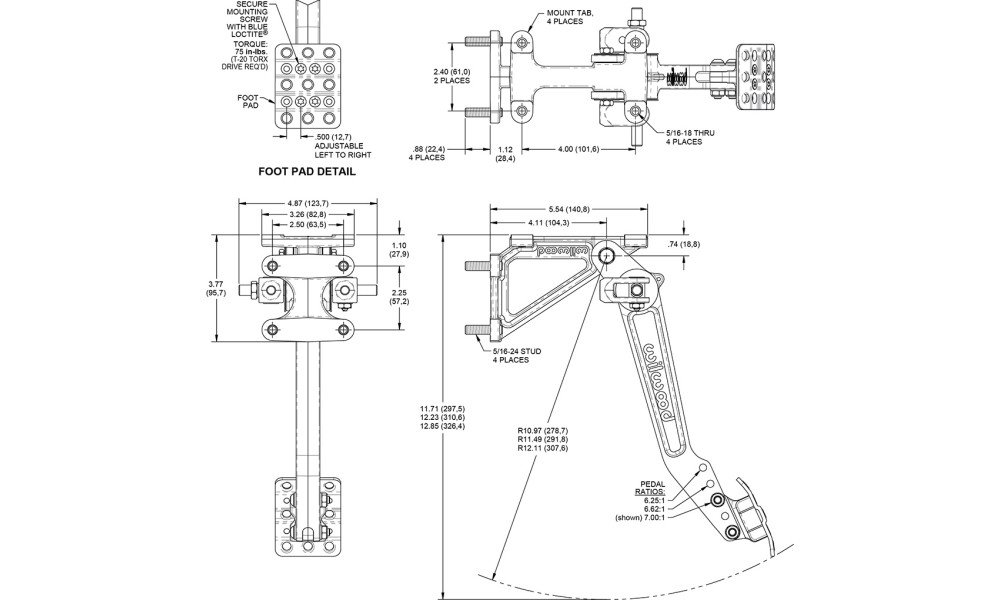

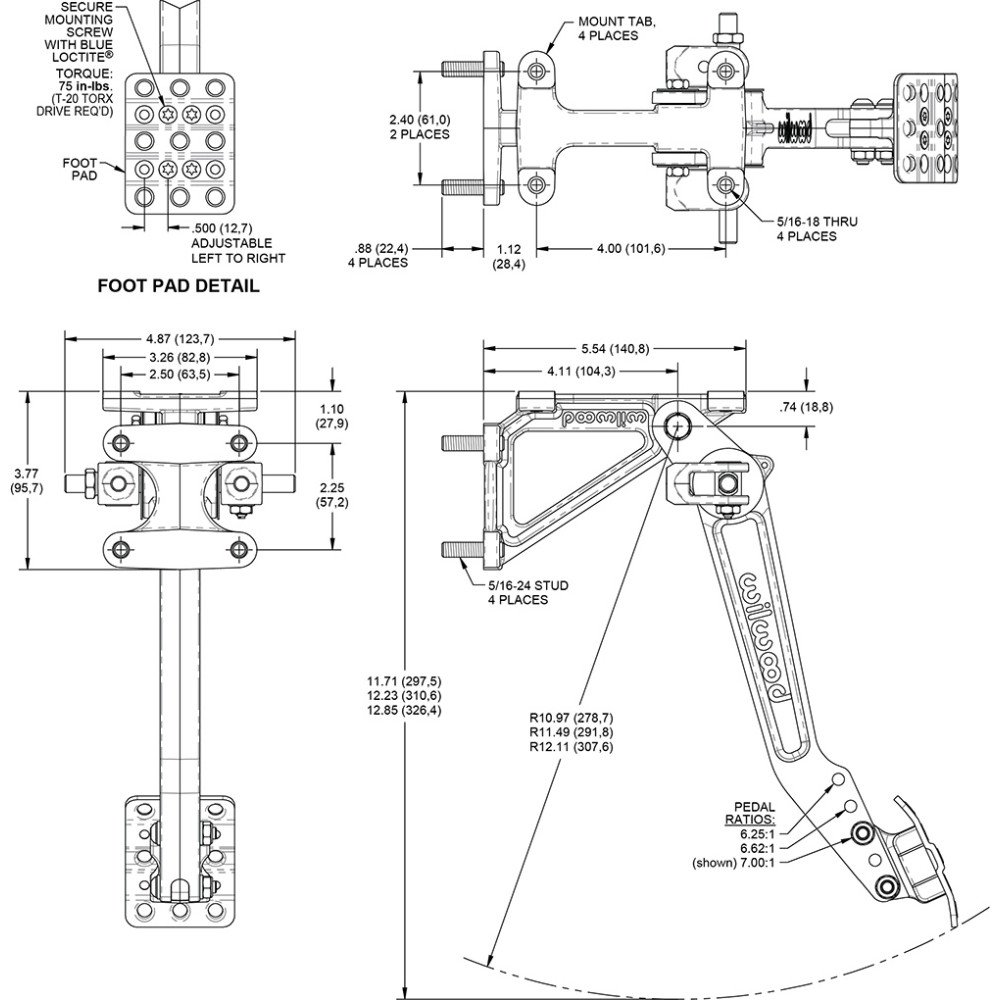

This swing mount brake pedal features an adjustable ratio balance bar in a forward swing, hanging-style assembly. The pedal head can be set to provide a 6.25:1, 6.63:1, or 7.00:1 ratio, allowing you to fine-tune for more pedal feel or reduced pedal effort. Designed to accept two Wilwood 2.25-inch vertical mount flange single outlet master cylinders (sold separately), the assembly mounts through the firewall and includes an adjustable balance bar for precise front-to-rear brake bias adjustment.

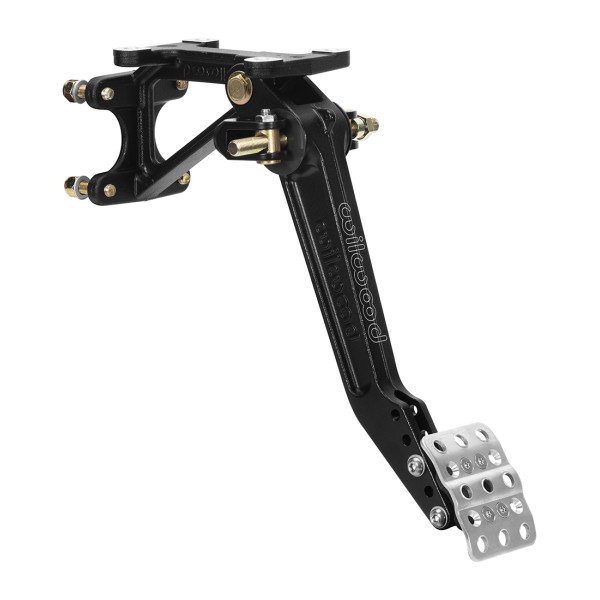

The pedal is constructed from lightweight aluminum with a high-strength, reinforced I-beam style forged pedal arm. The non-skid waffled pedal pad offers 1/2-inch lateral adjustment for driver preference. The balance bar features a positive detent stop at every full turn to maintain your setting and can be locked with the included jam nut or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures minimal misalignment for smooth, bind-free operation throughout the pedal travel.
- Material: Aluminum
- Finish: Black E-coat
- Mount Location: Swing
- Mount Facing: Forward
- Balance Bar: Yes
- Pedal Ratio: Adjustable 6.25:1 – 7.00:1
- Accepts: Two Wilwood 2.25-inch vertical mount master cylinders (sold separately)
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
WILWOOD
Wilwood 340-16379 Swing Mount Brake and Clutch Pedal 6.25-7:1 Dual M/C
-
- Brand: WILWOOD
- Product id: 79317
- MPN: 340-16379
- Availability: In Stock
- 241.01€
236.19€
- Excl. VAT: 195.20€
