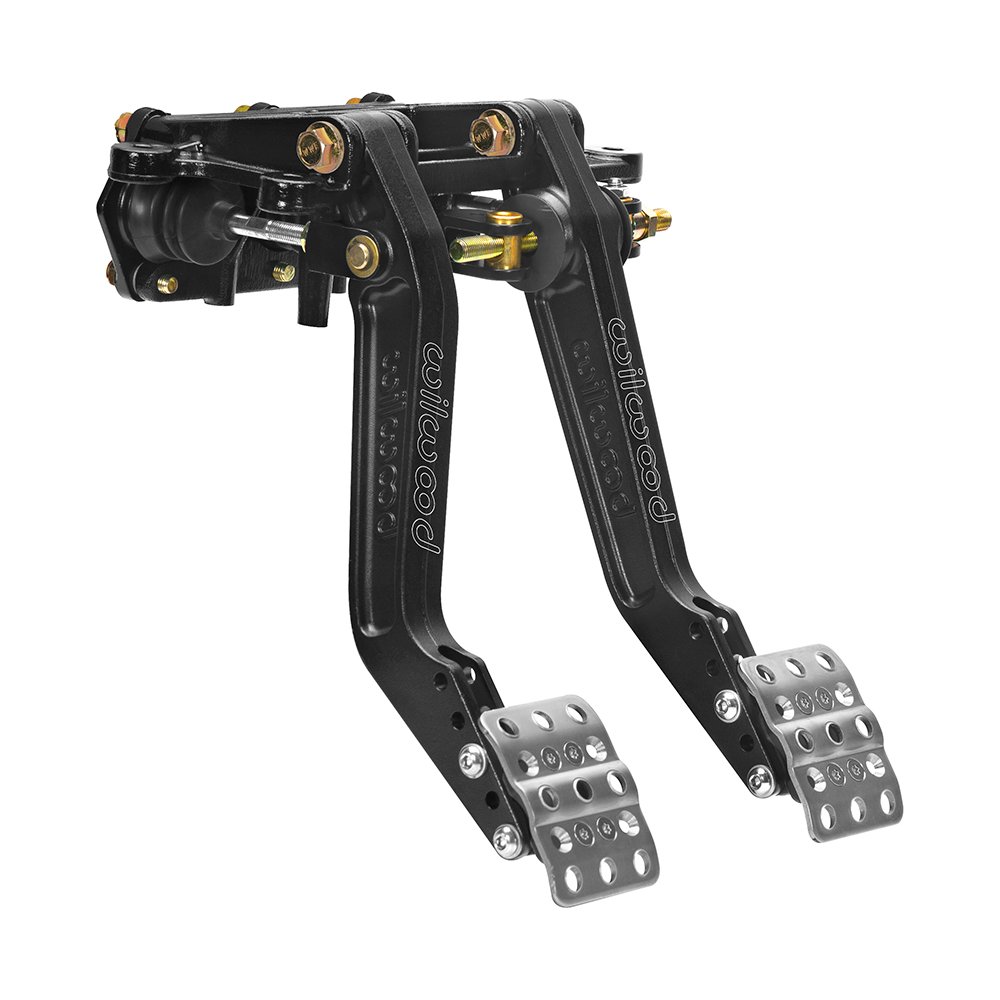

Swing Mount Brake and Clutch Pedal – Adjustable Ratio

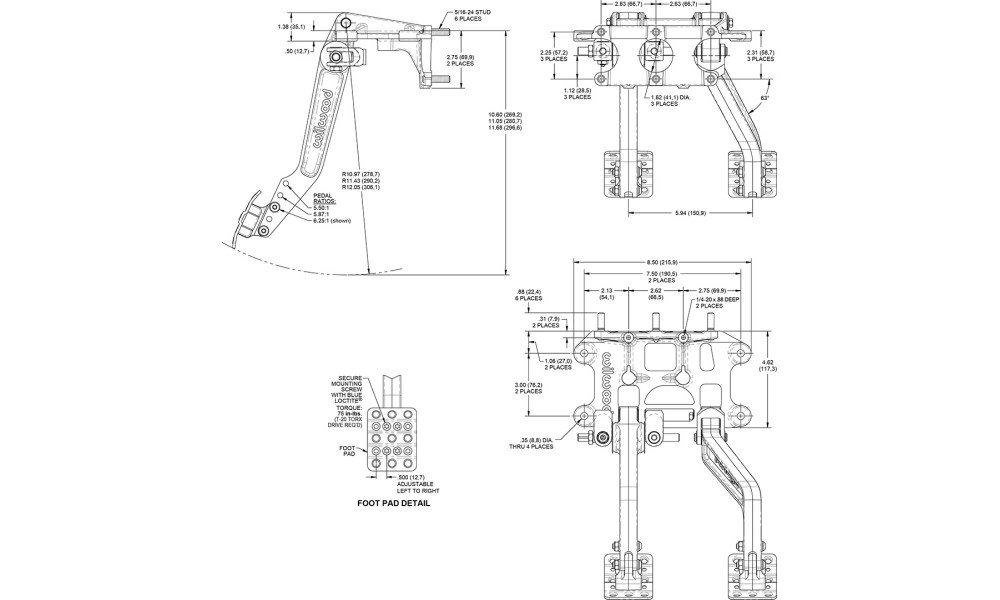

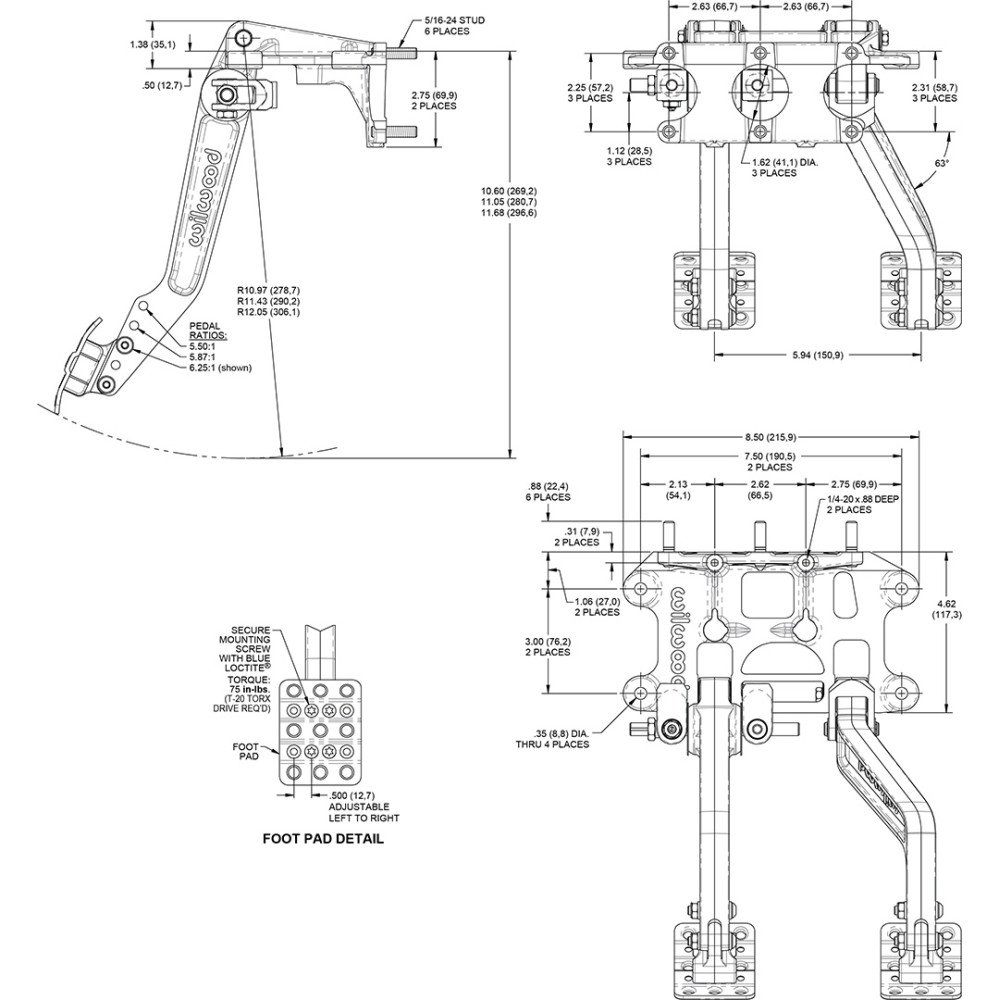

This swing mount pedal assembly features an adjustable ratio balance bar brake pedal paired with an offset clutch pedal, all in a forward-facing, hanging configuration. The pedal head offers vertical adjustment, allowing you to set the pedal ratio at 5.50:1, 5.88:1, or 6.25:1, giving you the flexibility to fine-tune pedal feel and effort to your driving style.

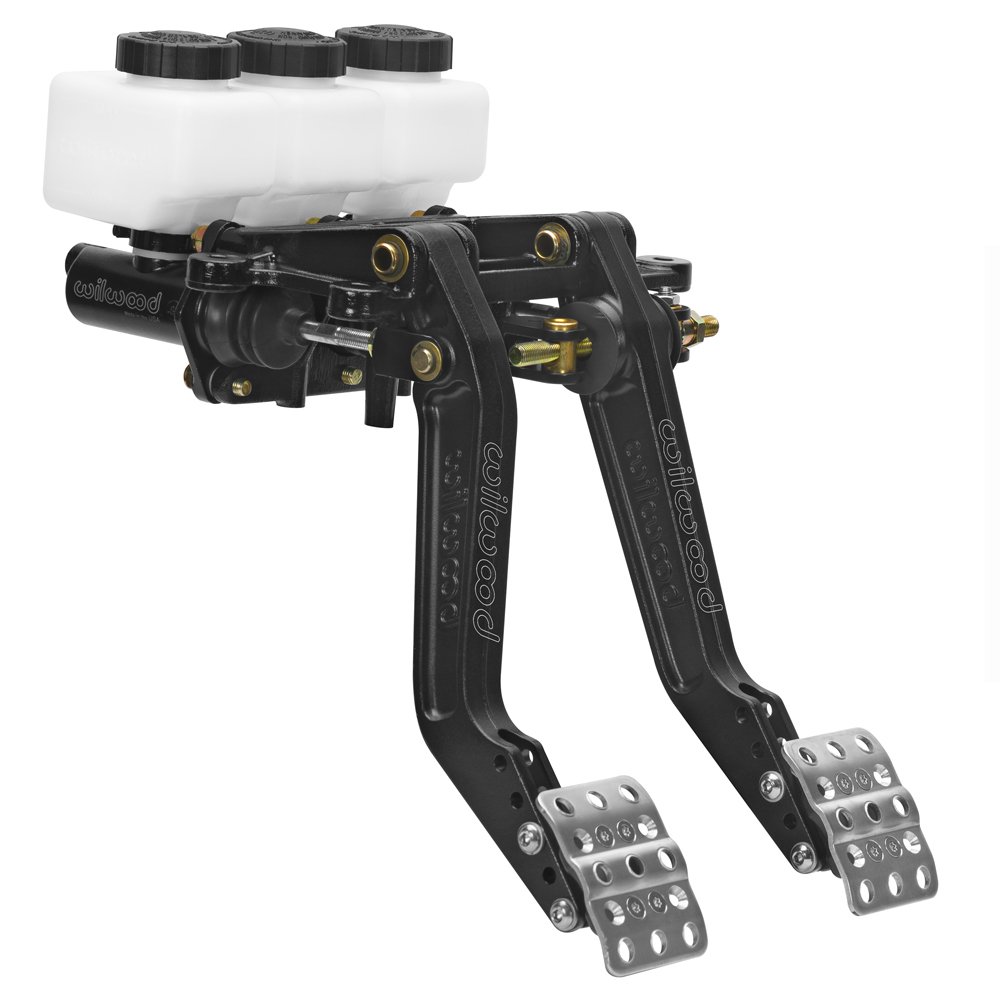

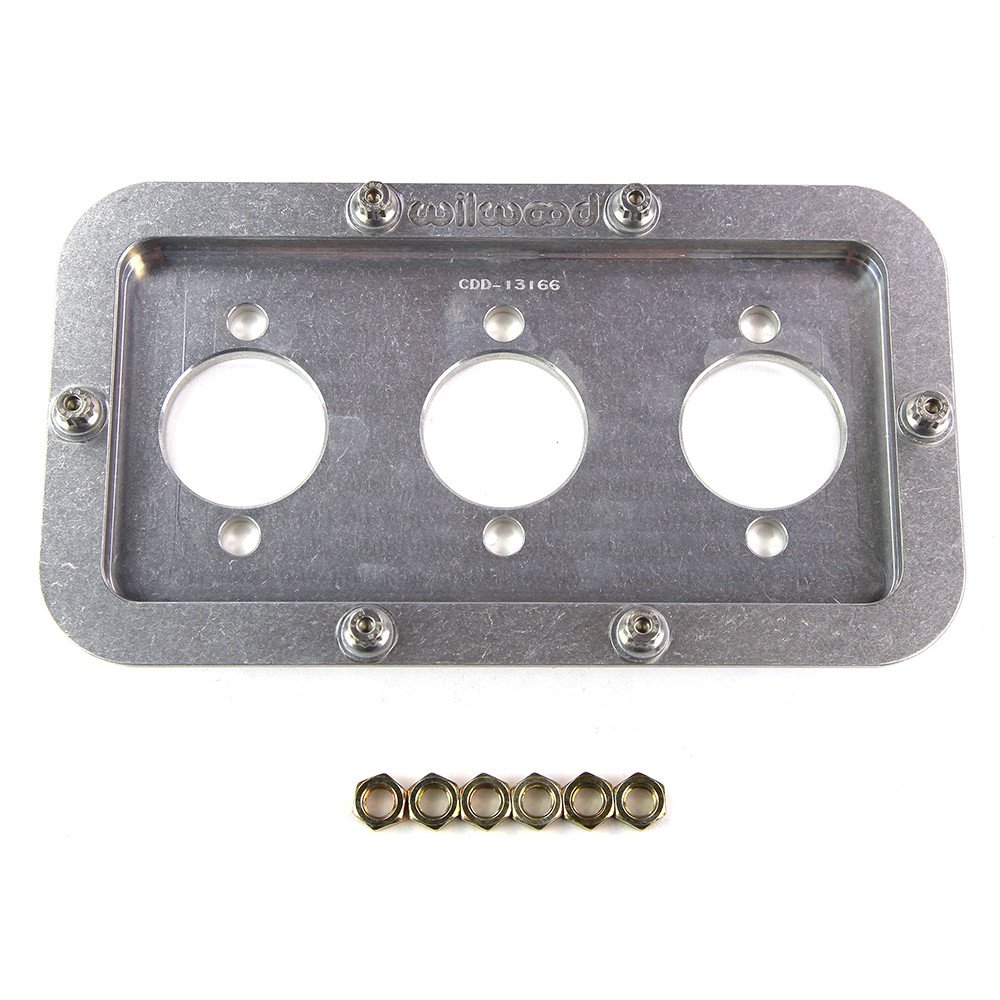

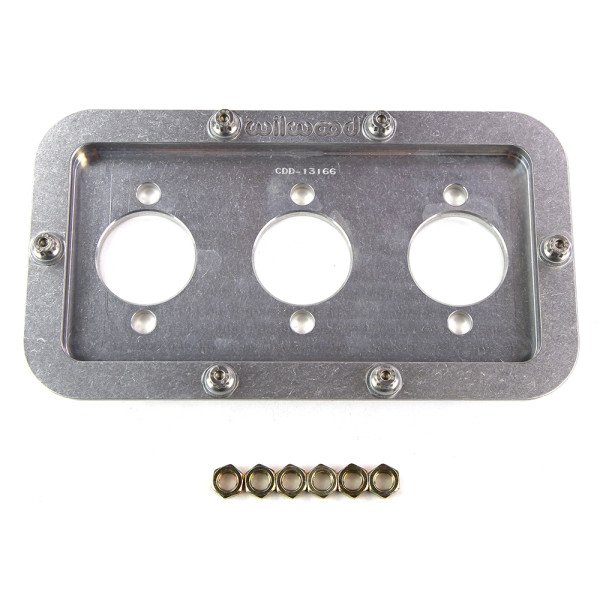

The assembly is engineered to accept a clutch master cylinder and two brake master cylinders, all mounted through the firewall. The adjustable balance bar enables precise front-to-rear brake bias tuning. For added driver comfort, the non-skid waffled pedal pads are laterally adjustable, with centers ranging from 5 to 7 inches.

Constructed from lightweight aluminum with a black E-coat finish, the pedals utilize reinforced I-beam style forged arms for maximum strength. The balance bar includes a positive detent stop at every full turn to maintain adjustment position, and can be locked with the included jam nut or used with an optional remote knob for on-the-fly adjustments. The pin and clevis pushrod attachment system ensures minimal misalignment for smooth, bind-free operation throughout the pedal travel.

This assembly is compatible with any three Wilwood 2.25-inch vertical mount flange single outlet master cylinders (sold separately), available in various styles and bore sizes.

• Material: Aluminum
• Finish: Black E-coat
• Mount Location: Swing (hanging, forward-facing)
• Balance Bar: Yes
• Pedal Ratio: Adjustable 5.5–6.25:1 (both pedals)
• Lateral Pedal Pad Spacing: 5–7 inches center-to-center
• Compatible Master Cylinders: Wilwood 2.25-inch vertical mount flange, single outlet (not included)
