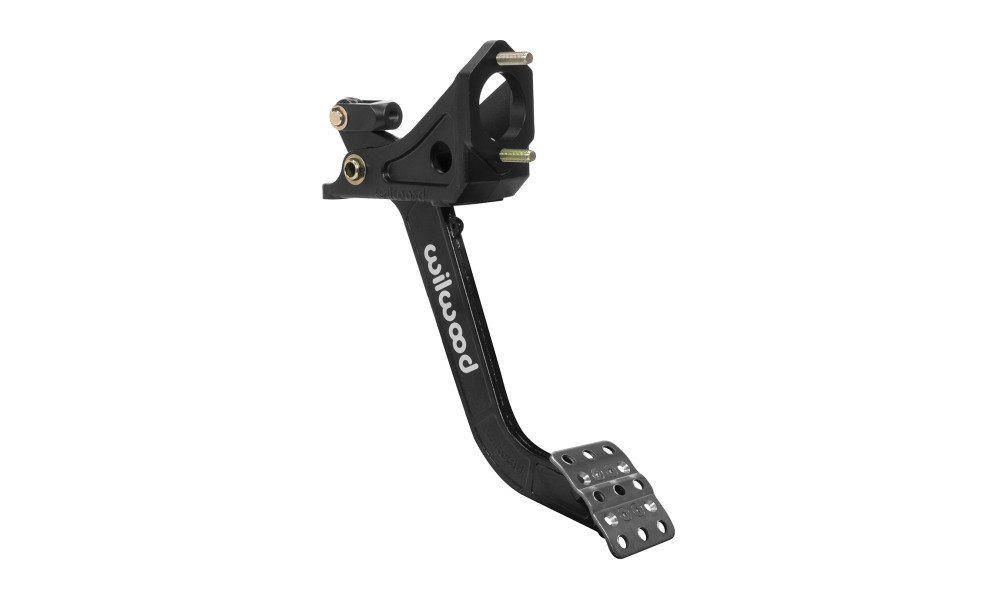

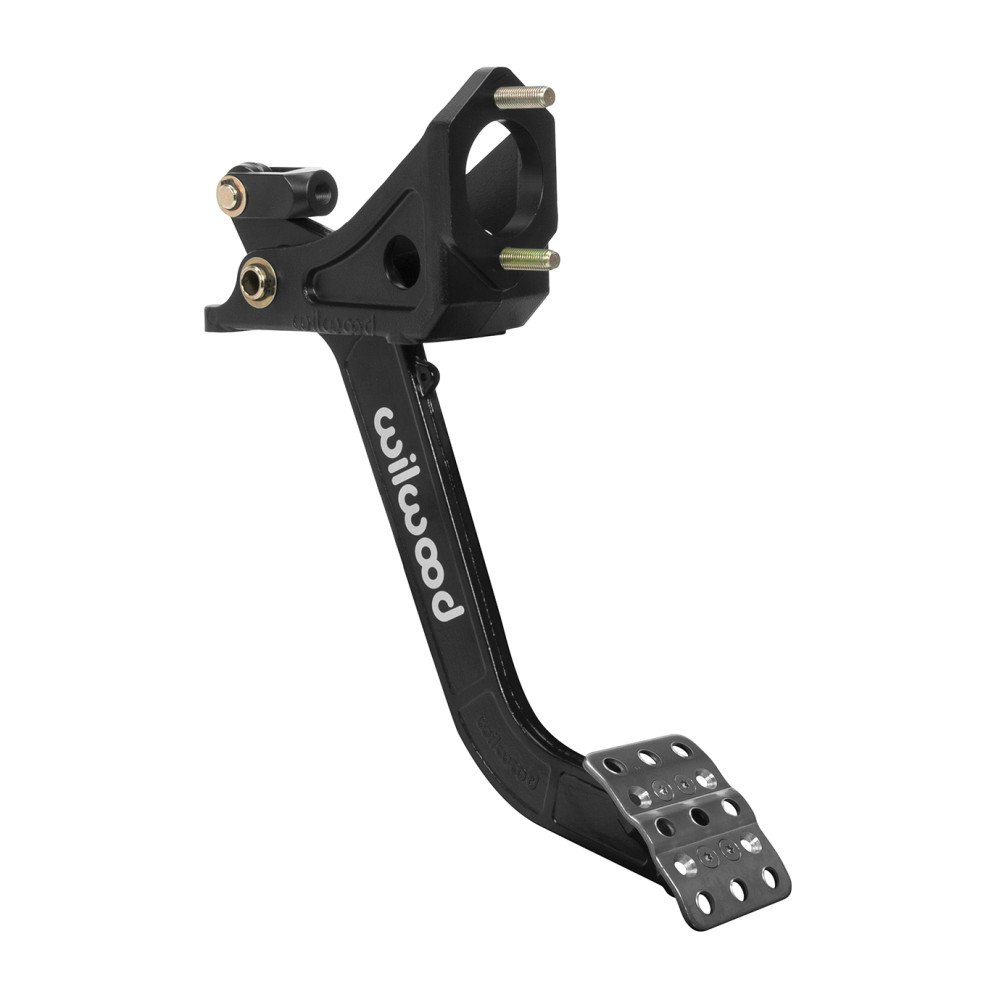

Reverse Swing Mount Clutch / Brake Pedal Assembly

This reverse swing mount pedal assembly is designed to mount a single brake or clutch master cylinder in a reverse position inside the firewall. Constructed with a lightweight aluminum frame and finished in durable black E-coat, it features a high-strength, reinforced I-Beam style forged pedal arm with a 6.0:1 pedal ratio. The non-skid waffled pedal pad is laterally adjustable for optimal driver preference or clearance.

This pedal assembly is compatible with any Wilwood vertical mount flange single or tandem outlet master cylinder. For horizontal mount flange master cylinders, an adapter kit is required. Master cylinders are sold separately and available in various styles and bore sizes.

Specifications:

  • Material: Aluminum
  • Finish: Black E-coat
  • Mount Location: Swing
  • Mount Facing: Reverse
  • Balance Bar: No

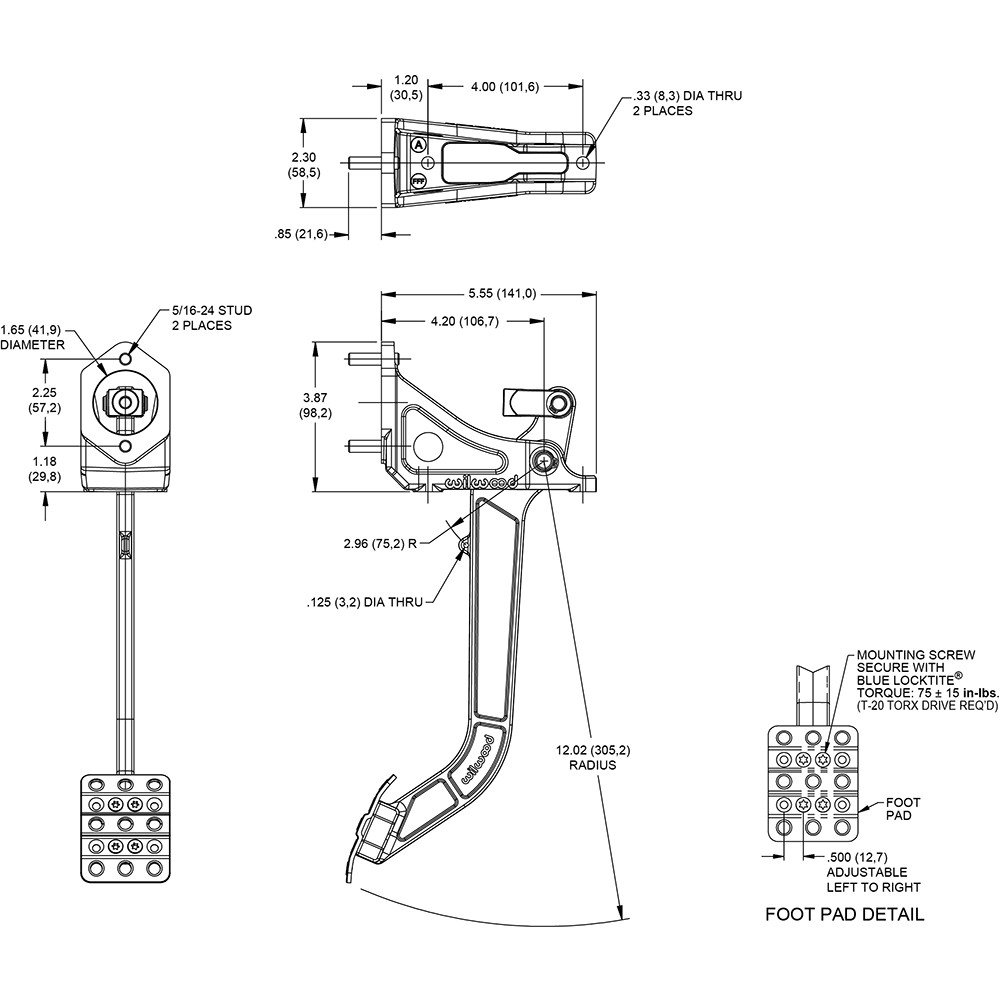

  • Mount Length: 11.28 in
  • Pedal Length: 12.02 in
  • Pedal Ratio: 6.0:1

Note: Four wheel brake systems require a two-circuit, tandem outlet master cylinder. Do not use single outlet master cylinders for those applications.

Universal Part: This product fits multiple vehicles (universal application).

Vehicle Compatibility

Brand Model Generation / Chassis Engine
Universal - - -
WILWOOD

WILWOOD

WILWOOD High-Performance Brake Kits for Car Enthusiasts Upgrade your vehicle's braking system with WILWOOD High-Performance Brake Kits, designed specifically for car enthusiasts who demand superior stopping power and reliability. Our brake kits are engineered to enhance your driving experience, ensuring safety and performance on the road or track. Key Features and Benefits: - Exceptional Stopping Power: WILWOOD brake kits provide unmatched braking performance, allowing for quicker stops and improved control. - Durable Construction: Made from high-quality materials, our brake kits are built to withstand extreme conditions, ensuring longevity and reliability. - Easy Installation: Designed for a straightforward installation process, WILWOOD brake kits can be fitted with minimal tools, making upgrades hassle-free. - Customizable Options: Choose from a variety of configurations and finishes to match your vehicle's style and performance needs. - Enhanced Heat Dissipation: Our advanced engineering ensures optimal heat management, reducing brake fade during intense driving conditions. Elevate your vehicle's performance with WILWOOD High-Performance Brake Kits. Whether you're on the racetrack or navigating city streets, our brake kits deliver the reliability and power you need. Don’t compromise on safety or performance—experience the WILWOOD difference today! Visit our website to explore our full range of products and make your purchase now!

Wilwood 340-13574 Swing Mount Clutch / Brake Pedal

  • WILWOOD
  • Brand: WILWOOD
  • Product id: 79311
  • MPN: WIL-340-13574
  • Availability: On request
  • 137.71€
  • 134.96€

  • Excl. VAT: 111.54€
