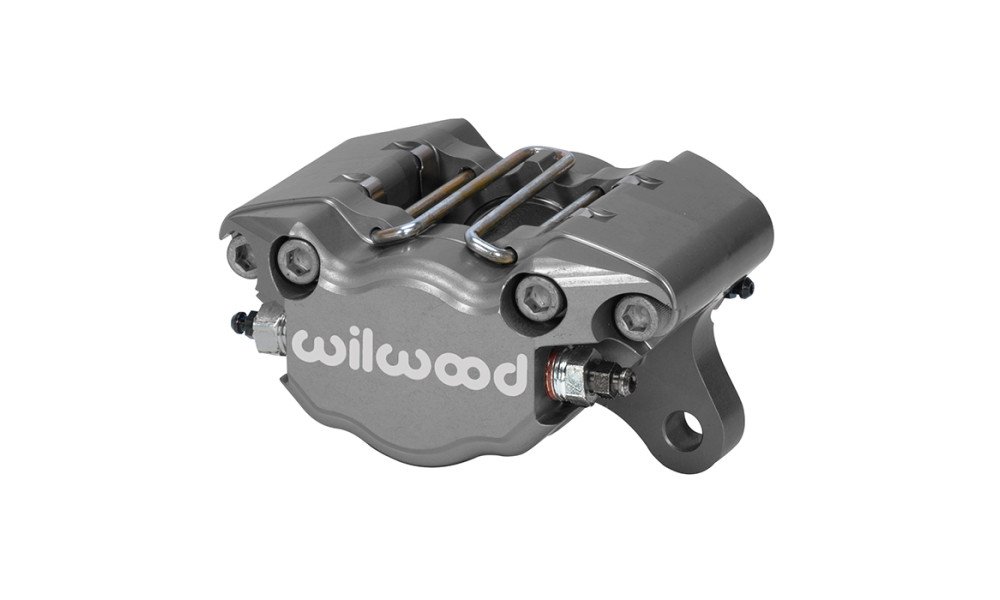

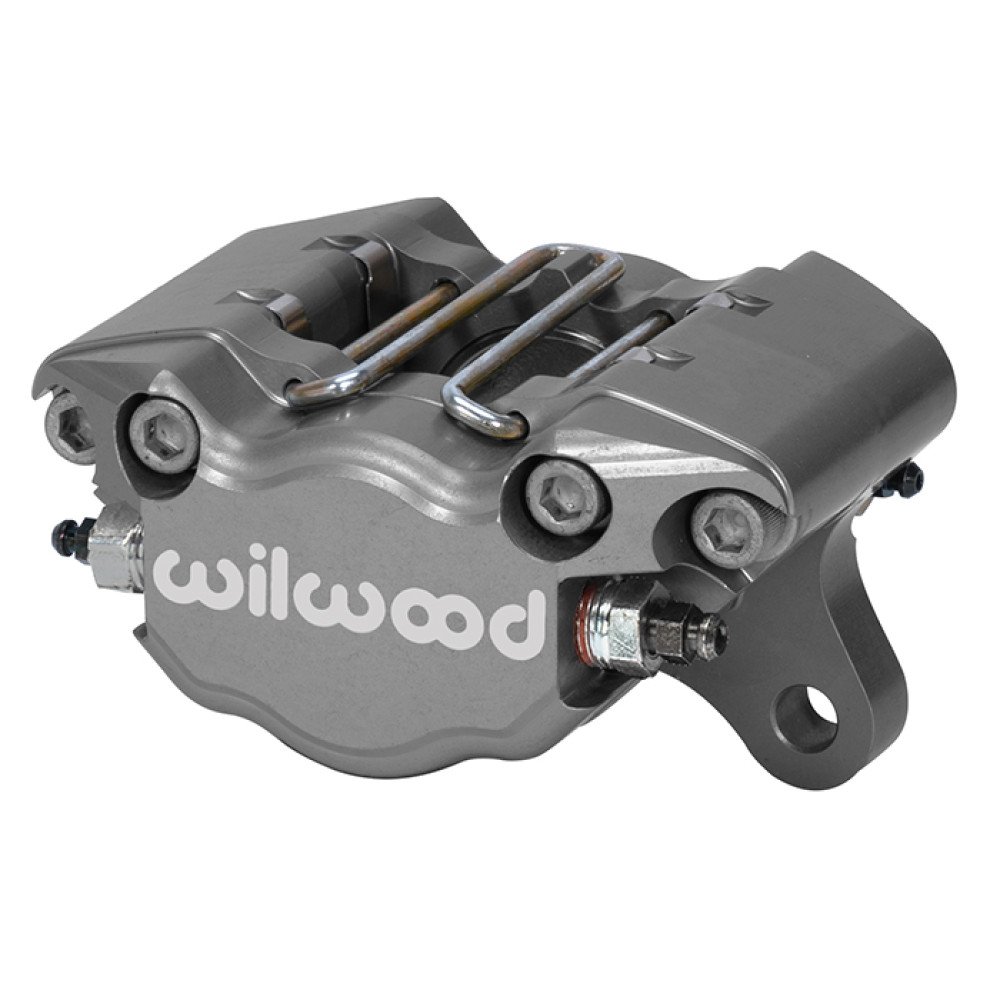

Wilwood Dynapro Single (DPS) Billet Caliper

The Wilwood Dynapro Single (DPS) is a precision-engineered, billet aluminum brake caliper designed as a direct upgrade or replacement for applications previously using the Dynalite Single (DLS) series. Fully CNC machined from premium grade alloy billet, the DPS features a fortified transition between piston housings and bridges for enhanced structural rigidity and reduced deflection under load. This design results in increased clamping efficiency and reduced pedal travel.

Key Features

  • Quick-E-Clip pad retainers for fast brake pad changes without caliper removal
  • Supports 6812 type brake pads for superior pad retention compared to previous DLS models
  • Universal mounting side with lug mount type for flexible installation
  • Type III anodized finish for durability and corrosion resistance

Technical Specifications

  • Piston Count: 2
  • Piston Area: 1.50 in²
  • Piston Type: Stainless
  • Dust Boot: No
  • Piston Bore: 1.38 in
  • Material: Billet Aluminium
  • Weight: 2.3 lbs
  • Color: Anodize
  • Finish: Type III Anodize

Rotor Compatibility

  • Rotor Width: 0.38 in (compatible with rotors 0.25 in to 0.38 in wide)
  • Rotor Diameter: 6.00 in (min) to 13.00 in (max)

Brake Pad Specifications

  • Brake Pad Type: 6812
  • Total Pad Area: 3 in²
  • Total Pad Volume: 1.1 in³

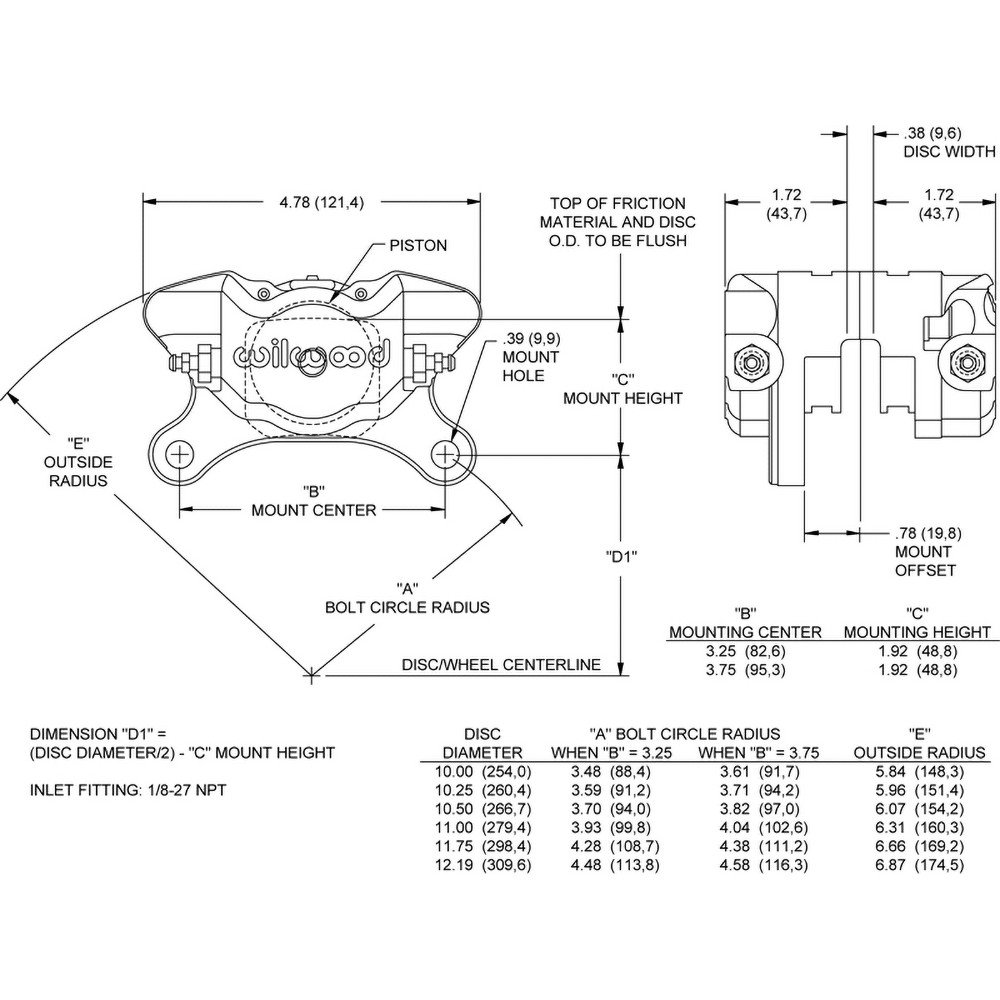

Mounting Details

  • Mount Type: Lug
  • Mount Center: 3.75 in
  • Mount Hole Size: 0.39 in
  • Mount Height: 1.92 in
  • Inlet Thread Size: 1/8-27 NPT
  • Mount Side: Universal
Universal Part: This product fits multiple vehicles (universal application).

Vehicle Compatibility

Brand Model Generation / Chassis Engine
Universal - - -
WILWOOD

WILWOOD

WILWOOD High-Performance Brake Kits for Car Enthusiasts Upgrade your vehicle's braking system with WILWOOD High-Performance Brake Kits, designed specifically for car enthusiasts who demand superior stopping power and reliability. Our brake kits are engineered to enhance your driving experience, ensuring safety and performance on the road or track. Key Features and Benefits: - Exceptional Stopping Power: WILWOOD brake kits provide unmatched braking performance, allowing for quicker stops and improved control. - Durable Construction: Made from high-quality materials, our brake kits are built to withstand extreme conditions, ensuring longevity and reliability. - Easy Installation: Designed for a straightforward installation process, WILWOOD brake kits can be fitted with minimal tools, making upgrades hassle-free. - Customizable Options: Choose from a variety of configurations and finishes to match your vehicle's style and performance needs. - Enhanced Heat Dissipation: Our advanced engineering ensures optimal heat management, reducing brake fade during intense driving conditions. Elevate your vehicle's performance with WILWOOD High-Performance Brake Kits. Whether you're on the racetrack or navigating city streets, our brake kits deliver the reliability and power you need. Don’t compromise on safety or performance—experience the WILWOOD difference today! Visit our website to explore our full range of products and make your purchase now!

Wilwood 120-9690 Dynapro Single Universal Lug Mount Caliper 2 Pistons

  • WILWOOD
  • Brand: WILWOOD
  • Product id: 78523
  • MPN: WIL-120-9690
  • Availability: In Stock
  • 169.19€
  • 165.81€

  • Excl. VAT: 137.03€
