Wilwood Dynapro Single (DPS) Billet Brake Caliper
The Wilwood Dynapro Single (DPS) billet caliper is engineered as a direct upgrade or replacement for applications previously using the Dynalite Single (DLS) series. Designed for enthusiasts seeking improved braking performance, the DPS caliper offers increased strength, reduced pedal travel, and enhanced clamping efficiency.
Key Features
- Fully CNC machined from premium billet aluminum for maximum strength and durability
- FEA-enhanced body design with fortified transition between piston housings and bridges for increased resistance to deflection and body separation under load
- Quick-E-Clip pad retainers for fast pad changes and secure top-loading 6812-type brake pads
- Stainless steel pistons for corrosion resistance and consistent performance
- Universal lug mount design for versatile installation
- Type III hard anodized finish for superior wear and corrosion protection
Technical Specifications
- Piston Count: 2
- Piston Area: 2.40 in²
- Piston Material: Stainless Steel
- Dust Boot: No
- Piston 1 Bore: 1.75 in
- Weight: 2.3 lbs
- Material: Billet Aluminum
- Color: Anodize
- Finish: Type III Anodize
Rotor Compatibility
- Rotor Width: 0.38 in
- Minimum Rotor Width: 0.25 in
- Maximum Rotor Width: 0.38 in
- Rotor Diameter Range: 6.00 in – 13.00 in
Brake Pad Specifications
- Brake Pad Type: 6812
- Total Pad Area: 3 in²
- Total Pad Volume: 1.1 in³
- Quick-E-Clip top-loading pad retention

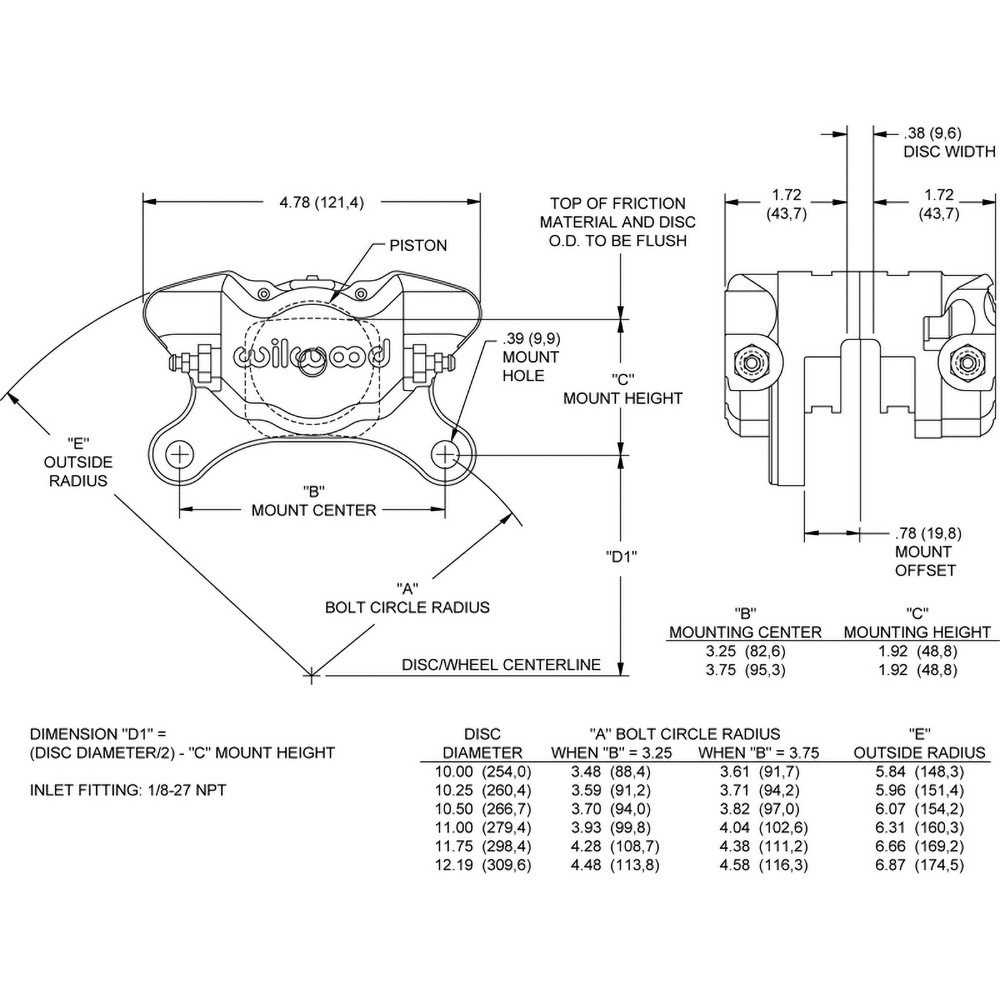

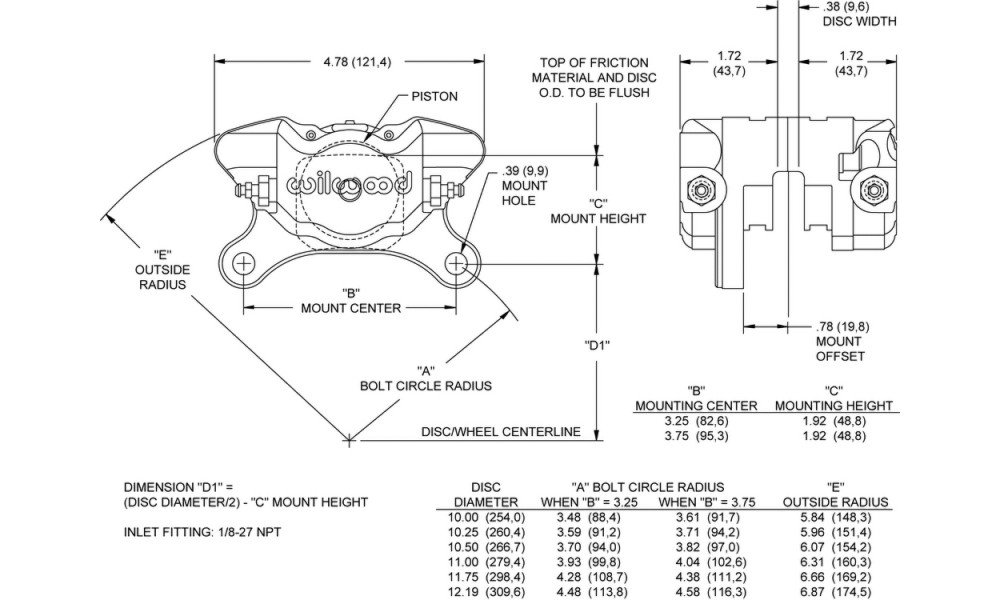

Mounting Information
- Mount Type: Lug
- Mount Side: Universal
- Mount Center: 3.25 in
- Mount Hole Size: 0.39 in
- Mount Height: 1.92 in
- Inlet Thread Size: 1/8-27 NPT
The Dynapro Single is ideal for racers, custom builders, and performance enthusiasts seeking a compact, lightweight caliper with proven Wilwood quality and reliability. Please verify fitment and rotor compatibility before ordering.
Universal Part: This product fits multiple vehicles (universal application).
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
WILWOOD
WILWOOD High-Performance Brake Kits for Car Enthusiasts
Upgrade your vehicle's braking system with WILWOOD High-Performance Brake Kits, designed specifically for car enthusiasts who demand superior stopping power and reliability. Our brake kits are engineered to enhance your driving experience, ensuring safety and performance on the road or track.
Key Features and Benefits:
- Exceptional Stopping Power: WILWOOD brake kits provide unmatched braking performance, allowing for quicker stops and improved control.
- Durable Construction: Made from high-quality materials, our brake kits are built to withstand extreme conditions, ensuring longevity and reliability.
- Easy Installation: Designed for a straightforward installation process, WILWOOD brake kits can be fitted with minimal tools, making upgrades hassle-free.
- Customizable Options: Choose from a variety of configurations and finishes to match your vehicle's style and performance needs.
- Enhanced Heat Dissipation: Our advanced engineering ensures optimal heat management, reducing brake fade during intense driving conditions.
Elevate your vehicle's performance with WILWOOD High-Performance Brake Kits. Whether you're on the racetrack or navigating city streets, our brake kits deliver the reliability and power you need. Don’t compromise on safety or performance—experience the WILWOOD difference today! Visit our website to explore our full range of products and make your purchase now!
Wilwood 120-9687 Dynapro Single Universal Lug Mount Caliper 2 Pistons
-
- Brand: WILWOOD
- Product id: 78524
- MPN: WIL-120-9687
- Availability: In Stock
- 158.87€
155.70€
- Excl. VAT: 128.67€
