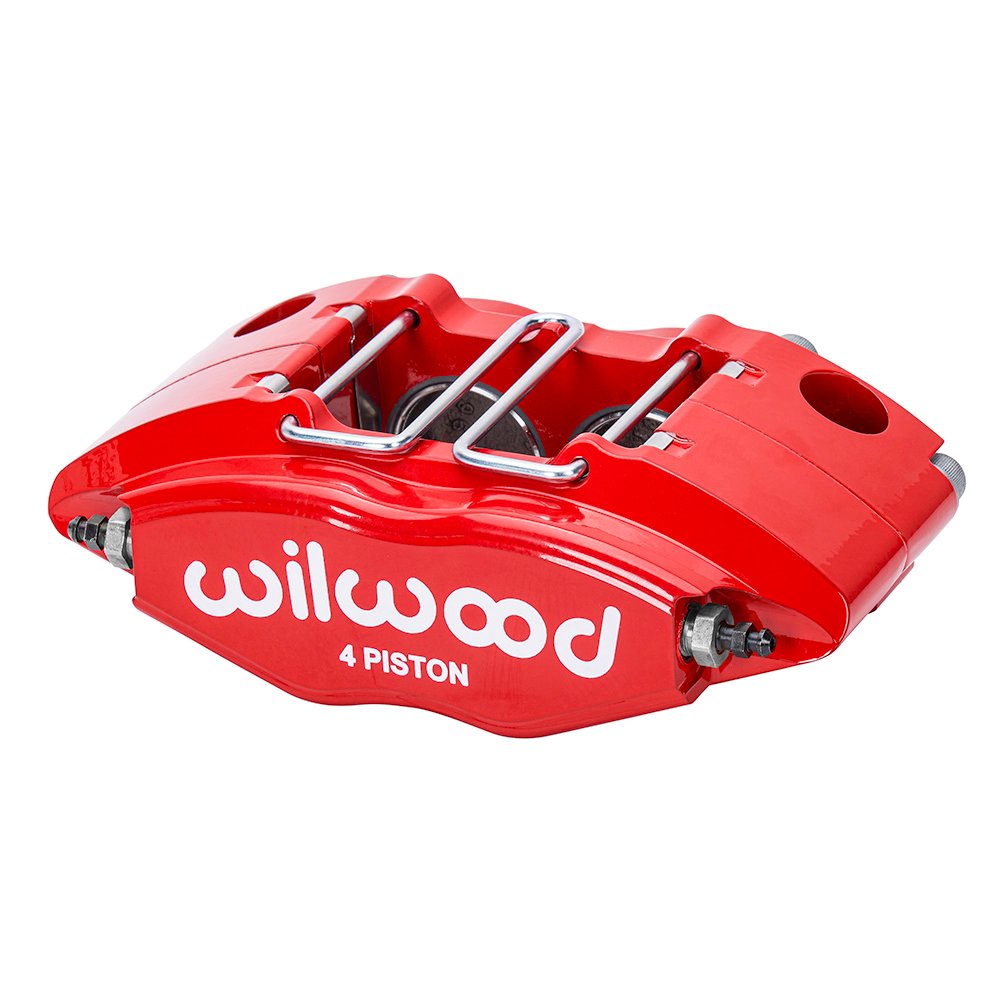

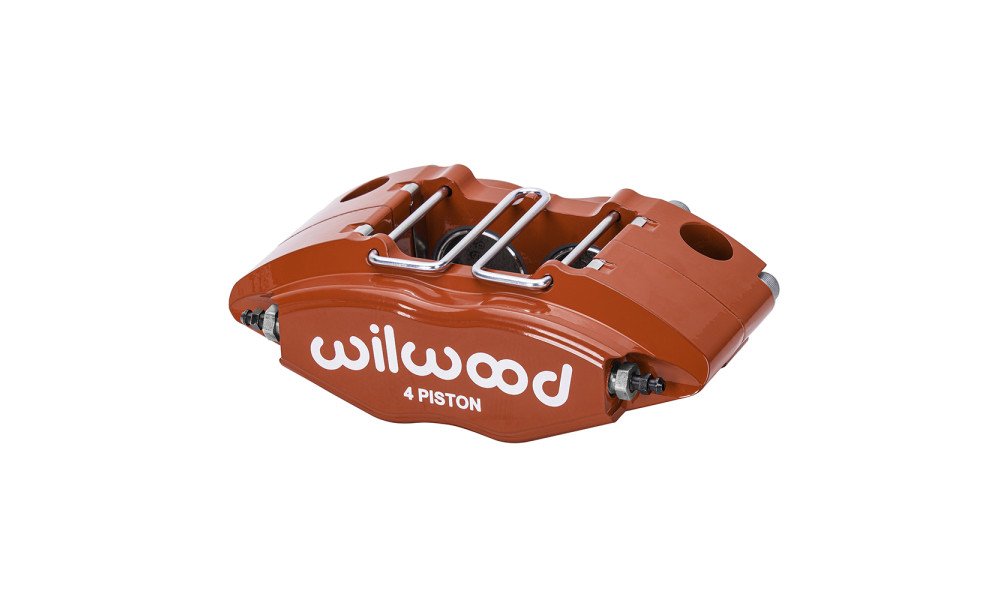

Powerlite Radial Mount 4-Piston Caliper – Red Powder Coat

The Powerlite Radial Mount caliper is engineered for sports, rally, and off-road driving enthusiasts seeking lightweight performance and reliable stopping power. Weighing just 2.8 lbs, this caliper features a forged aluminum body for superior strength and durability under high temperatures.

The four stainless steel pistons provide a total piston area of 3.00 in², ensuring consistent clamping force. The caliper is designed with a stress-flow forging process, aligning the metal's grain structure for improved resistance to deflection and separation under load. The FEA-optimized radial transition design eliminates steps and shoulders between the piston housing and caliper bridges, further increasing rigidity.

The Powerlite uses the 7912-type brake pad, supported by Quick-clip pad retainers for easy pad changes without caliper removal. The pad area is 5 in² with a volume of 1.8 in³, compatible with rotor diameters from 9.45" (240 mm) to 11.75" (298.5 mm) and rotor widths from 0.79" to 0.86". The caliper fits most 13.00" (330.2 mm) wheel applications.

Specifications

• Piston Count: 4
• Piston Material: Stainless Steel
• Piston Bore (in): 1.38 (x2)
• Total Piston Area (in²): 3.00
• Dust Boot: No
• Material: Forged Aluminium
• Weight: 2.8 lbs
• Color: Red
• Finish: Red Powder Coat

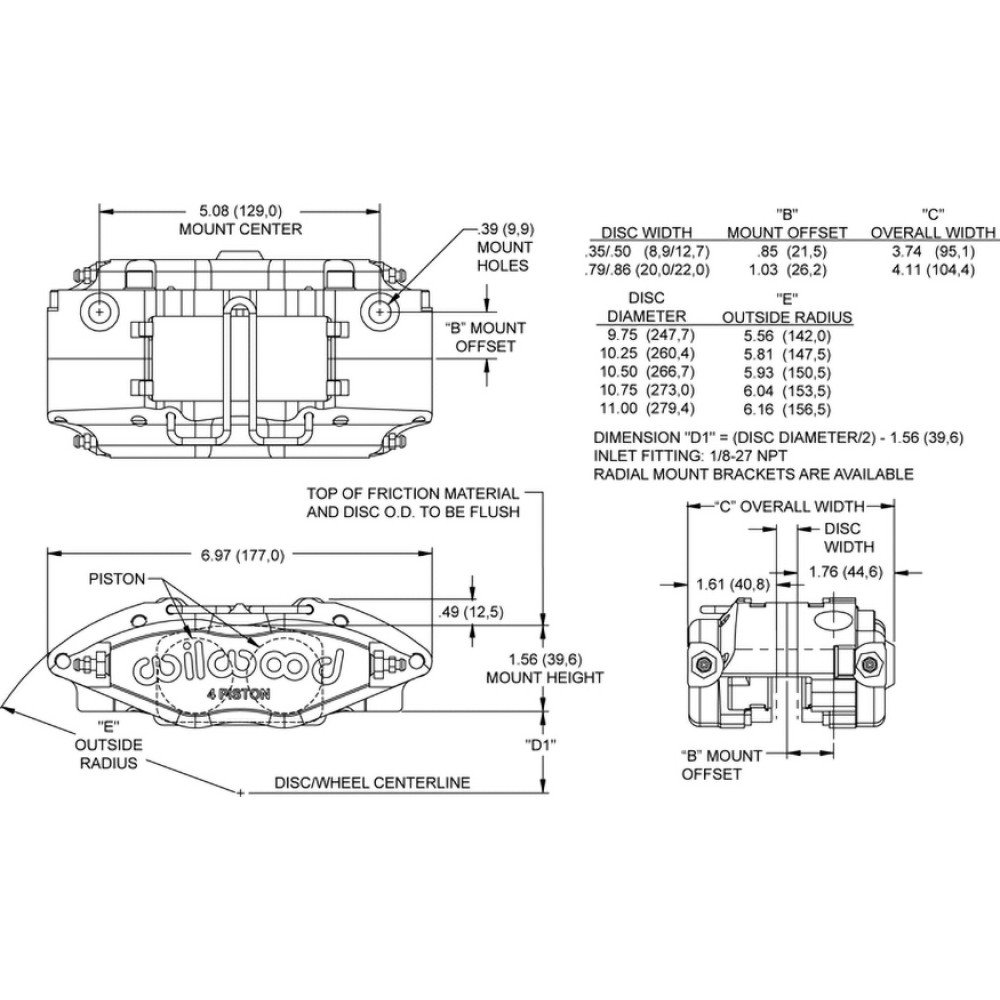

• Mount Type: Radial
• Mount Center (in): 5.08
• Mount Side: Universal
• Mount Hole Size (in): 0.40
• Mount Height (in): 1.56
• Inlet Thread Size: 1/8-27 NPT

Rotor Compatibility

• Rotor Width (in): 0.86 (min 0.79, max 0.86)
• Rotor Diameter (in): min 9.45, max 11.00

Brake Pad Specifications

• Brake Pad Type: 7912
• Total Pad Area (in²): 5
• Total Pad Volume (in³): 1.8

The Powerlite Radial Mount caliper is a versatile, high-strength upgrade for drivers demanding performance and reliability in compact, lightweight applications.
