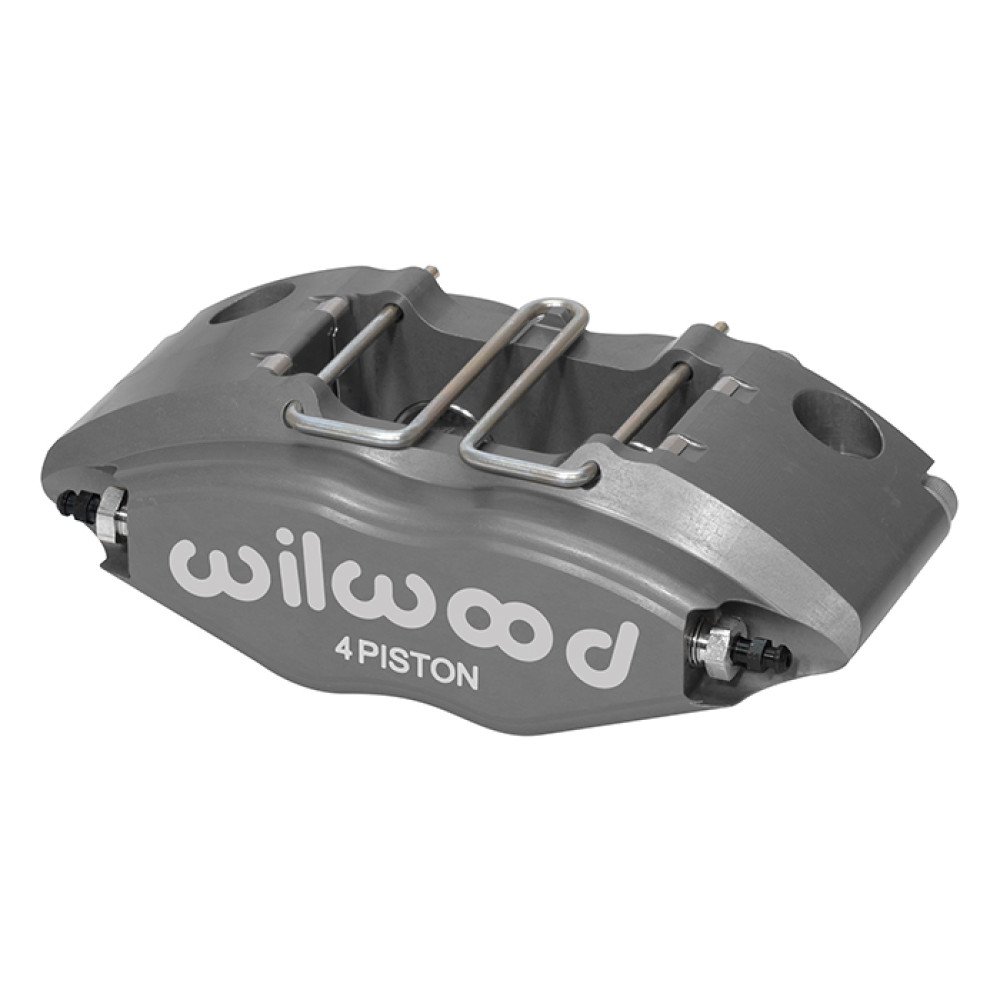

Powerlite Radial Mount Caliper

The Powerlite Radial Mount Caliper is engineered for performance enthusiasts seeking lightweight strength and consistent braking in demanding conditions. Weighing just 2.8 lbs, this forged aluminum caliper features a sleek, compact profile ideal for sports, rally, and off-road applications where space and weight savings are critical.

Key Features

• Forged Aluminum Construction: Stress-flow forging aligns the grain structure for superior strength and durability under high temperatures.

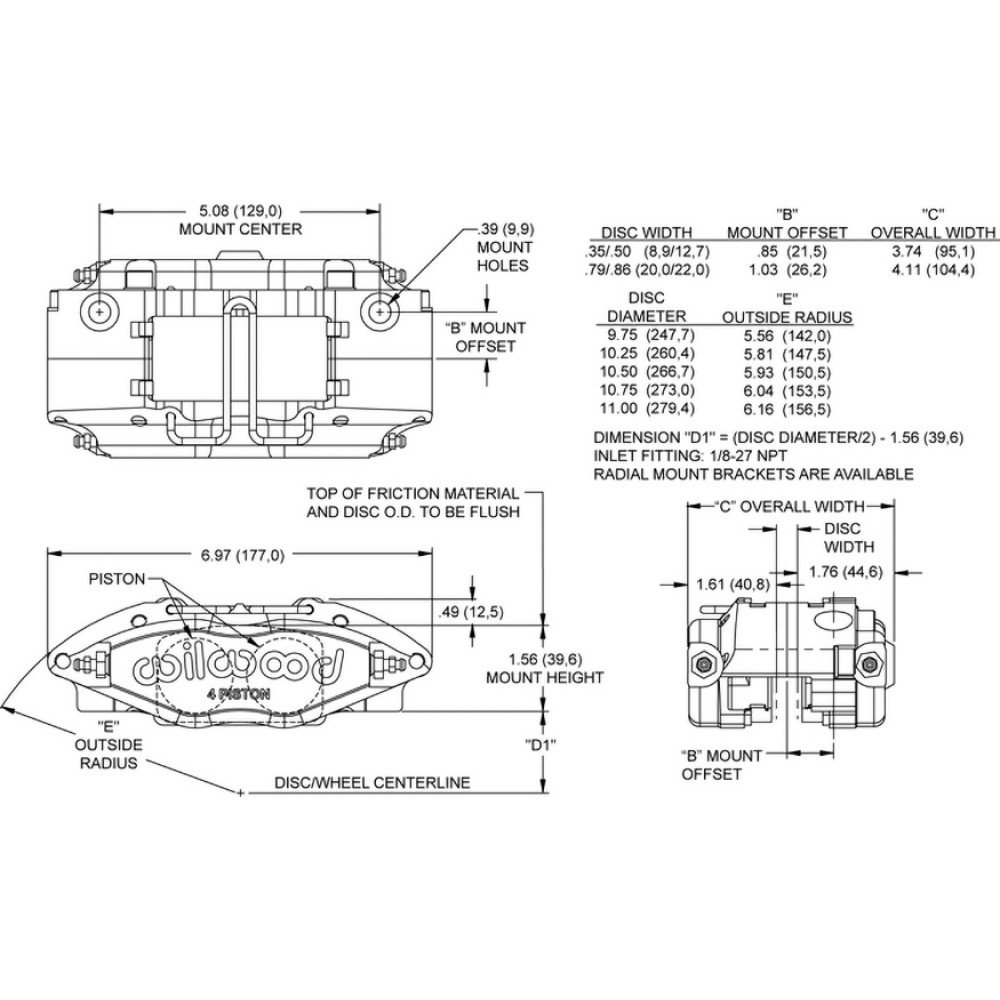

• Radial Mount Design: Universal fit with a 5.08" mount center, radial mount, and 1.56" mount height for versatile installation.
• Four-Piston Performance: Equipped with four stainless steel pistons (1.38" bore each), providing a total piston area of 3.00 in² for balanced clamping force.
• Quick-Clip Pad Retainers: Allows easy pad access and supports 7912-type pads for fast changes without caliper removal.
• Rotor Compatibility: Designed for rotor widths from 0.79" to 0.86" and diameters from 9.45" to 11.00".
• Pad Specifications: 5 in² total pad area, 1.8 in³ pad volume, matching rotors from 9.45" to 11.75" diameter. Fits inside many 13" wheels.
• Finish: Type III anodized for corrosion resistance and durability.
• Inlet Thread Size: 1/8-27 NPT
• No Dust Boots: Designed for high-performance environments where dust boots are not required.

Specifications

• Material: Forged Aluminium
• Weight: 2.8 lbs
• Piston Count: 4
• Piston Type: Stainless
• Pad Type: 7912
• Mount Side: Universal
• Mount Hole Size: 0.40"

Applications

Ideal for sports cars, rally, and off-road vehicles requiring compact, lightweight, and strong braking solutions. Suitable for use with small diameter wheels and rotors.
