Wilwood Electronic Parking Brake Caliper (EPB) – Right Hand, Lug Mount
The Wilwood Electronic Parking Brake Caliper (EPB) is engineered for enthusiasts seeking a high-torque, electronically actuated alternative to traditional manual cable parking brakes. Designed for simplified installation and routing, the EPB is compatible with electronic control systems available from Wilwood.
- Piston: 1 steel piston, 1.25" bore
- Pad Area: 1.7 in²
- Pad Volume: 0.26 in³
- Brake Pad Type: 6407
- Rotor Compatibility:
- Rotor Width: 0.39" (compatible with rotors 0.15" to 0.39" wide)
- Rotor Diameter: 11.00" – 14.00"
- Caliper Material: Aluminium / Steel
- Weight: 5.0 lbs
- Finish: Black Powder Coat

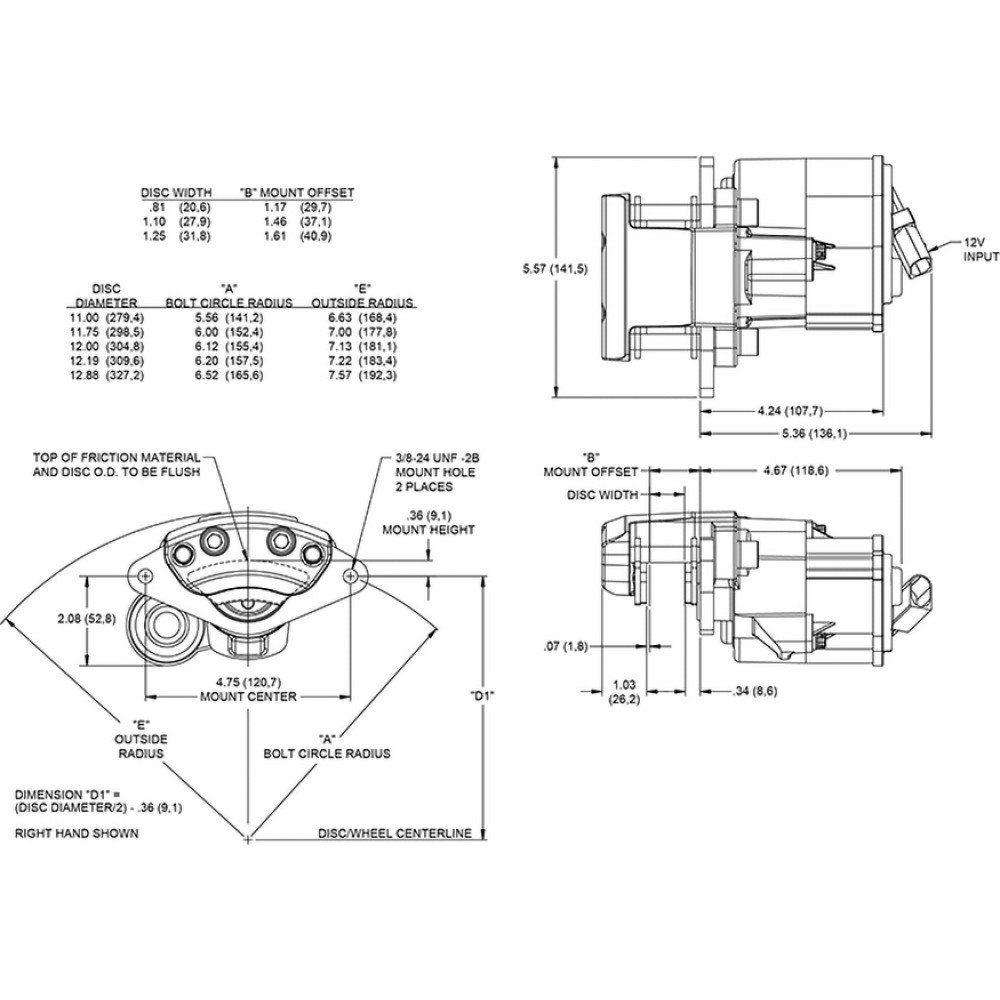

- Mount Type: Lug
- Mount Center: 4.75"
- Mount Height: 0.36"
- Mount Side: Right Hand
This caliper is ideal for custom builds, restomods, and motorsport applications requiring a compact, electronically controlled parking brake solution. All specifications are based on manufacturer data. Please verify rotor and mounting compatibility before ordering.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
WILWOOD
Wilwood 120-16297 Electric Parking Brake Floating Mount Caliper Right 1 Piston Black
-
- Brand: WILWOOD
- Product id: 78561
- MPN: WIL-120-16297-BK
- Availability: In Stock
- 425.22€
416.71€
- Excl. VAT: 344.39€
