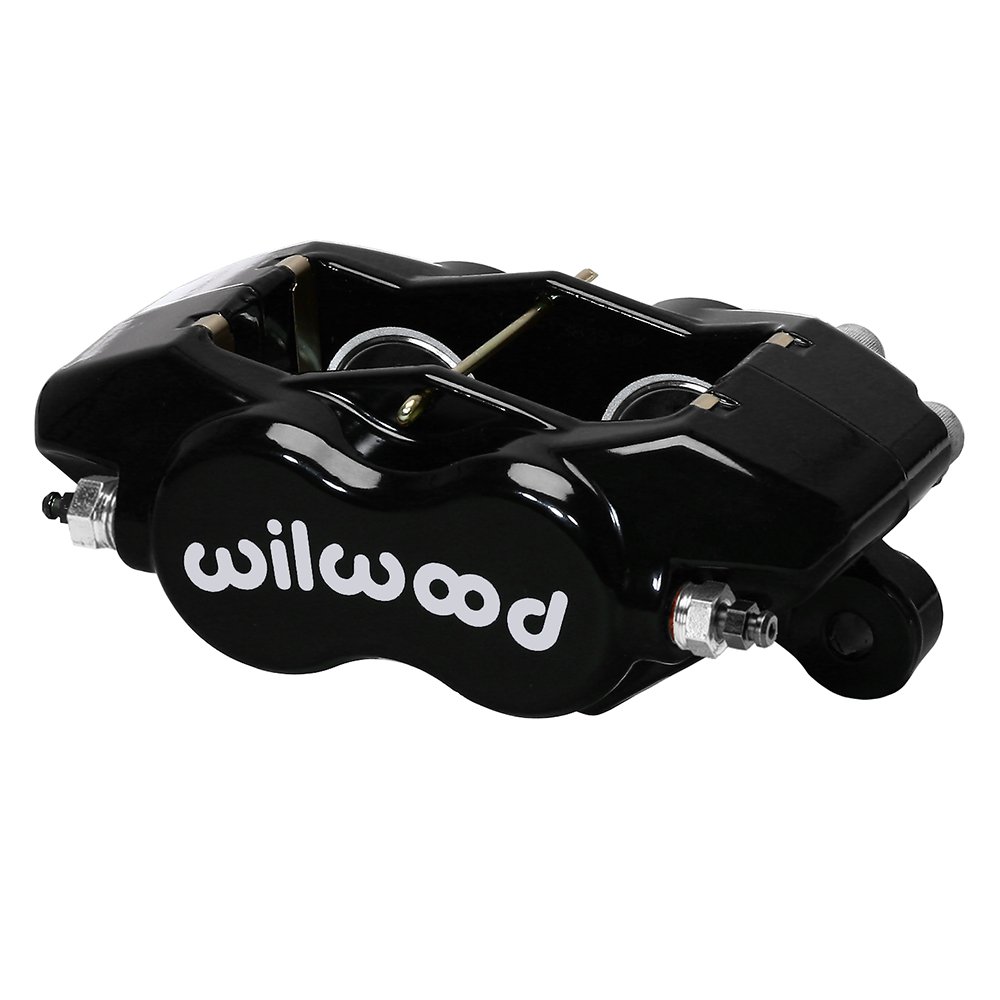

Forged Dynalite Internal Brake Caliper
The Forged Dynalite Internal is a next-generation 4-piston brake caliper engineered for high-performance braking applications. Featuring a single split bridge and a spacer-less forged aluminum body, this caliper maximizes strength, stiffness, and visual appeal. The stress-flow forging process realigns the metal's grain structure for superior durability compared to standard billet designs, while the FEA-optimized radial transition between the piston housing and caliper bridges increases resistance to deflection and caliper separation under load.
Key Features
- 4 stainless steel pistons
- Piston area: 4.80 in²
- Piston bore: 1.75 in (x2)
- No dust boots
- Forged aluminum construction
- Weight: 3.6 lbs
- Black powder coat finish
- Universal mount side, lug mount type
- Mount center: 5.25 in
- Mount hole size: 0.39 in
- Mount height: 2.03 in
- Inlet thread size: 1/8-27 NPT
Rotor Compatibility
- Recommended rotor width: 1.00 in
- Maximum rotor width: 1.04 in
- Minimum rotor width: 0.94 in
- Rotor diameter: 10.00 in (min) to 13.06 in (max)
Brake Pad Specifications
- Pad type: 7112
- Total pad area: 6.36 in²
- Total pad volume: 2.1 in³
Ideal for enthusiasts seeking a strong, lightweight, and visually refined caliper for performance street or motorsport applications. All specifications are based on provided technical data.
Vehicle Compatibility
| Brand | Model | Generation / Chassis | Engine |
|---|---|---|---|
| Universal | - | - | - |
WILWOOD
Wilwood 120-13845 Forged Dynalite Internal Universal Lug Mount Caliper 4 Pistons Black
-
- Brand: WILWOOD
- Product id: 78518
- MPN: WIL-120-13845-BK
- Availability: In Stock
- 280.36€
274.75€
- Excl. VAT: 227.07€
