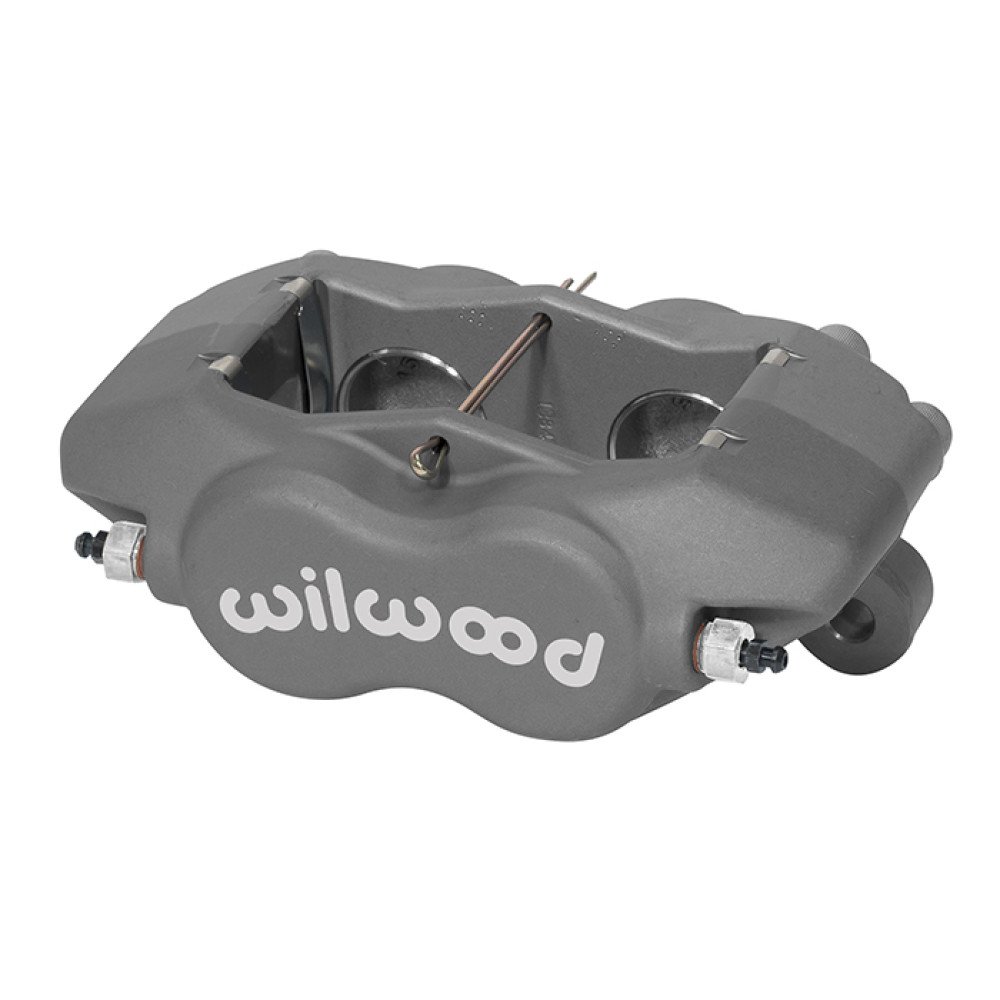

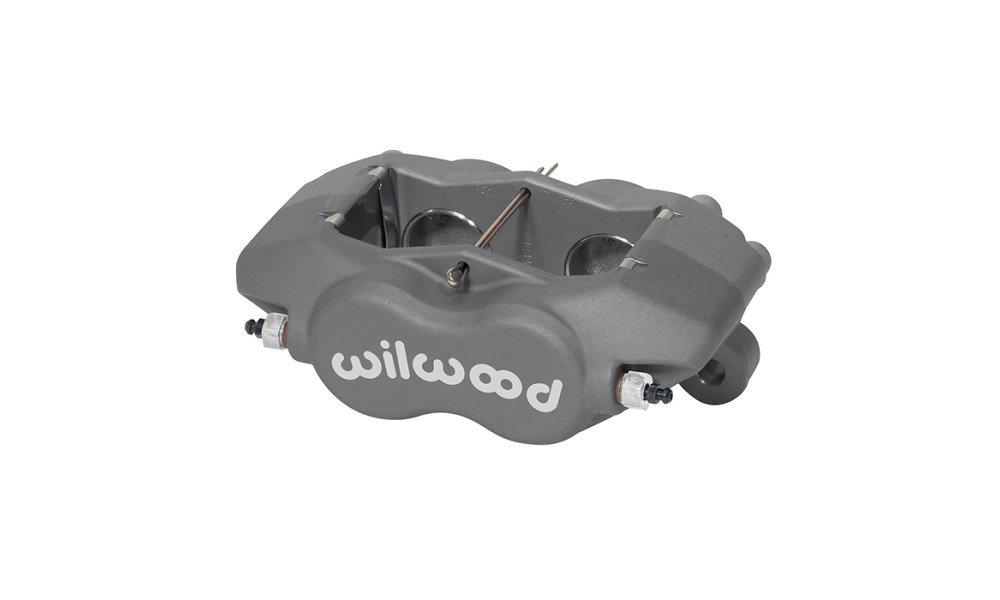

Forged Dynalite Internal Caliper

The Forged Dynalite Internal caliper is a high-strength, performance-focused brake caliper designed for demanding motorsport and enthusiast applications. Featuring a single split bridge and a spacer-less design, this caliper maximizes rigidity while minimizing weight and visual clutter. The advanced stress-flow forging process aligns the grain structure of the forged aluminum body, resulting in superior strength and reduced deflection under load compared to traditional billet-machined calipers.

Key Features

• Forged aluminum construction for optimal strength-to-weight ratio
• Single split bridge, spacer-less design for increased stiffness
• Stress-flow forging for improved internal grain structure and durability
• Type III anodized finish for corrosion resistance and durability
• Universal lug mount with 5.25-inch mount centers
• Compatible with rotor widths from 0.75" to 0.83" (optimal 0.81")
• Supports rotor diameters from 10.00" to 13.06"

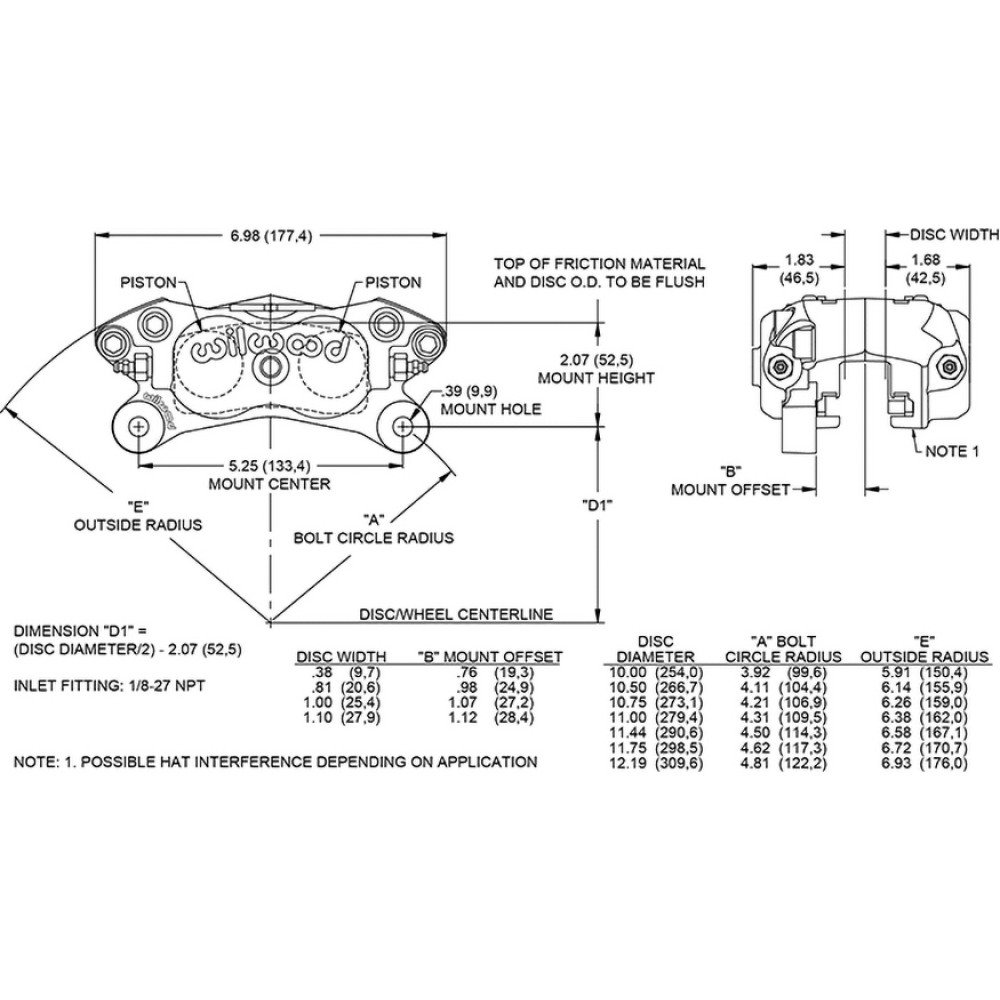

Technical Specifications

• Piston Count: 4
• Piston Area: 3.00 in²
• Piston Bore: 1.38" (x2)
• Piston Type: Stainless
• Dust Boot: No
• Caliper Weight: 3.6 lbs
• Pad Area: 6.36 in²
• Pad Volume: 2.1 in³
• Brake Pad Type: 7112
• Mount Type: Lug
• Mount Side: Universal
• Mount Center: 5.25"
• Mount Hole Size: 0.39"
• Mount Height: 2.03"
• Inlet Thread Size: 1/8-27 NPT
• Color: Anodize
• Finish: Type III Anodize

Applications

Ideal for motorsports, track days, and performance street builds requiring a stiff, lightweight, and visually clean caliper that can accommodate a wide range of rotor and pad sizes.
