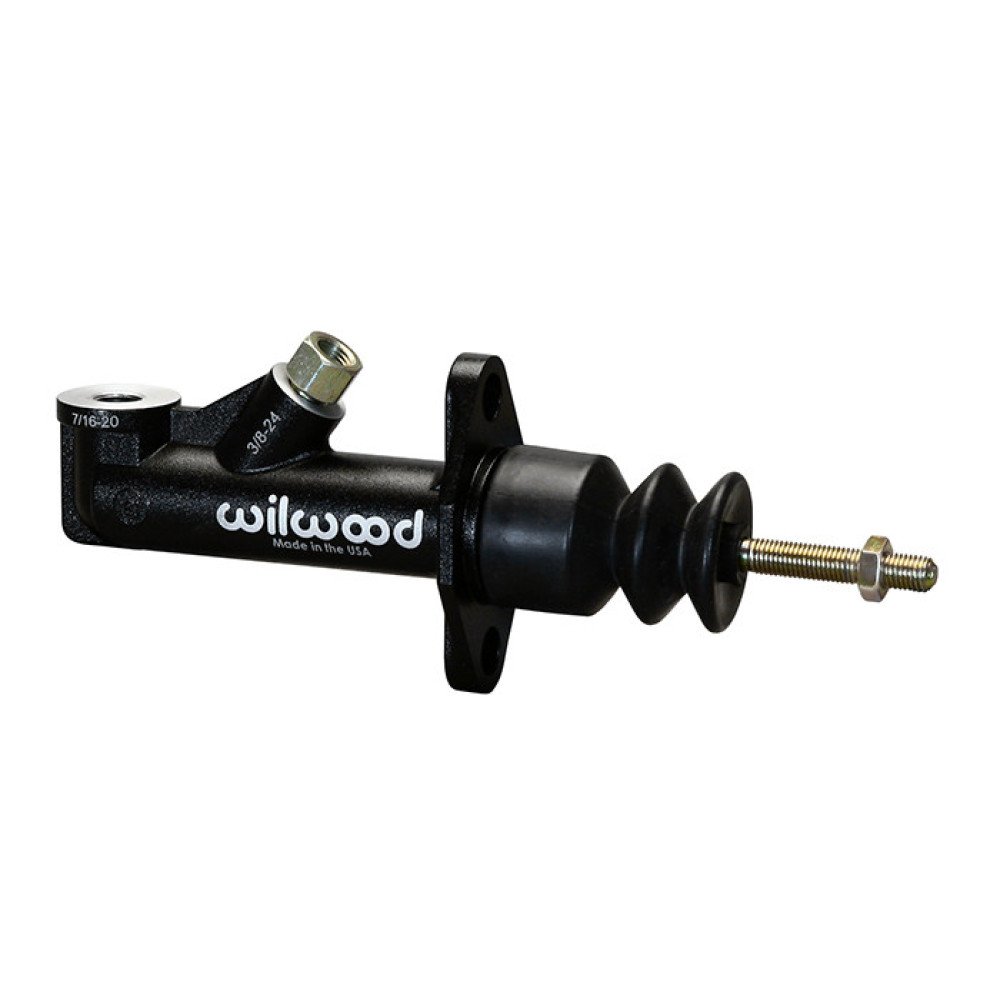

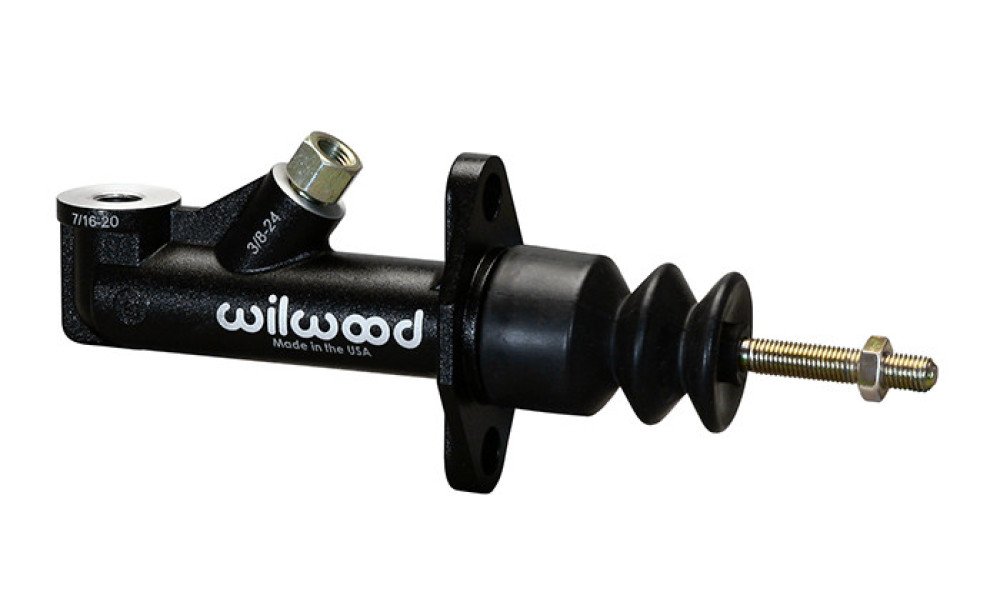

Wilwood GS Compact Remote Master Cylinder – 5/8” Bore

The Wilwood GS Compact Remote Master Cylinder is engineered for performance and reliability. Featuring a high-pressure die-cast aluminum body with a durable black e-coat finish, this master cylinder is fully rebuildable for long service life. The remote reservoir design includes a standard 7/16-20 threaded inlet for flexible mounting options.

  • Bore Size: 5/8”
  • Piston Area: 0.310 in²
  • Stroke: 1.25”
  • Volume: 0.39 cu in
  • Type: Single Outlet
  • Outlet Quantity: 1
  • Material: Aluminum
  • Finish: Black E-coat
  • Reservoir Type: Remote

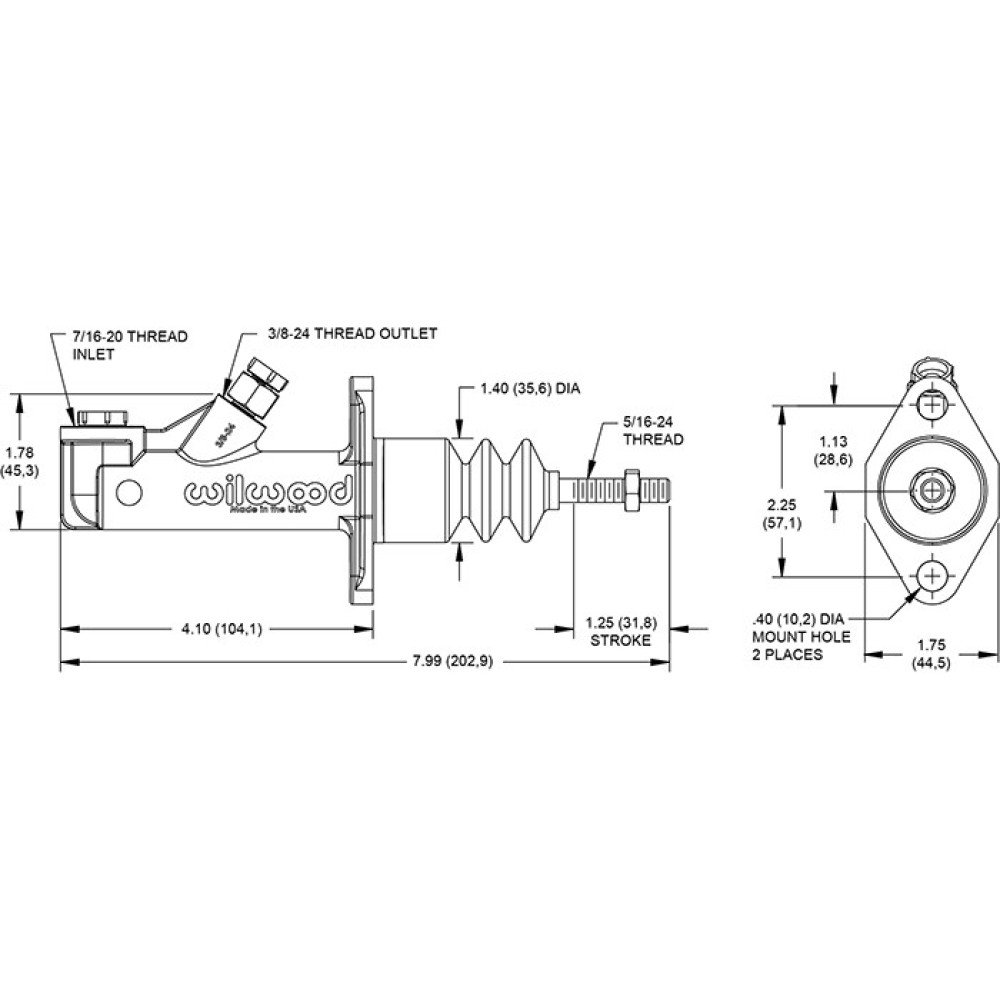

  • Overall Length: 7.85”
  • Flange to End Length: 4.10”
  • Inlet Size: 7/16-20
  • Outlet Size: 3/8-24 IF Female

Internally, the GS Compact features a refined return spring and piston assembly for consistent pressure control and rapid release. Ideal for custom, race, or performance street applications requiring a remote reservoir setup and compact footprint.

Universal Part: This product fits multiple vehicles (universal application).

Vehicle Compatibility

Brand Model Generation / Chassis Engine
Universal - - -
WILWOOD

WILWOOD

WILWOOD High-Performance Brake Kits for Car Enthusiasts Upgrade your vehicle's braking system with WILWOOD High-Performance Brake Kits, designed specifically for car enthusiasts who demand superior stopping power and reliability. Our brake kits are engineered to enhance your driving experience, ensuring safety and performance on the road or track. Key Features and Benefits: - Exceptional Stopping Power: WILWOOD brake kits provide unmatched braking performance, allowing for quicker stops and improved control. - Durable Construction: Made from high-quality materials, our brake kits are built to withstand extreme conditions, ensuring longevity and reliability. - Easy Installation: Designed for a straightforward installation process, WILWOOD brake kits can be fitted with minimal tools, making upgrades hassle-free. - Customizable Options: Choose from a variety of configurations and finishes to match your vehicle's style and performance needs. - Enhanced Heat Dissipation: Our advanced engineering ensures optimal heat management, reducing brake fade during intense driving conditions. Elevate your vehicle's performance with WILWOOD High-Performance Brake Kits. Whether you're on the racetrack or navigating city streets, our brake kits deliver the reliability and power you need. Don’t compromise on safety or performance—experience the WILWOOD difference today! Visit our website to explore our full range of products and make your purchase now!

GS Compact Remote Reservoir Master Cylinder Wilwood 260-15089 0.625"

  • WILWOOD
  • Brand: WILWOOD
  • Product id: 78440
  • MPN: 260-15089
  • Availability: In Stock
  • 97.39€
  • 95.44€

  • Excl. VAT: 78.88€
