Reference: 086069B

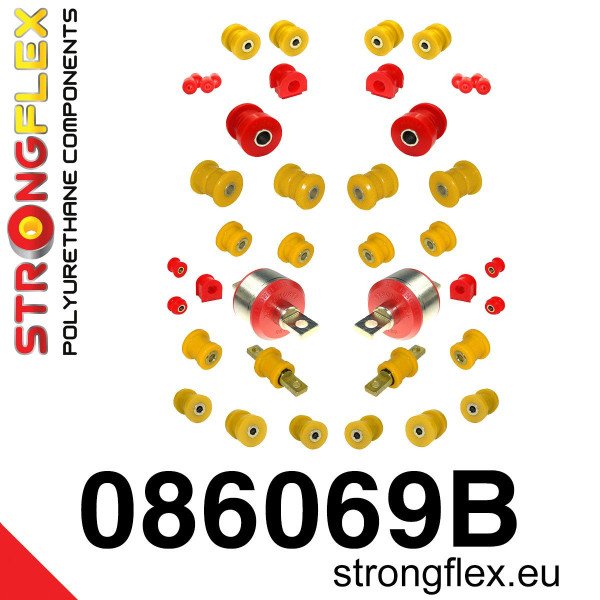

Product Name: Full Suspension Bush Kit

Compatibility:

• Honda CRX del Sol (1992-1997)
• Honda Civic V (1991-1995) EG / EH / EJ

Contents:

• 2x 081094A: Front Wishbone - Outer Bush (SPORT)
• 2x 081095A: Front Wishbone - Inner Bush (SPORT)
• 2x 081097B: Front Anti-Roll Bar Bush
• 4x 081100A: Front Upper Wishbone Bush (SPORT)
• 8x 081109B: Front Eye Bolt Mounting Bush
• 2x 081118B: Front Lower Wishbone Rear Bush
• 4x 081101A: Outer Arm to Hub Bush and Inner Track Arm Bush (31mm, SPORT)
  or
• 4x 081107A: Outer Arm to Hub Bush and Inner Track Arm Bush (35mm, SPORT)
• 2x 081102A: Rear Lower Shock Mounting Bush (SPORT)
• 2x 081103A: Rear Upper Outer Link/Hub Bush (SPORT)
• 2x 081104A: Rear Trailing Arm Mount Bush (SPORT)
• 2x 081105B: Rear Trailing Arm Mount Bush
• 4x 081108A: Rear Toe Link Arm Bush (SPORT)
• 2x 081171B: Rear Anti-Roll Bar Bush
• 2x 081196B: Rear Anti-Roll Bar Link Bush
• 2x 081521B: Rear Anti-Roll Bar Link Bush

Diagrams:

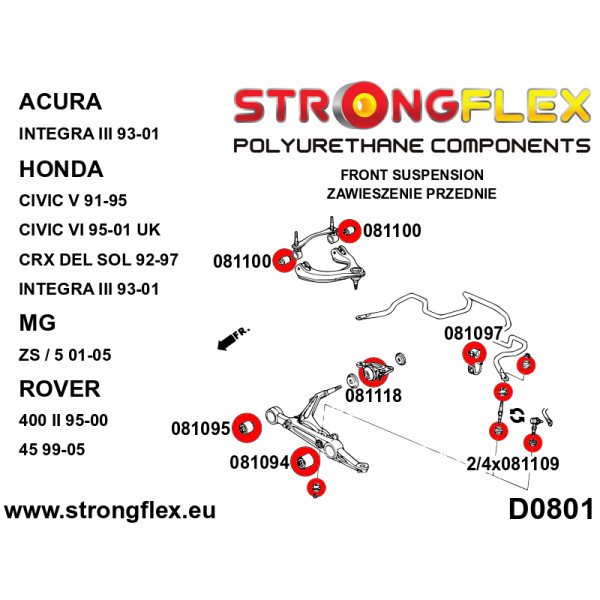

• D0801

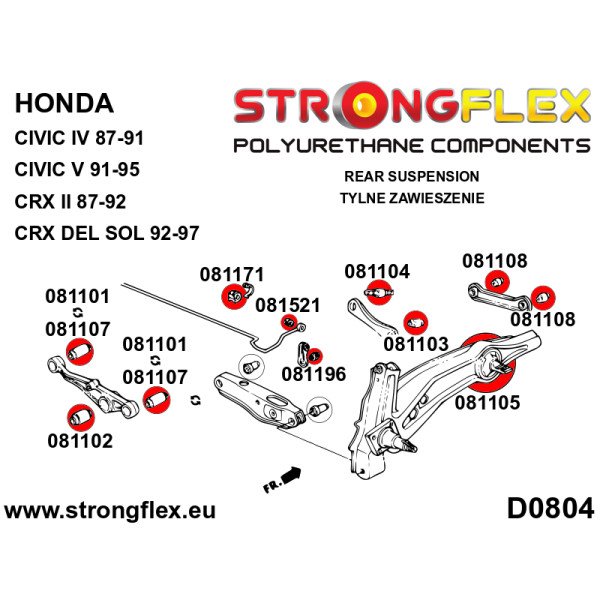

• D0804

Important Notes

• Bushings 081105B are available as polyurethane "inserts" without metal components (inner and outer sleeves). To install the "insert," you will need the external metal ring and inner sleeve from the original rubber bush. Ensure the original internal metal bushing has a diameter of 30mm before opting for the "insert." The old bush must be removed by burning or cutting it out. Note that 081105B is not a direct replacement for the original bushing, and using it will stiffen the suspension.

• Before purchasing, verify the diameter of the rear lower arm bushing (081101 31mm or 081107 35mm).

Required per Vehicle: 1

Pieces per Product: 1

Total Pieces per Kit: 42

Hardness Rating: 80Sha

Material Composition: POLYURETHANE (PUR/PU)

Each kit includes a complimentary grease pack for optimal installation and performance!
