Reference: 086250B

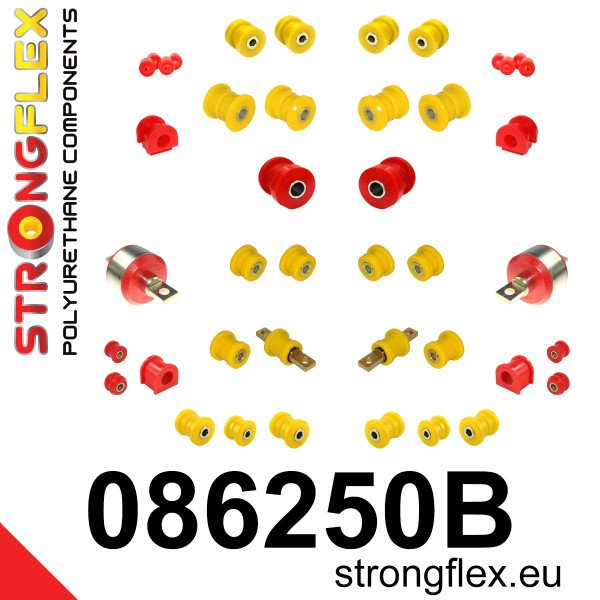

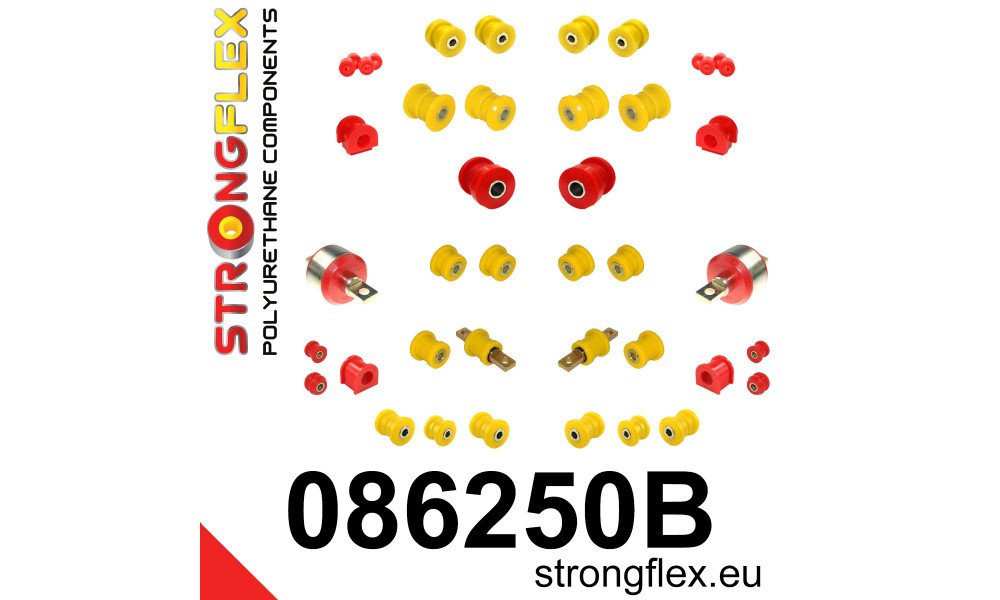

Product Name: Full Suspension Bush Kit

Compatibility:

• Honda Civic VI (95-00) UK MA / MB / MC
• MG ZS / 5 (95-07)
• Rover 400 II (95-00) HH-R
• Rover 45 (99-05)

Included Components:

• 2x 081094A: Front wishbone outer bush (SPORT)
• 2x 081095A: Front wishbone inner bush (SPORT)
• 2x 081097B: Front anti-roll bar bush
• 4x 081100A: Front upper wishbone bush (SPORT)
• 8x 081109B: Front eye bolt mounting bush
• 2x 081118B: Front lower wishbone rear bush
• 2x 081103A: Rear upper outer link/hub bush (SPORT)
• 2x 081104A: Rear trailing arm mount bush (SPORT)
• 2x 081105B: Rear trailing arm mount bush
• 4x 081107A: Outer arm to hub bush inner track arm bush 35mm (SPORT)
• 4x 081108A: Rear toe link arm bush (SPORT)
• 2x 081155A: Rear lower shock mounting bush version 5d (SPORT)
• 2x 081443B: Rear anti-roll bar bush
• 0/2x 081196B: Rear anti-roll bar bush link
• 0/2x 081521B: Rear anti-roll bar bush link

Diagrams:

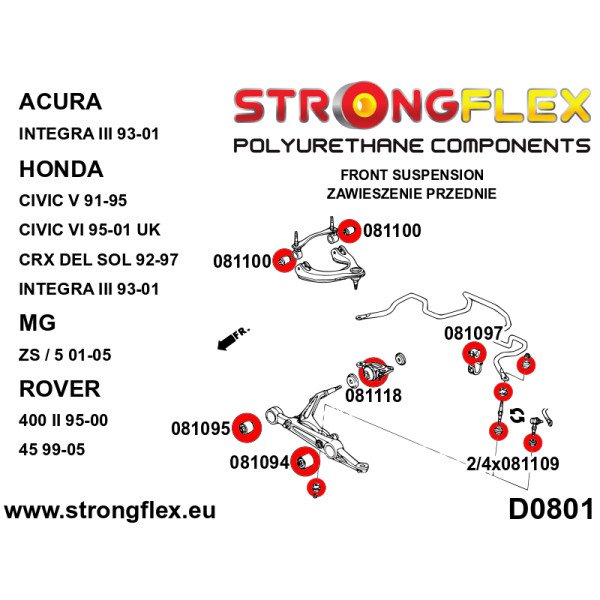

• D0801
• D0806

Important Notes

• Choose the appropriate rear stabilizer link: 0 x 081196, 0 x 081521 for ball links, or 2 x 081196, 2 x 081521 for links with rubber bushes.
• Bushings 081105B are available as polyurethane "inserts" without metal components (inner and outer sleeves). To install the "insert," you will need the external metal ring and inner sleeve from the original rubber bush. Ensure the original internal metal bushing has a diameter of 30mm before selecting the "insert" option.
  The old bush must be removed by burning or cutting it out. Note that bushing 081105B is not a direct replacement for the original; it will stiffen the suspension.

Required per Vehicle: 1

Pieces per Product: 1

Pieces per Kit: 38/42

Hardness: 80Sha

Material: POLYURETHANE (PUR/PU)

Each kit comes with complimentary grease for optimal performance!
