Technical Specifications

• Application: Compatible with VW V6 R32 3.2L/3189cc and Audi V6 3.2L/3123cc (bore 84mm+)

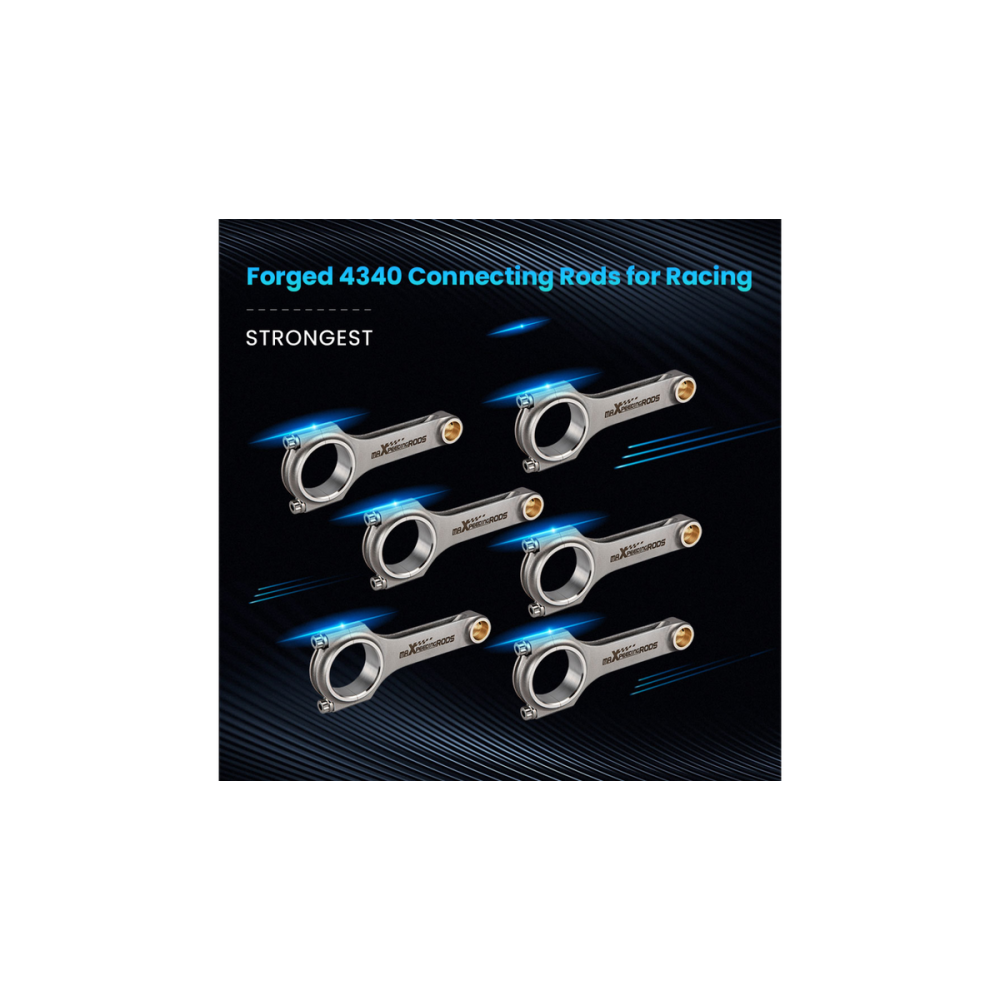

• Material: Forged 4340 chrome moly steel, engineered for racing

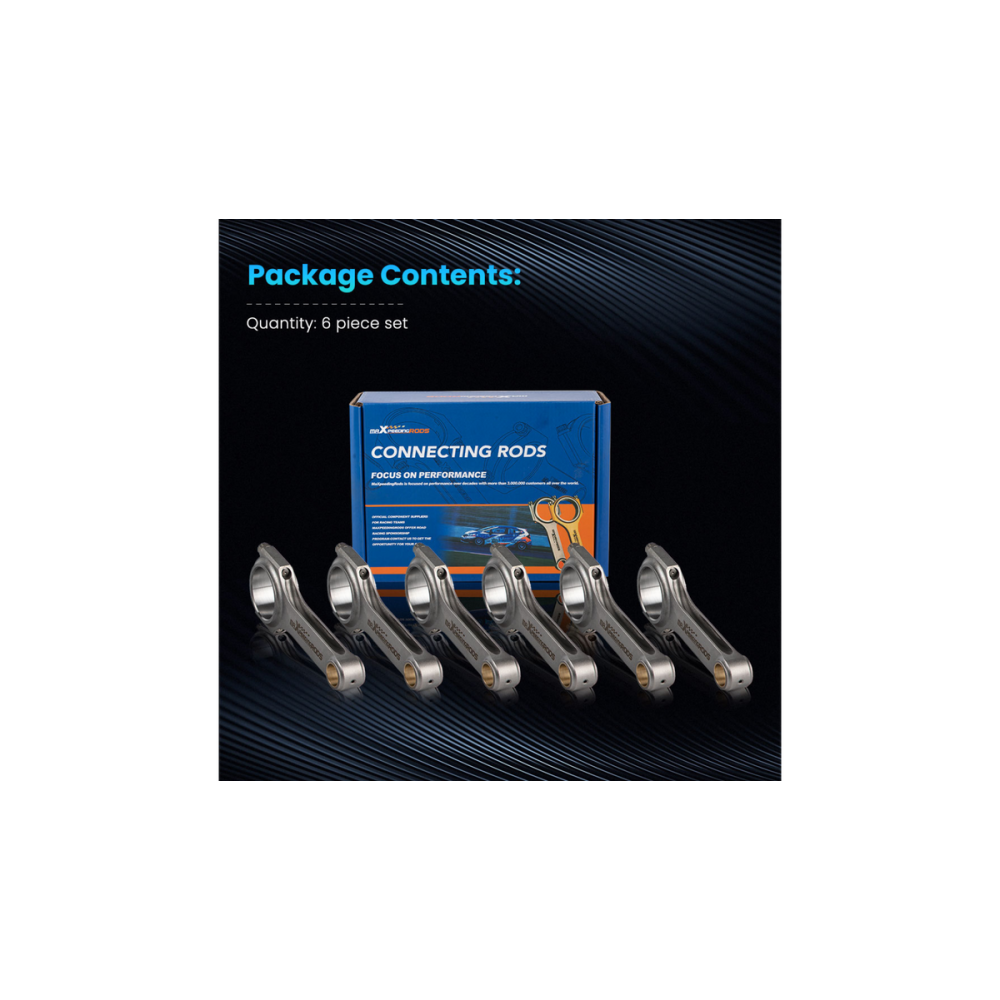

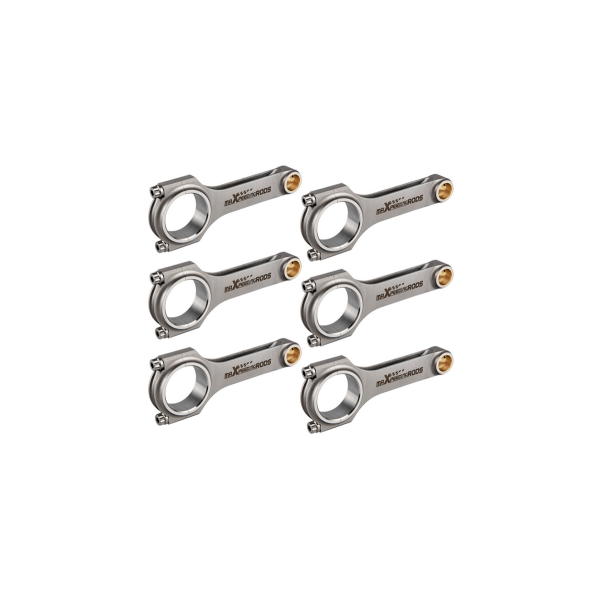

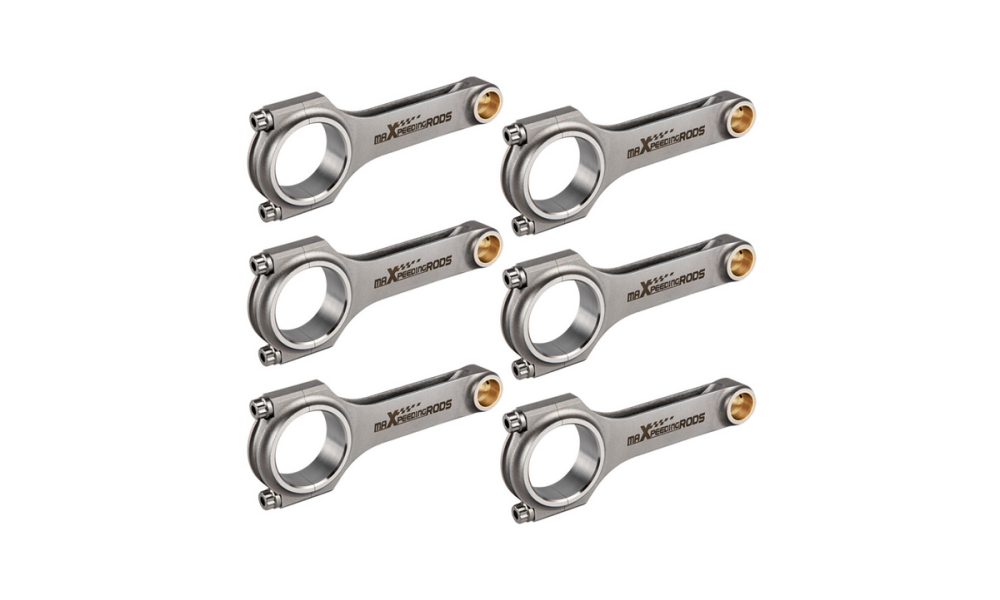

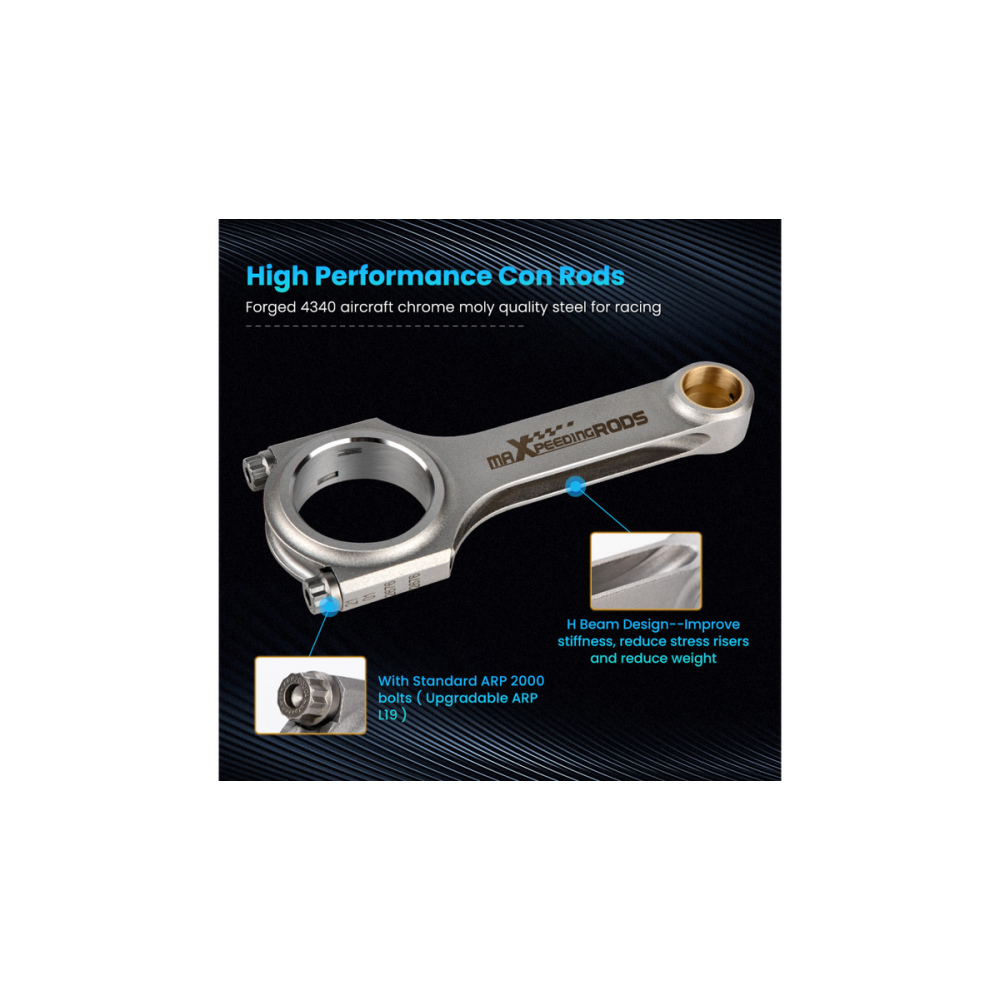

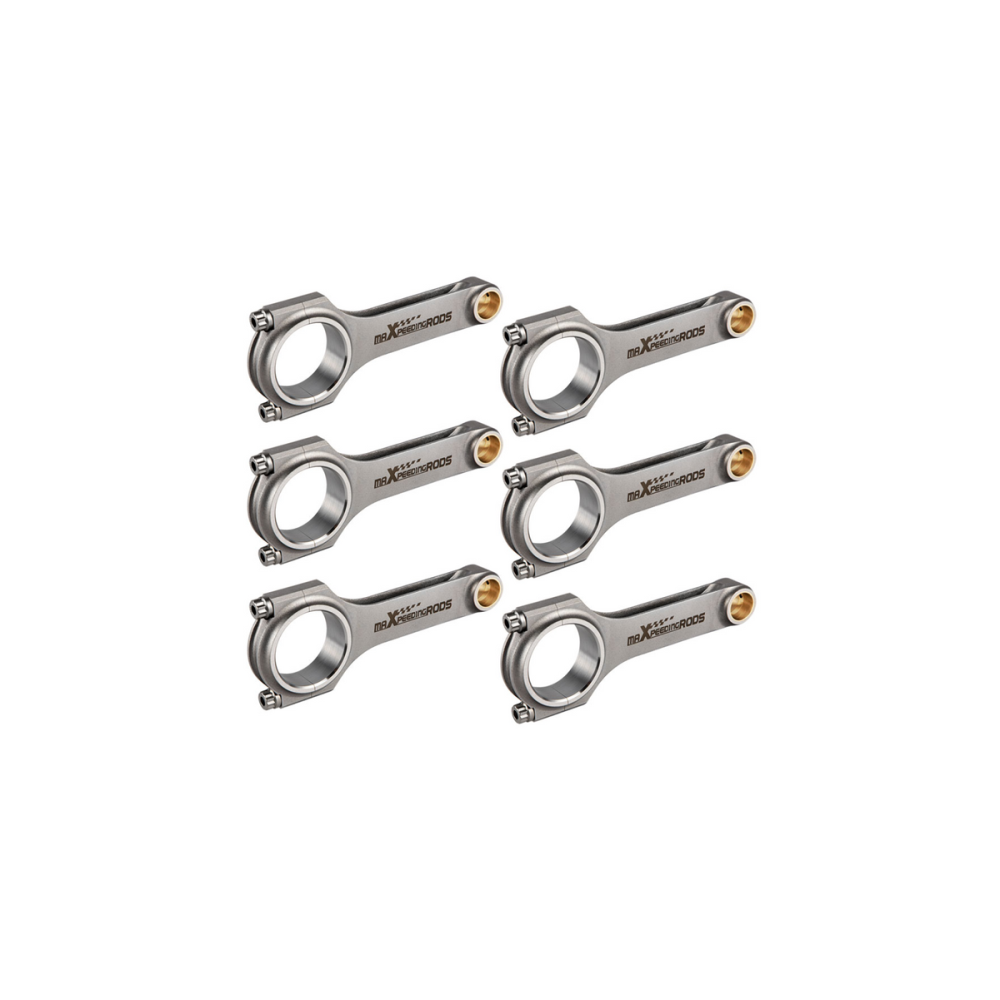

• Con Rods: H-beam design, 6 pieces per set
• Fasteners: Genuine ARP 2000 3/8" bolts included (optional upgrade to ARP L19 bolts available)
• Weight Tolerance: Balanced to +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±4/1000mm
• Power Rating: Supports 600hp to 800PS per set
• Fastening Strength: Rated at 220,000/230,000 PSI, Torque: 48ft ≈ 65 NM
• Max RPM: Capable of handling up to 9000rpm
• Warranty: One-year coverage against manufacturing defects

Dimensions

• Center-to-Center Length: 164mm
• Big End Diameter: 56.8mm
• Small End Diameter: 20mm
• Big End Width: 19.9mm
• Small End Width: 19.9mm

Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing applications.
- Precision-engineered using advanced CNC machining techniques.
- All ends are meticulously finished with SUNNEN honing for optimal performance.
- Equipped with precision alignment sleeves to secure the rod cap, maintaining bore size and preventing cap movement.

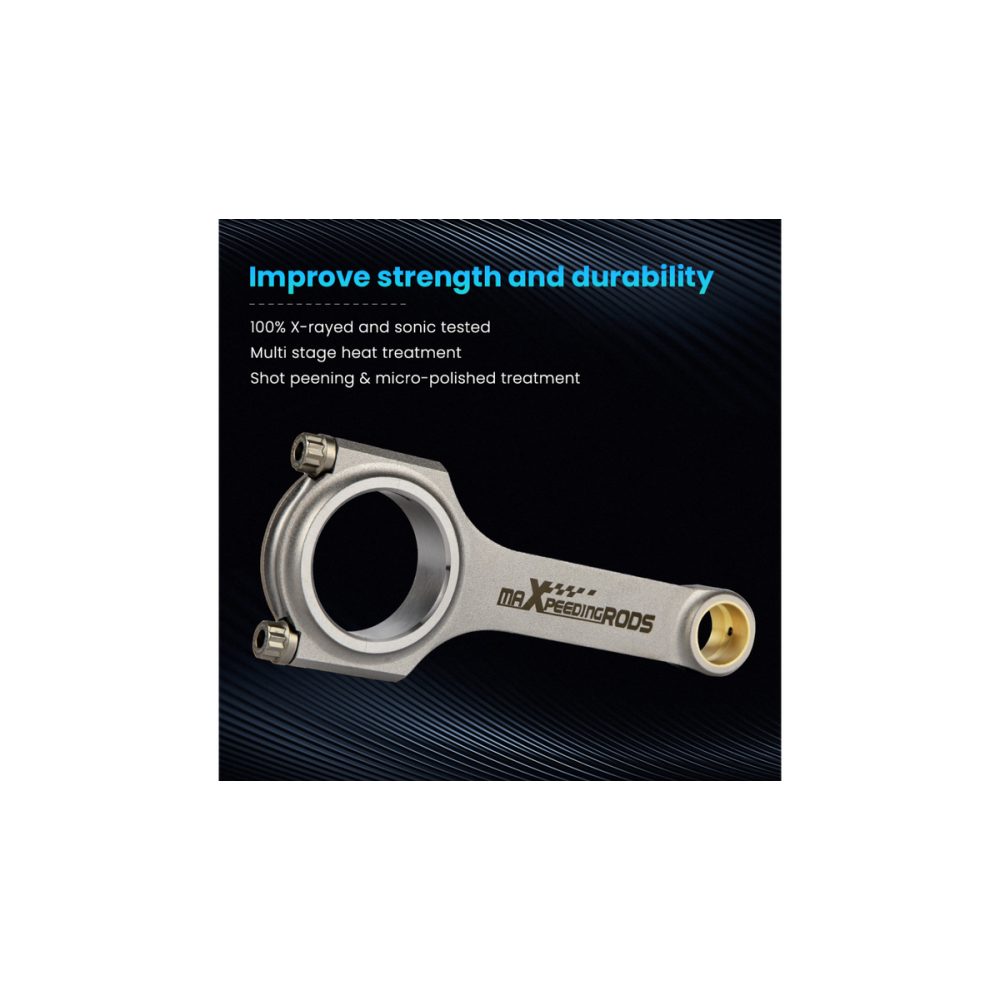

- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnaflux inspection.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peened to relieve internal stresses, ensuring longevity.
- Comes with bronzed bushings designed for floating piston pins.

Important Notes

- Verify the dimensions of the connecting rods carefully before making a purchase.
- Professional installation is strongly recommended; no installation instructions are included.
- Custom Solutions: If you don’t find the specific conrods you need on our site, our team is ready to assist you in identifying your requirements and developing a tailored solution to meet your performance goals.
