Technical Specifications

• Type: H-beam Connecting Rods

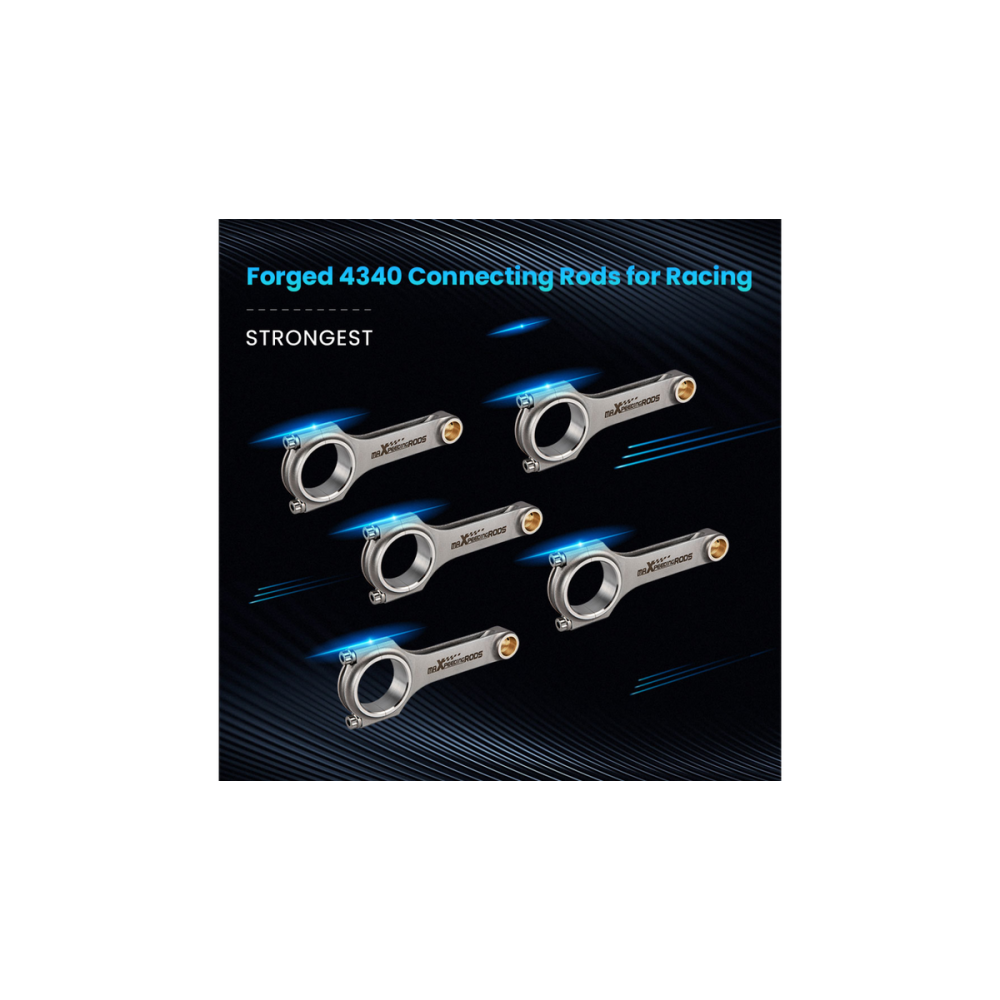

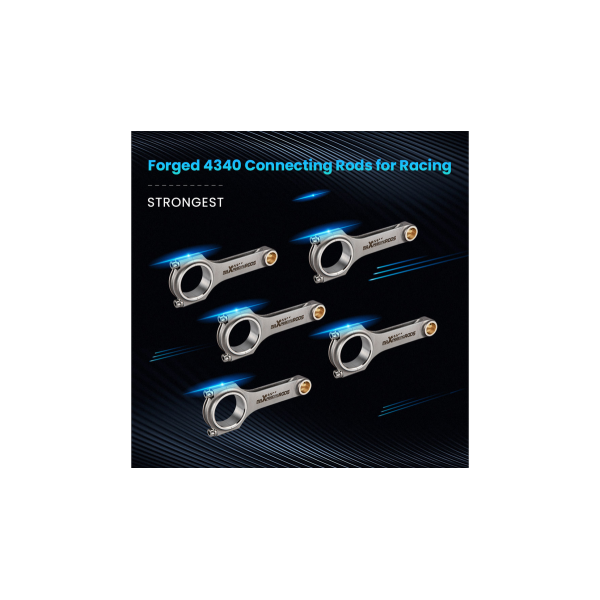

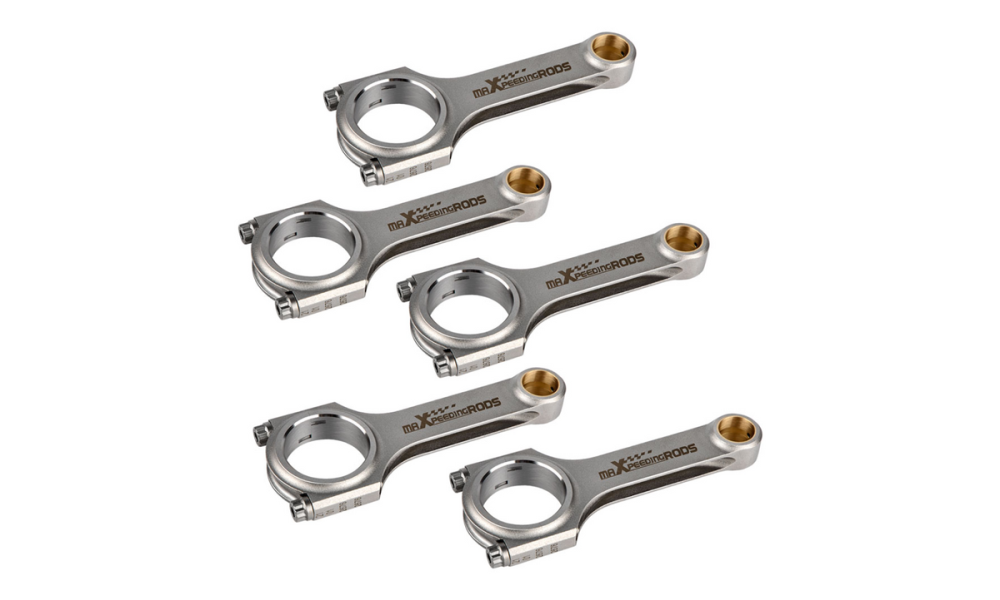

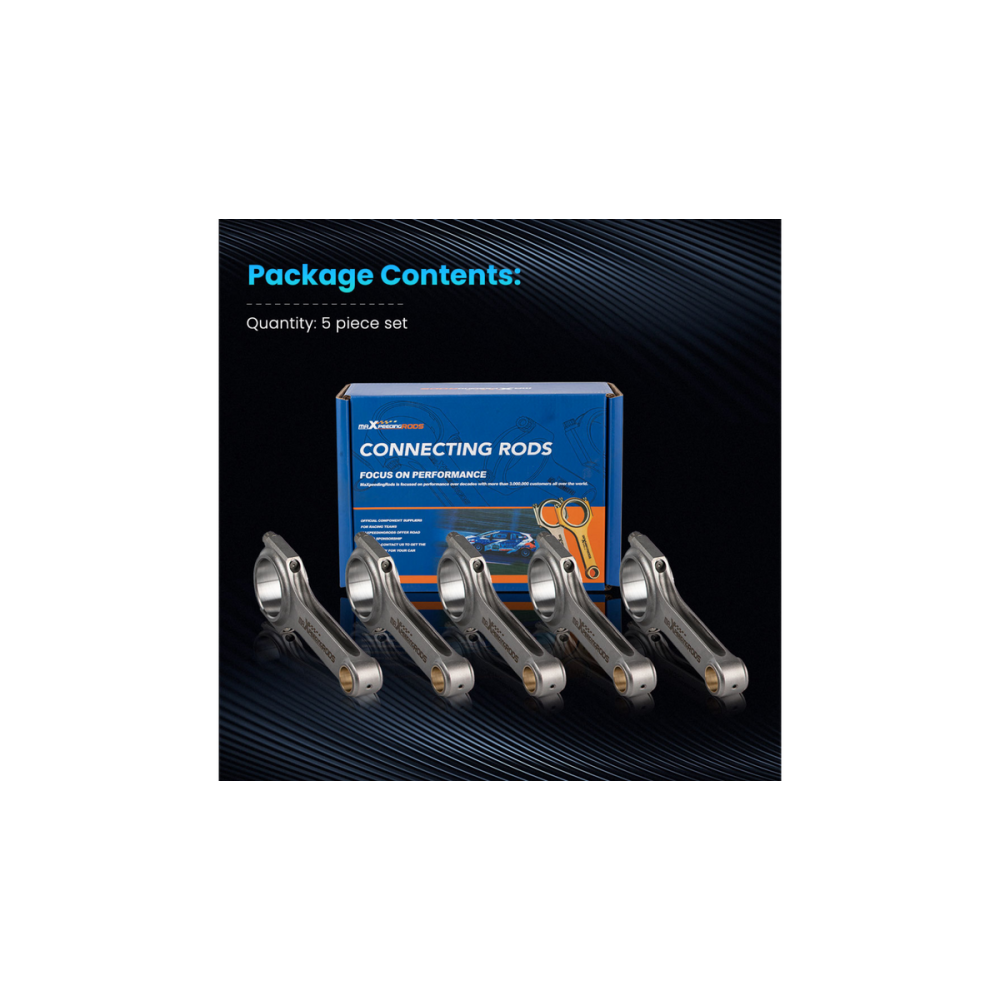

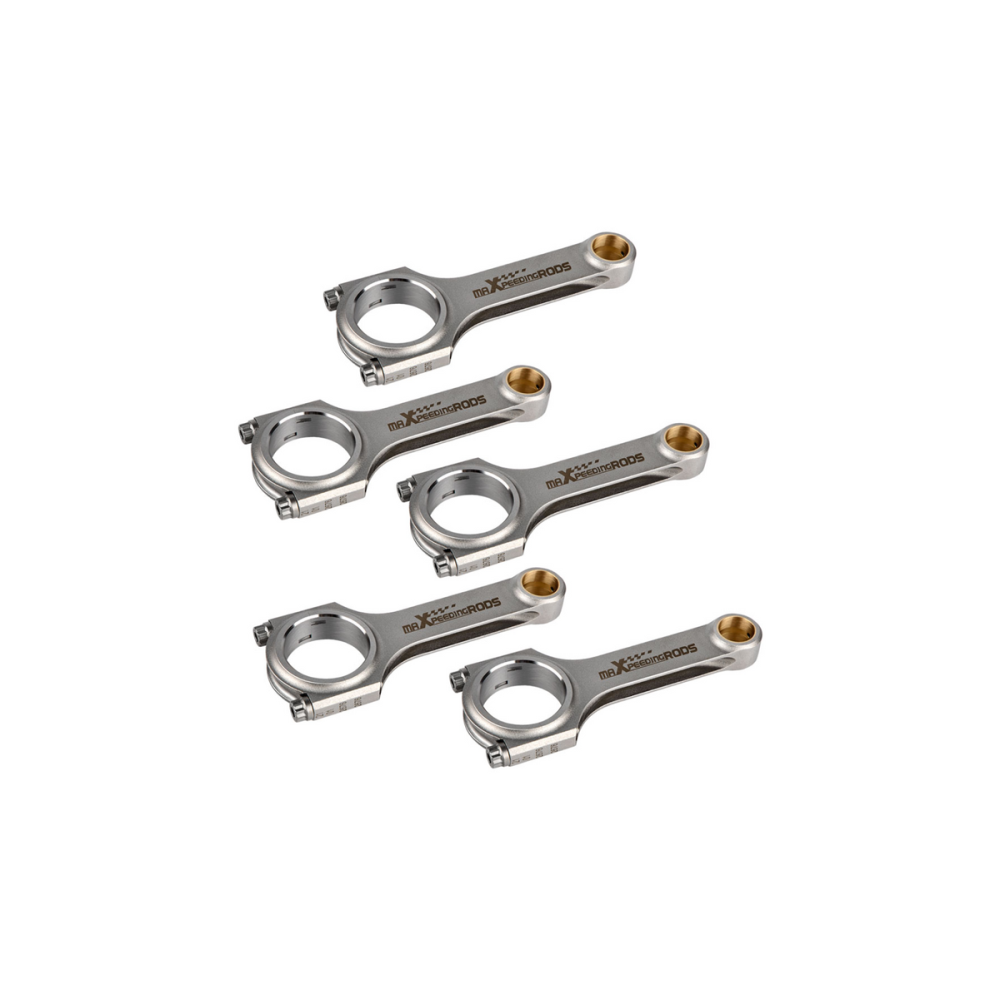

• Quantity: 5 pieces (as depicted in the image)
• Included Bolts: Genuine ARP 2000 bolts
• Bolts Size: 3/8" ARP 2000
• Horsepower Rating: 200HP per rod
• Max RPM: 9000
• Material: Forged SAE 4340 Chrome Moly Steel
• Optional Upgrade: ARP L19 bolts rated at 260,000 psi

Application Compatibility

Ensure to verify dimensions before purchase. Note: No tapered small end.

• Compatible with Audi RS2 Quattro 2.2 L 5-cylinder 20v turbo
• Fits Audi 80 8C, B4 (1993-1994) Saloon S2 quattro 2226ccm 230HP
• Fits Audi 80 8C, B4 (1994-1995) Estate RS2 quattro 2226ccm 315HP

Dimensions

• Center-to-center length: 144mm (≈5.67 in.)
• Big end diameter: 50.6mm (≈1.99 in.)
• Small end diameter: 20mm (≈0.79 in.)
• Big end width: 24.9mm (≈0.98 in.)
• Small end width: 24.9mm (≈0.98 in.)

Key Features

1. High-performance connecting rods designed for racing applications.
2. Constructed from forged SAE 4340 Chrome Moly Steel, ensuring exceptional strength and durability.
3. Comes with genuine ARP 2000 bolts; optional ARP L19 fasteners available for enhanced performance.

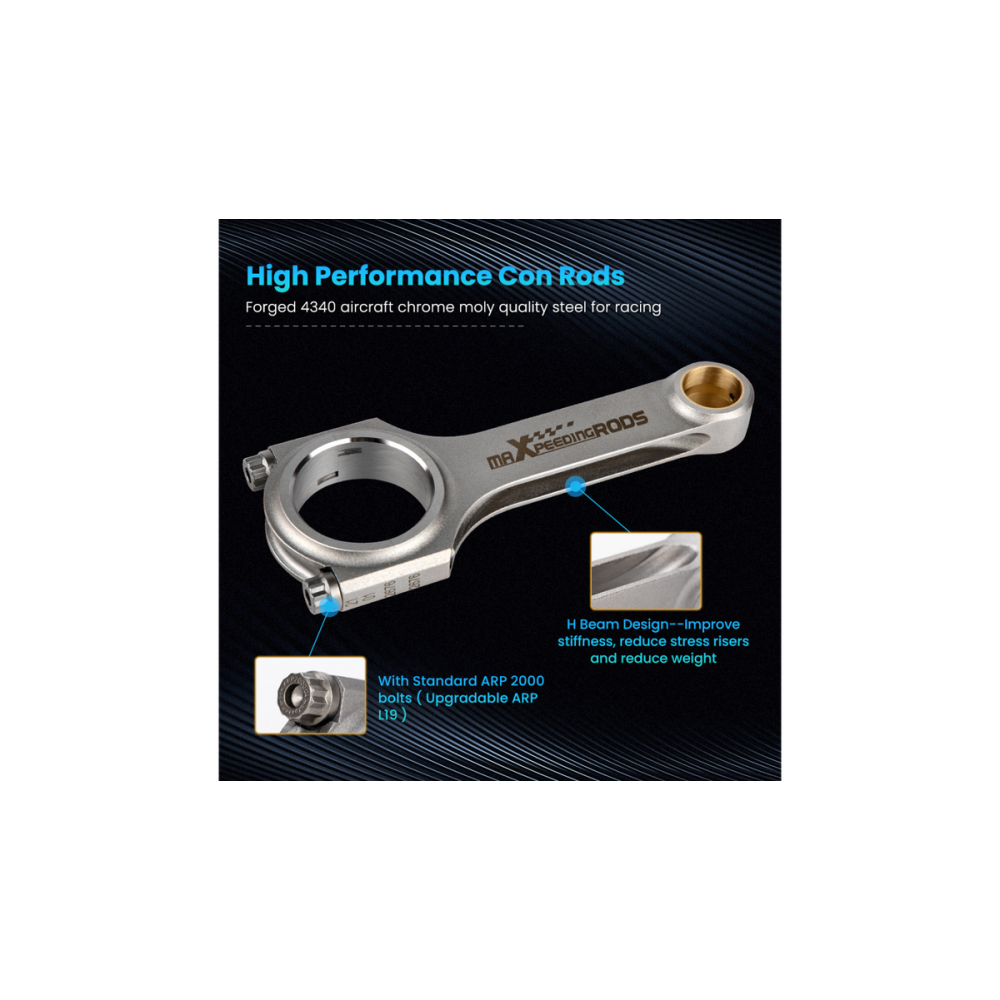

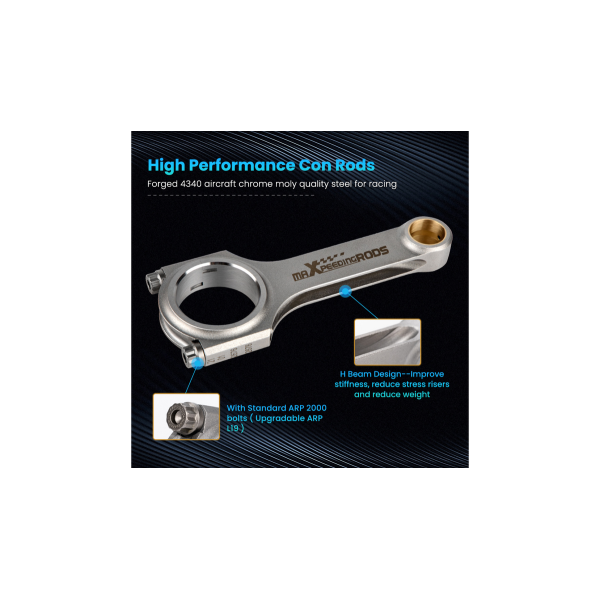

4. H-beam design optimizes weight while maintaining structural integrity.

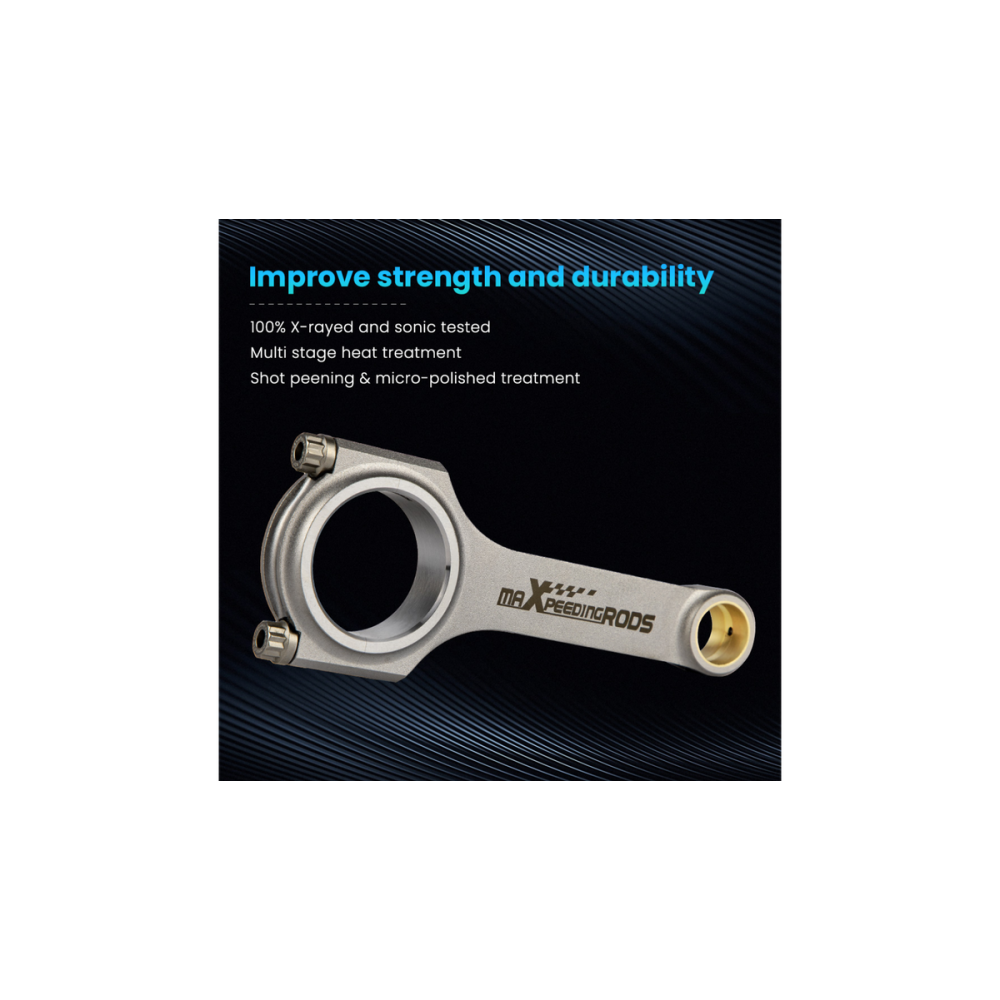

5. Heat-treated and shot-peened to eliminate stress risers and enhance longevity.

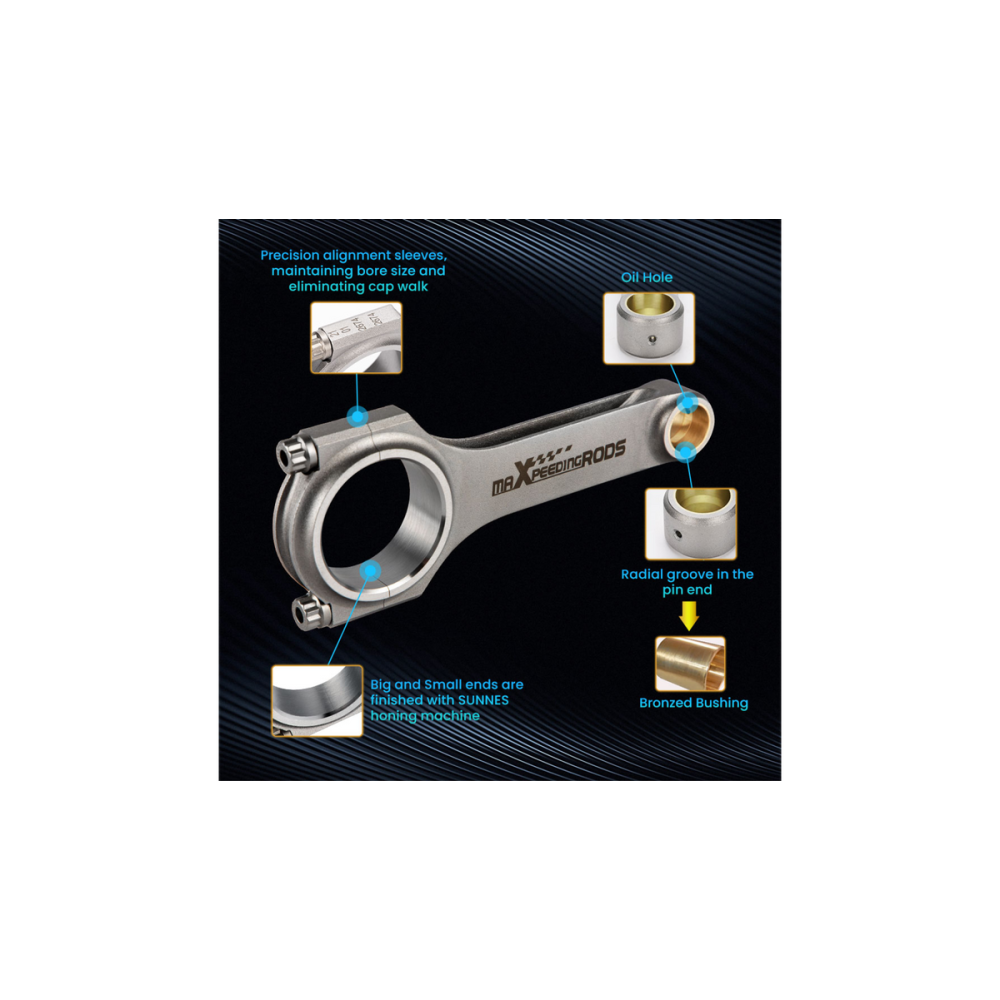

6. 100% CNC machined for precision, featuring rod cap alignment dowels.

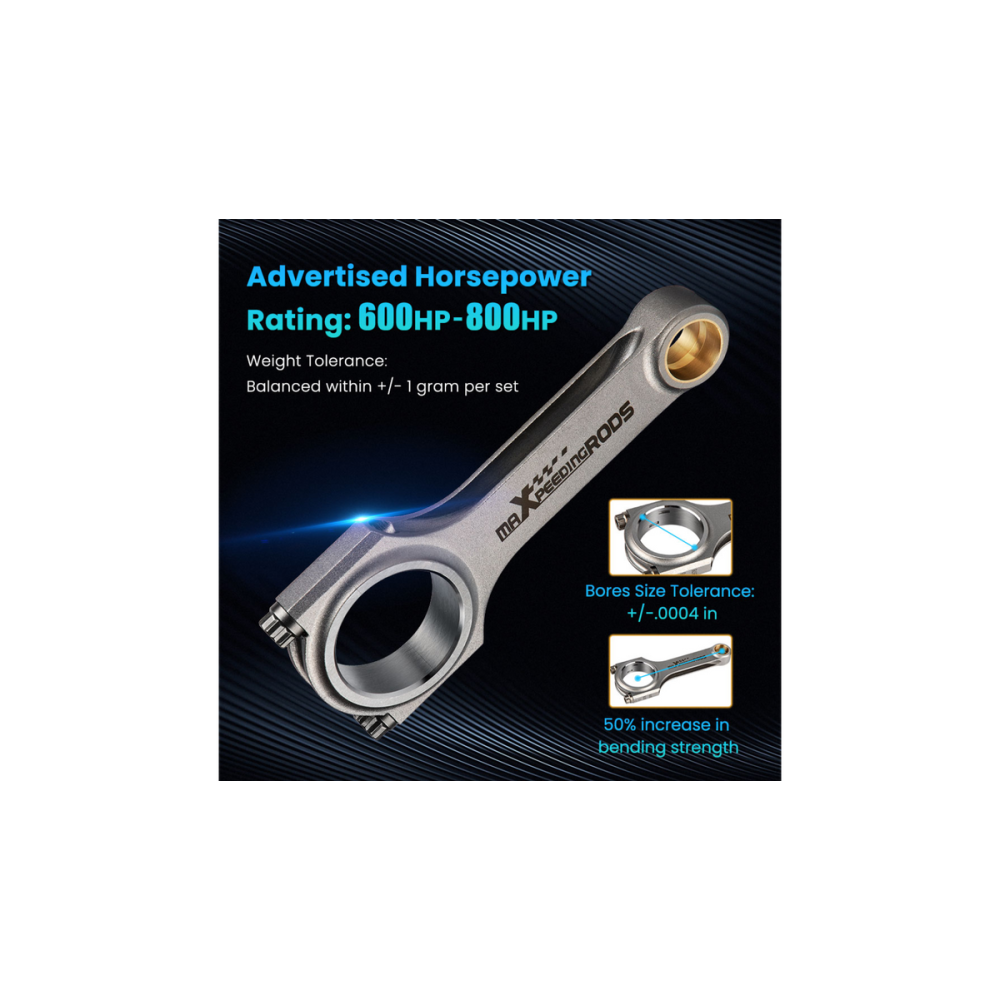

7. Bores finished to a tolerance of +/- 0.01 mm for optimal fit.
8. Balanced to within +/- 1 g per rod for smooth operation.
9. Each rod undergoes magnetic particle testing to ensure flaw-free performance.
10. 100% X-rayed and sonic tested for quality assurance.

Important Notes

- Carefully verify the dimensions of the rods as specified.
- Professional installation is strongly recommended; no installation instructions are included.
