Technical Specifications

• Material: Forged 4340 aircraft-grade chrome moly steel

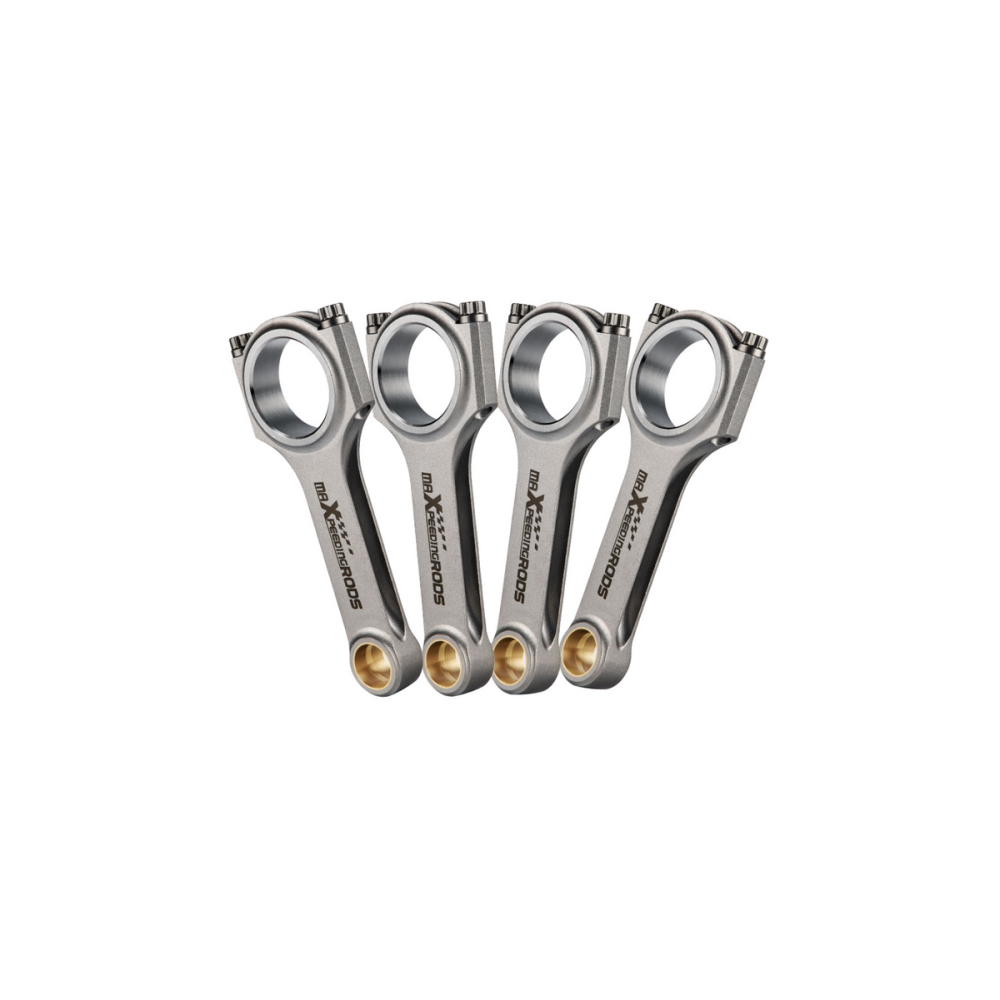

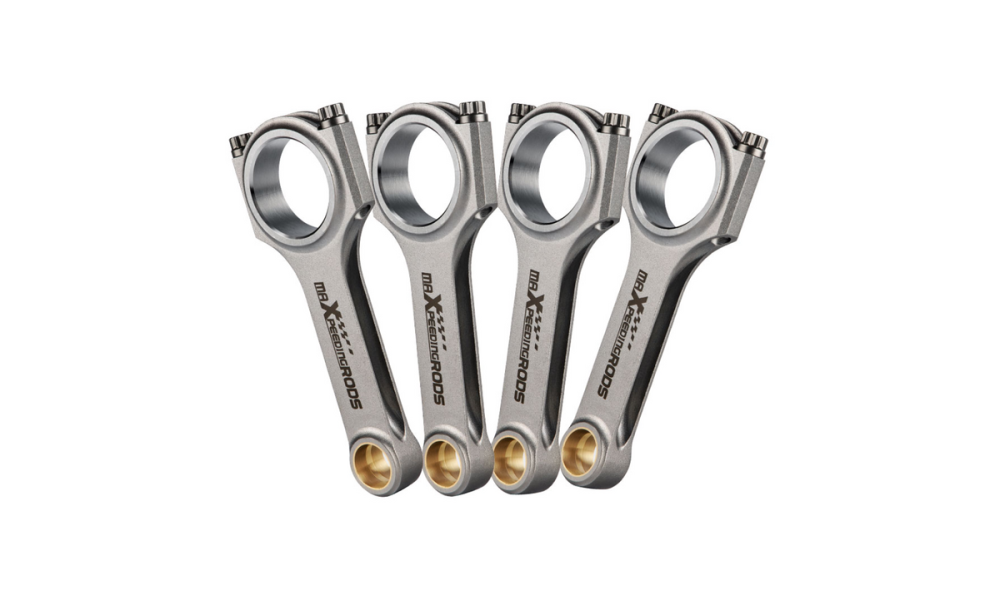

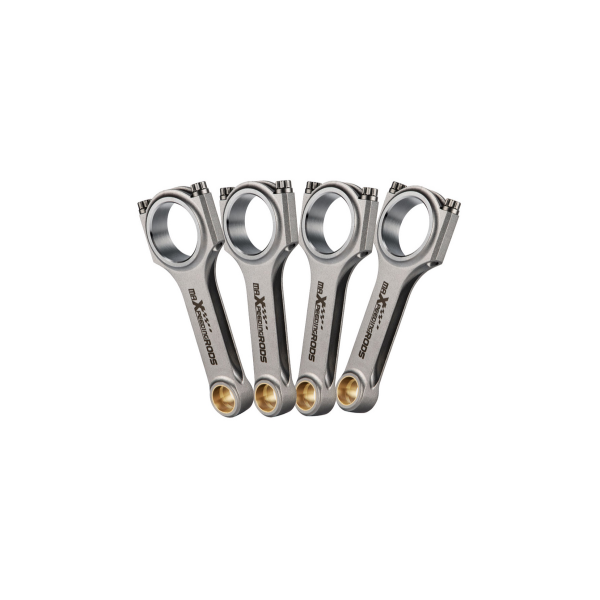

• Type: H-beam Con Rods

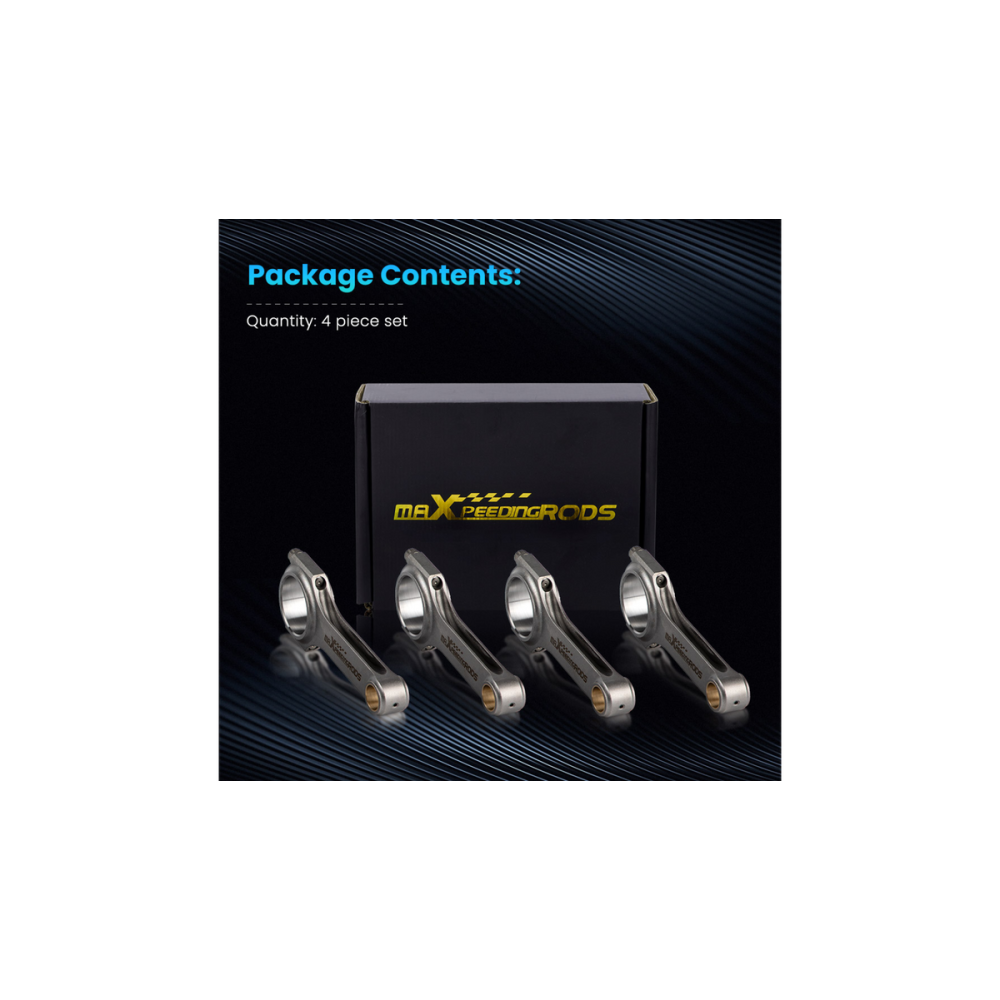

• Set Quantity: 1 set includes 4 pieces
• Included Bolts: Genuine ARP 2000 bolts (upgrade option available for ARP L19 bolts)
• Bolts Size: 3/8" ARP 2000
• Weight Tolerance: Balanced to +/- 1 gram per set
• Piston Bolt Hole Tolerance: ±4/1000mm
• Power Rating: Capable of supporting 600hp to 800PS
• Fastening Strength: 220,000/230,000 PSI
• Torque: 48ft ≈ 65 NM
• Max RPM: 9000rpm
• Warranty: One-year warranty against manufacturing defects

Application Compatibility

• Rover Coupe 1.8 16v (1996 - 1998)
• Rover K 1.8L 16V 18K4F
• MG Lotus Elise
• Rover 25 RF (1999 - 2005)
• Lotus Elise (1995 - 2001)
• MG TF (2002 - 2009, 120 & 160)
• MG ZR (2001 - 2005, 120 & 160)
• MG ZS (2001 - 2005, 120)
• MG ZT (2003 - 2005)
• MG MGF RD (1995 - 2002)
• Caterham Seven CF (1996 - 2015)
• Rover Streetwise (2003 - 2005)

Dimensions

• Center to Center Length: 133.1mm
• Big End Diameter: 51.68mm
• Small End Diameter: 18mm
• Big End Width: 22.5mm
• Small End Width: 15mm

Key Features

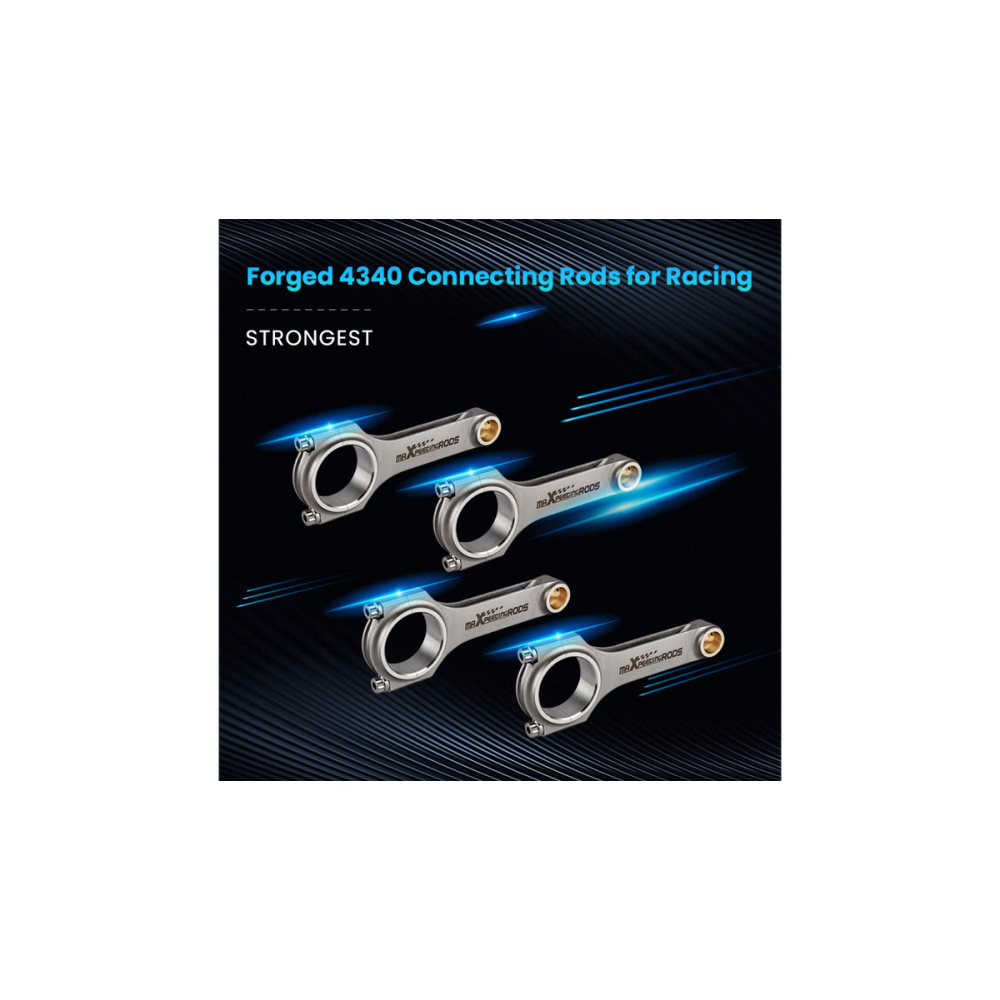

- Crafted from high-strength SAE 4340 Chrome Moly Steel, engineered for racing applications.
- Precision CNC machined for optimal performance.
- Finished with SUNNEN honing for superior big and small end quality.
- Equipped with precision alignment sleeves to ensure accurate rod cap positioning, preventing cap walk and maintaining bore size.
- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances durability and performance.
- Shot peened to relieve internal stresses.
- Includes bronzed bushings designed for floating piston pins.

Installation Notes

- Professional installation is strongly recommended; no installation instructions are provided.
- Custom Services: If you can't find the conrods you need on our site, our team is ready to assist you in determining your requirements and developing a tailored solution to meet your performance goals.
