Technical Specifications

• Material: Forged 4340 Chrome Moly Steel
• Con Rods Type: H-beam, 4 pieces per set
• Included Bolts: Genuine 3/8" ARP 2000 bolts (upgrade option available for ARP L19 bolts at additional cost)
• Torque Capacity: 48 ft-lbs (approximately 65 NM)
• Power Rating: Supports 600hp to 800hp
• Strength: Fastening strength of 220,000 to 230,000 PSI
• Top RPM: Capable of handling up to 9000 RPM
• Tolerance: Balanced to +/- 1 gram per set
• Piston Bolt Hole Tolerance: +-4/1000mm

Compatibility

• Designed for Nissan S13, S14, Silver 180SX, 200SX, and Pulsar models with SR20, SR20DE, and SR20DET engines.
• Fits Infiniti G20 and Nissan Primera (1990–1996) with 2.0L SR20DE I4 engine (140 hp).
• Compatible with Nissan Primera Camino P11 (1998–2002) featuring 2.0L SR20DE I4 engine (140 hp in 1999 and 145 hp from 2000 to 2002).

Dimensions

• Center-to-Center Length: 136.3mm
• Big End Diameter: 51mm
• Small End Diameter: 22mm
• Big End Width: 22.8mm
• Small End Width: 22.8mm

Key Features

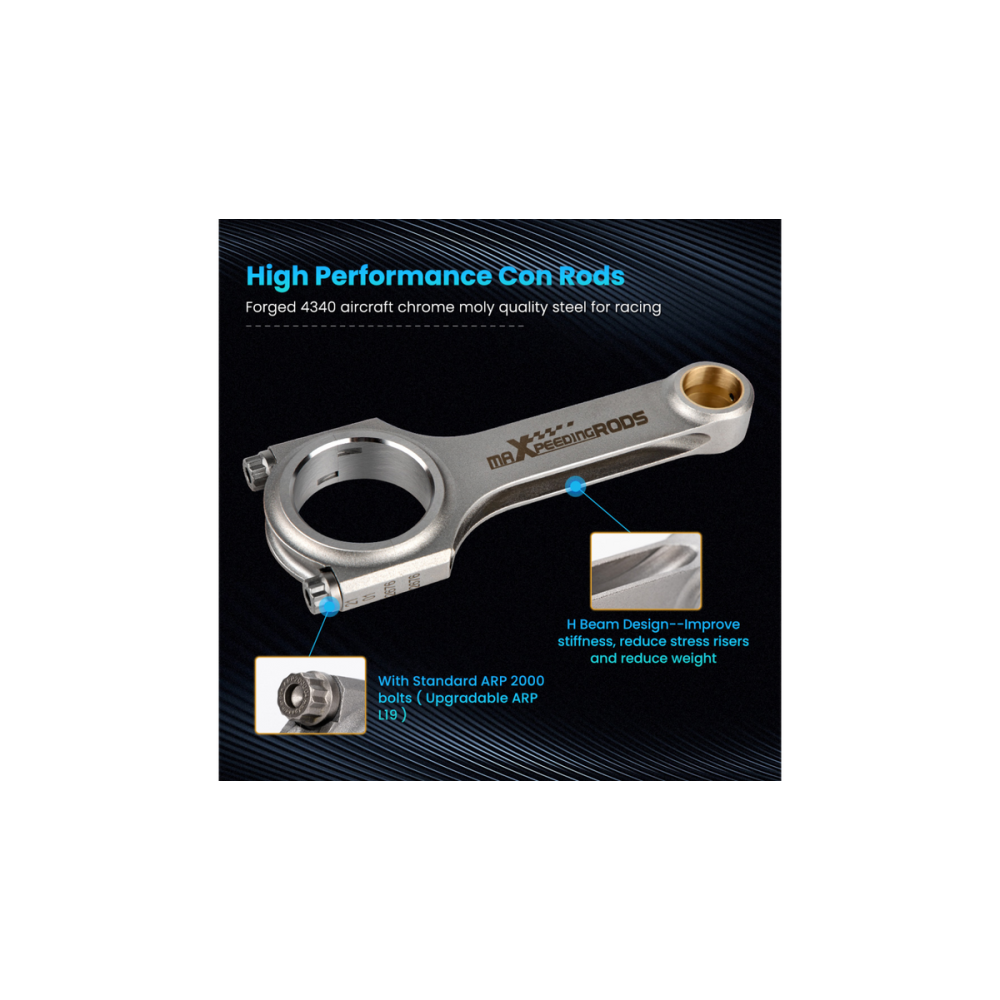

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing applications.
- Precision-engineered using advanced CNC machining for optimal fit and finish.
- All ends are meticulously honed with SUNNEN technology for superior surface quality.
- Features precision alignment sleeves to secure the rod cap, maintaining bore size and preventing cap movement.

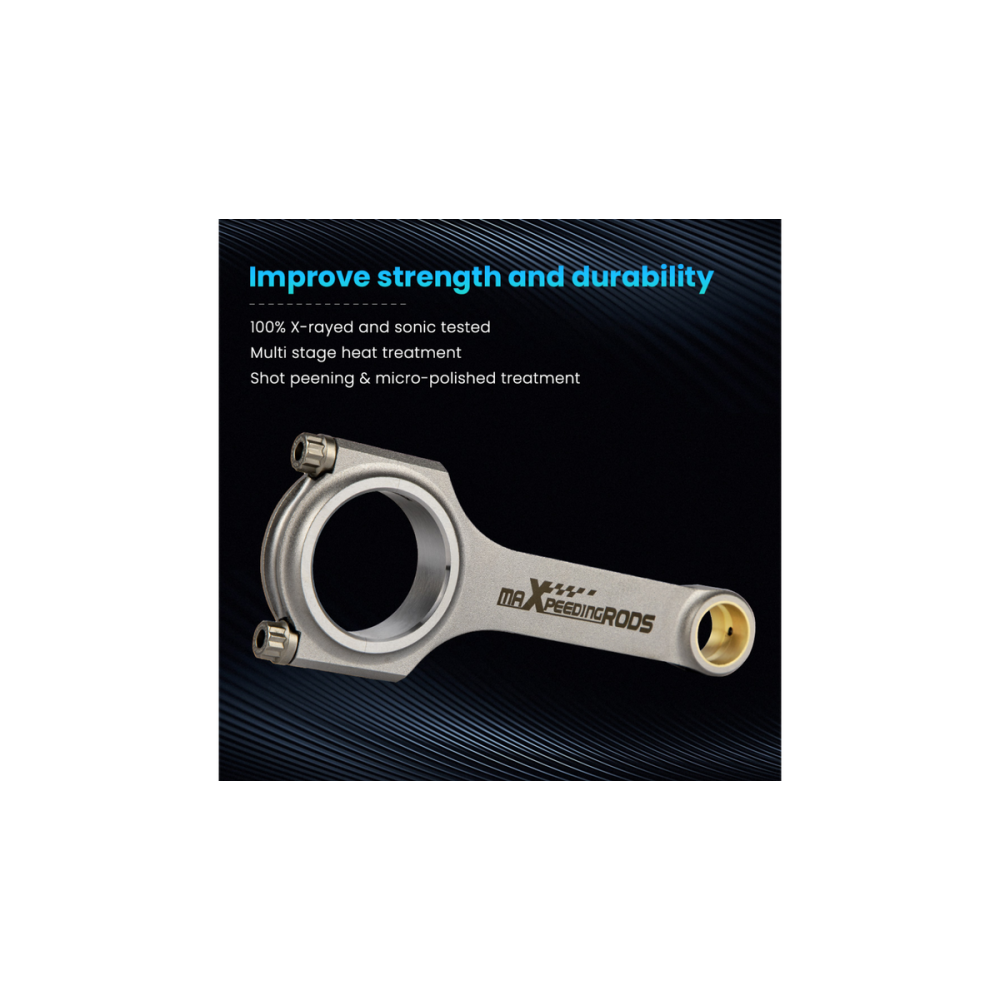

- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peened to relieve internal stresses, promoting longevity.
- Supplied with bronzed bushings designed for floating piston pins, ensuring smooth operation.

Installation Note

- Professional installation is strongly recommended as no instructions are included with the product.
