Technical Specifications

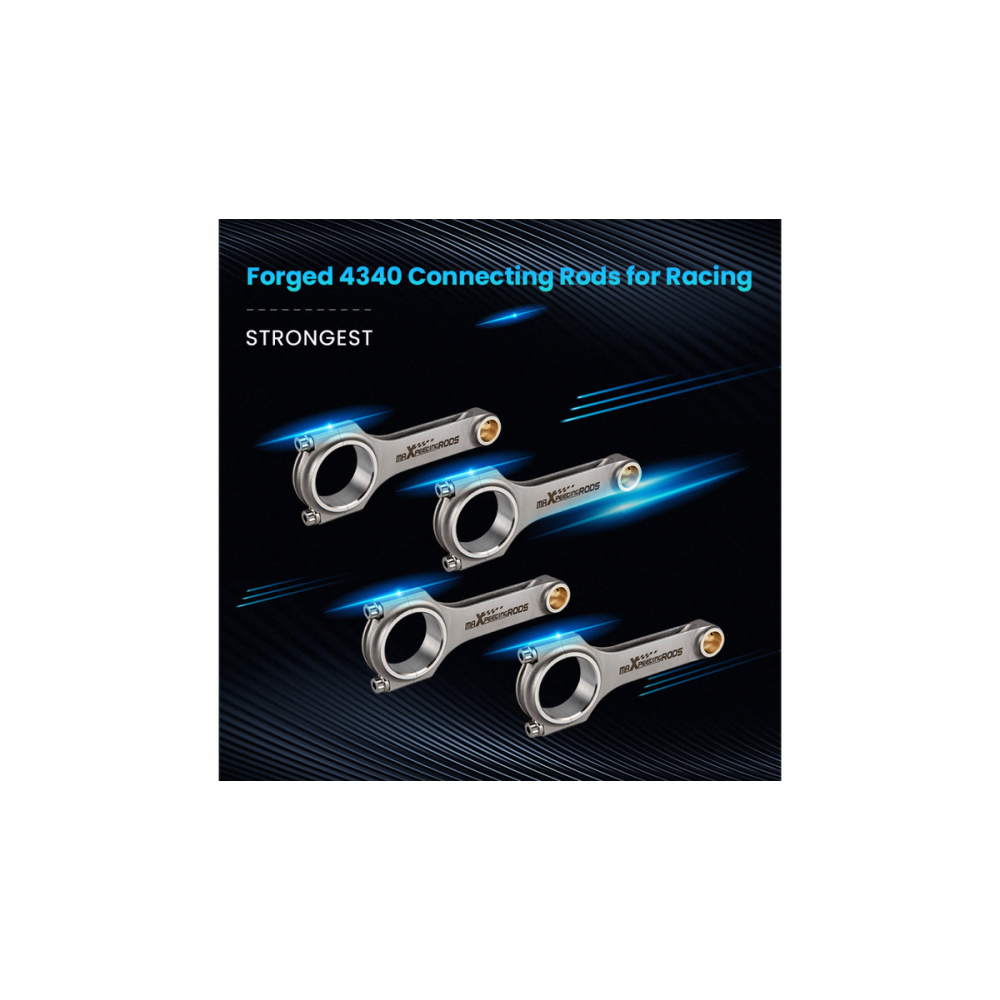

• Material: Forged 4340 Chrome Moly Steel, engineered for racing applications

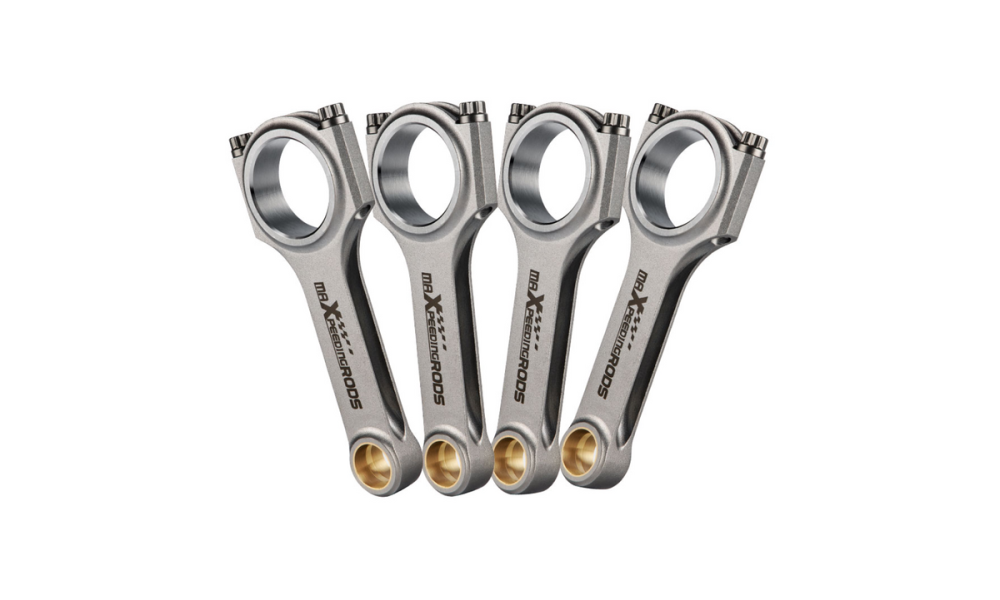

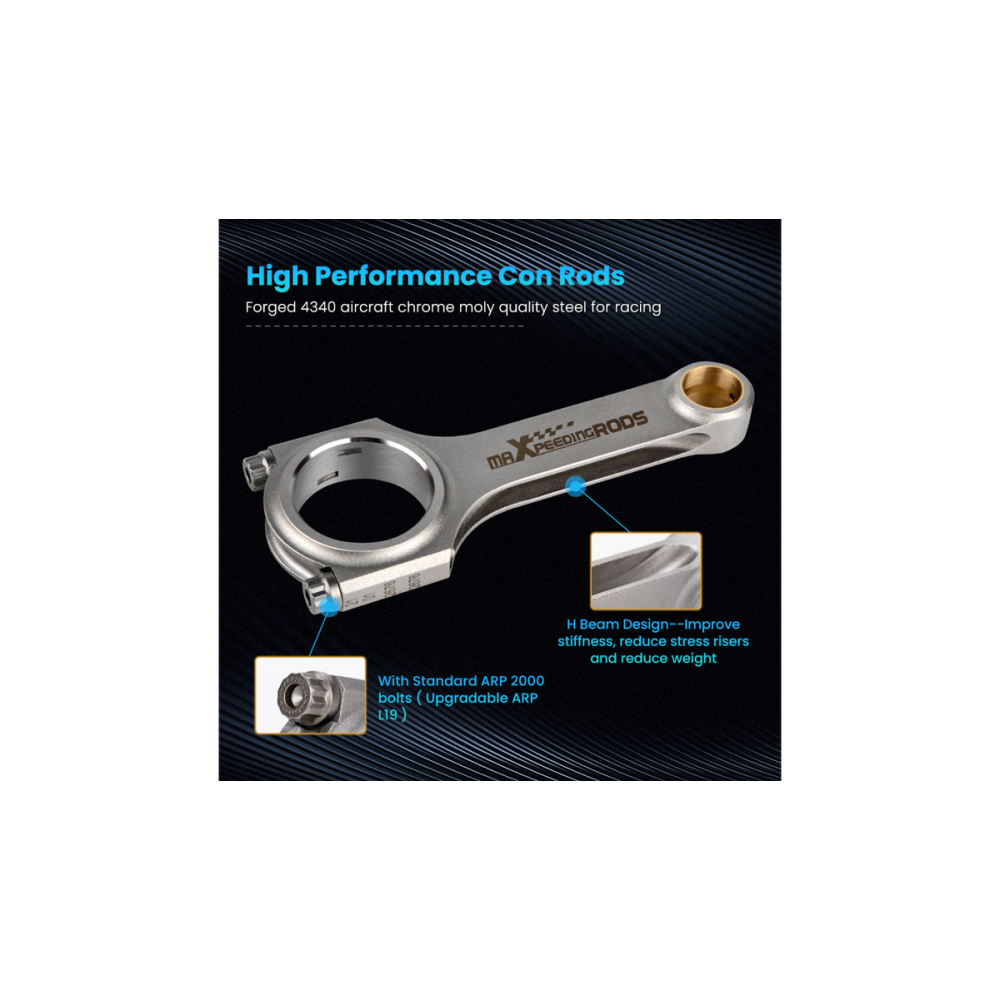

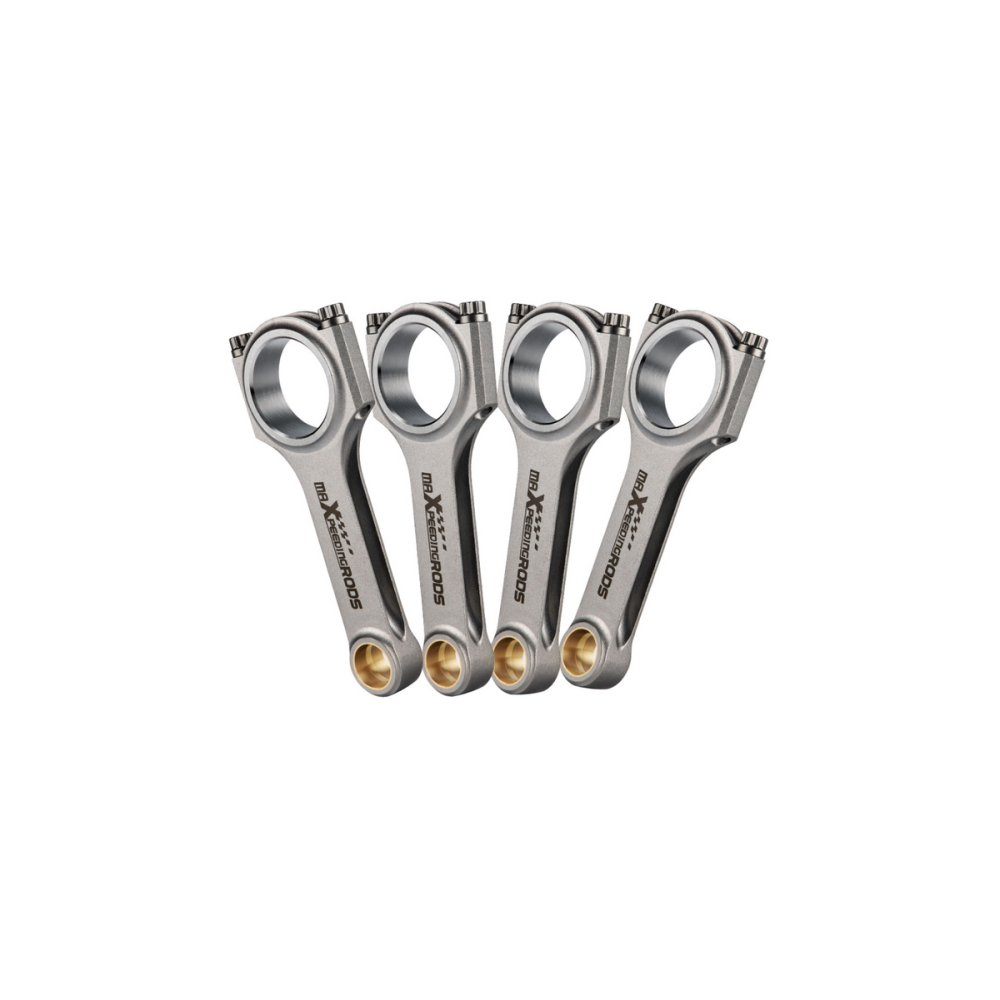

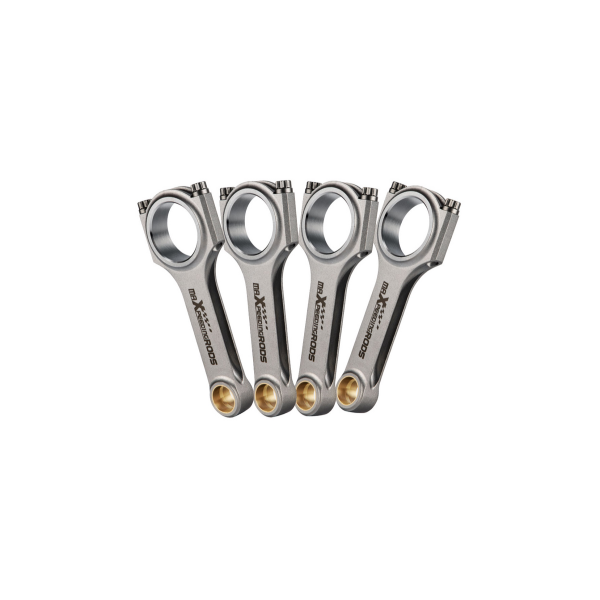

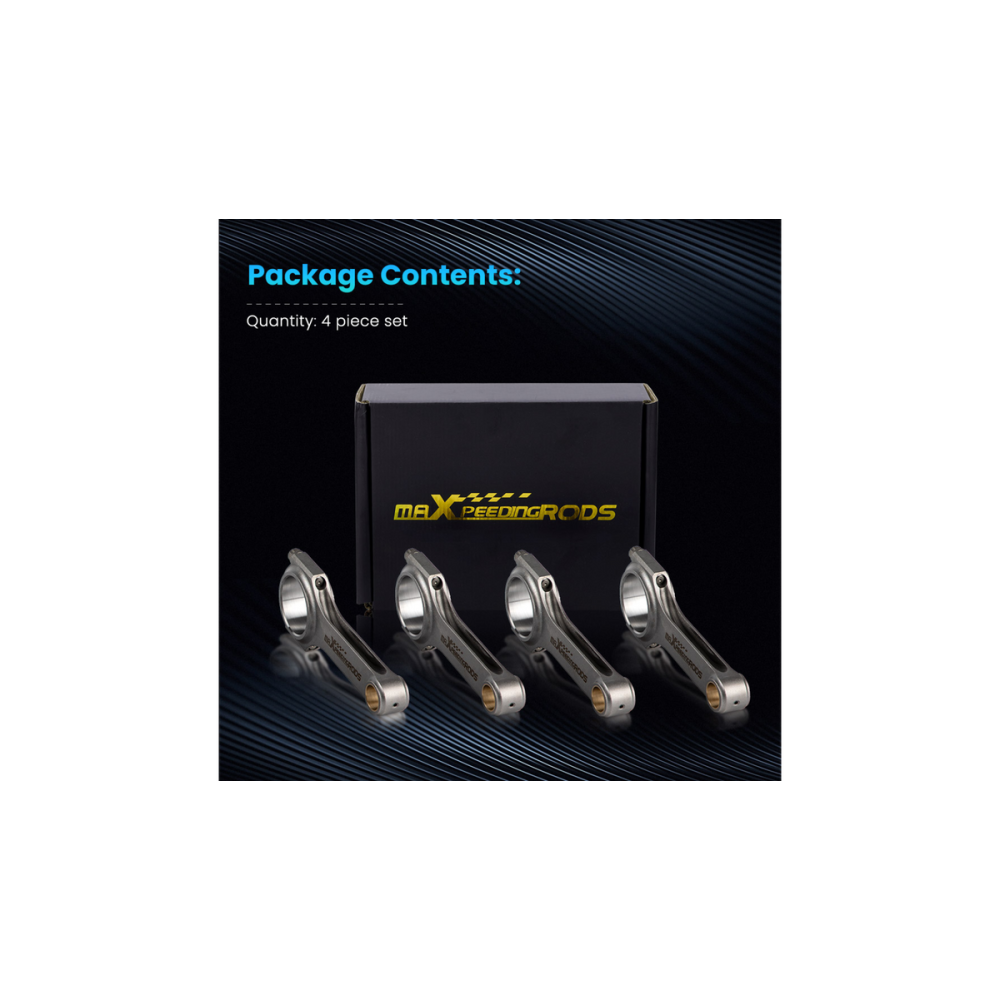

• Con Rods: H-beam design, set of 4 pieces
• Included Bolts: Genuine ARP 2000, 3/8" size
• Optional Upgrade: ARP L19 bolts available at additional cost
• Weight Tolerance: Balanced to within +/- 1 gram
• Piston Bolt Hole Tolerance: ±0.004mm
• Power Capacity: Supports 600hp to 800PS per set
• Fastening Strength: 220,000 to 230,000 PSI, Torque: 48ft ≈ 65 NM
• Optimal RPM Range: 7000-9000rpm
• Warranty: One-year coverage against manufacturing defects

Application Compatibility

• Nissan S13 Silvia, 180SX, Bluebird, Sunny with CA18, CA18DE, CA18DET engines
• Nissan Sunny B12 (1985 - 1990) with CA18DE engine
• Nissan Bluebird U11 series (1983 - 1987) with CA18ET/DET turbo engines
• Nissan Bluebird T12/T72 Turbo Violet series (1986 - 1990) with 1.8L CA18ET engine

Dimensions

• Center-to-Center Length: 133mm
• Big End Diameter: 48mm
• Small End Diameter: 20mm
• Big End Width: 24.2mm
• Small End Width: 21mm

Key Features

- Crafted from high-strength SAE 4340 Chrome Moly Steel, ensuring exceptional durability and performance for racing enthusiasts.
- Precision-engineered using advanced CNC machining for optimal fit and finish.
- All ends are meticulously honed with SUNNEN technology for superior surface quality.
- Features precision alignment sleeves to secure the rod cap, maintaining bore size and preventing cap movement.

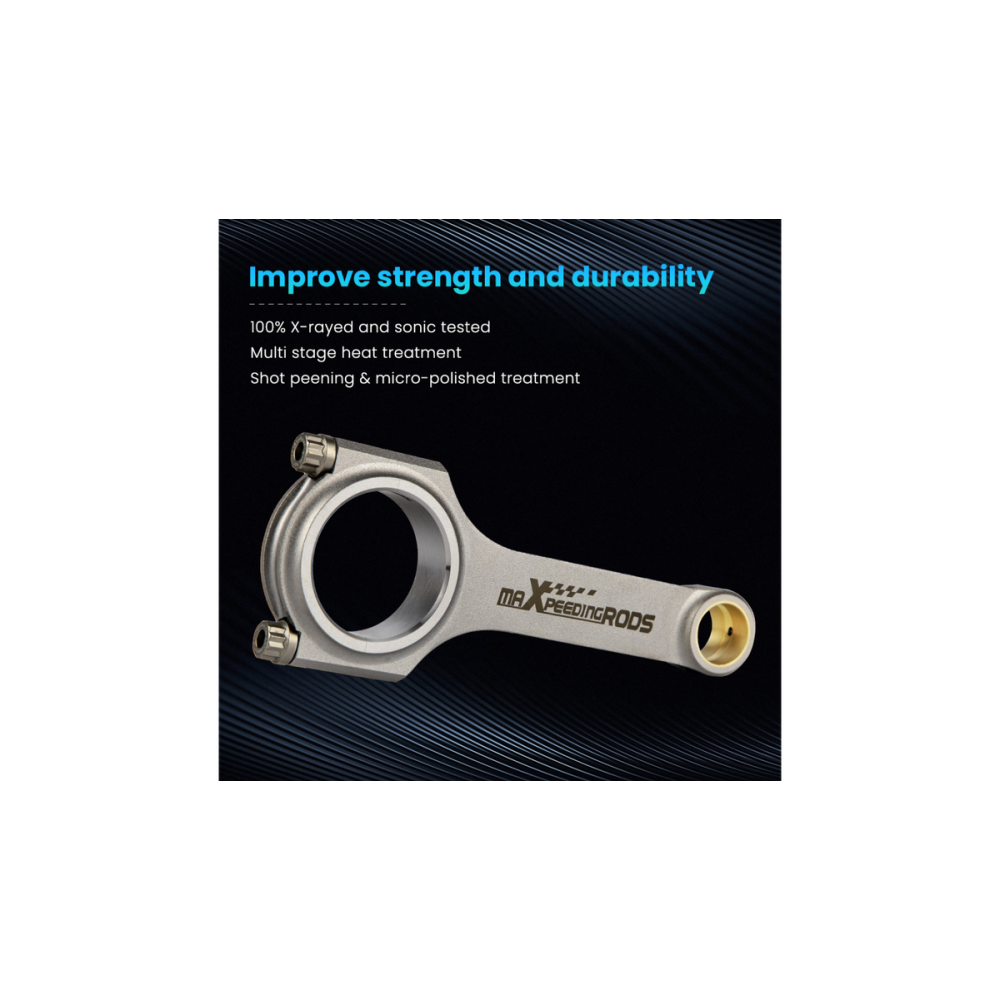

- Each rod undergoes rigorous quality checks, including X-ray, sonic testing, and magnafluxing.
- Multi-stage heat treatment enhances strength and resilience.
- Shot peened to relieve internal stresses, promoting longevity.
- Supplied with bronzed bushings designed for floating piston pins, ensuring smooth operation.

Installation Note

- Professional installation is strongly advised as no instructions are included with the product.
